Condition: ready for operation (used), Year of construction: 2000, spindle bore: 60 mm, center height: 270 mm, center width: 1,500 mm, overall weight: 3,000 kg, fagor 8050 Multifix turret type B Kwodpfxjycr Hte Adwst Ladner 250MM chuck Capacity 1500X540MM Steady rests

Condition: ready for operation (used), functionality: fully functional, Centre distance: 750 mm Swing over bed: 430 mm Spindle bore: 42 mm 24 speeds: 14 – 1400 rpm Drive power: 5.5 HP Weight approx.: 2 t Accessories: steadies, Multifix, Forkardt chuck Condition: The machine runs well; the longitudinal guide is no longer in good condition. Ksdpfeycrwfox Adwswt The machine is low-priced and only suitable for simple tasks.

Condition: excellent (used), Year of construction: 2019, operating hours: 3,140 h, functionality: fully functional, machine/vehicle number: 1162456, Specification Table size 1016mm x 356mm X axis traverse 508mm Y axis traverse 406mm Z axis traverse 356mm Spindle BT40 Spindle speeds 0-15,000rpm Spindle motor 11.2kW Rapid feed rate 30.5m/min Toolchanger capacity 20 Tools Approximate weight 2313Kg Kwodpfeycf S Aex Adwot   MACHINE EQUIPPED WITH:- Haas CNC control Swarf auger Wireless intuitive probing system 12 off BT40 toolholders High speed machining User definable macros Visual part programming system 4th and 5th axis interface (interface only, no 4th or 5th axis) High flow coolant system Lighting Enclosed guarding Manual Power on hours 3140 Cycle start hours 1519 Feed cutting hours 1149

Condition: good (used), Heavy-duty lathe, lathe, lead screw lathe, lead screw lathe Kwjdpfx Aoyaypkedwst -Manufacturer: Strunguri Arad, lead screw and feed screw lathe type SNA560x2000 -Turning length: 2140 mm -Turning diameter over bed: 600 mm -Turning diameter over support: 330 mm -Spindle bore: Ø 65 mm -Spindle speeds: 16 - 1600 rpm -Three-jaw chuck: Ø 310 mm -Tailstock mount: MK5 -Drive motor: 11 kW -Accessories included, see photos -Dimensions: 3700/1050/H1400 mm -Weight: 3600 kg

Condition: ready for operation (used), Year of construction: 1975, Immediately available ex-site: L & Z VDF Lathe Type: 21 RO Year of manufacture: 1975 Centre height: 210 mm Swing over bed: 430 mm Swing over support: 250 mm Spindle bore: 56 mm Kwodpfx Asyayfrodwjt Spindle speeds: 15 – 1400 rpm Drive power: 5.5 kW Weight: 2.5 t Chuck Tool holder Coolant system Price: Euro 2,500.— plus VAT, ex-site.

Condition: refurbished (used), functionality: fully functional, Lathe Kwsdpfxoyapkwe Adwjt Brand: ERNAULT Model: CHOLET 550 Distance between centers: 1000 mm Center height: 250 mm Max. diameter over bed in front of faceplate: 550 mm Max. diameter over bed: 500 mm Max. swing in gap: 710 mm Spindle bore: 52 mm Morse taper: No. 5 Max. cross slide travel: 350 mm Power: 11 hp

Condition: used, L + Z Lathe VOEST ALPINE - WEILER Type DA 210 / 1 Machine No. 1-004/2581 Year of manufacture: 1984 Center distance: 1000 mm Swing over bed: 420 mm Center height over bed: 210 mm Kwedpfxjyah Rvo Adwjt Swing over cross slide: 220 mm Center height over cross slide: 120 mm Spindle bore: 52 mm Spindle speed: 33 - 1500 rpm, 12 steps Chuck flange: short taper DIN 55027 Size 6, 4x M12 Tailstock taper: MT 4 Motor power: 5.5 kW Power supply: 380 Volts, 50 Hz - Spindle speed selectable across 12 geared steps - 3-jaw scroll chuck AROWA Ø 200 mm (only one set of jaws) - Multifix size B quick-change toolholder, with 3 tool cartridges - Automatic longitudinal and face feed - Coolant system - Spindle brake - Emergency stop - Splash guard - Fixed steady rest Ø 160 mm - Machine lamp - Operating manual Dimensions (L x W x H): 2200 x 1200 x 1450 mm Weight: 1500 kg Very good condition

Condition: good (used), Year of construction: 1988, From business liquidation Kern D20A Year of manufacture 1988 Centre distance 1000 mm Spindle bore 45 mm Turning diameter 420 mm 2-axis digital readout by Heidenhain Speed range from 31.5-1400 rpm Rota-S-Plus three-jaw chuck with various interchangeable jaws Multifix Steady rest Tailstock Work light Coolant pump 2x emergency stop Accessories: 5x Multifix Gr.B Kwedpeyag H Asfx Adwot Live centre + fixed centre + drill chuck Faceplates Machine feet Spare jaws for chuck 380 Volt Weight 1950 kg Dimensions approx. 2500x1200x1950 mm (LxWxH)

Condition: used, Year of construction: 1970, digital readout ja weight 4,4 t Kwjdeyacnpopfx Adwjt rapid traverse ja m/min

Condition: ready for operation (used), functionality: fully functional, Eccentric Press Manufacturer: Heilbronn Model: UREP 75 Max. Pressing Force: 75 tons Kwedpfxjx U T Hgj Adwot Table Size: 720 x 600 mm Ram Length: 450 mm Ram Width: 300 mm Max. Installation Height: 370 mm Stroke min.: 8 mm Stroke max.: 110 mm Hole Length: D 150 mm Ram Adjustment: 80 mm

Condition: used, Year of construction: 2017, functionality: fully functional, Equipment: rotational speed infinitely variable, Pinacho lathe Type SC 250 Year 2017 Ksdpfxjx Ux Dwo Adwowt With digital readout Centre distance 1500 mm Complete

Condition: excellent (used), For sale: metal lathe from the English manufacturer Harrison, model m300, as shown in the photos. The machine is in very good condition. It is equipped with a new 160 mm chuck from Fuerda. Sino brand optical scales have been installed. Kwodpfx Ajx Ur Amsdwst During test turning over 20 cm, a diameter variation of 0.04 mm was measured. Price is non-negotiable. Net price +23% VAT. Chuck: 160 mm Turning length: 600 mm Swing over cross slide: 220 mm Swing over bed: 320 mm Tailstock taper: MK3 Spindle bore: 38 mm

Condition: used, L + Z Lathe TONGIL- SAEILO Type TIPL-4SP Machine No. 00570319 Year of manufacture: 1985 Centre distance: 1000 mm Swing over bed: 400 mm Swing over cross slide: 210 mm Centre height over bed: 200 mm Centre height over cross slide: 105 mm Spindle bore: 58 mm Spindle speed: 55 - 1600 rpm, 16 steps Feed: Longitudinal and cross Tailstock taper: MT4 Chuck flange: Camlock, taper size 6 Motor power: 4 / 6 kW Electrical connection: 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and 8 gear stages - 3-jaw scroll chuck RÖHM Ø 200 mm with stepped jaws - Multifix quick-change tool post size B with 2 exchangeable tool holders - Spindle brake via mechanical foot pedal - Coolant system - Emergency stop Kjdpfxjx Urbvo Adwowt - Machine lamp Space required (L x W x H): 2250 x 1050 x 1220 mm Weight: 1500 kg

Condition: good (used), Year of construction: 1975, Offer 24204 Technical data: Kwodpfx Aox Tqg Iodwst - Maximum swing diameter over bed: 420 mm - Centre distance: 1000 mm - Spindle bore: mm - Tailstock quill taper: MT 4 - Tailstock quill travel: 200 mm - Spindle speeds: 40 - 2000 rpm - Longitudinal & facing feeds - Metric thread pitches - Imperial threads - Module threads - Drive: 400 V - Includes: 3-jaw chuck - SWS steel toolholder with 3 inserts - Space required: approx. W 2800 x H 1250 x D 950 mm - Weight: approx. 2200 kg

Condition: excellent (used), functionality: fully functional, Distance between centers: 1500 mm Center height: 220 mm Spindle bore: 52 mm Ksdpfsx S Hynex Adwjwt Tailstock quill: MK 4 18 speeds: 25 - 2000 rpm Pole-change motor: 2.9 / 5.9 kW with gap bed bridge

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, machine/vehicle number: 3096524, MACHINE SPECIFICATION Swing over front apron 641mm Swing over cross slide 413mm Maximum cutting diameter 356mm Maximum cutting length 356mm Spindle nose A2-5 Spindle bore 58.7mm Bar capacity 44mm Maximum spindle speed 6000rpm Spindle motor power 11.2kW Number of turret tool stations 12 Rapid traverse Z/X axis 30.5m/min Approximate weight 2500Kg Kedpfjx R Sb Ijx Adwswt MACHINE EQUIPPED WITH Haas CNC control system 3 jaw chuck 165mm diameter Collet chuck Parts catcher Hydraulic tailstock Tool presetter Assorted tool holders Interlocked guarding Automatic lubrication system Coolant system

Condition: good (used), 1 x lead and feed screw lathe Matra Kwsdpex Rum Tsfx Adwot MDR 210 Nice machine from a small toolmaking shop. Additional data and photos will follow. The machine can be inspected under power from 13.01 onwards.

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, Center height 210 mm Swing diameter over bed: 420 mm Kjdpfox Rt Euox Adwjwt Swing diameter in bed bridge: 580 mm Swing diameter over cross slide: 250 mm Center distance: 1000 mm Spindle nose: D1-6 Speed: 45 – 1800 rpm (16 steps) Spindle bore: 52 mm Feed length: 0.05 – 1.7 mm/revolution (17 steps) Cross feed: 0.025 – 0.85 mm/revolution (17 steps) Metric threads: 0.2 – 14 mm (39 steps) Whitworth: 2 – 72 TPI (45 degrees) Module thread 0.3 – 3.5 MP, (18 steps) Tailstock sleeve diameter D50 mm Tailstock sleeve travel 120 mm Tailstock taper MT4 Power 3.3 kW/400 V Machine weight 1270 kg Dimensions (L x W x D): 1940 x 850 x 1320 mm Accessories - 3-axis digital measuring system - Steady rest - Traveling steady rest - 3-jaw chuck mounted, D200 mm - 4-jaw chuck D250 mm - Chuck guard with safety switch - Rear splash guard - Tailstock - Cooling water system - Chip tray - Tool holder guard - Longitudinal travel stop - Halogen work light - Emergency stop button - CE marking - Machine documentation The machine is a brand new showroom model and has 0 operating hours. It comes with a 12-month spare parts warranty.

Condition: new, Year of construction: 2025, functionality: fully functional, spindle bore: 51 mm, turning diameter: 410 mm, turning diameter over top slide: 268 mm, center height: 205 mm, turning length: 1,000 mm, total length: 1,820 mm, total width: 740 mm, total height: 1,550 mm, spindle speed (max.): 1,800 rpm, spindle speed (min.): 45 rpm, bed width: 206 mm, Turning diameter in gap: 580 mm, type of input current: three-phase, overall weight: 880 kg, three-jaw chuck diameter: 200 mm, Centre distance ----- 1000 mm Kjdsx Rkvkopfx Adwowt Centre height ----- 205 mm Swing diameter ----- 410 mm Main spindle bore ----- 51 mm Bed width ----- 206 mm Spindle speed ----- 45-1800 rpm Motor ----- 2.4 kW Weight ----- 880 kg INCLUDES * 3-axis digital readout by SINO * Quick-change tool post type Multifix TOOB2 with 4 tool holders * 3-jaw chuck 200 mm * 4-jaw chuck 200 mm * Face plate 250 mm * LED work lamp and coolant system * Fixed and travelling steady rest * Foot brake (CE) * Electric brake (CE)

Condition: used, functionality: unexamined, Auction: Plant Closure Roschmann, Gersthofen (Augsburg) Bid now – sale to the highest bidder. Lot 2910016: Kwsdsx N Nk Dspfx Adwet Lot consisting of 1 used bench lathe in very good condition. Minimal signs of use, well maintained. Features: Model: OPTIMUM TH 3309, max. speed: 2000 rpm, thread cutting capability, manual gear change, integrated cabinet with drawers. Electrical: 400 V, 50 Hz, 1.5 kW. Weight: 430 kg.

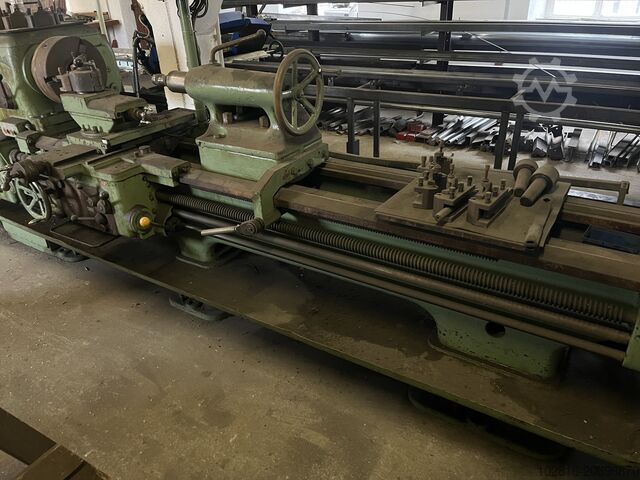

Condition: good (used), Year of construction: 1972, functionality: fully functional, machine/vehicle number: 70.1025.002302, turning diameter over cross slide: 280 mm, spindle bore: 52 mm, turning diameter: 485 mm, center height: 232 mm, center width: 360 mm, turning length: 1,600 mm, total length: 3,350 mm, total width: 1,100 mm, total height: 1,400 mm, spindle speed (max.): 2,240 rpm, spindle speed (min.): 11 rpm, overall weight: 2,500 kg, workpiece weight (max.): 500 kg, Offered for sale is a VDF 48S Boehringer lead and feed screw lathe with accessories in good condition. Manufacturer: VDF Boehringer Göppingen Model: 48S Machine no.: 70.1025.002302 Year of manufacture: approx. 1972 Centre height: 232 mm Centre distance: 1600 mm Swing over bed: 485 mm Kodpsx Nqklsfx Adwjwt Swing over cross slide: 280 mm Spindle bore: 52 mm Spindle speeds: 11.2 - 2240 rpm Total power requirement: 7.5 kW Machine dimensions (L x W x H): approx. 3.35 x 1.10 x 1.40 m Weight: approx. 2,500 kg

Condition: used, turning diameter over bed 280 mm turning diameter over slide rest 160 mm turning length 500 mm centre height 140 mm centre distance 500 mm spindle bore 36 mm spindle turning speed range 15 - 3550 U/min spindle head DIN 55022 Gr. 5 feeds - longitudinal 0,008 - 0,560 mm/U feeds - cross 0,004 - 0,280 mm/U thread - mm pitch 0,2 - 12 mm dia. of leadscrew 24 mm lead of leadscrew 6 mm tailstock taper MT 3 tailstock quill stroke 90 mm tailstock adjustment out of the central pos. 15 mm total power requirement 2,2 kW weight of the machine ca. 0,6 t - machine out of teaching shop - Kedox Ni Dkopfx Adwswt Accessories: DRO on 3 axis, 3-jaw chuck RÖHM 160 mmø, MULTIFIX-head A, running center

Condition: excellent (used), functionality: fully functional, Schaublin 135 High-Precision Lathe with NEW 3-axis Digital Readout K&C and Accessory Cabinet in Excellent Condition!!! Kodpfx Aox I Nkuodwswt Technical Data: >> Machine No. 252409 >> Center Height: 135 mm >> Distance Between Centers: 630 mm >> Swing Over Bed: 315 mm >> Spindle Nose: Camlock D1-4 >> Spindle Bore: 40 mm >> Longitudinal and Cross Feeds: 0.025–0.35 mm/rev >> Metric Threads: 0.25–14 mm >> Tailstock: Morse Taper MK3 >> Infinitely Variable Spindle Speeds: 55–3000 rpm >> Total Power Requirement: 4.45 kW >> Weight: approx. 1200 kg Accessories: >> K&C 3-axis digital readout, new, with 12 month manufacturer’s warranty and operating manual Functions: metric/inch conversion, ABS/INC coordinate selection, value halving, reference mark, tool programming for 200 tools, taper calculation, radius/diameter, quick zeroing, count direction switch >> Accessory cabinet including: – Multiple 3-jaw chucks with several sets of jaws – Multifix size A with toolholders – Internal and external collets with quick-clamping device – Change gears – 4-jaw chuck – Faceplate – Fixed and travelling steadies – Coolant system – Centers – Operating manual – Turning tools and much more About the machine: Offered here is a Schaublin 135 high-precision lathe. The machine is in excellent condition, coming from a university setting and has seen very little use. Equipped with a new 3-axis digital readout from K&C and a wide range of accessories. Take the opportunity to inspect this machine under power on site and see the condition for yourself.

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 3108833, MACHINE SPECIFICATION Swing over front apron 641mm Swing over cross slide 413mm Maximum cutting diameter 356mm Maximum cutting length 356mm Spindle nose A2-5 Spindle bore 58.7mm Bar capacity 44mm Maximum spindle speed 6000rpm Spindle motor power 11.2kW Number of turret tool stations 12 Rapid traverse Z/X axis 30.5m/min Approximate weight 2500Kg MACHINE EQUIPPED WITH Haas CNC control system 3 jaw chuck 165mm diameter Collet chuck Hydrafeed MSV 65 magazine barfeed Parts catcher Kjdpfx Ajx Ig Auodwswt Hydraulic tailstock Swarf conveyor Assorted tool holders Interlocked guarding Automatic lubrication system Coolant system

Condition: excellent (used), functionality: fully functional, Schaublin 135 High-Precision Lathe with 3-Axis K&C Digital Readout NEW and Accessory Cabinet in Excellent Ex-University Condition! Technical Data: >> Centre height: 135 mm >> Distance between centres: 630 mm >> Swing over bed: 315 mm >> Spindle mount: Camlock D1-4 >> Spindle bore: 40 mm >> Longitudinal and cross feeds: 0.025–0.35 mm/rev >> Metric thread pitches: 0.25–14 mm >> Tailstock: MT3 >> Infinitely variable speed range: 55–3000 rpm >> Total power requirement: 4.45 kW >> Weight: approx. 1200 kg Accessories: >> 3-axis digital readout by K&C (new), 12 months manufacturer’s warranty with user manual Functions: Switching mm/inch, coordinate selection ABS/INC, value halving, reference mark, tool programming for up to 200 tools, taper calculation, radius/diameter display, quick zeroing, count direction reversal >> Accessory cabinet containing: - 160 mm 3-jaw chuck with two sets of jaws - Multifix B toolholder with 3 pockets - Internal and external collets with quick-change system - Change gears - 4-jaw chuck - Face plate - Fixed and travelling steady rests - Coolant system - Centres - Operating manual - And much more About the machine: Kjdpfx Adsx H Szyjwjwt For sale is a Schaublin 135 high-precision lathe. The machine is in excellent condition, coming from a university and only lightly used. Equipped with a NEW K&C 3-axis digital readout and a comprehensive range of accessories. You are invited to inspect the machine under power on site to verify its condition.
