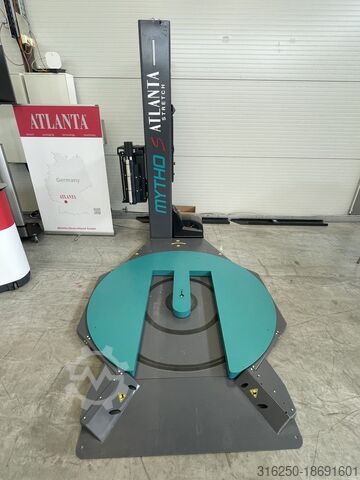

Stretch wrapper / pallet wrapper

Atlanta MYTHO-S

TECHNICAL DETAILS:
Control panel with 7'' color touch display
Turntable / base frame Ø 1,500 mm
Max. Pallet dimensions: 800 x 1,200 mm
Max. Load capacity: 2000 kg
Mast design
Wrapping height (pallet included): 2,450 mm
Height of turntable 75 mm
Height query via light sensor
Frequency-controlled turntable drive (soft start - start/stop)
Frequency-controlled film carriage speed up/down
Fall protection for the film carriage
Emergency stop switch in accordance with CE regulations
Push button for switching on the machine and start & stop function in accordance with CE standards Ø 22 mm
Signal tone at cycle start and at cycle end
Indicator light integrated in the machine mast

ADJUSTABLE WRAPPING PROGRAMS ON THE CONTROL PANEL:
F01 - 01 - Cross winding (up/down)
F01 - 02 - Single winding (only up or only down)
F01 - 03 - Winding cycle with preset start and stop height
F01 - 04 - Fast wrapping cycle with limited or no film overlap)
F01 - 05 - Layer wrapping cycle for increased film overlap
F01 - 06 - Economy wrapping cycle (to save wraps)

PARAMETERS CAN BE SET VIA THE CONTROL PANEL:
99 storable wrapping programs !
All function parameters can be set via the display
Infinitely variable turntable speed 5-12 rpm
Film carriage speed up and down independently adjustable from each other 1.3 up to 5.4 m/min
Number of wraps at the pallet base (1 - 10 wraps)
Number of wraps on the pallet head (1 - 10 wraps)
Intermediate windings

FILM CARRIAGE TYPE "PS" (POWER STRETCH)
Motorized pre-stretching system with stepless adjustment
Pre-stretch ratio adjustable from 120 to 400% via control panel
Lsdstr Ut Ijpfx Aa Isru
Film application tension electronically controlled via control unit
Quick insertion system IEF for easy film roll change
Film specification Max. Outer diameter Ø300 mm - Height = 500 mm - Core Ø76mm
