Electric loading lift – pedestrian stacker, pallet truck; for ergonomic handling of small loads, ped

EXPRESSO Lift & Drive 175 (lift2move)

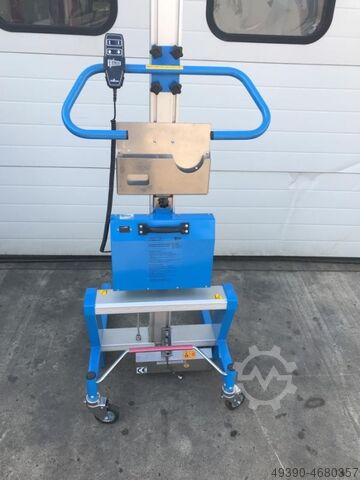

Condition: used, Electric Loading Lift – Pedestrian Stacker, Tiller Stacker for ergonomic handling of small loads Manufacturer: EXPRESSO Model: Lift & Drive 175 (lift2move) Serial No.: 19152 Year of manufacture: 2010 Type No.: Rated capacity: 175 kg Lift travel: 1090 mm Lift height: 1780 mm Lifting speed (unloaded / loaded): approx. 100 / 75 mm/s Reach of lifting aid: 800 mm Chassis length: 1100 mm Underride height: 175 mm Underride length: 670 mm Chassis version (front / rear): Ø 120 / 150 mm (2 swivel castors / 2 swivel castors) Total length: 1220 mm Total width: 700 mm Overall height: 1950 mm Maximum height: 2870 mm (with lifting aid fully extended) Motor power: 400 W Battery capacity: 24 V / 17 Ah - Electric lift drive with motor brake / self-locking gearbox and precision spindle with safety slip clutch - Cable remote control with coiled cable and buttons for 2 lifting speeds - Battery pack with quick-change system - Charge status indicator - 2 x Lead-acid batteries, 12 Volt, 17 Ah in battery pack - External charger 24 VDC, 3 Ampere (mains voltage 230 V, 50 Hz) - Manually maneuverable, swivel castors with three-stage parking brake - Continuously height-adjustable handle - Load carriage double flange according to EXPRESSO standard, 2 pieces mounted on top of each other, each 280 x 50 mm / 4 mounting holes M10 Mounted lifting aid: Rotatable Roller Mount Expresso Type 04175470 Lifting aid load capacity: 70 kg Rotation via electric drive with stepless speed control Rotation range: 360° continuous Roller arms individually adjustable steplessly on linear guides Roller arm span min./max.: 1350 - 2050 mm (infinitely adjustable) Roller arm depth: 560 mm In the center of the roller arms is a workpiece holder (adjustment range 0 - 80 mm) Crsdpjflt Efsfx Ab Seh Total weight: 150 kg good condition
