Electric loading lift – pedestrian stacker, pallet truck; for ergonomic handling of small loads, ped

EXPRESSO Lift & Drive 175 (lift2move)

Electric Loading Lift – Pedestrian Stacker, Tiller Stacker
for ergonomic handling of small loads
Manufacturer: EXPRESSO Model: Lift & Drive 175 (lift2move)
Serial No.: 19152 Year of manufacture: 2010
Type No.:
Rated capacity: 175 kg
Lift travel: 1090 mm
Lift height: 1780 mm
Lifting speed (unloaded / loaded): approx. 100 / 75 mm/s
Reach of lifting aid: 800 mm
Chassis length: 1100 mm
Underride height: 175 mm
Underride length: 670 mm
Chassis version (front / rear): Ø 120 / 150 mm (2 swivel castors / 2 swivel castors)
Total length: 1220 mm
Total width: 700 mm
Overall height: 1950 mm
Maximum height: 2870 mm (with lifting aid fully extended)
Motor power: 400 W
Battery capacity: 24 V / 17 Ah
- Electric lift drive with motor brake / self-locking gearbox and precision spindle with safety slip clutch
- Cable remote control with coiled cable and buttons for 2 lifting speeds
- Battery pack with quick-change system
- Charge status indicator
- 2 x Lead-acid batteries, 12 Volt, 17 Ah in battery pack
- External charger 24 VDC, 3 Ampere (mains voltage 230 V, 50 Hz)
Codpsflt Efefx Ab Sjrh
- Manually maneuverable, swivel castors with three-stage parking brake
- Continuously height-adjustable handle
- Load carriage double flange according to EXPRESSO standard, 2 pieces mounted on top of each other, each 280 x 50 mm / 4 mounting holes M10

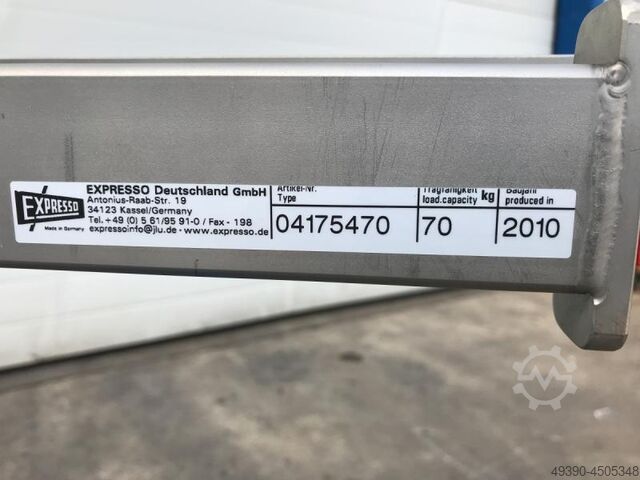

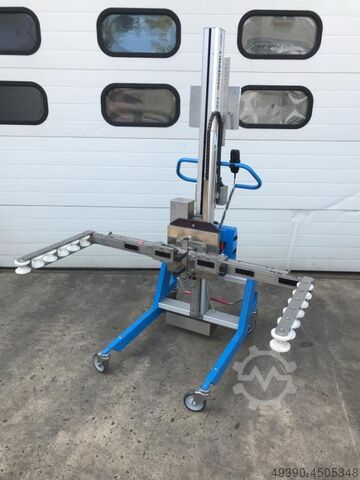

Mounted lifting aid: Rotatable Roller Mount Expresso Type 04175470
Lifting aid load capacity: 70 kg
Rotation via electric drive with stepless speed control
Rotation range: 360° continuous
Roller arms individually adjustable steplessly on linear guides
Roller arm span min./max.: 1350 - 2050 mm (infinitely adjustable)
Roller arm depth: 560 mm
In the center of the roller arms is a workpiece holder (adjustment range 0 - 80 mm)

Total weight: 150 kg
good condition

The listing was translated automatically. Translation errors are possible.
