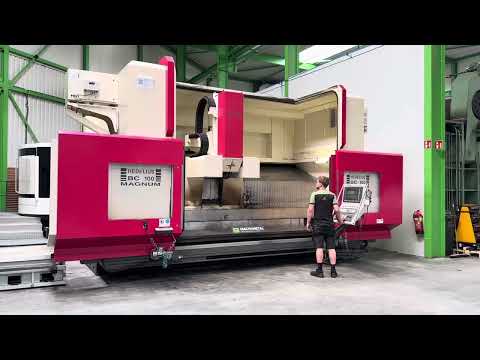

3-axis CNC machine (VMC) Hedelius BC 100

Hedelius BC 100 Magnum

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 770 mm, workpiece weight (max.): 3,500 kg, spindle speed (max.): 7,000 rpm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Working Area X-axis travel: 2,500 mm Y-axis travel: 1,000 mm Z-axis travel: 770 mm Distance spindle nose: 890 mm Number of machining axes: 3 Table Clamping surface left-right: 3,220 mm Clamping surface front-back: 1,000 mm Workpiece weight: max. 3,500 kg Spindle / Head Speed range: up to 7,000 rpm Drive power: 40 kW Tool Magazine Number of tool positions: 50 Workpiece Automation Storage type: magazine Control Control type: CNC Control model: Heidenhain ITNC 530 MACHINE DETAILS Ndedpfx Aajwztphs Asd Electrical connection data Connection voltage: 400 V Dimensions & Weight Required space left/right: 6,500 mm Required space front/back: 5,000 mm Overall height: 3,700 mm Total weight: approx. 22,000 kg EQUIPMENT Chip conveyor: yes High-pressure pump The magnetic plates are not included in the scope of delivery (can be purchased optionally for €15,000). Machine will be provided partially dismantled at shop floor level.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, Vertical Turret Lathe - Double Column with 5 controlled axes - Brand: CKD Blansko / SKD / YOM: 2008 Overhaul and renewals were carried out on the machine in 2019 (completion January 2020), further work was carried out/followed ... The machine can be inspected by appointment under power. TECHNICAL SPECIFICATIONS: Nsdpfx Aeww H Ivja Ajdd Workspace: - Faceplate diameter: 4.000 mm - Swing diameter max.: 5.000 mm - Workpiece height max.: 2.500 mm - Faceplate load max.: 50 tons C-axis: - Speed of the C-axis: 0,01 - 2 rpm - Torque on the faceplate max.: 35.000 Nm Machine: - Total power requirement: 160 kVA - Machine weight: approx. 74 tons EQUIPMENT: - Control: SIEMENS SINUMERIK 840D - Automatic tool changer - Pick-up magazine: 1 Angular head - Angular milling head - Oil coolant equipment - Coolant system with paper filter - AC drive for rotary tools - AC drives for X/Z/C/U/W-axis - Full enclosure - Chip conveyor - Slat-band chain conveyor - Documentation - CE marking There is no guarantee for correctness and completeness of the technical details and accessories. - Subject to prior sale - Detailed technical data sheet and information on equipment available on request.

Condition: used, _____ Description: Year of manuf. : 2022 Control : Fanuc 0i-TF Turning diam. : 580 mm Turning length : 3250 mm Mainspindle: Technology:Belt-driven spindle with Gearbox Speed:1.000 rpm Power (max.):45 kW Torque (max.):4.008 Nm Barcapacity:205 mm Nsdpewt Iwqefx Aa Aedd Workpiececlamping I:3-Jaw chuck, Autogrip AP-230 ø535 mm Workpiececlamping II:Manual 3-Jaw chuck, Chandox SK20 (Rearside Spindlehead) Toolcarrier (X/Y/Z): Technology:Turret with 12 stations Taper:BMT 75 Tooldrive:3.000 rpm, 7 kW, 83 Nm Movement in X/Y/Z:340/160/3.250 mm Rapid travers in X/Y/Z:20/7/12 m/min Tailstock: Technology:Towed tailstock with programmable Sleeve Stroke:150 mm Cone:MK5 Equipment/Accessory: Chipmanagement:Chipconveyor Coolingmanagement:Coolant pump Toolmeasurement:Measuringarm, Renishaw RP3 Oilmistseparation:Mechanical extraction, AR Filtrazioni ARNO 3VF YF Shaftprocessing:Manual Steady rest, ø150-300 mm Toolholder:Misc. static and driven toolholder Setup operations:Electronic Handwheel Further Equipment:Automatic Door (pneumatic), Trafo, Oilskimmer Further Accessory:Misc. Jaws and EWS Quickchangeinserts

Condition: like new (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 9,000 mm, travel distance Y-axis: 4,000 mm, travel distance Z-axis: 1,000 mm, CME TRAVELING COLUMN MILLING / BORING MACHINE CME TECHNICAL FEATURES - VISIBLE IN OPERATION Brand: CME Model: MB 9000 Year: 2007 CNC: Siemens Sinumerik 840D X-axis: 9000 mm Nedpju R Rk Hofx Aa Asdd Y-axis (Vertical): 4000 mm Z-axis: 1000 mm W-axis (Ø 150 mm): 700 mm 2 rotary translation tables (linear travel: 2000 mm) 2500 x 2500 mm (25 TN) capacity Heidenhain optical scales on all axes Direct spindle 90-position tool change ZF range change Internal coolant Chip extractors

Condition: used, Year of construction: 1995, max. wheel diameter 80 mm gear width 120 mm max. module 3 min. module 1 control SIEMENS 840 C total power requirement 30 kW weight of the machine ca. 7500 t dimensions of the machine ca. m L I E B H E R R CNC – Controlled Gear Hobbing Machine Type LC 82 Baujahr 1995 Ser.-Nr. 0836 _____ Gear-Diam. max. 80 mm Module Range 1 - 3 Helix Angle +/- 45 ° Distance Table Center to Tool Center 15 – 160 mm Ndsdpfst Hw R Dex Aa Aed Hobbing Head Slide stroke vertical 250 mm Tangential Travel / Shift Travel of Tool slide 180 mm Minimum Number of Teeth 3 (!) Hob Size max. Ø x length approx. 90 - 200 mm Taper of Hob spindle HSK 50 A Workpiece Clamping length (table/Tailstock) 250 mm Infeed rates axial/radial/tangential/ 20/4/5/ mm/WP rev. Hob speed steplessly adjustable 0 – 800 rpm Hob Spindle Drive 8 kW - Total Load approx. 30 kW - 400 V – 50 Hz Total weight of Machine approx. 7.500 kg Special attachments / accessories: • SIEMENS - CNC-Control Model 840 C for 6 axis (i.e. Hob drive/table drive/ swivel angle of hob head/ Radial axis/Axial Axis/ Tangential Axis ) with a surface especially designed for the gear manufacturing with error display function. • Automatic and contactless tooth meshing device to adjust the hob into workpiece. • Automatic Shifting of hob slide. • Automatic Workpiece handling system Model SSL for high speed loading and unloading of Workpieces, consisting of a steel chain3,, for workpiece carriers and 3-fold WP-Gripper for blanks, for the machining position and for unloading of finished parts onto the steel band. Actual Workpiece size to be machined: approx.. Ø 30 x 120 mm length, helix gear sprocket. Clamping of workpiece between centers by a mechanical, cam controlled quill in tailstock. • complete workarea protection with one sliding door, chip conveyor, small coolant device, oil dust Absorber, WP Carrier, etc. The Machine can be also used for dry cutting. Condition : Satisfactory to Good . Machine can be inspected under power here in stock. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Year of construction: 2001, condition: ready for operation (used), Horizontal Machining Centre with boring spindle Giddings & Lewis type HMC 410 Pallet size: 1.250 x 1.600 mm Pallet load: 7.000 kg max. Pallet change time: 55 sec. Number of pallets 2 pcs Table indexing: B-Axis 0.001° Ndedpfoguk Icex Aa Asd Table cross travel (X) 3.000 mm Spindle vertical travel (Y) 2.100 mm Column longitudinal travel: Z 1.800 mm Feed: X/Y/Z 1 – 40.000 mm/min. Rapid: X/Y/Z 40 m/min Rotary table 6 rpm Max rotary diameter: Ø2.500 mm Spindle taper: ISO 50 Spindle drive motor: 30 KW Spindle speed: 20 – 5.000 rpm ATC 120 pots CNC controller: Siemens Sinumerik 840D Max workpiece height: 2.000 mm Accessories Hexagon radio measuring probe Loading stations 2 PCS Build year 2001 (Siehe auch weitere Angebote des Inserenten.)

Condition: used, Year of construction: 2006, CNC Heidenhain TNC530 Njdpfx Aewutxija Asdd X/Y/Z 1,500/800/1,000 mm Swivel axis 0-180° A-axis C-axis B-axis Max. workpiece weight 1,500 kg Machine weight 18,000 kg

Condition: used, Year of construction: 2007, functionality: fully functional, travel distance X-axis: 3,100 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 3,000 rpm, table length: 1,800 mm, table width: 2,000 mm, feed length W-axis: 700 mm, workpiece weight (max.): 12,000 kg, milling spindle length: 700 mm, FPT CASTEL RED HEIDENHEIN TNC 430. Built in 2007. X=3100mm Y=2000mm Ndsdpfswdiu Eox Aa Ajd Z=1000mm Table 2000 x 1800 mm, 12 Ton Cooling through spindle. X Column travel 3,100 mm Y Headstock vertical travel 2,000 mm Z spindle stroke 700 mm W Column in spindle direction 1,000 mm Spindle diameter 130 mm Spindle diameter ISO 50 Spindle speed 3000 rpm Spindle motor 37 kW Rotary table size 1,800 x 2,000 mm Table load 12 tons C-axes 360,000°

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, USED Taiwan Takisawa model EX-108 high performance 2-Axis CNC lathe. Serial Number CA11E80453 Year 2000. NOTE THIS IS A 2 AXIS MODEL EX108 NOT A 3 AXIS EX308. • Heavy Cast Iron Slant Bed Construction • Fanuc 21iT CNC Control • 4-Track Heavy Duty Linear Guideways • High Speed Servo Turret • Tool Setting Device Njdpfx Aast E Hvgo Asdd • 8” 3-Jaw Hollow Spindle Hydraulic Chuck • Parts Counter • Toolholders included Max. Swing Over Bed - 400 MM Max. Swing Over Cross Slide - 320 MM Distance Between Centres - 645 MM Standard Turning Diameter - 216 MM Max. Turning Diameter - 320 MM Max. Turning Length - 530 MM Bar Capacity - 52 MM X-Axis Stroke - 180 MM Z-Axis Stroke - 530 MM Spindle Speeds - 60 – 4000 RPM Spindle Nose - A2 – 6 Spindle Bore - 63 MM Turret Type - 12 Station Tailstock Stroke - 435 MM Tailstock Quill Stroke - 100 MM Tailstock Quill Taper - 5 MT Rapid Traverse (X & Z) - 20 & 24 M/Min Jog Feed Rate (X & Z) - 0 – 1260 MM/Min Spindle Motor - 7.5 / 11 KW Electrics - 415V,3PH,50HZ Floor Space - 2240 MM X 1645MM Machine Weight - 4300 KGS

Condition: ready for operation (used), Year of construction: 2008, Fanuc 21ITB 16-tool changer BT50 1600 mm table, maximum rotation speed 250 rpm, maximum admissible weight 8000 kg Njdpfx Aaowzynde Aodd maximum diameter 2000 mm, maximum machining height 1250 mm travel 250 x 250 mm, Z-axis travel 900 mm chip conveyor
