Machining Center - Vertical

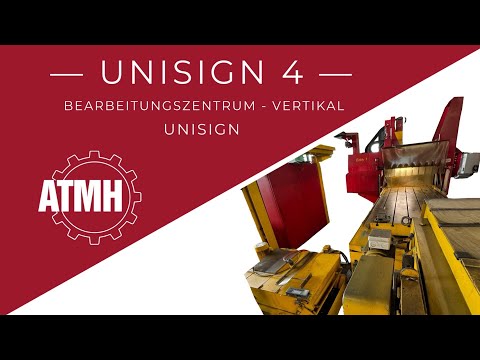

UNISIGN Uniport 4

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,500 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 610 mm, nominal power (apparent): 37 kVA, torque: 236 Nm, controller manufacturer: Heidenhain iTNC530, controller model: iTNC530, table width: 700 mm, table length: 1,700 mm, table load: 700 kg, rotational speed (max.): 12,000 rpm, overall weight: 9,000 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 16,580 h, spindle motor power: 37 W, number of spindles: 1, number of slots in tool magazine: 48, Equipment: chip conveyor, documentation/manual, Heidenhain iTNC530 3-axis CNC machining center Stroke x 1500 mm Stroke Y 700 mm Stroke Z 610 mm Table dimensions: 1700x700mm Isdpfx Adjvz Tyuswetb SK40 tool holder Magazine 48 tools Rapid feed 36m/min Table load: 700 kg Spindle center coolant 20 bar Chip conveyor Crank

Condition: used, Year of construction: 1999, Technical details: x-travel: 3 500 mm y-travel: 2 200 mm z-travel: 1 200 mm c-axis: +/- 200° control: Heidenhain TNC 426 spindle rpm - counter clockwise:: max. 10000 spindle rpm - clockwise:: max. 10000 distance between columns: 2 500 mm distance spindle /table: vertical: 1230 mm clamping surface area: Tisch: 3000 x 2000 mm table load: 10 t tool taper: HSK A 63 feed:: X/Y/Z: max. 20 m/min. compressed air: 8 bar total power requirement: ca. 100 kW weight of the machine ca.: 40 000 kg dimensions of machine: 18,0 x 6,0 x 5,8 m 5 axis Portal Milling Machine 5-axis portal milling machine Milling spindle: make Hauser type HS 256A-01 Uni, speed max. 10.000 rpm. direct drive Milling head: make Hamül, fork type, A-axis integrated = angle of rotation +/- 110°. Tool changer: Hamül make, rotary indexing table type with rotary table, for 32 tool positions chip conveyor: 2 pieces hinged belt conveyor make DGS with water tank, insertion length 8.500mm make BKW type DL 55V-2KK, capacity 2,41 l/min.; (combined for oil- water mixture for oil and spindle cooling) Cooling lubricant system: belt filter make DGS type SBF 150 Operation: via control panel type Heidenhain LE 426 X-, Y- and Z-axis with Heidenhain measuring rods. manual control unit HR 410 hydraulic counterbalance (Z-axis) Equipment: Enclosure (protective walls with viewing windows and protective doors) hydraulic system working area lighting Itedpfou Nc Emex Adwjb *

Condition: excellent (used), Year of construction: 1999, Fanuc 21T control system Turning diameter 158 mm Swing over bed 340 mm Speed 6,000 rpm 8-station turret Tailstock 3-jaw chuck, 2-jaw chuck, collet chuck Itedpfxswmzhpo Adwob Collets Various tool holders

Condition: reconditioned (used), Year of construction: 2009, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 3,500 rpm, workpiece weight (max.): 8,000 kg, overall weight: 13,500 kg, Equipment: rotational speed infinitely variable, x-travel 3.000 mm Iodovlzznopfx Adwstb y-travel 1.000 mm z-travel 1.000 mm control iTNC 530 HEIDENHAIN table-size 3.230 x 1.050 mm table load 8,0 t spindle taper ISO 50 tool change unit 24 Pos. spindle turning speed range 30 - 3.500 U/min drive capacity - spindle motor 25 kW feed stepless 1 - 5.000 mm/min rapid traverse 10,0 m/min chip conveyor Spiralförderer voltage 380 V total power requirement 35 kVA weight of the machine ca. 13,5 t dimensions of the machine ca. 7,40 x 3,65 x 3,60 m hydraulic power unit 1,40 x 0,50 x 0,60 m 0,45 x 0,70 x 0,85 m - Serial No.: VH-30041 - Maschine ON 23.724 h - Spindel ON 7.968 h - CNC-Control: iTNC 530 HEIDENHAIN - Universal Milling Head (Huron-Type), manual - 2x Screw type chip conveyor at front and back of table - Oil chiller unit - Y-Axis guitde ways with new TURCITE - Ball screws and bearings in X/Y/Z axis renewed

Condition: used, Year of construction: 2000, Technical details: Iedpfx Aju Ixwijdwstb turning diameter over bed: 600 mm turning dia. over face-slide: 260 mm turning length: 610 mm facing movement (x-axis): 160 mm longitudinal traverse (z-axis): 610 mm control: Siemens 810D revolution per minute: 1 - 6300 steples U/min max. torque on the spindle: 86 Nm spindle passage: Ø 42 mm external spindle dia. in forward position: Ø 80 mm feed motor: X/Z: 5000 / 7000 N rapid motion - x-axis: X/Z: 16 / 20 m/min tool turret - number of stations: 12 / VDI 30 tailstock taper ISO: MK4 tailstock adjustment: 500 (Hub) mm Main spindle capacity: 7,5 (100%=11kW) kW electrics - voltage/frequency: 3/PE ~ 400V und 50/60Hz V/Hz total power requirement: 20 kVA (11 kW) Weight approx.: 4,0 t dimension machine xH: 3,0 x 2,0 x 2,1 m Further technical specifications: C-axis Distance main spindle - tailstock: 805 mm Power chuck Röhm Ø 160 mm (without jaws), speed 7,500 rpm. Tailstock with live center Coolant device, coolant supply via tool turret Switch cabinet with cooling, Rittal type SK3393100 Workpiece collecting tray Machine lighting Accessories: 1x driven tool i.D. *

Condition: used, Year of construction: 2001, x-travel 2050 mm y-travel 1100 mm z-travel 800 mm Control Fanuc 18iM Super Cap II turning speeds 60-6000 U/min tool magazin: 60 tool taper BT50 Itjdpfx Adorw Dknjwjb total power requirement 26 kW weight of the machine ca. 23,6 t required space 6,3 x 3,3 x 3,8 m

Condition: good (used), Year of construction: 1992, machine/vehicle number: 5164, Offer 23148 Itodpfx Adsq Evn Eowob Technical data: - with hydraulic clamping and feed device - Cutting range round 320 mm - square 300 x 300 mm - large cut-off length with single stroke up to 400 mm - Multiple feed up to 10 x 400 mm - Saw blade dimensions 3660 x 25 x 0.9 mm - Infinitely variable cutting speed 20 - 100 rpm - Hydraulically infinitely variable feed speed - Coolant device - Material support height 720 mm - Saw band - Drive 400 V / 2.5 kW - Space requirement approx. W 1950 x H 1250 x D 1500 mm - Weight approx. 1000 kg

Condition: good (used), Year of construction: 2011, Industrial robot Manufacturer: Kuka Isdpfx Ajn Uv S Ajdwjtb Model: KR30L16-2 (SafeRobot) Year of manufacture: 2011 Reach: 3102 mm Weight: 700 kg Payload: 16 kg Kuka controller KRC2ed05 (SafeRobot) Weight: 185 kg Processor: 2 GHz Operating system: WinXP Software version: V5.6.6 Kuka Teach Pendant KCP2 Kuka connection cables 7m/15m 101225ä

Condition: ready for operation (used), Travel X/Y/Z/U/V: 400mm/250mm/400mm/400mm/250mm, max. workpiece dimensions X/Y/Z: 850mm/500mm/400mm, wire diameter: 0.1mm-0.3mm, max. table load: 1000kg, power requirement: 10kVA. Machine dimensions X/Y/Z: approx. 1800mm/1600mm/2230mm, weight: approx. 2800kg. On-site inspection is possible. Ijdpfxouqacke Adwjtb

Condition: used, Year of construction: 2000, x-travel 3.700 mm y-travel 3.050 mm z-travel 1.000 mm Control HEIDENHAIN TNC-430 PA distance between columns 2.300 mm 1.175 mm rapid travel x/y/z 25.000 mm/min feeds 15.000 mm/min tool taper ISO-50 - DIN 69871 table weight 20.000 Kg Isdpfxewg Hrgs Adwstb spindle drive 37 kW milling head -swivable +/- 45 ° milling head AB Achse 360.000 pos. Tools changer 30 fach/tools Chip coveyor Ink. Internal cooling system 20 bar table-size 4.000 x 1.800 mm weight of the machine ca. 42 t
