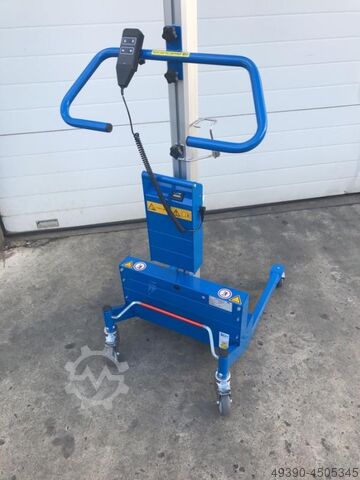

Electric loading lift – pedestrian stacker, pallet truck; for ergonomic handling of small loads, ped

EXPRESSO Lift & Drive 125 (lift2move)

Electric loading lift - pedestrian stacker, pedestrian stacker
for ergonomic handling of small loads
EXPRESSO type Lift & Drive 125 (lift2move)
Series. No. 194679 Year of construction 2015
Type no. 1418242111
Nominal load capacity 125 kg
Lifting distance 1450 mm
Lifting height 1785 mm
Lifting speed (unloaded / loaded) approx. 100 / 75 mm/s
Projection of lifting aid 530 mm
Chassis length 890 mm
Underride height 90 mm
Underride length 490 mm
Chassis design (front / rear) Ø 60 / 100 mm (2 swivel castors / 2 swivel castors)
Overall length 890 mm
Overall width 545 mm
Overall height 1930 mm
Motor power 250 W
Battery capacity 24 V / 7.2 Ah
- Electric lift drive with motor brake / self-locking gear and precision spindle with safety slip clutch
- Cable remote control with spiral cable and 2 lifting speeds
Cedpfx Ajflt Ebjb Serh
- Battery pack with quick-change system
- Charge status indicator
- 2 lead-acid batteries 12 Volt, 7.2 Ah installed in the battery pack
- External charger 24 VDC, 2.5 amps (mains voltage 230 V, 50 Hz)
- Can be rolled by hand, swivel castors with three-stage parking brake
- Handle infinitely height-adjustable
- Load support U-profile for square according to EXPRESSO standard 210 x 45 mm / internal dimension 30 mm/ 4 M8 fixing holes at 50-60-50 mm intervals

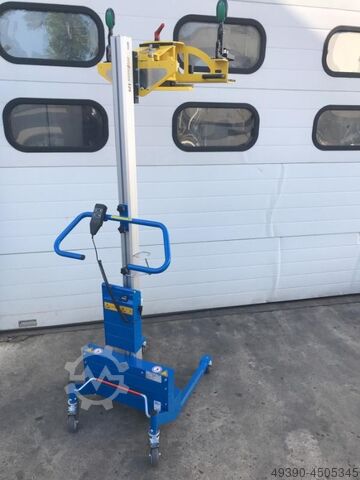

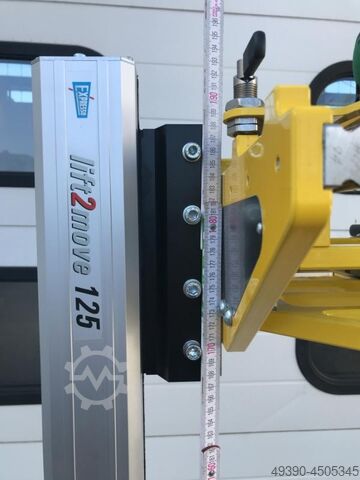

Mounted lifting aid: Special version from GIESLER LAM-DC conductor rail
Load capacity of the lifting aid 40 kg
Dead weight of lifting aid 24 kg
Support rail can be moved sideways +-90 mm via linear guides (3 locking points left, center, right)
Support rail can be swiveled +-38° (continuously lockable)
Support rail with 2 clamps
Distance between the clamps 550 mm
Material clamping thickness 100 mm
Material support dimensions W x D 650 x 155 mm
Total weight 75 kg
Very good condition
