Machining center

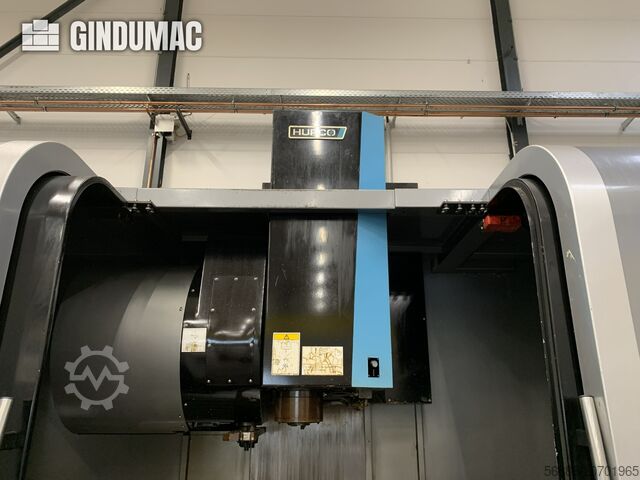

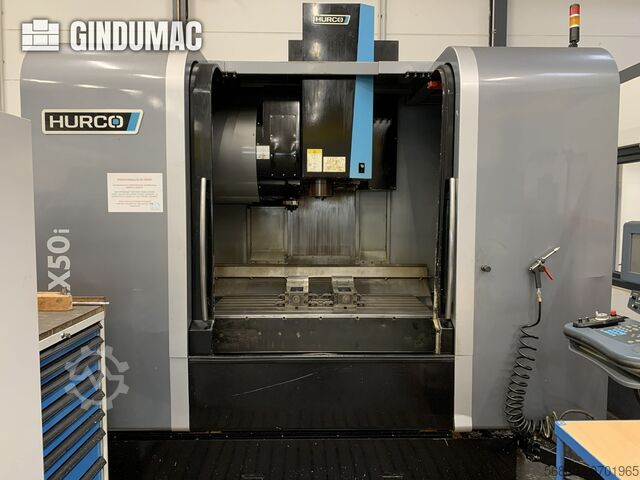

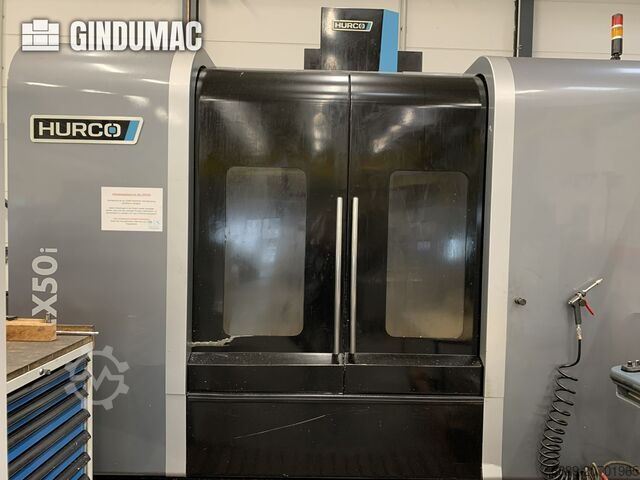

Hurco VMX 50

Condition: used, Year of construction: 2002, functionality: fully functional, The machining center has been inspected by a Hurco technician and found to be fully operational without any faults. Technical Data - Travel ranges: X 1,270 mm, Y 600 mm, Z 610 mm - Drive power: 30 kW - Spindle speed: 15,000 rpm - Spindle taper: SK 40 Type B - Feed rate: up to 23 m/min Work Table: - Dimensions: 1,500 mm x 660 mm - Max. workpiece weight: 1,300 kg Control: - Hurco Ultimax 4, incl. software for milling simulation - electronic hand control unit - Interfaces: RS 232C / V24 - 2 monitors for text and graphics processing - 2 software units for plain text and ISO programming Machine Construction: - High rigidity, suitable for roughing operations Tool Changer: - Double-arm changer with 24 stations Fedpfx Adjx Iikbeaopd Equipment: - Cooling unit for milling spindle - Rinsing system for chip removal - Splash guard cabin - Coolant system with filtration - Internal coolant supply ICS 20 bar - Chip conveyor Machine Data: - Required space (without service areas!) LxWxH approx. 4,750 mm x 3,120 mm x 2,950 mm - Weight approx. 9,000 kg - Connected load 50 kVA, 400V, 50/60 Hz An inspection of the machine is possible by appointment. All tools and operating materials visible in the photos are not included in the scope of delivery. Technical changes and errors excepted.

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, X-axis 1,500 mm Y-axis 660 mm Z-axis 600 mm Table size 1,680 x 660 mm Spindle speed 12,000 rpm Fedpoxm Tufofx Adajpd Tool holder SK40 Tool changer 24 positions Control ULTIMAX 4 Incl. 4th axis Kitagawa MR 200 (rotary axis + tailstock) Incl. chip conveyor Incl. internal coolant (IKZ)

Condition: ready for operation (used), Year of construction: 2021, operating hours: 2,500 h, travel distance X-axis: 1,270 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, controller manufacturer: HURCO, controller model: WINMAX, total height: 3,240 mm, table load: 2,000 kg, overall weight: 7,950 kg, spindle speed (max.): 12,000 rpm, tool weight: 7,000 g, number of axes: 3, This 3-axis Hurco VMX50i was manufactured in 2021. It features a robust SK40 spindle, capable of reaching speeds up to 12,000 rpm, and a large table surface of 1500 x 660 mm supporting up to 2000 kg. With X/Y/Z travels of 1270/660/610 mm and rapid traverse rates of 32/32/24 m/min, it's ideal for dynamic machining tasks. Includes a 30/40 position automatic tool changer. Contact us for more information about this machine. • Spindle face to table: 101–711 mm • Table working surface (W x D): 1500 x 660 mm • Table T-slots (DIN 650): 6 x 18 x 100 • Automatic tool changer (ATC) positions: 30/40 • Machine status: Powered and in operation • Total machine hours: 6700 Additional equipment Fpsdpfx Asx D E Acedaod • Chip conveyor • Mist collector • External emulsion tank with filtration for internal tool cooling • Including workpiece and tool probes • Programming extensions dwg-dxf Dimensions Machine Depth 5059 mm

Condition: ready for operation (used), Year of construction: 2014, total height: 3,240 mm, overall weight: 8,880 kg, This 3-axis Hurco VMX 50i was manufactured in 2014, featuring a robust table size of 59 x 26 inches and a maximum spindle speed of 12,000 rpm. It supports a tool capacity of 40 with a rapid tool-to-tool ATC time of 2 seconds. Ideal for precise, heavy-duty machining with a maximum table load of 4,410 lb. If you are looking to get high-quality milling capabilities consider the Hurco VMX 50i machine we have for sale. Contact us for more information. • Table Size: 1500 x 660 mm • T-Slots: 6 x 18 mm • Maximum Weight on Table: 2000 kg Fpjdpfx Asx D E Eqsdajd • Spindle Nose to Table: 101 mm • Maximum Spindle Speed: 12000 rpm • Spindle Power (15 min/Continuous): 15 kW / 11 kW @ 720 rpm • Spindle Torque (15 min/Continuous): 198.9 Nm / 116.7 Nm @ 720 rpm • Tool Type: CAT 40 / Big Plus® • Tool Capacity: 40 • Maximum Tool Diameter: 76 mm • Maximum Tool Length: 300 mm • Maximum Tool Weight: 7 kg • Tool-to-Tool ATC Time: 2 sec Dimensions Machine Depth 5055 mm

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, Integrated 4th and 5th axis Direct measuring system for A and C axes Coolant system Spindle cooler 40-position tool changer Through-spindle coolant (IKZ) Fpodpfsyba Dqsx Adasd 5-axis simultaneous programming and machining Machine operating time: 2163 hours Further technical details available on request.

Condition: good (used), Year of construction: 2006, Winmax control Travel X/Y/Z: 1270 x 660 x 610 mm Spindle speed: 10,000 rpm Tool magazine for 24 tools, SK 40 Through-spindle coolant 20 bar Pocket milling with islands Synchronous thread cutting Fedpfx Asynb T Hjdajpd

Condition: good (used), Year of construction: 2003, x-Weg 1270 mm y-Weg 660 mm z-Weg 610 mm Steuerung Ultimax 4 Fpsdpfoiv R Hlox Adajd Tischbelastung 1300 kg Drehzahl 10.000 U/min Werkzeugwechseleinrichtung 24-fach Werkzeugaufnahme SK 40 Antrieb 15 kW Tischgröße 1500x660 mm Gesamtleistungsbedarf kW Maschinengewicht ca. 9 t Raumbedarf ca. 4,8x4,5x2,95 m

Condition: new, Year of construction: 2024, Bending force: 320 t Fedpfx Ajfifg Hsdaspd Year of construction: New (delivery time 6-8 weeks) Control: DT 15 bending length: 3050 mm distance between the columns: 2600 mm Y Fast speed: 160 mm / s Y Working speed: 10 mm / s Y Retraction speed: 140 mm / s Motorized crowning table length: 630 mm table width: 154 mm table height: 900 mm stroke: 365 mm Projection: 410 mm 2 support arms 2 Backgauge fingers Travel speed X-axis: 250 mm / s R-axis working speed: (max.) 140mm / s R-axis travel: 250 mm Standard equipment: Y1, Y2, X (3-axis) Y1, Y2, X = 650 mm (double guide, aluminium) Software D-BEND for 3D bending simulation and alignment Manual crowning R axis, manual Backgauge with motor, linear guide and ball screw Backgauge with height adjustment (R-axis, manual) CE-die holding system (upper dies) Front support arms for sheets, sliding (with T-channel and stops) Hydraulic blocks and valves in special design, according to the worldwide applicable standards Electrical equipment, in accordance with the standards applicable worldwide Option: CE standard with manual fussler AKAS II M -FPSC-B-C (SAFETY PLC) CNC motorized crowning Y1, Y2, X, R (4 axes) CNC motorized crowning Engine power 37 kW Oil tank capacity 250 lt length 4300 mm Width 1820 mm Height 3230 mm Weight approx. 17250 kg

Condition: ready for operation (used), Year of construction: 2006, A CNC machining center with Kitagawa NC 300 rotary table is offered. Travels X/Y/Z: 1625mm/860mm/880mm, Clamping surface X/Y: 1650mm/900mm, Speed range: 25-8000rpm, Tool holder: SK50, Internal coolant supply IKZ, Tool changer: 32-position magazine, Feed range: 1-18000mm/min, Ultimax 4 CNC contour control, Installation area X/Y: approx. 4500mm/3700mm, Machine weight: approx. 14500kg. Viewing possible by appointment. Fjdpfx Adoylnz Esaspd

Year of construction: 2006, condition: ready for operation (used), Travel X/Y/Z: 1270mm/660mm/610mm, speed: 10000rpm, max. table load: 3000kg, spindle mount: CAT40, tool positions: 40, machine dimensions X/Y/Z: approx. 3300mm/2800mm/3000mm, weight: approx. 9000kg, control: Ultimax. Documentation available. On-site inspection is possible. Fsdsuzyafopfx Adajpd

Condition: good (used), Year of construction: 2004, Universalfräsmaschine mit Streckensteuerung HEIDENHAIN TNC 124 mech. Handräder drehbarer Kipptisch +- 45°, hydr. Werkzeugspannung, Halbkabine Kühlmittelbehälter Handbuch Technische Details: x-Weg 600 mm y-Weg 400 mm z-Weg 400 mm Fpedpfxsigm Tco Adaed Spindeldrehanzahl 63 - 3.150 1/min Vorschub stufenlos 12-3000 / 6-1500 (Z) mm/min Pinolenhub 100 mm Kopf schwenkbar +/- 90° Spindelaufnahme ISO SK 40 Aufspannfläche 630 x 400 mm Gesamtleistungsbedarf 8 kW Maschinengewicht ca. 2,2 t Raumbedarf ca. 2 x 1,9 x 1,95

Condition: ready for operation (used), Year of construction: 2007, operating hours: 620 h, Travel path X/Y/Z: 1630mm/860mm/760mm, speed: 8000rpm, torque: 142Nm, power: 15kW, tool positions: 40, max. tool diameter: 75mm/127mm, max. tool length: 300mm, max. tool weight: 10kg, table dimensions X/Y: 1680mm/890mm, max. table load: 2700kg. Machine dimensions X/Y/Z: approx. 6400mm/4400mm/3300mm, weight: approx. 14500kg, control: Hurco Ultimax 4, operating hours: approx. 621h. Documentation available. An on-site inspection is possible. Expected to be available from mid-2026. Fjdjw Dfhzjpfx Adajpd

Condition: not inspected (used), Year of construction: 2003, travel distance X-axis: 1,270 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 640 mm, Ultimax control Fsdpfxexu Ikqe Adaepd BT 40 spindle, new in 2020 speed 10,000 rpm travels 1270X660X640 mm 24-tool changer chip conveyor

Condition: new, Year of construction: 2025, These parts washers are designed for spray washing, using aqueous detergents at a temperature of 60°C maximum. All machines are made of AISI 304 stainless steel and they are models for one wash treatments. These machines function thanks to the basket’s motorized rotation around its vertical axis and they are suitable for washing small and medium-sized parts, with moderate weights. Fpsdpfx Aohl H Ubodaod

Condition: good (used), Year of construction: 2001, functionality: fully functional, Hurco VMX50i – CNC Machining Center in Excellent Condition For sale is a Hurco VMX50i, a powerful vertical CNC machining center, ideal for demanding mold making, mechanical engineering, and single-part to small-batch production. Technical Specifications: - Model: Hurco VMX50i - Year of manufacture: 2001 - Control: Hurco Ultimax - Travel axes (X/Y/Z): 1270 / 660 / 610 mm - Spindle: 10,000 rpm, SK40, with spindle cooling - Tool changer: 24 positions - Table size: 1,320 x 610 mm - Max. table load: 1,500 kg - Connected load: approx. 20 kVA Equipment: - Spindle cooling Fpjdpeyhap Tsfx Adaed - High-pressure coolant system - Chip conveyor - USB/network interfaces - 3D visualization - Conversational and NC programming - Includes hand wheel and documentation Condition: The machine is in good condition and is currently no longer in production. An inspection under power can be arranged by appointment. Location: Velbert
