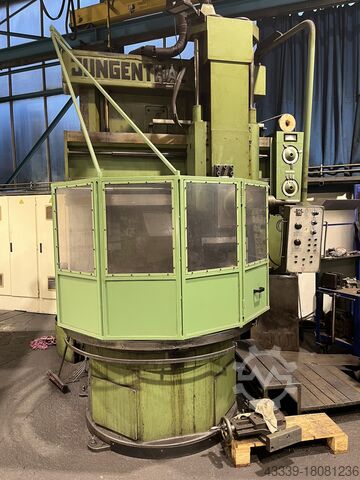

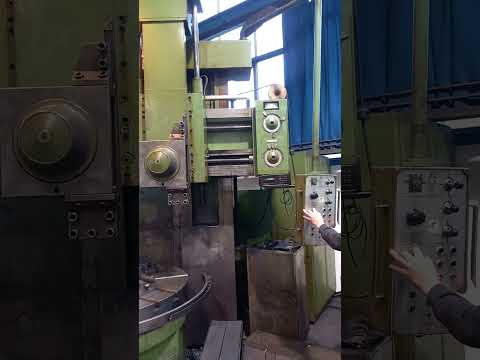

Vertical lathe

JUNGENTHAL DK 1400

Condition: good (used), Year of construction: 1963, functionality: fully functional, Single-Column Vertical Turret Lathe | Jungenthal DK 1400 Dcjdpfx Aijyft Ahogok The machine was overhauled in 1996, recently cleaned, and is in good condition. - Faceplate diameter: 1,200 mm - Swing diameter: 1,500 mm - Turning height: 1,300 mm - Cross slide travel: 800 mm - Side slide horizontal traverse: 550 mm - Heidenhain Positip 855 digital readout - New operator panel - Various accessories Inspection is possible at any time by appointment.

Condition: ready for operation (used), Table diameter: 2250mm Max. swing diameter: 2500mm Dcjdpfx Aieyxb I Tjgek Max. workpiece height: 1600mm

Condition: used, Year of construction: 1963, faceplate diameter 1200 mm swing diameter 1500 mm turning height 1300 mm slide adjustment 800 mm side head - cross travel 550 mm digital readout Heidenhain Overhauled in 1996 Machine is cycle-controlled with Heidenhain Positip New control panel The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop Dcjdpfxoyqvuwe Aigok If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 2015, turning diameter 210 mm turning length 1000 mm control Fanuc 31i max. turning speeds 5.000 min/-1 drive capacity - main spindle 15 kW max. torque 476 Nm bar passage 65 mm x-axis 250 mm z-axis 1050 mm x2-axis 150 mm z2-axis 1030 mm spindle hours ca. 700 h accessories: Lünette, Späneförderer In our opinion, the machine is in very good used condition and can be inspected under power by appointment. Technical details: - approx. 500 spindle hours Accessories: - Steady rest - Chip conveyor Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Djdjxq R Evspfx Aigsck Subject to changes and errors in the technical data and information as well as prior sale!

Condition: new, Year of construction: 2026, ⭐️ CAPACITY FROM 1 TON TO 100 TONS ⭐️ ⭐️ DIMENSIONS – CUSTOM SIZE AGREED WITH THE CLIENT ⭐️ Dcodpfx Aowr A Aloigjk ✅ Overhead crane, commonly called a bridge crane, eot crane, is a type of crane found in industrial environments. An overhead crane consists of parallel runways with a traveling bridge spanning the gap. A hoist, the lifting component of a crane, travels along the bridge. ✅ Usually there are include many kinds of types crane, firstly it was divided into single girder and double girder overhead crane. There are included normal type, european type, magnetic crane, grab crane, explosion proof crane, and so on. ✅ According to the different using environment and different application. We will choose the most suitable crane for customer

Condition: used, Year of construction: 1992, spindle speed (min.): 7,500 rpm, spindle speed (max.): 24,000 rpm, 4 motorized grinding spindles (liquid-cooled, purge air / oil mist lubrication) including REFU HF frequency converter, e.g. for powering the spindles of a Voumard 400 CNC T4. Grinding spindle GMN TSSV 170-7500 7,500 rpm, 350V, 19.3A, 7.5kW, 250 Hz Grinding spindle Voumard BM15-170 15,000 rpm, 350V, 35A, 18kW, 250 Hz Grinding spindle Voumard BM18-15032 18,000 rpm, 350V, 28.5A, 12kW, 600 Hz Grinding spindle Voumard BM24-150 24,000 rpm, 350V, 27A, 12kW, 800 Hz REFU HF Converter 316/25 High-frequency converter (inverter, frequency inverter) Frequency converter / inverter for powering motor spindles GMN tool spindle, motorized grinding spindle Dcsdpfx Aisl Tn Afjgek The spindles are fully functional, sold as is – manufacturing year approx. 1992 A collection of various grinding spindle shafts / arbors for grinding wheels is available for these spindles and can be purchased separately. Price / details on request All technical data subject to error or omission. We sell exclusively to countries within the European Community.

Condition: not inspected (used), Year of construction: 1996, turning diameter over cross slide: 1,000 mm, turning length: 4,000 mm, turning diameter: 1,450 mm, spindle bore: 150 mm, rotational speed (max.): 560 rpm, overall weight: 20,000 kg, CNC NUM T Plus Capacity 4000 x 1450 mm on bed 1000 mm on cross-slide 4-jaw chuck 1200 mm Steady rest Dsdpfx Aieyzhrkjgjck Automatic turret Set of tool holders Weight 20,000 kg

Year of construction: 2007, condition: used, gear hobbing diameter - external 1200 mm gear hobbing diameter - internal 1200 mm gear hobbing width -max. 260 mm control Liebherr PC-NC max. workpiece diameter 1500 mm table diameter 900 mm table bore diameter 320 mm max. table load 95 kN power capacity 30 kW coolant pump 120 l/min Axial distance between thrust spindle - table 0-820 mm Shaping spindle diameter 125 mm tool taper SK 45 DIN Dcedpsw Rf S Eefx Aigok weight of the machine ca. 26 t dimensions of the machine ca. 8,073 x 6,183 x 4,375 m Strokes: - Stroke length min./max. - 0 mm / 270 mm - Stroke length adjustability - 270 mm - Stroke rate (double strokes) - 10 to 270 DH/min Equipment/accessories: - Chip conveyor - Cutting wheel holder SK 45 DIN - Cooler - Technical documentation

Condition: used, Year of construction: 1992, grinding length 0800 mm grinding width 500 mm workpiece height 400 mm table-size 800 x 400 mm table speeds 1 - 25 m/min cross feed autom. 0 - 60 mm/Hub grinding wheel size 400 x 100 x 127 mm Dsdpewgnz Asfx Aigsck grinding spindle speed 1400/2800 U/min total power requirement 10 kW voltage 380 V weight of the machine ca. 6 t Machine has cooling arrangement, auto. vert. feed, dressing arrangement and wheel flanges. Control doesn't work continuesly !!

Condition: excellent (used), Year of construction: 1996, spindle bore: 160 mm, Swing over bed Ø 1040 mm Swing over cross slide Ø 710 mm Swing in the gap Ø 1580 mm DBC Turning Length 3000/4500 mm Gap length 1500 mm Spindle bore 160 mm Spindle power 40 kW Bed width 800 mm Spindle taper Dcedpfx Aijxtbf Esgsk 6 Mk Workpiece weight 3500 Speeds / ranges 800 Rpm Feed rate X-Axis 10000 mm/min. Feed rate Z-Axis 10000 mm/min. Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
