Vertical machining center

Kao Ming KMC 4000 SV

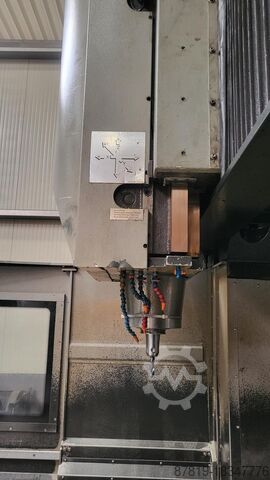

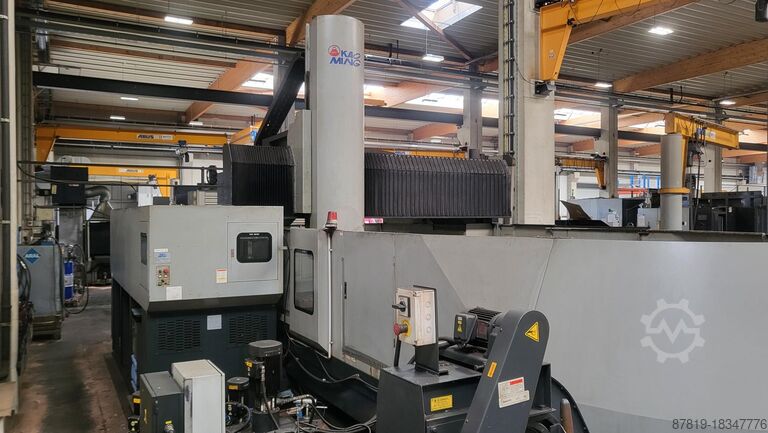

Condition: good (used), Year of construction: 2008, travel distance X-axis: 4,230 mm, travel distance Y-axis: 1,950 mm, travel distance Z-axis: 750 mm, table length: 4,000 mm, table width: 1,250 mm, table load: 11,000 kg, Portal milling machine KAO MING - KMC 4000 SV-H Double guideway two box way construction Head changer for Multi-Face machining off larger compontents ATC tool changer for Horizontal and vertical milling head swivabel Distance table spindle nose    213 - 1093 mm Distance table spindle center  130 -.mm Indexing Horizontal head 5 Degrees x 72 positions HeidenHain iTNC530 with HR410 handwheel Kdodpsxf E Twjfx Acwsw Spindle torq 1018 Nm ISO50 Universal Huron type milling head X - Travel: 4230mm Y - Travel: 1950mm Z - Travel: 750mm Distance between column:1500mm Table Length: 4000mm Table Width: 1250mm Table load: 11000 Feed rate X-Axis: 12000mm/min. Feed rate Y-Axis: 15000mm/min. Feed rate Z-Axis: 12000mm/min. Spindle Taper: 50ISO/Bt/Mk Power on spindle: 26kW Speeds / ranges: 4400Rpm ATC / revolver: 30 Chip conveyor: Yes Coolantsystem: Yes Length: 10100mm Width: 4500mm Height: 4250mm Weight: 30000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2008, x-travel 1.850 mm y-travel 1.400 mm z-travel 720/905 mm Control SIEMENS SL 840 D spindle turning speed range 15.000 U/min B - axis -20 / +120 ° Tool bore HSK-A63 0 tool magacine with 45 Plätzen Ksdpfjvxwuwsx Acwedw tool length - max. 365 mm workpiece diameter at used places besides 90 mm tool diameter with 2 vacant positions 130 mm NC rotary table 1.600 mm T-slots 12 groove width 18H12 flute distance 100 mm table load capacity 3.000 KG Table speed max. 30 1/min total power requirement 89 kW weight of the machine ca. 26 t dimensions of the machine ca. 7,00 x 6,20 x 4,15 m 5-Axis machining center with Siemens SINUMERIK 840D control, BLUM Laser, Renishaw, RotoClear, Fire extinguishing system, 2x electronic handwheel, Steptec spindle, Spindle oil cooler, coolant through the spindle, High pressure pump, Bürener belt filter system, Chip conveyor. Machine can be inspected under power

Condition: good (used), Year of construction: 1981, operating hours: 16,769 h, Center height 175 , Center width 700 , Angled position of turntable 10° , Workhead swiveling 90° , Speed range 30-675 rpm , Morse 5 , Grinding headstock _ grinding wheel diameter 400 , largest width 50 , drive power 6,25kW Kedpfstz T H Dex Acwjdw

Condition: used, Year of construction: 2012, grinding diameter max. 320 mm grinding length 1.500 mm centre height 160 mm Control Touch Jones & Shipman between centers max. 100 kg table: Traverse Z-Axis 1.645 mm traversing speed 0,0001 - 12 m/min swivable +5 / -5 ° x-axis: Traverse X-Axis 260 mm traversing speed 0,0001 - 6 m/min grinding head: grinding wheel motor 7,5 kW cutting speed 45 m/s Grinding wheel Ø x width x bore 450 x 50 x 203,2 mm Tailstock: Swivel range -15 / +90 ° turning speed range 0 - 660 U/min Torque 27 Nm tool adaptor MK 3 total power requirement kW weight of the machine ca. 8,5 t dimensions of the machine ca. 5,5 x 2,5 x 2,0 m Cylindrical Grinding Machine JONES & SHIPMAN - Suprema Easy 1500 E - Replacement grinding wheel flange - Multi-grain diamond (for circumferential and lateral dressing, 10mm, 1 carat) Kodpfxjtqmrpo Acwjdw - Tailstock with micro adjustment (max. adjustment range +-0.05mm) - Pneumatic quill retraction - Two-jaw bezel (range 8-75 mm)

Condition: used, Year of construction: 2001, grinding length 4200 mm grinding width 1300 mm workpiece height 550 mm Control Siemens 840D passage width 1300 mm electro-magnetic table 4200 x 1300 mm grinding height 550 mm grinding motor 306 kW grinding motor turning speeds up to 370 U/min grinding motor feed, infinitely variable 0,5-35 m/min coolant flow rate 2000 l/min weight of the machine ca. 50 t dimensions of the machine ca. 11,21 x 5,25 x 3,85 m Equipment / Accessories: - segment head - diameter 1400 mm - for segment dimensions 120/106 x 41 x 250 mm - number of segments: 1 set = 26 pieces Kdodpfx Asthumujcwjw - grinding motor adjustment - in steps: 0,002 - 1 mm - continuous: up to 5 mm/min stepless

Year of construction: 2021, condition: as good as new (ex-display), Highlights: - Powerfull motorizied spindle 16.000 U/min | 206 Nm - Hydraulic clapming for fixtures - Latest Machine Generation Basic machine G640 Work area travel range: X = 1.050 mm, Y = 800 mm, Z = 1.050 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Machine cooling system with an air-cooled cooling unit Machine control series FANUC 31i-MODEL B Plus Cycle package for measuring probes (RENISHAW) Control panel to enter tool data at tool loading and unloading position Rotary table with GROB pallet clamping system (B-axis) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication GROB spindle diagnostics GSD Single disc-type magazine HSK-A 63 with 50 pockets Tool cleaning device Electromechanical tool breakage detection device Twin palette changer Setup station driven by a three-phase servomotor Setup station door, manually-operated, for manual loading/unloading Additional control panel Kdjdelaugaepfx Acwew Pallet 630 x 630 mm, T-slots Equipping the pallet with 12 fluid connections Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (23 bar, ICS) Compressed air feed through spindle center External compressed air supply via a flexibly adjustable hose Cutting fluid recirculation on the weekend Flush gun at the work area Air gun at the work area Part clamping system in work area, customer-specific Hydraulic power unit for the part clamping system KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP3: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP5: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP6: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) Cooling unit for hydraulic proportional valves Part clamping system in setup station of pallet changer, customer-specific KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP3: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP5: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP6: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP7: Compressed air, seating check system (P2.1) KP8: Compressed air, seating check system (P2.1) KP8: Compressed air, seating check system (P2.1) KP10: Compressed air, seating check system (P2.1) KP11: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) KP12: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) Touch probe Renishaw RMP60 12-month warranty

Year of construction: 2025, condition: new, to sell the demonstration machine at a special price Our MVZ 7.5 granulator is suitable for shredding thin-walled parts and/or for post-shredding wood chips. More details after a test with your material. Larger systems are also available as an option The price is only for the shredder as shown in picture 1 - fan, cyclone and filter are options. Motor: 7.5 kW *larger systems on request (4 to 75 kW) Kdsdsd N Dn Dspfx Acwjw Throughput up to 120 kg/h *depending on screen and material Much higher throughput rates can be achieved with the secondary shredding of wood chips. Details after the test with about 30 kg. Rotor diameter: 180 mm 6 rotary knives each 225 mm 4 stationary knives each 225 mm Dimensions: 930x730x1420mm weight: 450 kg, suction nozzle: 100 mm, Screens: 6.8 and 15 mm - other screens available, Price per sieve: €390. Price set replacement knife: 579 € Suitable e.g. fur: - Plastic waste of all Art.-No Various materials - HDPE, LDPE, PP, PS. PC, PA - biomass -Wood - Herbs etc. Parts from injection molding, blow molding, injection molding scrap, small bottles, cables, small pipes, profiles, etc

Condition: excellent (used), Year of construction: 2016, operating hours: 26,678 h, functionality: fully functional, This machine is available exclusively through Montrasio GmbH and is being sold on behalf of the authorized parties. DMG DMU 100P duoBLOCK – 5-Axis CNC Machining Centre (2016) Year of manufacture: 2016 Control: SIEMENS CELOS Travel / Capacities X-axis: 1,000 mm Y-axis: 1,250 mm Z-axis: 1,000 mm Workpiece diameter: 1,100 mm Workpiece height: 1,600 mm Workpiece weight: up to 2,200 kg Table / Axes Table size: 1,100 × 900 mm Table rotation speed: 35 rpm Max. table load: 2,223 kg B-axis universal milling head swiveling range: −30° to +180° Spindle / Tool Spindle speed: 0 – 12,000 rpm Ksdpfjxl Arkjx Acwjdw Spindle motor power: approx. 69 HP (≈ 51.5 kW) Spindle taper: HSK-A100 Tool magazine: 63 positions Machine Dimensions Footprint: approx. 24 m² Machine height: approx. 3,606 mm Machine weight: approx. 24,540 kg Accessories / Equipment CNC-controlled universal milling head (B-axis) Workpiece probe Tool measurement system 3D Quickset Chip conveyor

Condition: excellent (used), functionality: fully functional, turning length: 530 mm, turning diameter over cross slide: 620 mm, turning diameter: 260 mm, spindle motor power: 15,000 W, spindle speed (min.): 35 rpm, spindle speed (max.): 3,500 rpm, spindle bore: 80 mm, travel distance X-axis: 195 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 590 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 15 m/min, Mori Seiki SL-25Y/500 CNC LATHE With 1.5m LNS bar feeder Control: Mori Seiki MF-T6 Tool holders: (2) Radial live tolls (2) Axial live tools (4) inside tool holders (4) outside tool holders Swing over bed: 815 mm (32.1″) Swing over cross slide: 620 mm (24.4″) Distance between centers: 620 mm (24.4″) Max. turning diameter: 260 mm (10.2″) Max. turning length: 530 mm (20.9″) X-axis travel: 195 mm +130 +65 (7.7″ + 5.1″ + 2.6″) Z-axis travel: 590 mm (23.2″) Y-axis travel: 100 mm ±50 (3.9″ ± 2.0″) Spindle speed range: 35 – 3,500 RPM Spindle nose: JIS A-8 Through spindle hole diameter: 80 mm (3.1″) Spindle bearing inner diameter: 130 mm (5.1″) Number of tool stations: 12 Shank height for square tool: 25 mm (1.0″) Shank diameter for boring bar: 50 mm (2.0″) Turret indexing time: 0.25 sec Rotary tool spindle speed: 100 – 2,000 RPM Rotary tool cutting capability: End mill max Ø20 mm, Face mill max Ø50 mm, Tap max M12 Rapid traverse rate:   X-axis: 12,000 mm/min (472.4 IPM)   Z-axis: 15,000 mm/min (590.6 IPM)   Y-axis: 10,000 mm/min (393.7 IPM) Feed per revolution: Kdodpew Ett Iofx Acwew   X-axis: 0.001 – 342 mm/rev   Z-axis: 0.001 – 342 mm/rev   Y-axis: 0.001 – 500 mm/rev Jog feedrate: 6,000 mm/min (236.2 IPM) Tailstock travel: 403 mm (15.9″) Tailstock spindle diameter: 110 mm (4.3″) Tailstock spindle travel: 100 mm (3.9″) Tailstock taper: MT-5 (Live center) Spindle motor power (30 min/cont): 15/11 kW (20/15 HP) Rotary tool spindle motor: 3.7/2.2 kW (5/3 HP) Electrical power supply: 44 kVA Coolant tank capacity: 100 liters (26.4 gal) Machine height: 2,060 mm (81.1″) Floor space: 3,183 × 1,799 mm (125.3″ × 70.8″) Machine weight: 5,400 kg (11,900 lbs)

Condition: used, Price: On request Drilling machine, horizontal boring machine  Model: Conventional Manufacturer: WMW Union Type: BFT 90/3-2 Including rotating table Including digital readout Including multiple belongings X-Z travel: 1600x1000 Y-travel (up-down): 1050mm W-travel: 710mm Kodpfx Aownhi Aecwsdw Spindlemotor: 11kW Spindle diameter: 90mm Spindlespeed: 8-1600 rpm Table: 1000x1120mm Machine-weight: 9000kg - Documentation available: No - CE certificate present: No - Serial number: 90/3-2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum
