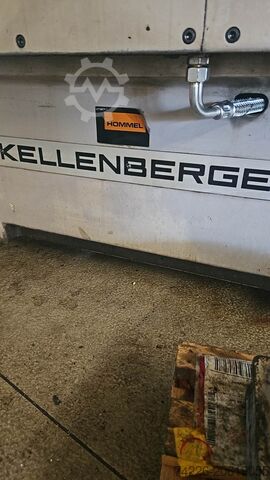

Cylindrical grinder

KELLENBERGER 1000 U

Condition: excellent (used), Kellenberger 1000U cylindrical grinding machine, available at a competitive price with many accessories included. There are a total of 3 machines for sale. All machines are in very good condition and fully operational. One machine was purchased as a fully overhauled unit in 2019. Prices are negotiable. Price for all 3 machines including many accessories (grinding wheels, etc.). Price significantly reduced! Fpjdpfowkt Eujx Ag Reb

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm Fsdpfju D I Tljx Ag Rspb grinding length 600 mm centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW weight of the machine ca. 4,4 t dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

Condition: excellent (used), Year of construction: 1999, grinding length: 1,000 mm, Internal / External spindel Collet device Schaublin with inserts Steady rest 5 - 80 mm Steady rest 3 - 120 mm Coolant system Filtration system Speeds head 1500 / 1700 / 2200  Centre height: 175mm Grinding Ø: 350mm Fjdpfxoxy I Tvo Ag Repb Grinding length: 1000mm Grinding stone dimensions:400 x 50 x 127mm Grinding stone speeds: 1500 / 1700 / 2200Rpm Table inclasement: 9° Tailstock: 4Mk Cooling system: Yes Filtration: Yes Length: 2860mm Width: 1680mm Height: 1670mm Weight: 2500kg

Condition: good (used), grinding length: 1,000 mm, grinding diameter: 350 mm, We are selling our cylindrical grinding machine Kellenberger 1000U Grinding diameter: 350 mm Grinding length: 1000 mm This machine features a reinforced headstock and can be elevated. Remarks: - The price does NOT include any accessories! - Collection by the buyer, ex works. - The collection date will be arranged in consultation with the seller. - No warranty Fpsdpexzqivefx Ag Rob - Advance payment (invoice) or cash payment upon collection.

Condition: refurbished (used), Year of construction: 2011, functionality: fully functional, GF AgieCharmilles CUT 400 Year of construction 2011 Control Charmilles Millenium Travels (X / Y / Z): 800 x 550 x 510 mm Travel (U / V): 800 x 550 mm Max. Taper angle: +/- 30° at 510 mm height Integrated Collision Protection (ICP) on all 5 axes Maximum workpiece dimensions: 1450 x 900 x 510 mm Maximum workpiece weight: 3000 kg Fpodpfx Agjuuz Iie Rob Cutting speed of 400 mm²/min Best surface finish: Ra 0.2 µm Available wire diameters: 0.20 mm to 0.30 mm Incl. option for large wire reel with 25 kg (K250) Dimensions of the complete system: 2670 x 2870 x 2645 mm Total weight of the system: 6300 kg The machine is cleaned, overhauled and tested for all functions by us after receipt of order. Optional: - Commissioning of the machine on your premises - Training on site - Cooling unit - Transportation - Clamping bar set

Condition: refurbished (used), Machine totaly reconditioned With DRO Center height 175 mm Distance between centers 1000 mm Grinding wheel 400 x 50 x 127 mm + 225 x 20 x 76.2 mm Grinding wheel speeds 1'500-2'200 rpm With internal grinding attachement Fpjdswhk Uuopfx Ag Reb Misc. accessories MARCELS MASCHINEN AG

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your sion R: Maschine hat Zentralschmierung und Rollenführung in der Flachbahn der x-Achse sowie Luftabhebung im Schleifspindelstock. Beispielfoto einer von uns überholten 600U -Digitalanzeige in 2 Achsen. Auflösung x-Achse 0,5my Optionen: -Drehgeber mit digitaler Anzeige im Werkstückspindelstock -Drehgeber mit digitaler Anzeige im Schleifspindelstock (keine Höhenverstellung mit Spindel möglich) -Neue stabile Innenschleifvorrichtung Durchmesser 80mm oder 100mm mit Höhenjustierung. -Erhöhung der Spitzenhöhe auf max. 225mm -Drehzahlregelung für die Schleifspindel Inklusive: -Bedienwerkzeug Fsdpfed Ih D Hex Ag Rspb -Spannrohr für Futter weiteres Zubehör auf Anfrage. Overhauled with geometric KELLENBERGER protocoll. Standard with: -2-axis DRO -Paper filtration Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: excellent (used), Year of construction: 2015, CNC tool grinding machine Walter Helitronic Power FH, with pallet loader (cylindrical), 8-position disc changer, electrostatic fume extractor, fire extinguishing system, oil supply pump, software Walter-Window-Mode and Toolstudio. Software packages: 001, 002, 003, 016, 017, 026, 090, 091, 098, 099, 032, Helicone, Helidrill, Heliflute, NC-Mode, Power-IMS, Toolstudio_Standard. Equipped with hydraulic interface (preparation for steady rest - Lynette). Fpjdpfxjx E Dfbj Ag Rjb The grinding spindle (single spindle) is direct-drive and features an oil cooler. The hollow-shaft motor for the A-axis has a speed range of 0–750 rpm. Axes C, X, Z, and A were overhauled in 2022.

Year of construction: 1979, condition: refurbished (used), functionality: fully functional, TECHNICAL DETAILS Height of centers: 125 mm + heights of 50 mm distance between centers: 1.000 mm Grinding wheel ' diameter: 400 mm ' width: 50 mm ' Bore: 127.0 mm angular displacement: 270 ° workpiece spindle head: 20 - 400 rpm taper of the spindle: 5 MT Taper in the tailstock: 3 MT table angular displacement: 8 ° Table speed: infinitely variable up to 6.0 m/min Internal grinding spindle with 60 000 rpm External grinding wheel motor: 4,0 kW Workpiece spindle motor: 1,5 kW Weight machine: 3.100 kg Overall machine dimensions: 2,860 × 1,680 × 1,670 mm (L × W × H) EQUIPMENT & SCOPE OF DELIVERY - Machine was completely retrofitted - New control cabinet & new wiring diagram - New motor & frequency converter for the working head - 2 axes DRO - Cooling tank with paper filtering - Geometry made according to the Kellenberger protocol - Internal grinding spindle - Many accessories Fpodpfx Aek H Hp Njg Rjb Please refer to the attachment below for a test report on the machine.

Condition: good (used), functionality: fully functional, Used Kellenberger cylindrical grinding machine for sale in very good condition. Price significantly reduced !!!!! Fpsdpew Dzbdofx Ag Rsb

Year of construction: 2018, condition: ready for operation (used), A gear flank grinding machine Reishauer, completely overhauled by Burri Werkzeugmaschinen, is available. Grinding spindle speed: 3500rpm, cutting speed: 63m/s, max. gear diameter: 360mm, module range: 0.1-7, number of teeth: 6-600, max. workpiece height: 160mm, max. helix angle: +/-45°, max. workpiece weight: approx. 60kg. Min. wheel root circle diameter: 250mm, grinding wheel dimensions X/Y/Z: 350mm/104mm/160mm, grinding worm diameter range: 270mm-350mm, max. grinding width: 175mm, max. workpiece speed: 800rpm. Includes profiling devices, balancing device, structure-borne noise contact control, compact filter system, cooling unit, cooling water recooler, robot automation, and transport trolleys. Documentation available. An on-site inspection is possible. Fjdpfow Rqwajx Ag Rjpb

Condition: used, grinding diameter 250,350,450 mm Fpodpfeuxftxex Ag Rob grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your o von Kürzlich gelieferten Maschinen mit zusätzlichen Optionen wie: -Spritzschutztüren -Kabine x-Achse -Schwenkwinkelanzeige Schleifspindelstock Geometrisch überholt und neu lackiert mit original Elektrik. Maschine hat Zentralschmierung und Rollenführung in der Flachbahn der x-Achse sowie Luftabhebung im Schleifspindelstock serienmäßig. -Digitalanzeige in 2 Achsen. Auflösung x-Achse 0,5my Optionen: -Drehgeber mit digitaler Anzeige im Werkstückspindelstock -Drehgeber mit digitaler Anzeige im Schleifspindelstock (keine Höhenverstellung mit Spindel möglich) -Neue stabile Innenschleifvorrichtung Durchmesser 80mm oder 100mm mit Höhenjustierung. -Erhöhung der Spitzenhöhe auf max. 225mm -Drehzahlregelung für die Schleifspindel Inklusive: -Bedienwerkzeug -Spannrohr für Futter weiteres Zubehör auf Anfrage. Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° Fsdpjv I Eq Sofx Ag Ropb grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m Ready for delivery, with 12 month warranty in germany and neighbouring countries! Geometrically overhauled and repainted with new electrics. In KELLENBERGER quality!!! -Digital display in 2 axes. Resolution x-axis 0.5my -Modern workpiece headstock with cone MK5 -Modern tailstock with cone MK3 -Modern hydraulic unit -Paper belt filter Further accessories on request

Condition: used, Year of construction: 2005, General Information: - Model: ROBODRILL α-T2 STAMA - Serial Number: 046VH155 - Year of Manufacture: 2005 - CNC Controller: FANUC (Model A04B-0094-B111#BD) - Weight: 2200 kg - Power Supply: 200 V, 50/60 Hz, Three-phase - Power Consumption: 10 kVA ----- Machining Capabilities: - Operations: - Milling (high-speed and high-precision milling) - Drilling - Rigid tapping ----- Axis Travel: - X-axis Travel: ~500 mm - Y-axis Travel: ~400 mm - Z-axis Travel: ~330 mm ----- Spindle: - Spindle Taper: BT30 - Standard Spindle Speed: up to 10,000 rpm ----- Tool Changer: - Type: Automatic tool changer - Tool Change Time: ~1.6 seconds ----- Fpodpjuru I Rjfx Ag Reb Rapid Traverse Rate: - Rapid Traverse Speed: 54 m/min on X, Y, and Z axes ----- Key Features: - Compact structure for high rigidity - High productivity with ultra-fast drilling and tapping cycles - Easy maintenance (integrated FANUC diagnostic interface) - Compatibility with automated production cells (co-branding with STAMA)

Condition: used, grinding diameter 250,350,450 mm grinding length 1000 mm centre height 125,175,225 mm grinding wheel diameter 400 mm grinding wheel width 50 mm bore 127 mm MK5 work piece spindle speed 20-400 U/min grinding head swivelling 360 ° grinding spindle head - swivable 180 + - ° grinding spindle speed 1500,1700,2200 U/min 0,001-0,030 mm/Ø 0-0,95 mm/Ø ±8 ° Fpjdpfx Agst Ii Nuo Rjb longitudinal feed of the table 1300 mm table speeds 0,02-6 m/min 130 kg 130 inkl. Spannugkg kg 70 mm total power requirement 6,5 kW weight of the machine ca. 2,5 t dimensions of the machine ca. 4,2 x 2,0 m As the world’s leading company in Kellenberger overhaul and retrofit we are not only able to deliver machines in a quality similar to a new machine and with warranty, but we can also offer you the service for your machines. Geometrically overhauled with new paint and original electrics. Foto of a 600U which we already have delivered. -Digital display in 2 axes. Resolution of x-Achse 0,5my Options: -Encoder with digital display in workpiece spindle head -Encoder with digital display in grinding spindle head (Height adjustment with spindle not possible) -New stable internal grinding diameter 80mm oder 100mm with height-adjustment. -Increase the center heigh to max. 225mm -Speed control of the grinding spindle Including:: -Adjustment tool -Draw tube for chucks other accessories on reqeust Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.
