Used Broadbent Cnc Lathe for sale (11,325)

Condition: used, Year of construction: 2007, Technical details: Njdpjvvt Emefx Aqvjlb turning diameter over bed: 762 mm turning length: 850 mm facing movement (x-axis): 287 mm longitudinal traverse (z-axis): 864 mm control: CNC Haas spindle passage: 76 mm revolution per minute: max. 3400 steples U/min tailstock taper ISO: Ø 290 tailstock quill stroke: ja mm tool turret - number of stations: 12 electrics - voltage/frequency: 360/ 400 V - 50-60 Hz V/Hz Weight approx.: 6,3 t transport measurements machine: ca. 3,4 x 2,1 x 2,4 m Equipment: 3-jaw power chuck KITAKAWA Ø 250 mm (without jaws) 4200 rpm. Operable via 2-position foot switch. Tool turret with powered tools available. Electric coolant system provided. Tool measuring system available. I.D. *

Condition: used, Year of construction: 2000, Technical details: turning diameter over bed: 600 mm turning dia. over face-slide: 260 mm turning length: 610 mm facing movement (x-axis): 160 mm longitudinal traverse (z-axis): 610 mm control: Siemens 810D revolution per minute: 1 - 6300 steples U/min max. torque on the spindle: 86 Nm spindle passage: Ø 42 mm external spindle dia. in forward position: Ø 80 mm feed motor: X/Z: 5000 / 7000 N rapid motion - x-axis: X/Z: 16 / 20 m/min tool turret - number of stations: 12 / VDI 30 tailstock taper ISO: MK4 tailstock adjustment: 500 (Hub) mm Main spindle capacity: 7,5 (100%=11kW) kW electrics - voltage/frequency: 3/PE ~ 400V und 50/60Hz V/Hz total power requirement: 20 kVA (11 kW) Weight approx.: 4,0 t dimension machine xH: 3,0 x 2,0 x 2,1 m Further technical specifications: C-axis Distance main spindle - tailstock: 805 mm Power chuck Röhm Ø 160 mm (without jaws), speed 7,500 rpm. Tailstock with live center Coolant device, coolant supply via tool turret Switch cabinet with cooling, Rittal type SK3393100 Workpiece collecting tray Machine lighting Accessories: 1x driven tool Nsdpsu Ixwiefx Aqvolb i.D. *

Condition: used, Year of construction: 2006, Technical details: turning diameter over bed: 500 mm turning dia. over face-slide: 290 mm turning length: 850 mm centre distance: 850 mm longitudinal traverse (z-axis): 900 mm facing movement (x-axis): 260 mm control: Manuaplus 4110 revolution per minute: 10 - 3000 / 2x seples U/min max. torque on the spindle: 920 Nm spindle bore: 70 mm facing movement (x-axis): 8 m/min. longitudinal traverse (z-axis): 10 m/min. operating hours - idle run: ca. 34.600 h tailstock taper ISO: MK 5 tailstock quill stroke: 180 mm total power requirement: 24 kVA Weight approx.: 5,2 t dimension machine xH: 2,2 x 3,2 x 1,9 m Nljdpfx Ajwtct Hoqveb Multifix steel holder size C 3-jaw chuck Ø 250mm chip tray manual hour counter live center in tailstock Operation control panel and monitor Accessories: 4-jaw chuck Ø 250mm with internal jaws various chuck keys Machine lighting 8x foot plates 4x wedge lifters various pairs of jaws 1x steady rest Ø 100mm closed *

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 430 mm turning dia. over face-slide: 210 mm Njdpfxsyw Hmfo Aqvelb turning length: 510 mm facing movement (x-axis): 150 - 160 mm longitudinal traverse (z-axis): 300 - 510 mm control: Fanuc 21T revolution per minute: 6300 U/min max. torque on the spindle: 17,5 Nm external spindle dia. in forward position: 45 mm tool turret - number of stations: 8 Main spindle capacity: 11 kW electrics - voltage/frequency: 400/50 V/Hz total power requirement: 17 KVA Weight approx.: 2,4 t dimension machine xH: 2,2 x 1,4 x 2,0 m The EMCO TURN 345 is a compact and powerful CNC lathe designed for the precise machining of individual parts as well as small and medium-sized production runs. It is characterized by its robust construction, high reliability, and ease of operation. Equipped with the proven Fanuc Series 21-T control system, the machine ensures precise and stable process control as well as straightforward programming using standardized G-code. *

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 180 mm turning dia. over face-slide: 75 mm turning length: 325 mm facing movement (x-axis): 56 mm longitudinal traverse (z-axis): 176 mm control: Fanuc 21T revolution per minute: 50 - 3000 U/min range of revolution per miute: 0 - 6300 U/min external spindle dia. in forward position: 50 mm feed force Z - max.: 3000 N spindle bore: 30 mm Main spindle capacity: max. 3,7 kW electrics - voltage/frequency: 400 / 50- 60 V/Hz Njdpfxjy Emfwo Aqvelb Weight approx.: 1,0 t dimension machine xH: 2,2 x 1,0 x 1,62 m Machine built in 1999, first commissioned in 2000 The EMCO TURN 325 is a universal CNC/conventional lathe from the EMCO Group (Austria) range. It is in the medium power and size range and is often used in training, workshops, and production. It is specially designed for the precision machining of small parts, shafts, and chuck parts. *

Condition: used, Year of construction: 2004, Technical details: turning diameter over bed: 610 mm turning dia. over face-slide: 350 mm swing diameter over bed: 610 mm centre distance: 1390 mm control: Fanuc 0i-Mate TC x-axis: plan: ca. 305 mm z-axis: längs: ca. 1350 mm revolution per minute: 22 - 2200 U/min Nedpfx Aou Ix I Usqvelb feed:: X + Z-Achse: 5 / 10 m/min. spindle bore: Ø 70 mm tool turret - number of stations: 6 tailstock quill taper MT: MK5 tailstock quill stroke: 150 mm Weight approx.: 2,7 t total power requirement: 15 kW dimension machine xH: 3,7 x 1,7 x 1,7 m dimensions of hydaulic: 630 x 460 x 900 mm other features: -hydr. chuck TONFAU Ø 300mm -hydraulics -Coolant system -control panel -double foot switch accessories: -div. mold jaws -div. soft jaws -6 footrests *

Condition: used, Year of construction: 2011, Technical details: turning length: 310 mm swing diameter over bed: 500 mm swing diameter over bed slide: 290 mm centre distance: 500 mm x-axis: 190 mm z-axis: z1: 335 / z3: 370 mm y-axis: 80 mm revolution per minute: 6000 U/min Control: Heidenhain CNC Pilot 4290 spindle bore: 73 mm bar material dia.: 50 mm tool turret - number of stations: 12 tool taper: VDI 30 mm rapid traverse x + z axis: 30 m/min operating hours - idle run: 36443 h spindle hours: 8545 h interface: ja total power requirement: 20 kVA kW dimension swarf conveyor LxWxH: 3,2 x 0,45 x 1,5 CNC inclined bed lathe With a 3-jaw chuck Ø 160mm with matching flange (max. speed 4500 rpm) and 2 additional sets of spare jaws. Turret head for 12 tools all with tool drive; Sauter disk turret (C-axis = 300 rpm) Torque main spindle: 95 Nm at 100% and 127 Nm at 40% Nodpfxew S Efzo Aqvslb Chip conveyor 450 K-1/250; year of manufacture 2000 Electric cabinet with Rittal cooling The machine does not have a hydraulic chuck. A manual chuck has been installed by the previous owner. The machine is not functional and is for sale. The machine has an unknown malfunction in the turret, meaning that reference travel and axis movements are not possible. Machining functionality is therefore currently not possible. The machine is for sale and in need of repair! i.D. *

Condition: used, Year of construction: 2008, Technical details: turning diameter over bed: 600 mm turning dia. over face-slide: 540 mm turning length: 550 mm longitudinal traverse (z-axis): 800 mm facing movement (x-axis): 260 mm control: Fanuc 18i-TB spindle bore: Ø 73 mm bar material dia.: Ø 65 mm revolution per minute: 0 ... 5000 steples U/min max. torque on the spindle: max. 250 Nm rapid traverse in x-y-z axis: X/Z: 30 m/min. / Y: 12 m/min. rapid traverse c-axis: 1000 U/min. tool turret - number of stations: 12 (Sauter) operating pressure: 6,0 bar electrics - voltage/frequency: 3 x 400 / 50-60 V/Hz operating pressure: 6 bar total power requirement: 40 kVA Weight approx.: 5,7 t dimension machine xH: 2,2 x 3,4 x 2,4 m dimension swarf conveyor LxWxH: ca. 2,9 x 0,6 x 0,55 (0,38 to) m Nodpfx Aqjvvtpxjvolb dimensions LxWxH: Spänewanne: ca. 1,6 x 1,3 x 0,25 (0,2 to) m transport measurements machine: ca. 3,3 x 1,9 x 2,2 m The machine has a C-axis, E-axis, Y-axis, and W-axis. Powered tools can be used in all positions. Distance between spindle and counter spindle = 1050 mm. Counter spindle: A2-6, travel distance 800 mm, spindle diameter 105 mm, torque 250 Nm. Control cabinet equipped with Rittal cooler With hinged chip conveyor Chip tray Compressed air gun The machine has NO lathe chucks on sale as is! *

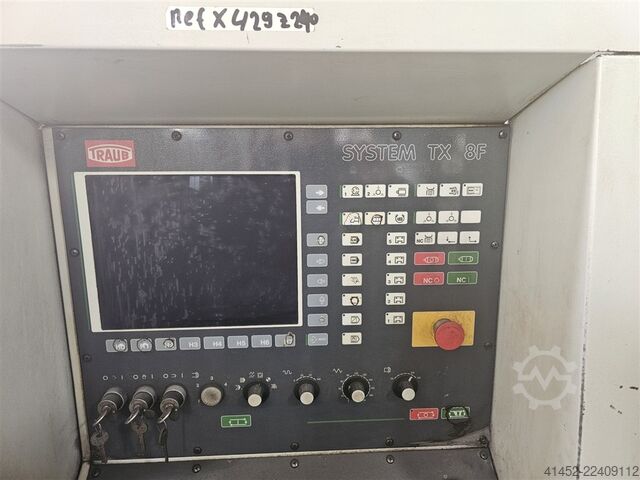

Condition: used, Year of construction: 1987, Technical details: turning diameter over bed: 180 mm turning length: 490 mm swing diameter: 450 mm cross travel: Z-Weg: 168 mm control: Traub TX8D revolution per minute: 20 - 4000 U/min spindle passage: Ø 60 mm operating hours - idle run: 23.495 h tool turret: 12 tools total power requirement: 38 kW Weight approx.: 4,2 t dimension machine xH: 3,6 x 2,5 x 2,2 m Tool holder straight shank DIN 69880 (VDI 3425) Ø 40x63 Röhm lathe chuck Ø 200mm hydraulic clamping Operation via double foot switch and control panel/operating panel. Coolant device The Traub carries an integrated chip conveyor with an ejection height of 1,100mm (currently without function). Nedpfsu Ix N Sex Aqvjlb Accessories: multiple small parts 8 x machine feet without tailstock i.D. *

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 554 mm turning dia. over face-slide: 370 mm Nljdpfx Aqjv Azdwevob turning length: 1000 mm centre distance: 1100 mm control: Fanuc 210i longitudinal traverse (z-axis): 1000 mm Transversal stroke (x-axis): 290 mm revolution per minute: 16 - 1800 U/min spindle stroke: 178 mm feed:: 10 m/min. spindle passage: 104 mm spindle nose: D1 - 11 tailstock taper ISO: 6 MT spindle drive: 11/7,5 kW connection voltage: 380 V electrics - voltage/frequency: 3 Ph / 400 V / 50 Hz V/Hz total power requirement: 11 kW Weight approx.: 4,0 t dimension machine xH: 3,3 x 1,8 x 1,7 m

Condition: used, Year of construction: 2010, Technical details: spindle passage: 92 mm Nljdpowf Nraefx Aqvsb turning length: 1000 mm z-axis: min.: 404 mm z-axis: max. 1130 mm facing movement (x-axis): min./max.:15 / 335 mm control: Sinumerik SL840D max. torque on the spindle: 2500 Nm tool turret: 12 tools axial operating pressure: 6,0 bar rapid traverse: 20 m/min total power requirement: 88 kVA dimension machine xH: ca. 4,45 x m dimensions of the bar loader L-W-H: ca. L: 5,7 x B: 2,65 x H: 2,4 m CNC lathe with bar loader - inclined bed lathe -SL 840D control with NCU software 2.6, system software 1.4, store turn software 6.4, with one orientable C-axis, without driven tools -KNCS 260-72 chuck, SMW Autoblok -Clamping force generator via clamping cylinder VNK-200/86 / SMW Autoblok -Measuring system Fa. Heidenhain -Sauter VDI50 tool disk turret, electric drive Bar loaderMaster 80HF, type 33LL: -Dimension round material min./max.: Ø 20mm / 80mm -Minimum length of the workpiece: 33-38-43 to 1000mm -Maximum length of the workpiece: 33 - 3300mm / 38 - 3800mm / 43 - 4300mm -Feed speed (adjustable) 150mm/sec. - Return speed (adjustable) 950mm/sec. -max. offcut length: Ø 8+65mm = 400mm / Ø 66+80mm = 250mm -min. remnant 120mm Chip conveyor / hinged belt from Richter, type SP 450/63 -Discharge height = 1000mm, discharge side right Accessories: -div. tool holders VDI 50 -sizing adapter SK50-> VDI 50 -Power chuck Hainbuch Toplus Kombi Ax-zug GR100 -div. sleeves, guide jaws for bar loader Ø 20 - 75mm i.D. *

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 180 mm turning dia. over face-slide: 75 mm turning length: 325 mm facing movement (x-axis): 56 mm longitudinal traverse (z-axis): 176 mm control: FANUC 21T revolution per minute: 50 - 3000 U/min external spindle dia. in forward position: 50 mm feed force Z - max.: 3000 N spindle bore: 30 mm Main spindle capacity: max. 3,7 KW kW electrics - voltage/frequency: 400 / 50 -60 V/Hz Weight approx.: 1,0 t dimension machine xH: 2,2 x 1,0 x1,62 m Nodpfx Aoy Emfqsqvjlb The EMCO TURN 325 is a universal CNC/conventional lathe from the EMCO Group (Austria) range. It is in the medium power and size range and is often used in training, workshops, and production. It is specially designed for the precision machining of small parts, shafts, and chuck parts *

Condition: used, Year of construction: 2000, Technical details: Nlodeylt Nzjpfx Aqvjb turning diameter over bed: 340 mm turning dia. over face-slide: 158 mm turning length: 300 mm facing movement (x-axis): 300 mm longitudinal traverse (z-axis): 300 mm control: Siemens 810T revolution per minute: 60 - 4.000 U/min max. torque on the spindle: 106 - 145 Nm external spindle dia. in forward position: 80 mm feed motor: 8500 N rapid motion - x-axis: 6 m/min tool turret - number of stations: 8 tailstock adjustment: 120 mm Main spindle capacity: 11/15 kW electrics - voltage/frequency: 380/50 V/Hz total power requirement: 20 KVA

Condition: used, Year of construction: 1997, Technical details: turning diameter over bed: 550/500 mm turning dia. over face-slide: 290 mm turning length: 1500 mm turning diameter over support: 290 mm Nsdpfoyya H Djx Aqvelb centre distance: 1500 mm spindle passage: 68-70 mm control: Fanuc/Siemens range of revolution per miute: 3 - 2800 U/min tailstock quill stroke: 160 mm Weight approx.: 3,3 t dimension machine xH: 3,33 x 1,55 x 1,79 m Multiflex quick-change holder size C *

Condition: like new (used), Year of construction: 2023, BRAND NEW MACHINE!!! 0 operating hours!!! CNC lathe, 3 axes SMEC SL2000M made in KOREA Nsdeyahwpjpfx Aqvslb Year of manufacture: 2023 Control: Siemens 828D - ShopTurn (touch screen) Turning diameter: 360 mm Turning length: 520 mm Spindle Rotational speed: 6000 rpm Power (max.): 18.5 kW Bar diameter: 52 mm 3-jaw chuck, Samchully MH-206 V1 24-position turret, BMT55 Driven tools: 5000 rpm Accessories: - Chip conveyor, tank with pump - Documentation

Year of construction: 2026, condition: new, functionality: fully functional, DN Solutions PUMA DNT2600M Type: CNC Turning Center (Live Tooling) Control Unit: Fanuc Chuck Size: 10 Inch with C-Axis Njdpfx Aqey R E Stsvelb Bar Capacity: 81 mm Max. Turning Diameter: 380 mm Max. Turning Length: 610 mm X-Axis Travel: 260 mm Z-Axis Travel: 658–680 mm Spindle Speed: 3500 rpm Spindle Power: 22–26 kW Max. Torque: 327–735 Nm Turret Capacity: 12 Stations Live Tool Speed: 6000 rpm

Condition: excellent (used), Year of construction: 2015, turning length: 540 mm, turning diameter: 350 mm, spindle bore: 65 mm, CNC lathe Smec Korea Model PL240BLM Year 2015 Control: FANUC OiTD with Manual Guide C-axis with driven tools Z-axis travel: 560 mm Maximum turning length: 540 mm Maximum turning diameter: 350 mm Spindle bore: 65 mm Chuck: 210 mm Turret: 12 positions BMT 55 Probe Tailstock Parts catcher Chip conveyor Documentation 12 tool holders (9 standard, 3 driven) Njdpfx Aqjy Ry U Aevjlb Very good condition, only 4000 operating hours

Condition: refurbished (used), Year of construction: 2015, operating hours: 50 h, The machine is under power, in exellant condition with minimum working hours. Nsdpfx Ajgwlaqsqvolb

Condition: refurbished (used), Year of construction: 2002, machine/vehicle number: GIK0005, The machine after its refirbish is in good condition Nlodpsgwlfvjfx Aqvsb

Condition: excellent (used), functionality: fully functional, machine/vehicle number: G01747, Turning diameter over bed : 500 mm Turning diameter over slide : 280 mm Workpiece length : 2000 mm X-axis travel range : 280 mm Z axis travel range : 1935 mm Rotation speed : 3000 rpm/min Spindle tip : A2-8 Spindle flight : 82mm X / Z accelerated feed : 4/6 m/min Tailstock sleeve diameter : 75 mm Nljdpjvfdiuofx Aqvsb Tailstock taper : MT5 Main spindle motor : 11/15 kW Tool shank size : 25x25 mm Tailstock step : 150 mm Positioning accuracy of the X/Z axis (C, Y) : 0,018/0,021 mm Repeatability accuracy of the X/Z axis (C, Y) : 0,014 mm Weight : 2800 kg

Condition: used, Year of construction: 2002, turning diameter 240 mm turning length 530 mm control Siemens 810 D Powerline swing diameter 560 mm Nlsdpfjycxibex Aqvsb x-travel 207,5 mm z-travel 530 mm turning speeds 6000 U/min 12 Stk. total power requirement --- kW weight of the machine ca. 6,1 t

Year of construction: 2007, condition: ready for operation (used), - USED - 8-AXIS CNC LATHE WITH MILLING HEAD, DOWN TURRET HEAD AND COUNTER SPINDLE DISTANCE BETWEEN CENTRES: 210 - 1290 mm MAX TURNING LENGTH: 1090 mm MAX TURNING DIAMETER: 245 mm BAR CAPACITY: 65 mm SPINDLE: 11-15 kW; 221,5 Nm COUNTER SPINDLE: 6000 rpm; 7,5 - 11 kW HEAD: HSK A63 ; 3,7 - 5,5 kW X1-AXIS TRAVEL: 455 mm X2-AXIS TRAVEL: 222,5 mm Y1-AXIS TRAVEL: ± 70 mm Y2-AXIS TRAVEL: +20 -50 mm Z1-AXIS TRAVEL: 1090 mm Z2-AXIS TRAVEL: 1005 mm B-AXIS TRAVEL: 1080 mm RAPID FEEDS X-Y-Z: 16 - 6-16 - 40 m/min Nljdexppnmspfx Aqveb DRIVEN TURRET HEAD: 12 + 12 POS; 6000 rpm; 3,7 - 7,5 kW HIGH PRESSURE COOLANT: 25 Bar CONTROL UNIT: FANUC 31i-A BAR FEEDER: LNS Mod. Hydrobar Sprint S3 WEIGHT: 16000 Kg OVERALL DIMENSIONS: 5551 x 2925 x 2755 mm ACCESSORIES: HIGH PRESSURE COOLANT ; SWARF CONVEYOR ; PIECE CONVEYOR

Condition: excellent (used), Year of construction: 2018, functionality: fully functional, CNC lathe DMG CLX 450 V3, year 2018, Siemens Slimline control C-axis with driven tools Sauter turret with 12 positions VDI40 Chuck 250 mm Spindle bore 80 mm X-axis travel: 267 mm Z-axis travel: 600 mm - Measuring probe - Parts catcher - Tailstock Nsdpfx Aqox Hqh Sevjlb - Chip conveyor - Documentation - 3 driven tool holders included with the machine Cutting hours: 4,600 hours Very good condition

Year of construction: 2024, operating hours: 305 h, condition: used, machine/vehicle number: 2805.24, Manual Plus 620 control system, turning diameter: 200 mm, distance between centers: 900 mm. Nsdpfxey T Nymo Aqvolb

Condition: reconditioned (used), Year of construction: 2015, functionality: fully functional, MAZAK QUICK TURN SMART 200M 500U Max. turning diameter: 360 mm Njdpfxey D Awts Aqvslb Max. turning length: 532 mm Max. milling speed: 4,500 rpm Max. spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - Mazatrol Smart CNC control - KITAGAWA three-jaw chuck BB-208, diameter 210 mm - Tool Eye - C-axis - Interface for bar feeder - automatic parts catcher - NC tailstock - high-capacity coolant pump - chip conveyor, side ejection - 8 static tool holders - 2 driven tool holders
