Used Wma Spot Welding Machine for sale (67,807)

Condition: new, Year of construction: 2025, Technical Specifications of KHP60 G Automatic Spiral Fan Guard Welding Machine Bdsdpfx Aowvbxtebtsg Operated: Pneumatic (Up and Down Piston) Pressure: Up to 8 bar Power: 60KVA Welding Capacity: 5mm + 5mm thick 4 wires same time Maximum Force: 610 daN Input Voltage: 380V/50Hz Protection Fuse: 200A Power Level: %1-100 power adjustable by digital microcontroller Weld Time: 1-100 Cycle (20ms - 2s) adjustable by digital microcontroller Arm Length: 800mm Cooling: Water cooling (15L/min) Power Input Cable: 3m Protection Class: IP21 Dimensions (W/L/H): 1100mm x2500mm x 1750mm Weight: 740Kg

Condition: new, Year of construction: 2026, Technical Specifications: Model: KEP40 Operated: Manuel Power: 40KVA Welding Capacity: 1+1 mm mild steel Power Level: %0-100 power adjustable by digital microcontroller Weld Time: 1-99 Cycle (20ms - 2s) adjustable by digital microcontroller Input Voltage: 380V/50Hz Protection Fuse: 63A Flexible Pistol Arm cable Length: 250cm Flexible Chassis Cable Length: 100cm Bdedpfsy Dildsx Abteg Power Input Cable: 3m Protection Class: IP21 Dimensions (W/L/H): 530mm x 430mm x 610mm Weight: 116kg

Condition: new, Year of construction: 2025, Spot Welding Machine Type KMP10 CE certified Operated: Pneumatic Required Air Pressure: 4 bar Power at 50% ED 10kVA, Continuous power 7.1kVA Welding Capacity: 1.5+1.5mm steel sheet Transformer Construction: Primary winding: Copper wire Secondary winding: Coper flexible foil sheet Core: Silicon steel EI core Electrode Force Adjustable: 150-300 daN Mains Connection: 220V/400V (50Hz) Protection Fuse: 220V-40A / 400V-25A Power Level: %0-99 power adjustable by digital microcontroller Weld Time: 1-99 Cycle (20ms - 2s) adjustable by digital microcontroller Arm Length: 300mm Cooling Water Requirement: Water cooling (7L/min) Power Input Cable: 3m Protection Class: IP21 Bdodpfx Abeuy U Hqstog Space Requirement (W/L/H): 400mm x 800mm x 550mm Weight: 95kg Warranty: 1 years (+10 years spare parts support)

Condition: new, Year of construction: 2025, Grid / Mesh Welding Machine Type KMP180 CE certified Operated: Pneumatic Pressure: 4-8 bar Power: 180KVA Welding Capacity(mesh/grid): (4+4mm mild steel) 4 wire same time Water-cooled Transformer Construction: Primary winding: Copper wire Secondary winding: Copper bar Core: Silicon steel EI core Bdodpfxeuy U Hwe Abteg Epoxy resin coated transformer Maximum Force: 305-610 daN Input Voltage: 380V/50Hz Protection Fuse: 300A Power Level: %0-99 power adjustable by digital microcontroller Weld Time: 1-99 Cycle (20ms - 2s) adjustable by digital microcontroller Arm Length: 550mm Cooling: Water cooling (30L/min) Power Input Cable: 3m Protection Class: IP21 Dimensions (W/L/H): 4500m x3500mm x 2150mm Weight: 2850Kg

Condition: new, Year of construction: 2025, Spot Welding Machine Type KPP90 CE certified Operated: Pneumatic Required Air Pressure: 8 bar Power at 50% ED 90kVA, Continuous power 63,5kVA Welding Capacity: 5+5mm steel sheet Water-cooled Transformer Construction: Primary winding: Copper wire Secondary winding: Copper bar Core: Silicon steel EI core Epoxy resin coated transformer. Electrode Force Adjustable: 305-610daN Mains Connection: 400V/50Hz Protection Fuse: 200A Power Level: %0-99 power adjustable by digital microcontroller Weld Time: 1-99 Cycle (20ms - 2s) adjustable by digital microcontroller Bdsdjuy U E Hspfx Abtjg Arm Length: 550mm Cooling Water Requirement : 15L/min Power Input Cable: 3m Protection Class: IP21 Space Requirement(W/L/H): 450m x 1500mm x 1750mm Weight: 795Kg Warranty: 1 years (+10 years spare parts support)

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 00117, type of input current: three-phase, nominal power at 50% duty cycle: 90 kVA, input voltage: 400 V, type of cooling: water, welding power (max.): 245 kVA, nominal power (apparent): 90 kVA, air pressure: 6.5 bar, input frequency: 50 Hz, Equipment: type plate available, TECNA 2117 industrial DC inverter resistance welding machine, manufactured in Italy in 2004. The machine was previously used in production for resistance welding of aluminum trays. It is offered as a complete welding system as shown in the photos, including the custom-built supporting base/workstation and the integrated water cooling/chiller system used for cooling the welding arms and electrodes. The machine is equipped with programmable electronic welding control, pneumatic electrode actuation, program selection, and water-cooled welding electrodes. Technical specifications: Manufacturer: TECNA Model / Item: 2117 Serial No.: 00117 Year of manufacture: 2004 Type: DC inverter resistance welder Supply voltage: 400 V Frequency: 50 Hz Phases: 3 Nominal power at 50% duty cycle: 90 kVA Maximum welding power: 245 kVA Secondary no-load voltage: 9.4 V Maximum welding current: 32 kA Maximum electrode force: 736 daN Water cooling requirement: 10 l/min Compressed air supply pressure: 6.5 bar TECNA machine net weight: 178 kg Equipment and features: Programmable electronic welding controller Multiple welding program selection Pneumatic welding head Copper welding electrodes Water-cooled welding arms/electrodes Custom-built supporting base/workstation Integrated water cooling/chiller system Pressure regulation and pressure gauge Emergency stop Three-phase industrial power supply The complete assembly shown in the photos is included in the sale, including the TECNA welding machine, control equipment, custom-built supporting structure, and cooling/chiller unit. Previously used in an industrial production environment for welding aluminum trays. Bodpfx Abszx D Tcetodg The machine is currently installed on its supporting structure and is available for inspection in Greece. EXW Greece. Loading and transport are at the buyer's cost and responsibility.

Condition: new, Year of construction: 2005, functionality: fully functional, Description Manufacturer: Amada Miyachi Type: STA-100A Model Number: 1-1-BAKA -AEA-01 Serial Number: 17010009 Condition: Used, New AC Resistance Weld Control Easy to use programming interface For controlling and integrating projection welders, press welders, multi-gun machines, portable welding guns, seam welders, robotic systems, swing-arm welders and other special purpose machines. Examples: Consumer Appliances Nuts and Studs Projection Welding Electronics and Automotive Parts Aerospace Parts Office Furniture Automotive Sheet Metal Input Power: 230-460 VAC Output Range: 1000-80,000 A Phase: Single Welding Period Range: 0-99 Description Manufacturer: Amada Miyachi Type: STA-100A Model Number: 1-1-BAKA -AEA-01 Serial Number: 17010009 Condition: Used, New AC Resistance Welding Controller Easy to use programming interface Used to control and integrate projection welders, press welders, multi-gun machines, portable welding guns, seam welders, robotic systems, swing-arm welders and other special purpose machines. Examples: Consumer appliances Nuts and studs projection welding Electronic and automotive components Bodowcax Espfx Abtjdg Aerospace components Office furniture Automotive sheet metal Input power: 230-460 VAC Output range: 1000-80,000 A Phase: single Welding period Range: 0-99

Condition: new, Year of construction: 2025, functionality: fully functional, machine/vehicle number: SWM001, type of input current: DC, nominal power at 50% duty cycle: 37 kVA, input voltage: 380 V, type of cooling: water, overall weight: 230 kg, warranty duration: 24 months, welding power (max.): 75 kVA, total width: 500 mm, total height: 1,620 mm, total length: 950 mm, Spot welder / welding machine with water cooling – 75KVA – adjustable power, resistance, etc., + spare tips Bodpfxsyl Sy Ej Abtodg

Condition: defective spare-parts repository (used), functionality: not functional, NIMAK BMP 20/200 spot welding machine for sale Arm length: 300 mm Bdodpfozp H Ukox Abteg Power: 200 kVA The machine is out of service, and its condition is unknown.

Condition: excellent (used), throat depth: 1,100 mm, nominal power at 50% duty cycle: 96 kVA, short-circuit current: 31,500 A, input voltage: 400 V, type of cooling: water, overall weight: 830 kg, Equipment: type plate available, Spot welding machine, type PMS 11-4 G3, 3-phase DC version - specifically designed for welding aluminum sheets - rarely used, completely inspected and cleaned - fully functional, ready for demonstration - rated voltage 400V/50Hz - rated power 96 kVA - welding current 23 kA - connection cable cross-section 10 sq mm/phase Bedpfx Aoh N Sc Eebtsdg - fuse rating 63A - arm reach 1050 mm (!!) - electrode arm diameter 60 mm - electrode holder diameter 30 mm - electrode force 600 daN - stroke 65+25 mm - electrode cone MK2 - control unit MPS 8043/1 from Harms & Wende with current ramp-up and pulse function - with operating manual - 2-stage foot switch according to UVV standards - main machine switch - pneumatic maintenance unit - weight approx. 830 kg - complete documentation with wiring diagram, compressed air circuit diagram, and cooling water circuit - VAT can be shown separately - delivery from warehouse in Dresden approx. 4 days within Germany - export may take longer! On-site commissioning is subject to a charge and will be billed according to the actual effort involved. The machine is located in Dresden, near the A17 highway, and can be inspected and demonstrated by appointment.

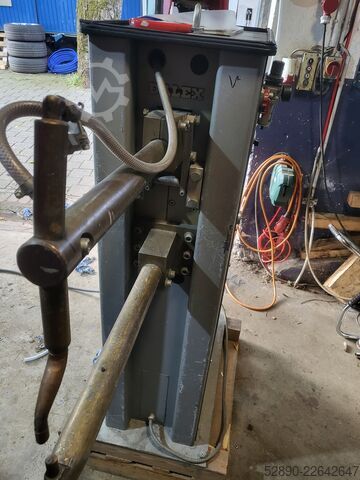

Condition: excellent (used), pneumatically operated, water-cooled toggle-lever spot welding machine Manufacturer: DALEX, Type: SL 202 Rated power at 50% duty cycle: 20 kVA Bsdpfx Ajzw U T Debtedg Secondary short-circuit current: 15 kA Electrode force: 420 daN Reach: 130 - 500 Arm distance: 250 mm Single-acting cylinder - 50 mm stroke with main switch according to VDE 0113 with synchronous welding control RS 17 PICTURES TO FOLLOW

Condition: new, Year of construction: 2026, functionality: fully functional, overall weight: 160 kg, 100 kVA Seam Welding Machine for Sheet Metal Fabrication A powerful resistance seam welder for producing continuous, gas-tight welds on stainless and low-carbon steel sheets. Suitable for HVAC ductwork, tanks, containers, drums, and general sheet metal applications. Available in horizontal and vertical configurations; the welding speed is infinitely adjustable, and the water-cooled electrode system supports a 50% duty cycle in production use. Technical data: Rated capacity: 100 kVA Welding capacity, stainless steel: 1.0 + 1.0 mm Welding capacity, low-carbon steel: 1.2 + 1.2 mm Electrode arm length (throat depth): 400 mm Electrode stroke: 120 mm Welding speed: 0 – 2 m/min (continuously adjustable) Duty cycle: 50% Cooling: water-cooled, flow rate 15 l/min Bdedpfxeymc Szo Abtog Input voltage: 380 V, 50 Hz Dimensions (L × W × H): horizontal 1.3 × 0.7 × 1.9 m / vertical 1.3 × 0.8 × 1.9 m Weight: horizontal 500 kg / vertical 550 kg

Year of construction: 1991, condition: ready for operation (used), Dalex DR-F 2 0.35 m³/h 220 Volt No. 109115732 Bjdpfoftbtmex Abtodg Year of manufacture 1991 Refrigerant R12 – needs to be refilled.

Condition: refurbished (used), Power at 50%: 100kVA Short circuit-current: 41,5kA Electrode force: 100-600daN / single stroke Throat depth: 350-650mm --- Weld control: MPS 10beta (5-times, 8-program) --- Extra Equipment: - doppel foot pedal "currentless contact Bjdpfxjzwhi Sj Abtedg --- Warranty: 6 months --- Spotwelding electrodes + spare parts at stock

Condition: good (used), – Power output: 15 kVA Bedpfx Abozwkttjtjdg – Pneumatic – 380V

Condition: good (used), Arm design: 270 mm Power: 125 kVA Bjdpfepy Dy Esx Abtsdg

Condition: not inspected (used), throat depth: 500 mm, Manufacturer: Fase Full: 116 kVA Version: 500mm Bedpfx Aeuhn Uhjbtjdg The machine used to be part of a system, its settings and performance were controlled via a central control unit, which is currently missing, This version is required to operate the machine!

Condition: good (used), Power: 15 KVA Execution: 530 mm Bjdpom Twicofx Abtedg

Condition: repair required (used), Full: 63 KVA Bedpfx Ajpy Dx Iebtsdg Arm design: 400 mm The machine is currently not working (control panel missing)

Condition: good (used), Power: 50 kVA Bjdpfx Aopy Dypebtjdg Arm design: 520 mm

Condition: ready for operation (used), throat depth: 550 mm, Output: 25 kVA Bsdpfx Aeyk S Utobtedg Design size: 550 mm

Condition: not inspected (used), Year of construction: 1995, functionality: unexamined, throat depth: 500 mm, Manufacturer: Fase Full: 116 kVA Bdsdpfsuhn Tkex Abtsg Version: 500mm The machine used to be part of a system, its settings and performance were controlled via a central control unit, which is currently missing, This version is required to operate the machine!

Condition: excellent (used), Foot-operated, water-cooled rocker-arm spot welding machine Bdjdpfx Ajztyn Sebtsg Manufacturer: DALEX, Model: SF 8-2 Rated power at 50% duty cycle: 8 kVA Secondary short-circuit current: 8.8 kA 4-stage switch Electrode force: 235 daN Arm extension: 80-300 mm With synchronous welding control RS 11-2 With main switch

Condition: excellent (used), functionality: fully functional, nominal power at 50% duty cycle: 14 kVA, input voltage: 380 V, type of cooling: water, overall weight: 300 kg, welding power (max.): 40 kVA, arm spacing: 450 mm, total width: 450 mm, total height: 1,450 mm, total length: 1,100 mm, stroke length: 110 mm, input frequency: 50 Hz, Spot welding machine Soudometal SP14P maximum welding current at 50 ED: 14 ​​kVA max. welding power 42 kVA Electrode force: 30-200 DAN Electrode stroke = 30-110 mm Projection: 450 mm Mains connection 380V / 42A secondary current continuous current 1.85 kA; kA short-circuit current 12.5 kV; Electrode force: 30-200 DAN foot control Cooling water volume: 3 l/min Electrode arm Ø: 45 mm Electrode holder Ø: 25 mm Machine weight: 300 kb kg Dimensions: 1250x1100x450 mm If you need more information. We are here to help! Please contact us using the contact form or give us a call Bodpfx Abewkr Injtjdg Your ad has been automatically translated. Translation errors are possible.

Condition: excellent (used), Parallel-operated, water-cooled spot welding machine Manufacturer: DALEX, Model: PL 63-1 Rated power at 50% duty cycle: 63 kVA Bdjdpfx Aozrupzjbteg Secondary short-circuit current: 31.5 kA Secondary open-circuit voltage: 7.04 V Electrode force: 390 daN Reach: 250-550 mm Arm distance: 150 or 310 mm with mounting control cabinet according to VDE 0113 Main switch Synchronous welding control 15036
