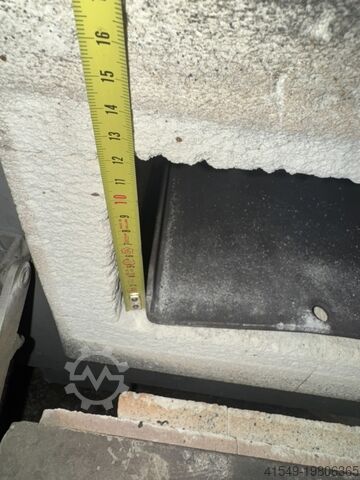

Hardening Furnace

NABERTHERM N7

Year of construction: 1994, condition: used, max. temperature 1100 Grad Bedpfx Afsthr Nco Uewn voltage 230 V output 3 kw range - high tensile Innen 295x230x125 mm

Year of construction: 1996, condition: good (used), machine/vehicle number: xxxx, High performance - bench tapping machines on T-slot plate Technical data: Bwsdpfx Aof Tcy Dof Usn - Tapping capacity approx. M 3 - M 16 - Speed range up to 500 rpm - Working range ( swivel radius ) 2500 mm - Quick-change tool holder size 2 diam.31 - various inserts for quick-change tool holder - Table surface with 5 T-slots 2050 x 900 mm . table height 910 mm - Machine vice with jaw width 200 mm - 3 jaw chucks 250 mm - pneumatic connection with pressure reducer - mobile underframe - space requirement approx. W 2400 x H 2000 x D 1000 mm - weight approx. 1100 kg

Year of construction: 2001, condition: good (used), 1 used hardening furnace Manufacturer: Nabertherm, Type N 321 Serial Number: 160897, Year of manufacture: 2001, Max. temperature: 1,200°C, Connected load: 400V, 47 kW Internal dimensions: 750 x 1100 x 400 mm Usable volume: 320 liters Bedpfxoxpf I Ns Af Ujwn Weight: approx. 1.6 t Dimensions: Length approx. 2 m, width approx. 1.5 m, height approx. 2 m,

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 Bwsdjvc Apbjpfx Af Uon module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, load capacity: 210 kg, arm reach: 2,696 mm, control cabinet width: 560 mm, control cabinet height: 1,060 mm, type of input current: DC, workpiece weight (max.): 1,111 kg, control cabinet length: 800 mm, throat depth: 2,696 mm, Product description: 24 pieces In stock Industrial KUKA KR 210 R2700 Prime KR C4 Manufacturer: Kuka Year of manufacture: 06:2014 Serial number:635949 Type: KRC4 Load capacity:210 kg Axles: 6 Reach: 2696 mm Repeatability: ± 0.06 mm Scope of delivery - Robot - control cabinet - cable - Teach box Prices are net plus VAT Can be viewed at any time under power. Robot is in very good used condition Delivery time subject to immediate prior sale Bodpfxjqv D Tps Af Uewn Upon delivery you will receive an invoice with VAT shown Item condition "New" - partly without original packaging, traces of storage possible, delivery as pictured Item condition "Used" - items show signs of use, these are therefore not described further,

Condition: new, thread dia. M3 - M8 mm Bsdsfg U Snepfx Af Uewn

Condition: used, Year of construction: 2005, x-travel 600 mm y-travel 500 mm z-travel 600 mm control iTNC 530 Heidenhain table surface area 900 x 500 mm spindle turning speed - stepless 0-12.000 U/min spindle drive 10 kW tool taper SK40 DIN 69871 Bodpfx Afsvxwq Ee Uewn tool magazin: 24 total power requirement 22 kW weight of the machine ca. 6,4 t dimensions of the machine ca. 5,3 x 3,5 x 3,5 m Chip conveyor scraper belt Coolant system 3 pumps / cartridge filter Grundfoss high-pressure pump type CRK2-220/22 A-W-A-AUUV

Condition: good (used), Year of construction: 1999, functionality: fully functional, Machine new white-color in 2014 (order by SIEMENS Energy) Technical Data Working area Max. swing over bed: 570 mm Max. swing over cross slide: 365 mm Bsdpfx Asx Ahx Dsf Ujwn Max. turning length: 1500 mm Centre height over flat bed: 280 mm Max. workpiece weight: 400 / 1000 kg Max. workpiece clamping length: 1300 mm Work spindle Spindle head DIN 55027, size 8, internal taper 70 Spindle bore: Ø 62 mm Spindle diameter in front bearing: 100 mm Spindle through-hole (depth): 200 mm Max. chuck size: Ø 315 mm Speed range: 3–2500 rpm Max. faceplate diameter: Ø 560 mm Max. faceplate speed: 700 rpm Max. torque: 1800 Nm Carriage – travel Longitudinal travel (Z-axis): 1160 mm Cross travel (X-axis): 345 mm Tooling system: Parat-3 Tool cross-section DIN 770 (h × b): 32 × 25 mm Tailstock Tailstock movement by hand Quill taper: MK5 (MT5) Quill diameter: 80 mm Quill stroke: 190 mm Accessories / special equipment CNC control: SINUMERIK 810 D 32-bit processor, digital control ManualTurn with cycle support 10.4" colour LCD display Operating manual 094.0003.1330-00 3-jaw chuck Ø 315 mm Faceplate Ø 350 mm (up to Ø 560 for thin workpieces) Radius turning function Turret on support: size 3, Parat 4-station, manually indexable 4 × 90° Chip conveyor Bürener Maschinenfabrik Particularly suitable for: see production spectrum

Year of construction: 1993, condition: good (used), machine/vehicle number: 86317, Offer 25335 Technical specifications: - Nominal / continuous temperature, stepless: up to 1280 °C - Three-sided heating (bottom and sides) Bodpsx D U Eysfx Af Uswn - Temperature control via NABERTHERM Controller C 19 - Drive: 400 V / 5.5 kW - Internal dimensions approx.: W 250 x H 140 x D 350 mm - Usable volume: 11 L - Base frame: W 900 x H 900 x D 950 mm - Required space approx.: W 800 x H 600 x D 750 mm - Weight approx.: 80 kg

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 10014487, load capacity: 240 kg, arm reach: 2,896 mm, We offer industrial robots from the manufacturer KUKA. The scope of delivery includes the robot arm, control cabinet and the associated cables. The robots come from a functioning system and have been professionally dismantled. We carry out a functional test and check the robots. If you are interested, we offer the opportunity to demonstrate the functions to ensure that they meet your requirements. Bsdperlmunsfx Af Ujwn We grant a 14-day right of return. Further warranty services are excluded. - Supplement at additional cost - We are pleased to be able to offer you a new function for our robots: The Siemens S7-1200 Profisafe safety controller. With this controller, you can easily integrate an emergency stop function, a safety gate and a start-stop connection via the Profisafebus. The controller is fully configured and programmed so that you can implement a simple stand-alone solution with a robot and a safety fence. If required, we can also offer you additional support during commissioning. We have an extensive stock of these robots and the prices quoted are package prices. Discounts are negotiable for larger order quantities. We invite you to contact us again to discuss further details. Sale exclusively to traders.
