Lead/traction spindle lathe

VDF Boehringer DUE 500

We are offering an exceptionally high-quality precision lathe. Within its class, this is likely the best German lathe ever built.

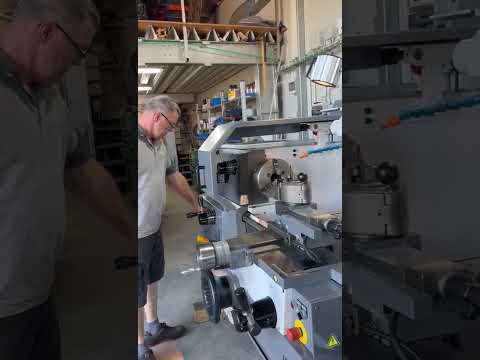

BOEHRINGER Precision Lathe Model DUE 500

Year of manufacture: 2004, including CE certification and central lubrication

Machine No.: T1022.2027-00

Center height: 240 mm
Swing diameter over bed: 500 mm
Swing diameter over cross slide: 285 mm
Center distance: approx. 1,200 mm
Effective turning length: approx. 1,000 mm
Bar capacity: 62 mm
Spindle nose: DIN 55027 Size 6
Spindle bore: 100 mm
Drive power: 11 kW
Maximum torque: 2,000 Nm
24 spindle speeds: 11.2 – 2,240 rpm
60 cross feeds: 0.03 – 28 mm/rev
60 longitudinal feeds: 0.06 – 56 mm/rev
Tailstock quill stroke: 190 mm
Tailstock taper: MK 5

Machine footprint (LxW): approx. 4,000 x 1,525 mm
Weight: approx. 4,300 kg

Accessories:

- HEIDENHAIN 3-axis digital readout
- Central lubrication system
- Electrically interlocked chuck guard
- Coolant system
- Chip protection rear panel
- Röhm chuck, T 250 mm, with various jaws
- Telescopic cover for lead and feed screw, support to bed
- Machine lamp
- Multifix C + 4 quick-change tool holders
- Live center
- Operating manual
- Circuit diagram
- Rapid traverse in longitudinal and cross slides

Condition:
The machine is in very good technical and visual condition.
Lajdpew Rdthsfx Aabeh

Backlash on cross slide approx. 0.3 mm, on compound slide approx. 0.15 mm
Spindle nose runout approx. 0.006 mm
Bed geometry: deviation approx. 0.01 mm over approx. 750 mm bed length (measured on flat guideway towards chuck using dial indicator)

The following parts have been renewed:

- Oil change
- New hoses for central lubrication
- New wipers
- Key for operating lever replaced
- Locking pin for interlock replaced

Price is net, ex stock, loaded free of charge.
Delivery by company truck can be arranged at extra cost.
