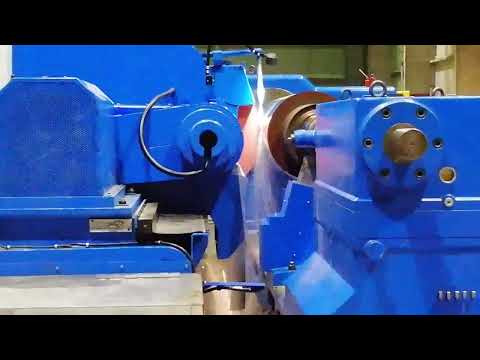

CNC roll grinder

WALDRICH SIEGEN, Ser. Nr. 12.178 WS IIa 100/25 x 5000

Year of construction: 1979, condition: ready for operation (used), Max. grinding diameter: 300mm, Max. grinding length: 1950mm, Max. workpiece length: 2000mm Max Feed rate 1 – 30 m/min. Coolant supply 100 l/min Gbjdpfshq Uigex Ah Hsg Inf. variable speed range 2.000 – 6.000 RPM. Spindle 88 mm Centers height 150 mm Grinding wheels 100 – 250 mm Spindle power 3,5 kW Grinder Power 15 kW – 380 V – 50 Hz

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, total height: 1,810 mm, total length: 1,930 mm, total width: 1,800 mm, workpiece weight (max.): 20 kg, spindle speed (max.): 10,000 rpm, type of input current: three-phase, grinding wheel diameter: 203 mm, overall weight: 4,500 kg, travel distance X-axis: 384 mm, travel distance Y-axis: 317 mm, travel distance Z-axis: 217 mm, grinding spindle motor power: 12,000 W, input voltage: 400 V, spindle nose: HSK-40F, CNC Tool grinding machine ANCA FX 5 Linear TECHNICAL CHARACTERISTICS: Colour touch screen: 19 ["] Stroke X axis: 384 [mm] Resolution X axis: 0.0001 [mm] Gbedpfx Ajx Nqf Njh Hsg Stroke Y axis: 317 [mm] Resolution Y axis: 0.0001 [mm] Stroke Z axis: 217 [mm] Resolution Z axis: 0.0001 [mm] Stroke A axis: 360 [°] Stroke C axis: 230 [°] Resolution C axis: 0.0001 [°] Max. grinding lenght: 200 [mm] Max. grinding diameter: 200 [mm] Grinding spindle attachment: HSK-40F Max. grinding wheel speed: 10000 [rpm] Grinding spindle motor power: 12 [kW] Max. diameter grinding wheel: 203 [mm] Max. part weight in part holder headstock: 20 [Kg] Supply voltage: 400 [V] Total power required: 16 [kVA] Machine dimensions: 1930 x 1800 x 1810 [mm] Weight: 4500 [Kg] EQUIPMENT INCLUDED: x1 FANUC tool loading robot x1 set of glass scale rules on the X and Y axes x1 RENISHAW part probe More information upon request.

Condition: ready for operation (used), TOS Gear Hobbing Machine FO16 Maximum wheel diameter: 1,600 mm Gear width: 560 mm Maximum module: 16 Maximum workpiece weight: 7,000 kg Table surface area: 1,350 mm Turning speed range: 16–80 rpm Feeds – axial: 0.05–1.5 mm/min Feeds – radial: 0.25–6 mm/min Feeds – tangential: 0.13–4 mm/min Electrics – voltage/frequency: 380/50 V/Hz Total power requirement: 12 kW Godoxwl R Tspfx Ah Hjbg Machine weight approx.: 18.5 t Machine dimensions approx.: 4.3 x 2.0 x 3.2 m The machine includes one additional head, change gears, and arbors. Video of the machine under power available.

Condition: like new (used), Year of construction: 2010, Machine Type: CNC Cylindrical Grinding Machine Manufacturer: Fritz Studer AG Model: S22 Year of Manufacture: 2010 Control System: FANUC 31i-A CNC Machine Base: Granitan® S103 mineral casting Configuration: Fixed straight wheelhead for external (OD) grinding Automation: Automatic loading system with FANUC robot integration Gbsdpfewl Uvkjx Ah Heg Distance Between Centers: 650 mm (25.6”) Center Height: 175 mm (6.9”) Max. Workpiece Weight: 150 kg (330 lbs) Max. Workpiece Length: 700 mm Max. Workpiece Diameter: 449 mm Grinding Wheel Diameter: 610 mm Grinding Wheel Width: 160 mm Grinding Wheel Speed: Up to 3,200 rpm Spindle Power: 15 kW (20.5 hp) Wheelhead Type: Fixed straight X-Axis Travel: 310 mm Z-Axis Travel: 850 mm X-Axis Max. Speed: 15,000 mm/min Z-Axis Max. Speed: 30,000 mm/min C-Axis: Full rotation capability for workhead Programming Interface: StuderWIN with FANUC 31i-A Additional Software: StuderGRIND Automation Interfaces: Standard interfaces for loaders and peripherals Other Equipment: Rotary dresser, Heidenhain scales, various clamping fixtures

Condition: used, Technical details: x-travel: 6500/13150 mm y-travel: 4000 mm z-travel: 1250 mm Godswc A Shepfx Ah Hebg w-axis: 2250 mm table surface area: 5500/12150 x 3000 mm max. workpiece weight: 70.000/105.000 kg ram head dimension: 480 x 510 mm milling spindle motor: 63 kW max. torque on the spindle: 3300 Nm tool taper: DIN 39871 AD ISO 50 milling head speed: 6,3 - 4000 U/min feed speeds: 1 - 24000 mm/min w-axis: 1 - 6000 mm/min. distance between columns: 3500 mm passage: 3000 mm total power requirement: 120 kW weight of the machine ca.: 245 t dimensions of the machine ca.: 29,0 x 7,7 x 8,1 m The machine is in mint condition and was generally overhauled in 2020! with CNC SIEMENS 840 D autom. tool magazine for 153 tool stations autom. milling head magazine for 6 heads milling heads - straight - straight extended length - milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50 milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm, 144 x 2,5°, ISO 50 milling head -universal index - 40 kW, 4000 rpm, 2100 Nm, C-axis 144 x 2,5° , B-axis +/- 44 x 2,5°, ISO 50 coolant attachment, chip conveyor *

Condition: excellent (used), Tuscan LC38 x 3000mm CNC Lathe Swing Over Bed 970mm Swing Over Cross Slide 420mm Centre Height 490mm Distance Between Centres 3000mm 12 Station Duplimatic Turret Tailstock Boring Bat Attachment Boring Bar 2 x 3 Point Fixed Steady 1 x Travelling Steady Fanuc OiTC Control C Axis & Driven Tools Serial Number LC223806086 Gbjdpovtw Imsfx Ah Hsg Year 2010 /10

Condition: good (used), Year of construction: 1992, Automatic band saw JAESPA Type:W400 AZ Control Minipos 807 year 1992 Cutting diameter round material max. 400mm Sägebandlänge:5500X32X1,1mm Feed automatic cut length min.20mm Chip conveyor Total power requirement 4 Kw Weight approx.2500kg Accessories 2X saw blades, roller table 6m motor drive, machine documentation available. Footprint : 2,8X2,8X2m Gjdpfxogf H Sae Ah Hsbg

Condition: used, turning diameter over bed 2400 mm turning diameter over slide rest 2200 mm turning length 10000 mm power capacity 185 kW faceplate diameter 1650 mm turning speeds 1,5 -150 U/min max. workpiece weight 70000 kg clamping diameter 1400 mm Technical data Working range Maximum turning diameter over support: 2200 mm Maximum swing diameter over bed: 2400 mm Maximum turning length: 10,000 mm Clamping diameter in the headstock faceplate: 300 - 1,600 mm with special jaws up to 2,050 mm Clamping diameter in the tailstock faceplate: 300 - 1,400 mm Maximum workpiece weight: 70000 kg Main drive, faceplate Faceplate diameter: 2000 mm Faceplate speeds, continuously adjustable in 4 stages: 1.5 - 150 rpm Maximum torque at rated speed: 220,000 Nm Drive power of main motor: 185 kW Flange centre point angle: 70° Supports Travel of the plunge slide: 500 mm Travel of the face slide: 1400 mm Quick adjustment, longitudinal: 2000 mm/min Quick adjustment, face: 800 mm/min Infinitely variable feed, longitudinal: 0.6 - 300 mm/min Infinitely variable feed, face: 0.3 - 120 mm/min Max. cutting force at support: 20,000 kg Tailstock Faceplate diameter (removable): 1650 mm Faceplate clamping diameter: 1400 mm Flange centre point angle: 70° Quick adjustment: 1250 mm/min Special equipment Copying device for first support Copying length 8500 mm Max. copying depth in one pass 500 mm Boring device: Boring bar 460 x 390 mm Drilling diameter 600 - 1000 mm Maximum drilling depth in one pass 2700 mm At Ks of 200 kp/mm² - s max. = 1.5 mm/rev a = max. chip cross-section 30 mm² at a projection of 1000 mm Reduced chip cross-section with increasing drilling depth A guide ruler for cone turning, adjustment angle up to 8° and a maximum cone length (in one pass) of 2000 mm, adjustment accuracy ± 5 minutes. A guide ruler for cone turning, adjustment angle up to 15° and a maximum cone length (in one pass) of 1000 mm, adjustment accuracy ± 5 minutes. Gbodpjxddvnefx Ah Hsg 125 kg auxiliary crane on spindle box.

Condition: like new (used), Year of construction: 1987, functionality: fully functional, machine/vehicle number: 61373, IT IS IN WORKING CONDITION Gbedsvwlf Iopfx Ah Heg

Condition: used, Year of construction: 2002, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m Photos of identical machine with centre height 225mm Base: Kellenberger Kel-Varia UR175-1000 Kelco 120 Grinding head UR with T1-T2-T3 Basic equipment: -T1 500mm grinding disc diameter -T2 400mm grinding wheel diameter -Infinitely variable, high-resolution axis -Marposs measuring device for tool measurement -Active longitudinal positioning -GAP on T1 and T2 from ELASO contactless integrated in the control interface Semi-automatic balancing from ELASO integrated into the control interface -Tailstock with manual retraction -MK5 workpiece headstock with short taper DIN 55026 Belt-driven internal grinding device Options at an extra charge: - New high-precision workhead with torque drive - Internal grinding device for high-frequency spindles diameter 120mm -HF internal grinding spindle Fischer MFM-1224/42/31 D-21 -HF spindle with HSK holder 24,000 rpm with integrated GAP sensor. (delivery time) -CNC-controlled C-axis non-circular grinding -hydrostatic threaded spindle in x -new hydrostatic unit with only 1 pump and pressure accumulator thus better energy efficiency. -monitoring of the water content in the hydrostatic system -Suction system Further options available on request Mechanical overhaul: -Complete machine overhauled according to Kellenberger measurement protocol -New service-friendly cab -repainting Electrical overhaul: -New modern CNC CIRCULAR GRINDING MACHINE control with BEMA rough grinding surface Gedpjuxfucofx Ah Hsbg -New control cabinet -New drive technology -Replacement of all electrical cables Berus pressure switches etc. -New absolute glass scales in x and z -New absolute rotary encoder (for B-axis) Control system: The grinding software consists of a basic licence and various options that are possible depending depending on the equipment of the machine. Basic software - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal taper pendulum grinding - External and internal radius grinding, radius dressed on disc - Semi-automatic pendulum grinding - Workpiece zeroing - Grinding wheel zeroing - Measuring the dressing diamonds - 2 moulding diamonds - 1 shaped diamond or dressing roll (dressing roll required) - Moulding roller (dressing roller required) - 3 Flat dresser - Corrections - Z-position measurement (probe required) - GAP probing (grinding device required) OPTIONS at an extra charge: Software profile plunge-cut grinding: - External and internal profile plunge-cut grinding with profile disc Profile grinding software: - External and internal profile grinding with straight disc Software thread grinding: - Single and multi-start external and internal thread grinding with thread on the disc disc Dressing. Dressing of single and multi-groove discs. Flank angle freely selectable. Trapezoidal thread grinding software: - Additional dressing of trapezoidal threads possible External and internal non-circular plunge-cut grinding: - External and internal non-circular plunge-cut grinding Non-circular grinding software: A prerequisite for non-circular grinding is that the workpiece axis is equipped with a high-resolution rotary encoder so th...
