Clamps

Weidmüller verschiedene Typen

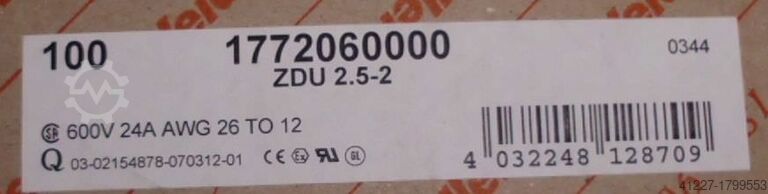

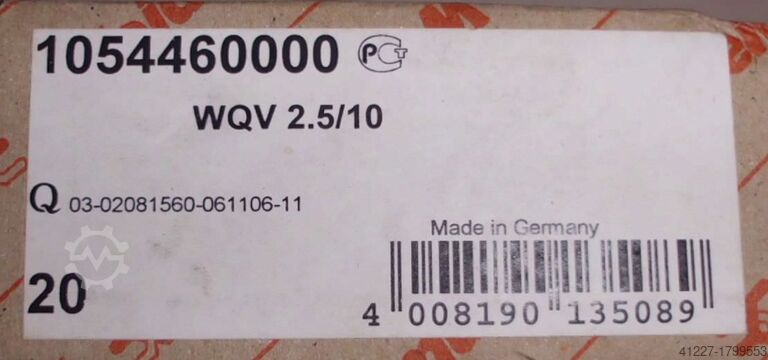

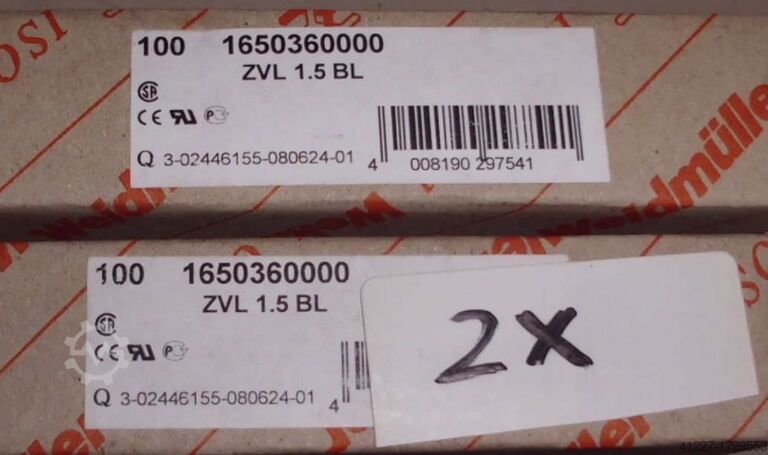

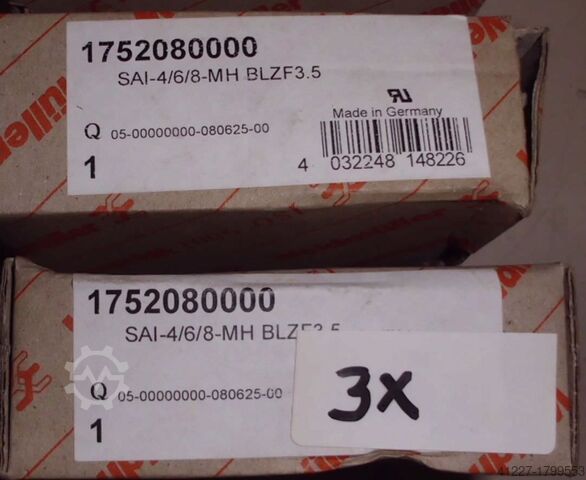

Condition: excellent (used), Terminal block, terminal block, feed-through terminal block -approx. 1240 pieces: various clamps -1x: 1770370000 ZDU 4-2/2AN -1x: 1651980000 ZIA 1.5/3L-1S Itedpfob A R Hkox Adweb -3/4 Package: 1632080000 ZPE4 -5x: 1632050000 ZDU4 -2x: 1775480000 ZDU1.5 -1x: 1867180000 ZP2.5/1AN/11GN/BE -5x: 1652030000 ZIA1.5/4L-PE -5x: 1/2x 1867190000 ZP25/1AN/12GN/BE -5x: 1652030000 ZIA1.5/4L-PE -4x: 1815590000 ZP2,5/1AN/13 Price: complete -Weight: 16.5 kg

Year of construction: 1963, condition: used, machine/vehicle number: 18135, Broaching Machine – Horizontal Manufacturer: Forst Typ: RIW 100/2200 Force: 100 Tons Stroke: 2.200 mm Itsdpfxobrcy Nj Adwsb It is possible to buy the Crane - see offer no Y941

Year of construction: 1965, condition: good (used), functionality: fully functional, machine/vehicle number: 2549, General / technical data: used horizontal hydraulic internal broaching machine in a good condition according to age with manual tool feeder in heavy design clearing stroke: 2.000mm Tractive force: 25,000 kg (250KN) Mounting in the drawbridge: Ø 105mm Cylindrical Through-hole in the clamping table: Ø 125mm Workpiece clamping surface: 440mm x 440mm Ijdpfx Ajtuuvzsdwetb Workpiece diameter: max. approx. 800mm (due to the tool trough of the tool feeder) Cutting speed: hydraulically infinitely variable from 1.5 m/min to 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to 25 m/min Oil volume: hydraulics approx. 450L / coolant approx. 100L Space requirement of the machine: (w x d x h) approx. 8,400 mm x 1,350 mm x 1,800 mm (without working area) Power supply: 380Volt 50 HZ Connected load: 19kw Equipment: - the machine has a mechanical hydraulic control for the clearing & return stroke - the machine has an integrated coolant system - the machine has a manually operated tool feed system - The broaching carriage with the pulling head holder is guided flat on both sides. - The machine has an adjustable tractive force limiter - Tractive force display Accessories - 1 universal pulling head for flat shafts up to a maximum width of approx. 40 mm - dividing head (see pictures) - Various special fixtures and clamping devices - Machine documentation Remarks: The machine can be used for the production of keyways with flat broaching tools, as well as for profile broaching. In combination with the machine bed of the machine and the stable broaching tool feeder, the machine is very well suited for heavy profile broaching tools. The machine is used and is in good condition for its age. The machine is available for inspection in our warehouse. The machine is new in our stock and is currently not technically or visually refurbished. Pulling heads for profile broaching are available on request, depending on DIN standard, dimensions and stock.

Condition: used, Year of construction: 1990, max.: tractive force 25.000 KG max.: tool length 3520 mm max.: cutting speed 9,6 m/min passage width 520 mm Itedpfxscm Eiws Adwsb The machine has machined connecting rods and con rod caps. The machine is designed for mass production (output 400 pieces/hour).

Year of construction: 1960, condition: not inspected (used), Forst RF 20x2000 internal broaching machine -WKG 189- Data: Manufacturer: Forst Itodjhu E Egjpfx Adwob Type: RF 20x2000 Year of manufacture: 1959 Max. Tractive force: 20t Max. Stroke: 2000mm Max. Cutting speed: 5,6m/min Max. Return speed: 30m/min Max. Workpiece diameter: Ø 300mm Max. Tool diameter: Ø 90mm Weight: 3,5t Remark: without tub

Condition: used, Year of construction: 1984, radial piston motors Itjdpfohpiiqex Adwob oil motor RADIAL-PISTON-MOTOR for dimter DKV 5

Condition: used, Year of construction: 1990, machine/vehicle number: 3048 & 3047, Manufacturer: Karl Klink Model: RKW 25-3800-520 Weight: 50t Year of manufacture: 1990 Machine No.: 3048 & 3047 General / technical data: Chain broaching machine for continuous outside broaching tractive force: 25.000kg cutting speed: 7,2 / 8,1 / 9,6m/min maximum tool length: 3520mm passage width: 520mm clamping area of the tool carrier: 3520 x 460 mm dimension: 12.300 x 6.400 x 4650mm power supply: 380V 50Hz / 110kW Accessories/ special equipment: Itedoinim Tjpfx Adwjb - 6 tool carriers for tool change - machine documentation Remark / General The machines are in a good condition. The machines are dismantled and stored in our warehouse. The total volume of the plant is several trucks (approx. 70to per machine). The machines have produced connecting rods for passenger car diesel engines. Chain broaching machines are designed for mass production. The continuous (backstroke-free) working process in chain broaching is designed for maximum achievable productivity in external broaching. The chain broaching process is the only broaching process without a backstroke of the tools or workpieces. In chain broaching, the workpiece is continuously moved past the tool and thus performs the feed movement. and thus carries out the feed motion. This unique broaching process is only used for very large quantities in series production.

Condition: new, Year of construction: 2013, shaft A2 changeable with CALZONI MR 1800 / N5 inclusive flange FL 4 D75 ( connection tubes) ( 2 pieces available) REPARATION SET FOR RADIAL PISTON MOTOR IAM1800 / C model 2013 - new consisting of: 1 x rotary distributor 1 x distributor plate 1 x bearing wave 1 1 x bearing wave 2 1 x seal kit (2 pieces available) Itedpfx Ajhpihzsdweb jöma price: € 700,- / 1 set
