Eccentric Press - Single Column
WEINGARTEN ARP 80

Name: WEINGARTEN ARP 80
Brand: WEINGARTEN
Availability: InStock

Condition

Used

Location

Schmölln

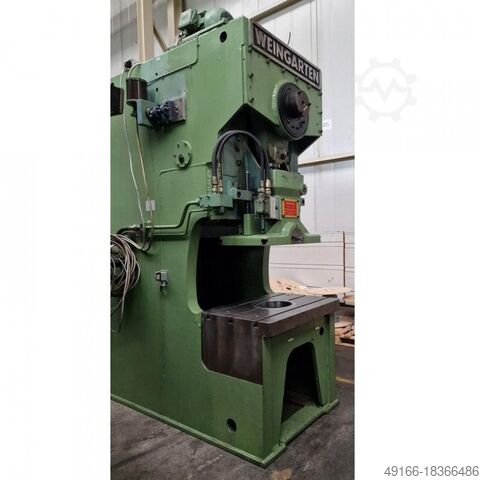

Eccentric Press - Single Column WEINGARTEN ARP 80

Machine data

Machine type:: Eccentric Press - Single Column

Manufacturer:: WEINGARTEN

Model:: ARP 80

Condition:: used

Price & Location

Location:: Schmölln

Call

Details about the offer

Listing ID:: A16165610

Reference number:: 1010-872

Update:: 27.02.2026

Description

pressure 80 t
throat 320 mm
stroke 8 - 112 mm
table surface area 830 x 600 mm
no. of strokes 30 - 85 Hub/min
ram surface 650 x 400 mm
ram adjustment 71 mm
clamping plate 990 x 550 mm
table height over floor 810 mm
table height over floor 800 mm
column daylight (vorn) 680 mm
column daylight (hinten) 520 mm
total power requirement 7,5 kW
weight of the machine ca. 7,7 t
dimensions of the machine ca. 1,5 x 2,2 x 3,15 m
Equipment:
- with wheel presentation
- fixed table

Machine was/is partially overhauled:
- Complete disassembly and inspection
- Table and ram surfaces milled
Nodetqm Dmspfx Alhelc
- New seals and hydraulic hoses
- new main engine
- the two main bearing bushes, the bushing of the 3rd bearing and the
connecting rod bushing are new
- Shaft machined and booked out
- Painting
- new control cabinet with PLC and touchscreen including cabling.
- Current UVV test with braking time measurement
