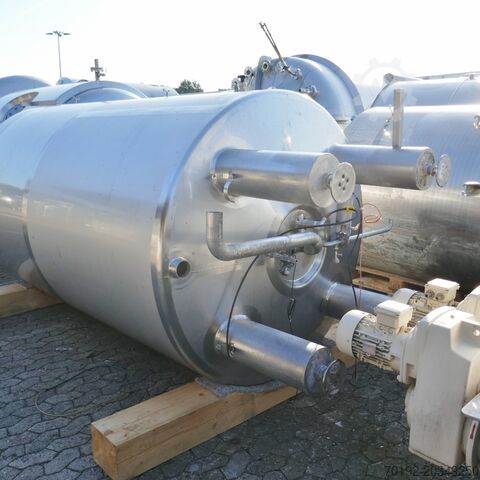

5530 liter heat-/coolable pressure tank / sterile pressure tank, Aisi 304 with blades agitatorApparate- und Behältertechnik Harrislee
9681
Machine data
- Machine type:
- 5530 liter heat-/coolable pressure tank / sterile pressure tank, Aisi 304 with blades agitator
- Manufacturer:
- Apparate- und Behältertechnik Harrislee
- Model:
- 9681
- Condition:
- used
Price & Location
- Location:
- Bremen
Technical details
- Tank capacity:
- 5,530 l
Details about the offer
- Listing ID:
- A20349250
- Reference number:
- 9681
- Update:
- 22.10.2025
Description
Condition: used
Volume: 5,530 liters
Vacuum: 1.0 bar
Max. overpressure: 3.2 bar
Tank
Max. operating temperature (tank): 145°C
Design: vertical
Mounting type: adjustable feet
Number of feet: 4
Heating/Cooling: available
Cylinder temperature control: double jacket
Temperature control (bottom): double jacket
Inner diameter: 1,550 mm
Outer diameter: 1,660 mm
Cylindrical height: 2,500 mm
Knsdpfxexqamcs Aabjc
Total height: 4,350 mm
Equipment:
Manhole/dome: on top head (Ø 450 mm)

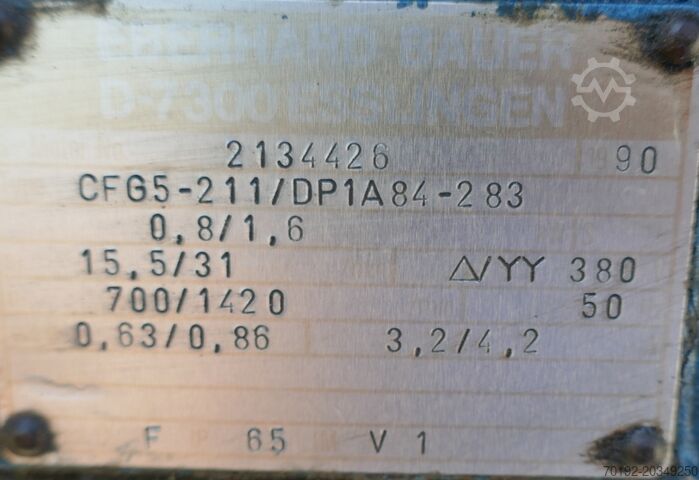

Nameplate:
Included equipment: spray head, crane lifting lugs

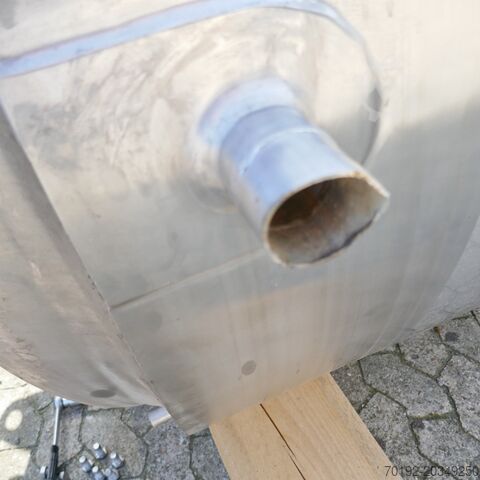

Outlet: present
Note: outlet end cut off
Remarks:
Double jacket likely fitted with spray ring – only suitable for non-pressurized temperature control; some detachment of the double jacket welds in the upper area; outlet end diameter 65 mm (tapering to approx. 50 mm towards the tank); minor dents inside the tank; heating connections cut off
Last application: dairy
Product-contact material: V2A 1.4301 (AISI304)
Temperature system material: V2A 1.4301 (AISI304)
Feet material: stainless steel

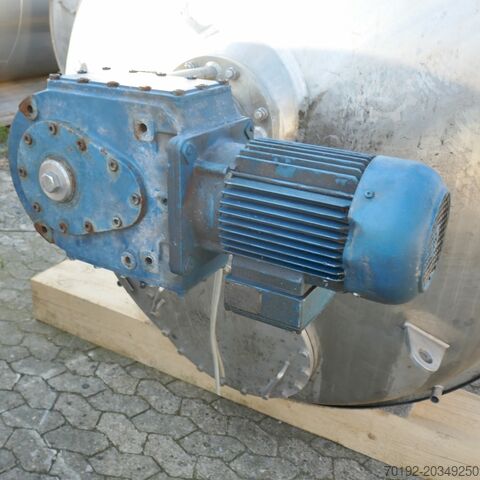

Power: 0.8 / 1.6 kW
Speed: 15.5 / 31 rpm
Agitator: paddle agitator
Voltage: 380 V
Bottom bearing:
Agitator mounting: eccentric on top head
The listing was translated automatically. Translation errors are possible.
