Vertical log band saw
Bögli 1600

Name: Bögli 1600
Brand: Bögli
Availability: InStock

Condition

Used

Location

Salzburg

Basic data

Machine type:: Vertical log band saw

Manufacturer:: Bögli

Model:: 1600

Condition:: used

Price & Location

Location:: 5020 Salzburg, Österreich

Call

Details about the offer

Listing ID:: A18393936

Reference number:: 3197

Update:: 19.11.2025

Description

No. 3197

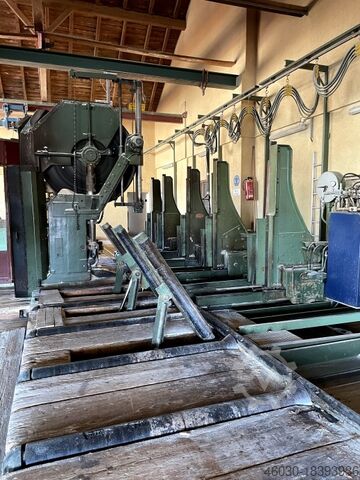

Vertical log band saw Bögli 1600

Used, the machine has been continuously maintained and modernized
Sawing operation was discontinued in summer 2024

For logs up to 1500 mm in diameter
Clamping carriage approx. 7650 mm long, 5 support arms
Clamping carriage approx. 3000 mm wide
The maximum length that was cut is 8000 mm
Cutting capacity averaged 55 - 70 solid cubic meters per 8.5 hours
2 core cut-off saws
Drive motor 55 kW, 1460 rpm
Roller diameter 1600 mm
Saw blade maximum width 205 mm, length 10560 mm, thickness 1.65 mm
Hydraulic unit replaced in 2007
Chip carriage rollers and shafts replaced in 2011
The system was operated by 3 people
Operator cabin with remote control and video surveillance

Space requirement approx. 25000 x 10000 mm LW

Sale on behalf of customer, ex location near 5020 Salzburg (Austria), without disassembly, transport and assembly
Disassembly, loading and transport by us optionally possible
Errors in the description and price reserved

In order to avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended

Sold as is

Technical data, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “purchased as viewed”
Bsdpfsvvm Iuex Af Aeln
Pictures and videos serve as examples and do not represent the actual scope of delivery

Terms of payment: Prices plus VAT, payment before collection or dispatch

Terms of delivery: ex location
