Ergotech Compact 800-300

DEMAG

Condition: excellent (used), Year of construction: 2014, Sumitomo Demag Systec 210/580-430 with Sepro Success 22 robot / Hybrid machine Year of manufacture: 2014 Injection unit: Screw diameter: 35 mm Shot weight: 153 g Injection pressure: 2640 bar Dosing volume: 168 ccm Clamping unit: Clamping force: 210 t Tie bar spacing: 580x580 mm Platen size: 860x860 mm Ejector: hydraulic Clamping unit: toggle Controller: NC5 Csdpfez Ipkcsx Alfjhd Additional equipment: Very good technical condition Hybrid machine: high-speed, energy-saving and quiet Operating hours: approx. 30,000 h in automatic operation Euromap 67 Robot interface Air valve x 9 Hydraulic needle core pull, controlled by a proportional valve x 1 Hydraulic core pull x 4 Air core pull x 5 Controller with hot runners x 8 Injection unit hardened - bimetal Main motor of the machine - servo motor driven by an inverter - energy saving Proportional valve on the injection unit – precise injection Parallel movements Integrated printer Dimensions: Weight: 8930 kg Length/Width/Height: 6.02x1.76x2.15 m All offered machines are started by our service technicians before sale. It is possible to obtain a video of the technical tests of the selected machine or to participate in technical live tests at our company in Łódź. Price: On request

Condition: good (used), Year of construction: 2004, Peripheral devices Brand: Tool - Temp Type: TT - 157E Available: 14 pieces Codpfoh Hbpwjx Alfshd

Condition: excellent (used), Year of construction: 1995, Demag Ergotech Compact 250-80 Year of manufacture: 1995 Injection unit: Screw diameter: 18 mm Injection weight: 20 g injection pressure: 2400 bar Dosing volume: 22.8 ccm Clamping unit: clamping force: 25 t tie bar distance: 280x280 mm size of clamping platens: 410x410 mm ejector: hydraulic clamping unit: hydraulic Cedpfsz Iqlbsx Alfjhd Control system: NC4 Additional equipment: Air valve x 2 Hydraulic core pull x 1 Injection unit hardened - bimetal Original Demag mold crane: chain, electrically controlled, 2 lifting speeds Dimensions: Weight: 2600 kg Length/width/height: 3.20x1.30x1.80 m Drive: Pumps/motor: 7,5 kW Heating power: 3,7 kW Total power: 11,2 kW All offered machines are started by our service technicians before sale. It is possible to get a video of technical tests of the selected machine or participate in live technical tests in our company in Łódź. Price: Upon request

Condition: excellent (used), Year of construction: 2006, Demag Ergotech System 80/420-430 Year of manufacture: 2006 Injection unit: Screw diameter: 40 mm Injection weight: 205 g Injection pressure: 2020 bar Metering volume: 231 ccm Clamping unit: clamping force: 80 t tie bar distance: 420x420 mm size of clamping platens: 580x590 mm ejector: hydraulic clamping unit: hydraulic Control system: NC4 Additional equipment: Euromap 67 Robot interface Air valve x 2 Hydraulic core pull x 3 Codsz Iql Iepfx Alfjhd Control with hot runners Injection unit hardened - bimetal Built-in printer It is possible to change the screw diameter Dimensions: Weight: 4100 kg Length/width/height: 4.10x1.40x1.90 m All offered machines are started by our service technicians before sale. It is possible to get a video of technical tests of the selected machine or participate in live technical tests in our company in Łódź. Price: Upon request

Condition: new, Year of construction: 2025, Delivery ex works Turkey Bending length (A): 3050 mm Press force: 170 tons Sheet thickness 42kgf / mm: 8 mm Sheet thickness 72kgf / mm: 4 mm Upper tool: 1260 Top Tool 85 ° Csdpfxjgu N Als Alfshd Lower tool: 50, 35, 22, 16 Distance between columns (B): 2550 mm Forward speed: 130 mm / s Working speed: 8 mm / s Retraction speed: 120 mm / s Crowning: manual (CNC-motorized available for an extra charge) X-axis travel: 750 mm X-axis speed: 250 mm / s Backgauge fingers: 2 pieces Front support arms: 2 pieces Oil tank capacity: 180 liters Main motor power: 11 kW Stroke length (C): 265 mm Installation height (D): 450 mm Projection stand (E): 410 mm Table height (F): 870 mm Table width (G): 170 mm Length (L): 4200 mm Height (H): 2800 mm Width (W): 2200 mm Weight: approx. 7500 kg Cybelec Cybtouch 12 2D Graphic CNC control 3 axes (Y1, Y2, X) expandable with optional R+Z-Axis Eurostamp 2067 lower tool (V: 50, 35, 22, 16) Eurostamp 1260 upper tool 85 ° Narrow table All-steel welded construction Promecam quick clamping system CNC-controlled motorized backgauge (X: 750 mm) Adjustable backgauge fingers Inch and metric system can be selected Ground and chrome-plated cylinders Swiveling control panel Foot control with anti-panic stop & emergency shutdown Lateral protective grille (secured with limit switch) Light curtain on the back of the machine (900 mm) DSP laser finger protection system at the front (CE) BOSCH / REXROTH or HOERBIGER / HAWE hydraulic system BOSCH / REXROTH or ECKERLE hydraulic pump Slidable front support arms (2 pieces) Electronics unit from: SIEMENS, SCHNEIDER, DELTA, ABB, OMRON 380 V 50 Hz Painting: RAL 7035, RAL 5015 Optional special accessories available at an additional cost: -CNC-controlled R-axis (250 mm) -CNC motorized crowning -Servo driven motors backgauge system for X + R axis (Mitsubishi) -Painting in special colors on customer request Documentation in German or English CE conformity

Condition: excellent (used), Year of construction: 2013, Sumitomo Demag Systec 100/420-310 with Sepro SR SDR11 S3 TRANS robot / Hybrid Machine Year of manufacture: 2013 Injection unit: Screw diameter: 35 mm Shot weight: 149 g Injection pressure: 2024 bar Dosage volume: 168 ccm Clamping unit: Clamping force: 100 t Tie bar spacing: 420x420 mm Platen size: 600x600 mm Ejector: hydraulic Clamping unit: hydraulic Control system: NC5 Additional equipment: Hybrid machine: high-speed, energy-saving, and very quiet Cjdpfx Aljz Ipi Sofohd Operating hours: approx. 38,000 h in automatic mode Robot interface Air valve x 2 Hydraulic core pull x 1 Hardened injection unit - bimetallic Main motor of the machine - servo motor driven by inverter - energy saving Built-in printer Machine was regularly serviced by authorized Sumitomo Demag service Robot Sepro SR SDR11 S3 TRANS Year of manufacture: 2013 5-axis robot: 3 axes driven by servomotors (electric); axes A and C (rotation) - pneumatic Touch control panel Robot safety package Robot with adapter, safety enclosure Robot acquisition available at an additional cost Dimensions: Weight: 4400 kg Length/Width/Height: 4.20x1.40x2.00 m All machines offered are started up by our service technicians before sale. It is possible to obtain a video of the technical tests of the selected machine, or to take part in technical live tests at our facility in Łódź. Price: On request

Condition: excellent (used), Year of construction: 2012, Sumitomo Demag Systec 350/720-2300 / Production Line with Wittmann-Demag DR833 Robot Year of manufacture: 2012 Injection Unit: Chsdoz Iplmopfx Alfod Screw diameter: 70 mm Shot weight: 1103 g Injection pressure: 1877 bar Dosage volume: 1212 cm³ Clamping Unit: Clamping force: 350 t Tie bar distance: 720x720 mm Platen size: 1040x1060 mm Ejector: hydraulic Clamping system: toggle lever Control system: NC5 Additional equipment: Euromap 67 Robot interface 5x air valves 1x hydraulically operated core pull with proportional valve 5x hot runner controls Hardened injection unit – bimetal Moog proportional valve on the injection unit – high-precision injection Parallel movements Central lubrication 3 variable-capacity hydraulic pumps Integrated printer Machine has been regularly serviced by authorized Sumitomo Demag technicians Robot Wittmann-Demag DR833 Year of manufacture: 2011 4-axis robot: 3 axes driven by servomotors (electric), Y-axis telescopic; C-axis pneumatic, A-axis movement Axis travel: X-900, Y-1600, Z-3000 Touch control panel Robot safety package Robot with adapter, conveyor belt, and protective enclosure Purchase of the robot and conveyor belt at additional cost Dimensions: Weight: 15,750 kg L x W x H: 8.26 x 2.01 x 2.27 m All offered machines are started up by our service technicians prior to sale. It is possible to obtain a video of technical tests for the selected machine, or to participate in live technical tests at our facility in Łódź. Price: On request

Condition: like new (used), Year of construction: 2023, Technical Data: Maximum clamping force: 3,500 kN Maximum locking force: 3,850 kN Opening stroke: 725 mm Minimum mold installation height: 400 mm Maximum mold installation height: 900 mm (extended) Clamping plate dimensions (h x v): 1,168 x 1,144 mm Clear tie bar spacing (width x height): 830 x 830 mm Maximum mold weight: 6,600 kg Maximum weight on moving platen: 3,800 kg Maximum weight on fixed platen: 5,100 kg Ejector stroke: 250 mm Ejector force (increased): 100 kN Max. ejector speed: 270 mm Screw diameter: 60 mm Injection pressure: 2,426 bar Max. injection volume: 891 cm³ Max. injection speed: 160 mm/s Max. dosing stroke: 315 mm Max. nozzle stroke: 520 mm Nozzle immersion depth: 20 mm Back pressure over dosing stroke programmable Installed cylinder heating: 23.1 kW Material hopper capacity: 110 l Machine weight: approx. 21 t Accessories: Robot: Manufacturer: SEPRO ROBOTIQUE (France) Model: 5T35 2000/900/TE-1800 Year of manufacture: 2023 Stroke: 2,000 mm Speed: 3.5 m/s Horizontal demolding stroke Y-axis: 900 mm Vertical demolding stroke X-axis: 1,800 mm Robot console on fixed platen Gripper function R1 (C) axis pneumatic 0° - 90°, including quick-change plate Weight: 583 kg MuCell Integration: The special option includes: • Plasticizing cylinder with pneumatic shut-off nozzle without mixing element and without non-return valve; • Interface (communication, emergency stop interface); Chjdpfx Aljy Hmfyefjd • Software with functional display pages for controlling the MuCell function; • Adapted nozzle guard; • Position-controlled high-speed screw (analog ZE388) Conveyor belt: Width: 870 mm Usable width: 800 mm Length: 3,500 mm Height: 880 - 1,220 mm Load capacity: 38 kg/m² Belt speed: 5.7 m/min Number of frames: 2 Clear tunnel height: 500 mm This injection molding machine is fully equipped!! Condition: As new condition, only 5,290 operating hours.

Condition: used, Electric chain hoist, electric lifting mechanism, DEMAG crane, type DKUN 1-100 K V1 F4 Manufacturer's serial no. 61801900, year of manufacture 1997 Load capacity: 100 kg Hook travel: 3 meters Main lifting speed: 8 m/min Csdpfx Ao Ah Iknolfohd Fine lifting speed: 2 m/min Chain size: 3.6 x 10.6 mm Control cable length: approx. 1.8 meters Power supply: 400 volts, 50 Hz 1 load strand = 100 kg Weight: 16.5 kg In good condition.

Condition: used, Electric chain hoist, electric lifting unit, DEMAG crane, type DKES 2-200 K V2 DI with Dematik BUS control via crane control system Cjdpfx Ale Ah Ikkofjhd Factory No. 61456646, Year of manufacture 2003 Load capacity: 200 kg Hook travel: 4.0 meters Main lifting speed: 14.0 / 19.2 m/min Fine lifting speed: 0.20 m/min Chain size: 4.2 x 12.2 mm 1 load strand = 200 kg - with DKES2/5 500V control logic - without crane operating control - Dematik BUS control via crane control system - without trolley Mains connection: 400 volts, 50 Hz Rated power: 750 W Rated current: 2.4 A in good condition

Condition: good (used), Year of construction: 1999, operating hours: 95,239 h, functionality: fully functional, machine/vehicle number: 173937, clamping force: 2,000 kN, screw diameter: 55 mm, clearance between the columns: 520 mm, mold height (min.): 250 mm, total length: 5,100 mm, total width: 1,800 mm, total height: 2,200 mm, overall weight: 6,630 kg, Equipment: documentation/manual, The machine ran perfectly until the last day before the new machine was delivered to us. The machine is therefore in good used condition. Due to a lack of space in the injection molding shop, the machine is being sold and is no longer powered. The pump / injection unit / clamping unit are sealed. The machine manual is available Videos of the machine are available Pump operating hours: 95239 Automatic operating hours: 86082 Repairs from recent years: Filter replaced annually 05/2024 Fan in the control cabinet replaced Chodpfx Alev D Nxlefed 07/2023 New valve for Y201 and Y210 nozzle forward/backward 02/2023 New keypad installed. Field with motor and heater 12/2022 Ejector sealed. Injection unit sealed including new piston

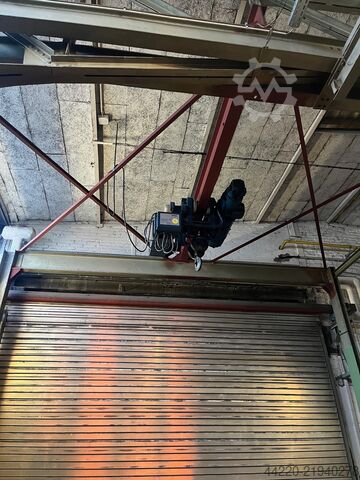

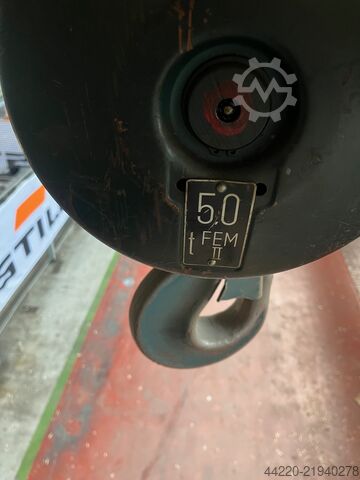

Condition: used, Electric chain hoist, electric lifting mechanism, DEMAG crane, type PK2N-F Serial No.: 5785034 Year of manufacture: 1988 Load capacity: 500 kg Hook travel: 5 meters Main lifting speed: 5 m/min Fine lifting speed: 1.25 m/min Control pendant cable length: approx. 3.5 meters Power supply: 400 volts, 50 Hz - 2 load chains = 500 kg - Electric travel unit DEMAG, type 13/3 PF8 with 1 travel speed of approx. 8 m/min. Type 13/3PF 8 - For double T-beams with approx. 100 to 200 mm width Weight: 63 kg In good condition Cedpfxs Ah Iiuj Alfehd

Condition: used, Electric chain hoist, electric lifting mechanism, crane DEMAG type DK5-500-K-V1F4 Serial No.: 63207040 Year of manufacture: 1993 Load capacity: 1000 kg Hook travel: 2.6 meters Distance from suspension point to load hook: 450 mm Main lifting speed: 4 m/min Fine lifting speed: 1 m/min Cable length of control pendant: approx. 1.7 meters Power connection: 400 volts, 50 Hz 2 load strands = 1000 kg - Emergency stop Weight: 46 kg Good condition Csdpfxj Ah Iggj Alfohd

Year of construction: 1998, condition: good (used), functionality: fully functional, machine/vehicle number: 12254 B521 860, Overheadcrane ± 10.500 mm x 12.500 kg Chedpfx Alev Ip Egofed

Condition: excellent (used), Year of construction: 2012, Wittmann TP+D-S-2, 140,SO-C, S,X- TVEBBH2M_04_00 (2012) 1\. Overview & Model Decoding 1. Manufacturer: Wittmann (Austria) 2. Year of Manufacture: 2012 3. Model Series: Tempro Plus D (TP+D) – high-end temperature controller equipped with a touchscreen interface 4. S-2: S (Single) = single-circuit configuration / 2 = dual connection configuration or generation 2 module 5. 140: Pressurized water medium with a maximum operating temperature of up to 140 °C 6. SO-C: Solenoid valve / Option C cooling configuration 7. S: Standard pump and heating size configuration Cedpfx Als Ah E Adsfohd 8. TVEBBH2M_04_00: Internal PCB assembly or firmware system part code from the rating plate 2\. Main Technical Specifications (Tempro Plus D 140 Series) 1. Heat Transfer Medium: Pressurized water (up to 140 °C) 2. Heating Capacity: Typically 9 kW or 12 kW (depending on the exact internal configuration) 3. Cooling Capacity: Approx. 40 kW – 60 kW at 130 °C 4. Pump Performance: 5. Max. Flow Rate: Approx. 40 – 60 l/min 6. Max. Pump Pressure: Approx. 4.5 – 6.0 bar 7. Power Supply: , 8. Control System: Microprocessor Touchscreen Display (Tempro Plus D visualization unit) 9. Communication: Injection molding machine interface (Serial/CAN-bus/Ethernet/Wittmann B2/C2 protocol)
