1100 liter heat-/coolable pressure tank, Aisi 316 with magnetic agitatorDiessel
9212
Price & Location
- Location:
- Bremen
Technical details
- Tank capacity:
- 1,100 l
Details about the offer
- Listing ID:
- A20349460
- Reference number:
- 9212
- Update:
- 22.10.2025
Description
Condition: used
Capacity: 1,100 liters
Vacuum: 1.0 bar
Max. overpressure: 1.99 bar
Tank
Max. operating temperature (vessel) / °C: 130 °C
Design: vertical
Tank
Support type: feet
Number of feet: 3 pcs
Heating/Cooling: available
Double jacket volume: 122.0 liters
Max. permissible operating overpressure: 3.0 bar
Max. permissible operating temperature: 130 °C
Cylinder temperature control: double jacket
Heating/cooling jacket
Bottom temperature control: double jacket
Insulation: available
Insulation
Insulating jacket: hermetically welded
Insulating jacket material: stainless steel
Internal diameter: 988 mm
External diameter: 1,154 mm
Cylindrical height: 875 mm
Overall height: 2,600 mm
Technical data / dimensions
Bottom wall thickness: 5.4 mm
Cylinder wall thickness: 8 mm
Technical data / dimensions
Top wall thickness: 4.5 mm
Technical documentation: drawings, various documents, inspection certificate
Equipment
Manhole / Dome: in top (DN 500)
Nameplate:
Features: crane lugs
Equipment
Outlet (alternative input): 38 mm
Note: Metallic discoloration inside

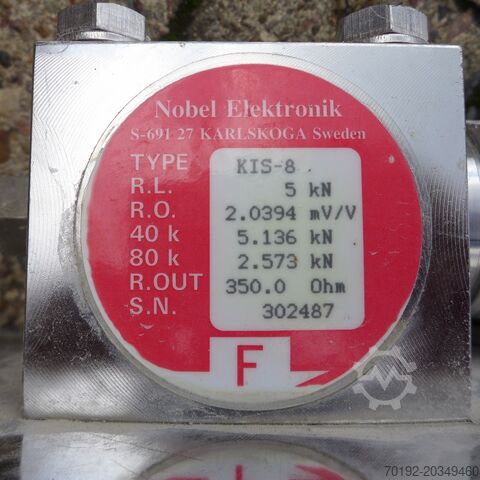

Remarks: 3 loose load cells (no guarantee for functionality) are included in the scope of delivery
Last application: pharmaceutical
Product-contact material: V4A 1.4435 (AISI316)
Material properties
Temperature control system material: V2A 1.4301 (AISI304)
Feet material: stainless steel
Agitator
Agitator manufacturer: HANAG Steriltechnik AG
Power: 0.75 KW
Speed: 394 rpm
Knodjxqauyjpfx Aabec
Agitator: magnetic stirrer
Agitator
Voltage: 220/380 volts
Agitator mounting: bottom
The listing was translated automatically. Translation errors are possible.
