Turning and Milling CenterDOOSAN
PUMA 2600 ST
Machine data
- Machine type:
- Turning and Milling Center
- Manufacturer:
- DOOSAN
- Model:
- PUMA 2600 ST
- Year of construction:
- 2012
- Condition:
- used
Price & Location
- Seller location:
- Reckholder 1, 9527 Niederhelfenschwil, Switzerland
Machine sale
More about selling machinery
Technical details
- Turning length:
- 1,540 mm
- Turning diameter:
- 760 mm
- Spindle speed (max.):
- 4,000 rpm
- Travel distance X-axis:
- 630 mm
- Travel distance Y-axis:
- 230 mm
- Travel distance Z-axis:
- 1,585 mm
- Bar passage:
- 46 mm
- Total height:
- 3,052 mm
- Bar diameter:
- 46 mm
- Overall weight:
- 1,550 kg
- Controller manufacturer:
- FANUC
- Controller model:
- 31I A
- Space requirement length:
- 5,125 mm
- Space requirement width:
- 2,625 mm
Details about the offer
- Listing ID:
- A20224895
- Reference number:
- 51667
- Update:
- 06.10.2025
Description
.. CNC controls FANUC 31I A
WORKING RANGE TURNING
.. turning diameter (max): 760 mm
.. bar diameter (max): 46 mm
.. worpiece length max.: 1540 mm
MAIN SPINDLE
.. spindle revolutions (max): 4000 /min
.. drive power: 22 kW
.. c-axis: yes
COUNTER SPINDLE
.. spindle revolutions (max): 4000 /min
.. drive power: 26 kW
.. c-axis: yes
X/Z SLIDE
.. Z-axis travel: 1585 mm
.. X-axis travel: 630 mm
.. Y-axis travel: 230 mm
.. number of tool positions (total): 12
.. number of live positions: 12
.. - rotation speeds (max): 4000 /min
X/Z SLIDE
.. rotating range B-axis up to: 0.001 °
.. traverse velocity Z (max): 1515 mm/min
.. traverse velocity X (max): 220 mm/min
.. - rotation speeds (max): 12000 /min
.. - drive power: 22 kW
TOOL MAGAZINE
.. number of positions: 40
.. tool diameter max.: 90 mm
.. - with free neighbour positions: 130 mm
.. tool length max.: 400 mm
ELECTRICAL SPECIFICATIONS
.. mains voltage: 400 V
.. mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
Cedpfxjxlh N Us Ab Sehc
.. space requirements -left/right-: 5125 mm
.. space requirements -front/back-: 2625 mm
.. total height: 3052 mm
.. total weight approx.: 1550 kg
ATTACHMENTS (TURNING)
.. chip conveyor: yes

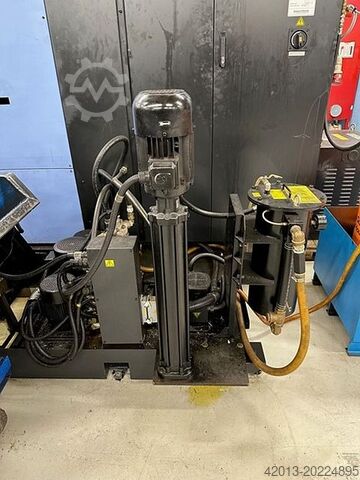

.. coolant unit: yes
.. coolant through turret: yes
.. through spindle coolant attachment: yes
.. hydraulic system: yes
.. European CE standards: yes

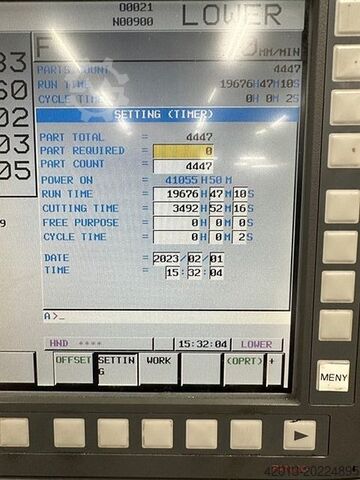

Switch-on hours :41000h
Running time:19000h
Milling:3400H
