4-axis horizontal machining centerHAAS
EC 1600
Machine data
- Machine type:
- 4-axis horizontal machining center
- Manufacturer:
- HAAS
- Model:
- EC 1600
- Year of construction:
- 2006
- Condition:
- good (used)
Price & Location
- Location:
- Walburger Str. 8, 34260 Kaufungen, DE
Details about the offer
- Listing ID:
- A18734326
- Update:
- 06.05.2025
Description
Brand Haas
Type EC 1600
Year of manufacture 2006
Travel ranges
X-axis 1626 mm
Y-axis 1270 mm
Z-axis 813 mm
Spindle centerline to table 304 mm
Spindle SK 50
Max. rated power 22.4 kW
Gsdpev N Di Aefx Aabjkc
Max. speed 7500 rpm
Max. torque 460.0 Nm 700 rpm
Table size
Length 1626 mm
Width 914 mm
T-slot width 16.00 mm
T-slot center-to-center distance 125 mm
Number of T-slots in standard configuration: 7
Max. load capacity on table (evenly distributed) 4536 kg

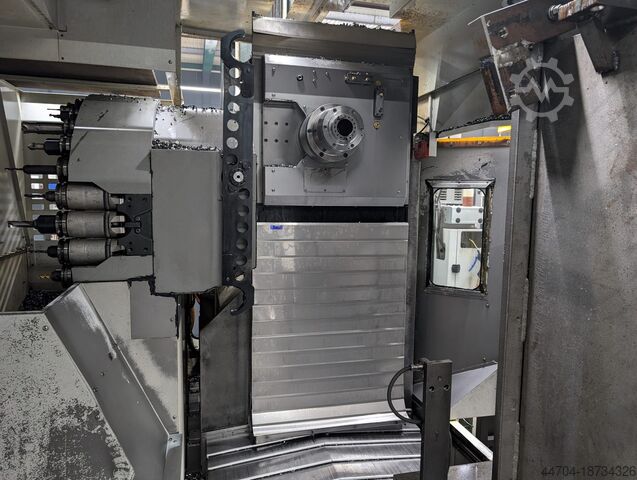

Integrated 4-axis (B-axis)
Table 1626 mm x 813 mm mm
Clamping surface diameter 762 mm
Adjustability 360°
Max. workpiece swing diameter 1270 mm
Table load 4536.0 kg
Max. rated power 3.7 kW
Rotational torque (continuous) 2712 Nm
Backlash 30 arc-sec
Gear ratio 500:1
Braking torque 5423 Nm
Minimum resolution 0.001°
Indexing accuracy ± 30 arc-sec
Repeatability 15 arc-sec
Rapid traverse rate on B axis 36°/sec
Max. feed rate for machining on B axis 36°/sec
Spindle centerline to table 146 mm
Max. feed rate for machining in x, y, and z axes 12.7 m/min
Rapid traverse rate on X axis 15.2 m/min
Rapid traverse rate on Y axis 15.2 m/min
Rapid traverse at Z 15.2 m/min
Axis motors
30-station tool changer
Max. tool diameter (full) 102 mm
Max. tool diameter (adjacent positions empty) 254 mm
Max. tool length 508 mm
Max. tool weight 13.6 kg
Tool-to-tool (average) 8.00 s
Chip-to-chip (average) 12.60 s
General information

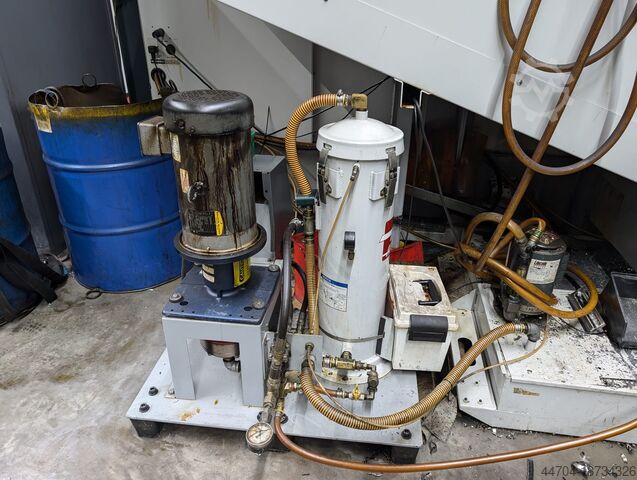

Coolant tank capacity 360 L
Dimensions
Domestic pallet 488 cm x 366 cm x 346 cm
Export crate 488 cm x 366 cm x 348 cm
Weight 13608.0 kg
The listing was translated automatically. Translation errors are possible.
