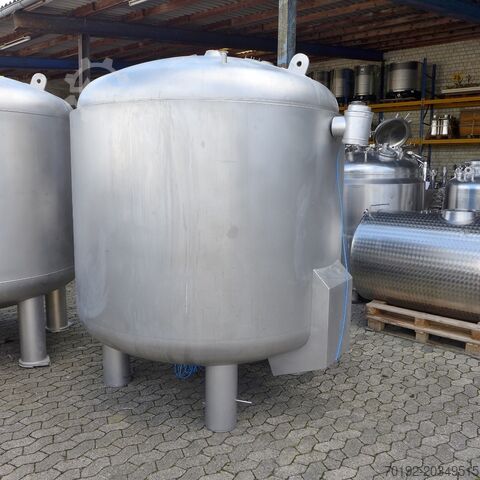

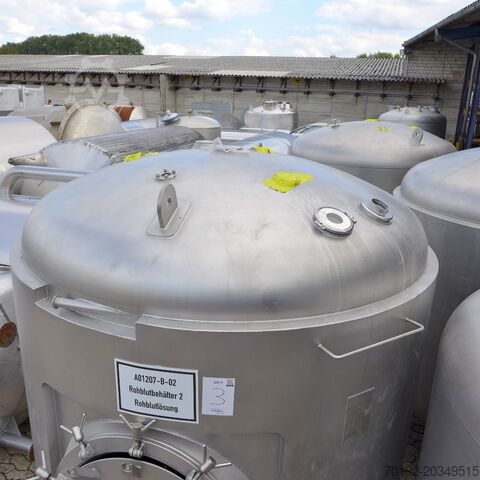

6000 Liter heat-/coolable pressure tank, Aisi 316 with magnetic agitatorMöschle
8850
Price & Location
- Location:
- Bremen
Technical details
- Tank capacity:
- 6,000 l
Details about the offer
- Listing ID:
- A20349515
- Reference number:
- 8850
- Update:
- 22.10.2025
Description
Condition: used
Volume: 6,000 liters
Vacuum: 1.0 bar
Max. positive pressure: 3.0 bar
Tank
Max. operating temperature, tank / °C: 135°C
Design: vertical
Tank
Support type: feet
Number of feet: 4
Kjdpfx Asxqawneabsnc
Heating/cooling: available
Max. permissible operating overpressure: 6.0 bar
Max. permissible operating temperature: 135°C
Cylinder temperature control: Thermoplate
Heating/cooling jacket
Bottom temperature control: Thermoplate
Insulation: available
Insulation
Insulation jacket: hermetically welded
Insulation material: Armaflex
Jacket material: stainless steel
Insulation thickness / mm: 50 mm
Internal diameter: 2,000 mm
External diameter: 2,100 mm
Cylindrical height: 1,400 mm
Total height: 2,630 mm
Technical data / Dimensions
Bottom wall thickness: 6 mm
Cylinder wall thickness: 6 mm
Technical data / Dimensions
Top wall thickness: 5.8 mm
Year of manufacture: 2016
Technical documentation: drawings, TÜV papers, static calculations, CE marking and declaration of conformity, operating instructions
Equipment

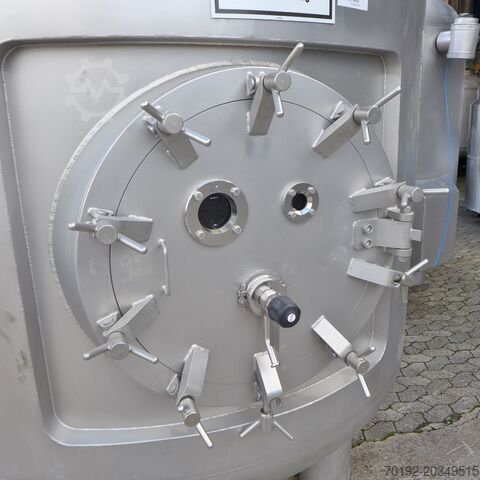

Manhole / access port: in cylinder
Nameplate:
Equipment: crane lugs
Equipment
Outlet (alternative input): 187 mm
Remarks: Manhole DN 600; outlet with bolted fitting; no indication of the double jacket’s acceptance in the inspection report (in a copy of drawing 1160246-1A or 1B there is a signed stamp 'Tested according to AD 2000 guidelines by TÜV Süd'); some blind plugs may be available
Last application: pharmaceuticals
Product-contact material: V4A 1.4401/04 (AISI316)
Material properties
Temperature control system material: V2A 1.4301 (AISI304)
Feet material: stainless steel

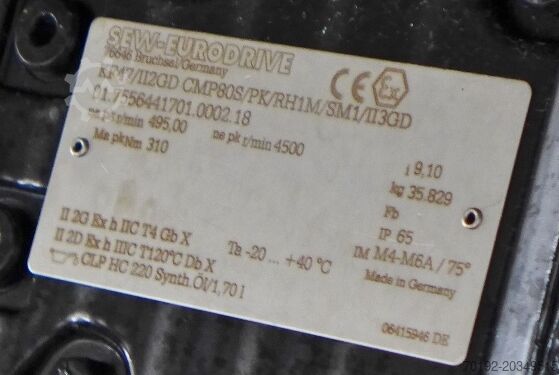

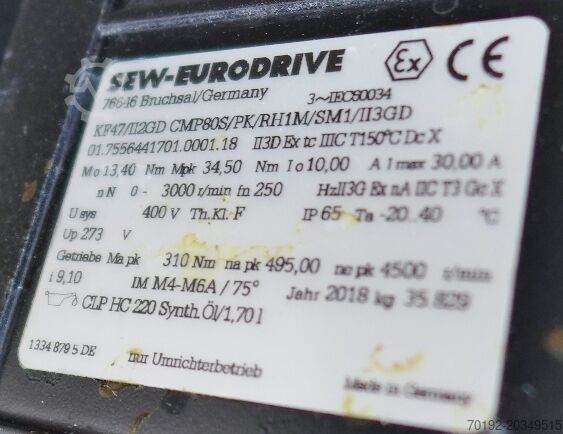

Agitator
Agitator manufacturer: Metenova AB
Speed: 495 rpm

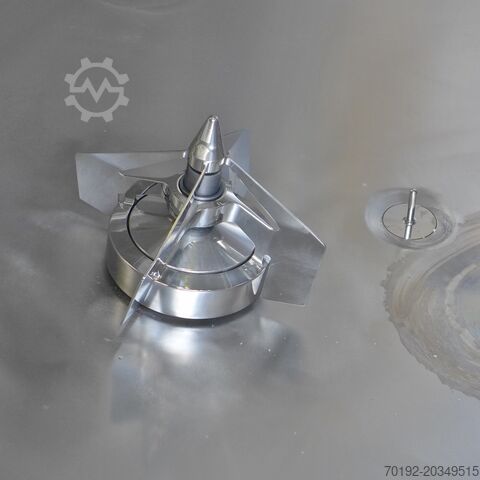

Agitator: magnetic stirrer
Agitator
Voltage: 400 volts
Explosion protection: Motor is explosion-proof (compliance with relevant ATEX directives under local conditions must be verified)
Agitator
Agitator arrangement: bottom-mounted
The listing was translated automatically. Translation errors are possible.
