8609 liter pressure tank / reactor, Aisi 316 with frame blade stirrer

9204

Location: Bremen
Condition: used
Capacity: 8,609 liters
Vacuum: 1.0 bar
Max. overpressure: 6.0 bar
Tank

Max. operating temperature vessel / °C: 200 °C

Top head: removable / hinged top head
Design: suspended
Tank

Support type: ring

Heating/Cooling: present
Double jacket volume: 313.0 liters
Max. permissible operating overpressure: 20.0 bar
Knjdjxqau Tjpfx Aabjc
Heating/Cooling jacket

Max. permissible operating vacuum double jacket / tube space / bar: 1.0 bar

Max. permissible operating temperature: 220 °C

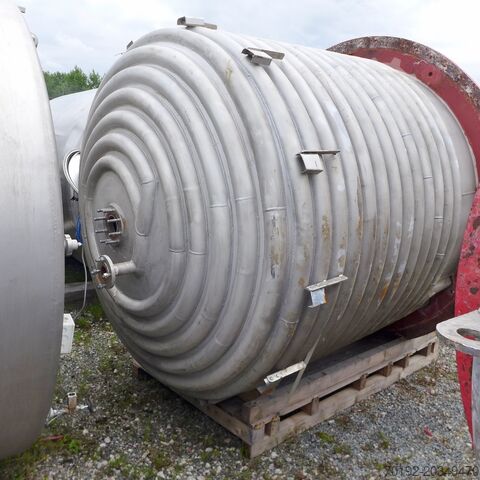

Cylinder tempering: half-pipe coil
Heating/Cooling jacket

Bottom tempering: half-pipe coil

Internal diameter: 2,000 mm
Cylindrical height: 2,190 mm
Total height: 4,950 mm
Technical Data / Dimensions

Bottom plate thickness: 10 mm

Cylinder wall thickness: 8 mm
Technical Data / Dimensions

Top head wall thickness: 14 mm

Technical documentation: drawing
Equipment

Manhole / dome: in the top head

Nameplate:
Equipment: crane lugs
Equipment

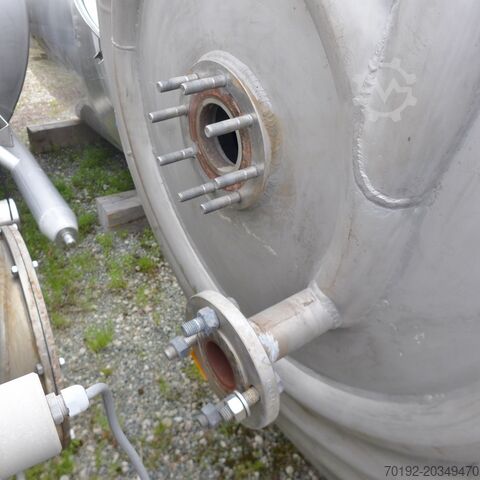

Outlet (alternative specification): 100 mm
Note: motor missing, manhole cover missing

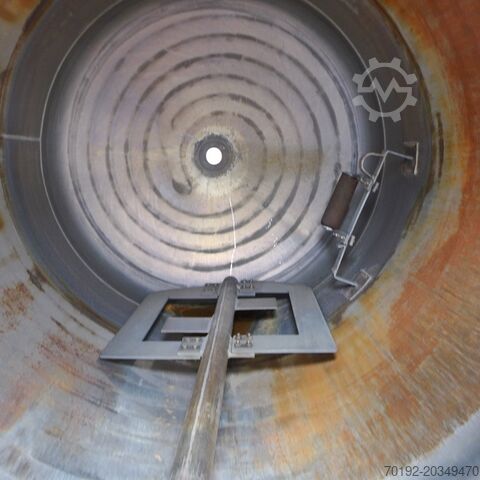

Remarks: support ring made of Fe; manhole diameter approx. 480 mm; tank interior with signs of corrosion (see photos); total height including agitator gearbox (approx. 3400 mm without gearbox);
last use: chemical industry
Product-wetted material: V4A 1.4571 (AISI316)
Material properties

Tempering system material: V4A 1.4571 (AISI316)
Flange material: steel
Agitator

Agitator manufacturer: Ekato

Speed: 52 / 104 rpm
Agitator: beam agitator
Agitator

Agitator equipment: agitator blade: frame paddle agitator; agitator motor missing, but available from the manufacturer; various agitator documents available
