Used Citizen Cnc Sliding Headstock Automatic Lathe for sale (34,140)

Condition: used, Year of construction: 2009, functionality: fully functional, machine/vehicle number: 3XR2L03, Technical Specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm, hydraulic drive - Maximum workpiece weight: 0.7 kg x 2 - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle mount: ASA 6 - Maximum spindle speed: 60–6000 rpm - Continuous power (100% duty cycle): 7.5 / 5.5 kW Kdedpoxxtu Aefx Aafep Turret with Driven Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-position lower turret, 6 driven stations - Max speed: 4500 rpm / Milling motor power: 4.5 kW - Turret indexing time: 0.2 s Electrical Equipment - Operating voltage: 200V, 3-phase - Connected load: 21 kVA Dimensions - Machine dimensions (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4,000 kg Key Features and Capabilities: - Horizontal design: Optimal chip evacuation, parts catcher, custom-made parts conveyor strip - CNC Control: Fanuc Series 21i-TB - Chip removal conveyor included Machine Condition: Operational

Condition: used, Year of construction: 2012, functionality: fully functional, machine/vehicle number: LZ1R0503, Technical Specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm, hydraulic drive - Maximum workpiece weight: 0.7 kg x 2 - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle mount: ASA 6 - Maximum spindle speed: 60–6000 rpm - Continuous power (100% duty cycle): 7.5 / 5.5 kW Turret with Driven Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-position lower turret, 6 driven stations - Max speed: 4500 rpm / Milling motor power: 4.5 kW - Turret indexing time: 0.2 s Electrical Equipment Ksdpfx Aaexxr Dvofsdp - Operating voltage: 200V, 3-phase - Connected load: 21 kVA Dimensions - Machine dimensions (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4,000 kg Key Features and Capabilities: - Horizontal design: Optimal chip evacuation, parts catcher, custom-made parts conveyor strip - CNC Control: Fanuc Series 21i-TB - Chip removal conveyor included Machine Condition: Operational

Condition: used, Year of construction: 2015, functionality: limited functionality, machine/vehicle number: MW130, Technical characteristics: Work Area - Maximum turning diameter: 300 mm - Maximum workpiece length: 276 mm - X-axis travel: 250 mm / Rapid traverse X: 24 m/min - Z-axis travel: 460 mm / Rapid traverse Z: 24 m/min - W-axis travel: 520 mm / Rapid traverse W: 24 m/min Main Spindle - Spindle nose: A2-8 - Maximum speed: Left 3,000 rpm - Continuous power (100% duty cycle): Left – 15 kW / Right – 7.5 kW - Maximum swing over bed: 520 mm - C-axis positioning accuracy: 0.001° - Bar capacity: Left spindle – 80 mm / Right spindle – 53 mm Counter-Spindle: - Spindle speed: 6,000 rpm - Maximum bar diameter: 53 mm - C-axis positioning accuracy: 0.001° - Travel: 520 mm Turret with Driven Tools - Tool interface: Okuma interface - Number of stations: 12-station lower turret, all positions driven - Maximum milling speed: 4,500 rpm - Milling motor power: 4.5 kW Electrical Equipment - Operating voltage: 400V, 3-phase, fuse: 151 A - Connected load: 22.5 kVA Dimensions Kdodpfx Aaexxrbbefop - Machine dimensions (L×W×H): 3,200 × 2,200 × 1,900 mm - Weight: 5,500 kg Main Features and Capabilities: - Horizontal construction: Optimal chip evacuation, parts catcher + custom parts conveyor belt - CNC control: OSP-P300L-R - Chip conveyor - Fire protection system - Tool measuring system (Q SETTER) - Broken tool detection system: Load monitoring auto-learning analyzer controlled by OSP-P300L-R - Workpiece detection on counter-spindle: Low-pressure compressed air gauges - Spindle cooling system - Documentation: Available electronically and as a hard copy Machine status: Operative only with main spindle – sub spindle requires repair Optional Equipment - Bar feeder: TopAutomazione model FU352 - Bar feeder dimensions (L×W×H): 3,500 × 800 × 1,200 mm - Weight: 1,500 kg

Condition: repair required (used), Year of construction: 2005, functionality: not functional, machine/vehicle number: LZ1R0725, Technical specifications: Work Area - Maximum turning diameter: 89 mm - Maximum workpiece length: 80 mm - Chuck size: 152 mm hydraulic - Maximum workpiece weight: 0.7 kg (per piece, 2 pieces) - X-axis travel: 245 mm / Rapid traverse X: 20 m/min - Z-axis travel: 240 mm / Rapid traverse Z: 24 m/min Main Spindle - Spindle nose: ASA 6 - Maximum speed: 60–6000 rpm - Power at 100% duty cycle: 7.5 / 5.5 kW Tool Turret with Motorised Tools - Tool interface: 20 mm square / 25 mm hole diameter - Number of positions: 12-station lower turret, 6 driven stations - Max. speed: 4500 rpm, Milling motor power: 4.5 kW - Turret index time: 0.2 sec Electrical Equipment - Operating voltage: 200V (3-phase) - Connected load: 21 kVA Dimensions - Machine size (L×W×H): 2,100 × 1,555 × 1,680 mm - Weight: 4000 kg Main Features and Capabilities - Horizontal layout: Optimum chip evacuation, parts catcher, custom-made parts conveyor belt - CNC control: Fanuc Series 21i TB - Chip conveyor Kodpfsxxkn Tjx Aafjdp Machine Status: NOT WORKING - Servo drive defective - Main spindle motor defective

Condition: used, Year of construction: 2017, functionality: limited functionality, machine/vehicle number: MW149, Technical specifications: Work Area - Maximum turning diameter: 300 mm - Maximum workpiece length: 276 mm - X-axis travel: 250 mm / Rapid traverse in X: 24 m/min - Z-axis travel: 460 mm / Rapid traverse in Z: 24 m/min - W-axis travel: 520 mm / Rapid traverse in Z: 24 m/min Main Spindle - Spindle nose: A2-8 - Maximum speed: Left spindle 3000 rpm - Continuous power (100% duty cycle): Left spindle – 15 kW / Right spindle – 7.5 kW - Maximum swing over bed: 520 mm - C-axis indexing accuracy: 0.001° - Bar capacity: Left spindle – 80 mm / Right spindle – 53 mm Sub-Spindle (Counter Spindle) - Spindle speed: 6000 rpm - Maximum bar diameter: 53 mm - C-axis indexing accuracy: 0.001° - Travel: 520 mm Turret with Driven Tools - Tool interface: Okuma interface - Number of stations: 12-position lower turret, all driven stations - Maximum speed: 4500 rpm, Milling motor power: 4.5 kW Electrical System - Operating voltage: 400V 3-phase, fuse protection 151A - Connected load: 22.5 kVA Dimensions - Machine dimensions (L×W×H): 3200 × 2200 × 1900 mm - Weight: 5500 kg Main Features and Capabilities: - Horizontal design for optimal chip evacuation - Parts catcher and custom-made parts conveyor strip - Additional emulsion tank with 10 bar pressure for cutting tool cooling - CNC control: OSP-P300L-R - Chip conveyor - Fire protection system - Tool measurement system (Q SETTER) - Broken tool detection: Load force auto learning analyzer, controlled by OSP-P300L-R - Part detection at sub spindle with low-pressure compressed air gauges Ksdpfxsxxiiij Aafodp - Spindle cooling system - Documentation: available electronically and as manual Option: Bar feeder: TopAutomazione FU352SX - Bar feeder dimensions (L×W×H): 3500 × 800 × 1200 mm - Weight: 1500 kg Machine status: Machine operational only with main spindle – sub spindle requires repair.

Condition: repair required (used), Year of construction: 2015, functionality: not functional, machine/vehicle number: MW137, Technical characteristics: Work Area - Maximum turning diameter: 300 mm - Maximum workpiece length: 276 mm - X-axis travel: 250 mm / Rapid traverse in X: 24 m/min - Z-axis travel: 460 mm / Rapid traverse in Z: 24 m/min - W-axis travel: 520 mm / Rapid traverse in Z: 24 m/min Main Spindle - Spindle nose: A2-8 - Maximum speed: Left 3,000 rpm - Continuous power (100% duty cycle): Left - 15 kW / Right - 7.5 kW - Maximum swing over bed: 520 mm - C-axis indexing accuracy: 0.001° - Bar capacity: Left spindle - 80 mm / Right spindle - 53 mm Counter-Spindle - Spindle speed: 6,000 rpm - Maximum bar diameter: 53 mm - C-axis indexing accuracy: 0.001° - Travel: 520 mm Tool Turret with Driven Tools - Tool interface: Okuma interface - Number of positions: 12 lower turret stations, all driven - Maximum speed: 4,500 rpm; Milling spindle power: 4.5 kW Electrical Equipment - Operating voltage: 400V (3-phase), fuse protection: 151A - Connected load: 22.5 kVA Dimensions - Machine dimensions (L×W×H): 3,200 × 2,200 × 1,900 mm; Weight: 5,500 kg Main Features and Capabilities: - Horizontal design: Optimal chip evacuation, parts catcher + custom-made conveyor belt - Additional emulsion tank with 10 bar pressure for cutting tool cooling - CNC control: OSP-P300L-R - Swarf (chip) extraction conveyor - Fire suppression system - Tool measuring system (Q SETTER) - Broken tool detection: Load monitoring with auto-learning analyzer via OSP-P300L-R - Workpiece detection on counter-spindle: Low-pressure compressed air gauges - Spindle cooling system - Documentation: Electronic and print manual available Optional: - Bar feeder: FMB Model: Turbo 10-72XT/3200/A - Bar feeder dimensions (L×W×H): 3,500 × 800 × 1,200 mm; Weight: 1,500 kg Ksdpfxexxh Udo Aafedp Machine status: NOT OPERATIONAL - X-axis encoder: faulty

Condition: used, Year of construction: 1997, functionality: fully functional, machine/vehicle number: W301002, Technical characteristics: Work Area # Maximum turning diameter: 270 mm # Maximum machining diameter: 215 mm # Maximum workpiece length: 265 mm # Distance between spindle noses: 1080 mm # X1/X2-axis travel: 195 mm / Rapid traverse in X: 12 m/min # Z1/Z2-axis travel: 265/780 mm / Rapid traverse in Z: 24 m/min # B-axis travel (right spindle): 850 mm / Rapid traverse in Z: 24 m/min Spindles # Spindle as per DIN 55026: Size A2-6 # Maximum speed: Left & Right 50–5000 rpm # Power at 100% duty cycle: Left 11 kW / Right 11 kW # Main spindle special feature: Optional dual command clamping cycle for 2-stage chuck clamping # Bar capacity: Left spindle 51 mm / Right spindle 51 mm Two Tool Turrets # Tool interface: BMT55 # Number of stations: 12-position disc turret Electrical Equipment # Operating voltage: 200/220VAC +10%/–15%, single-phase, 50/60 Hz # Connected load: 54 kVA (connection 61 VA) Dimensions # Machine dimensions (L×W×H): 3645 × 1875 × 1970 mm # Weight: 10,800 kg Main Features and Capabilities: # Horizontal construction: Optimal chip evacuation and easy part handling Kedpfxjxw Uh Ij Aafedp # CNC control: Fanuc 6i-TT # Chip conveyor # Automation interface for gantry loader available # Main spindle fitted with Autoblock Chuck 265 TXS # Each turret equipped with 2 external tool holders # Documentation: Electronic not available / Hardcopy available Machine status: RUNNING/IN OPERATION

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 15KX239200001, Technical specifications: Work Area - Maximum turning diameter: 210 mm - Maximum machining diameter: 200 mm - Maximum workpiece length: 220 mm - X1/X2 axis travel: 220 mm / Rapid traverse in X: 24 m/min - Z1/Z2 axis travel: 220/770 mm / Rapid traverse in Z: 36 m/min - Y1/Y2 axis travel: +/-40 mm / Rapid traverse in Y: 12 m/min Automation: - Axis strokes: X - 210 mm; Y - 680 mm; Z - Left 2080 mm / Right 3360 mm; α 270˚ - Maximum speeds (m/min): X - 35; Y - 120; Z - 160; α 270˚/1.5 sec Kdsdpfx Aaoxwuhuofjp - Load/unload gripper specifications (pneumatically powered): Outer diameter up to Ø170 mm; jaw stroke 30 mm; gripping force: external 128 kgf / internal 138 kgf Main Spindle: - Spindle nose: A8 - Maximum speed: Left 5000 rpm / Right 5000 rpm - Power at 100% duty cycle: Left - 15 kW / Right - 7.5 kW - Bar capacity: left spindle - 65 mm / right spindle - not available Tool Turret with Driven Tools: - Tool interface: BMT55 - Number of positions: 15 upper / 12 lower station turret, all driven positions - Maximum speed: 4500 rpm; Milling motor power: 4.5 kW Electrical Equipment: - Operating voltage: 200V, 3-phase, 151A fuse - Connected load: 55 kVA Dimensions: - Machine dimensions (L×W×H): 3200 × 2200 × 3500 mm - Weight: 10,500 kg Main Features and Capabilities: - Horizontal design: Optimal chip removal, gantry loading/unloading from conveyors - Automation includes: Gantry robot + 2 loading/unloading conveyors - CNC control: Fanuc FS31i Model A Series - Chip removal conveyor - Coolant filtration 40 bar max: Filber S.L. FTH5/10, 200 l/min - In-process control: Marposs T25 - Broken tool detection system: Peek tool menu Murata/Fanuc feature enabled - Part detection through spindle: Low pressure compressed air sensors - Bar feeder interface max Ø65 mm - Documentation: Electronic and hard copy available Machine condition: OPERATIONAL

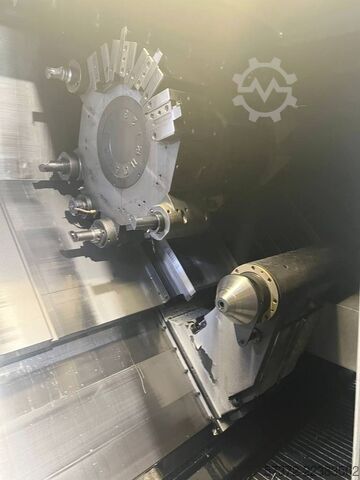

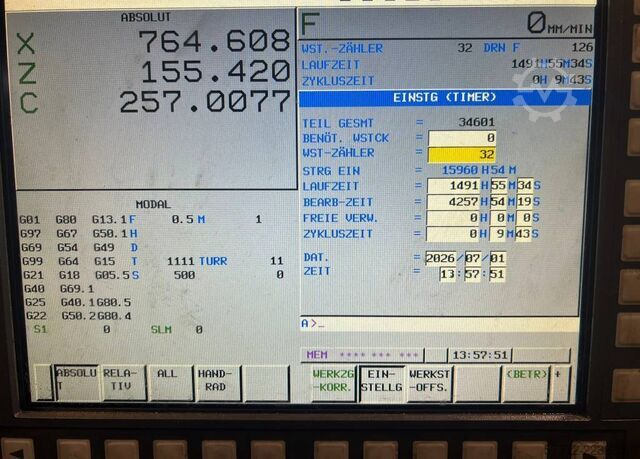

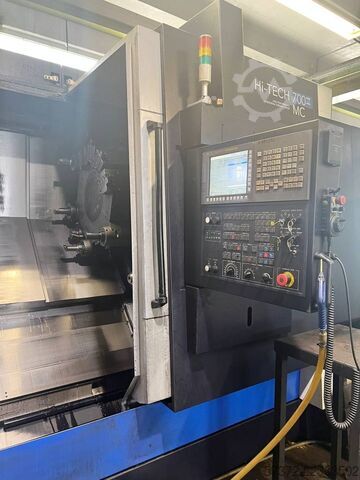

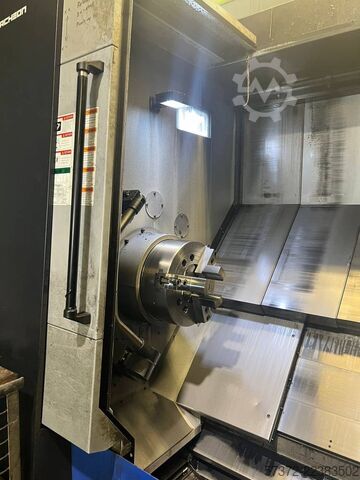

Condition: ready for operation (used), A Hwacheon CNC lathe is offered. Max. turning diameter: 680mm, swing over bed: 900mm, max. turning length: 1986mm, chuck diameter: 380mm, max. bar capacity: 116mm, max. spindle speed: 1800rpm, spindle power: 37kW/30kW, max. spindle torque: approx. 3071Nm/2493Nm, tool turret: 12 stations, tool interface: BMT-75, X/Z-axis travel: 360mm/2050mm, X/Z-axis rapid traverse: 18m/min, coolant tank capacity: 300l, control: Fanuc 0i-TF. Equipment: C-axis, driven tools, automatic in-process tool measurement, programmable tailstock and programmable quill, C-axis spindle clamp, chucking pressure monitoring, centralized lubrication and hinge-belt chip conveyor with chip container. Control ON: approx. 15961h, machining time: approx. 4258h, total part count: 34601. Weight: approx. 15000kg. Documentation, spare parts list and electrical diagram available. Inspection possible by appointment. Kedpfx Aajznc Rrofjdp

Condition: new, Year of construction: 2023,

Year of construction: 2007, condition: good (used), CNC - lathe machine Machine type: Mori Seiki NZ-S 1500 / 1000 Control: Fanuc MSC-701 Year: 2007 SPECIFICATIONS Max. turning length: 1.055 mm Turningdiameter: 120 mm Max. swing over bed: 285 mm Rapid motion: (X/Z): 20 m/min Main Spindle Max. revolution: 3.500 rpm Spindle power: 7,5 / 5,5 kW Bar capacity: 43 mm Spindle nose: A2-6 Amount of turrets: 2 Tool capacity: 6 + 6 Tool: Capto Tailstock Quill diameter: 85 mm Quill: MK 4 quill range: 70 mm Tailstock cross travel: 520 mm Steady rest: hydraulisch Steady rest: SMW SLU-1-Z Equipment Chip conveyor Cooling pumps Kdodpfszinn Eox Aafop Tool setter

Condition: good (used), Year of construction: 2008, Vertical CNC-Lathe Machine type: Gildemeister CTV 400 V3 Control: Sinumerik 840D powerline (XP) Year: 2008 SPECIFICATIONS X-Axis: 700 mm Z-Axis: 340 mm C-Axis Max. revolution: 3.500 rpm Spindle power: 47 kW Torque: 1.100 Nm Direktantrieb Amount of turrets: 1 Tool capacity: 12 Driven Tools: 12 Tool: VDI 50 Kedjzing Ujpfx Aafsdp Amount of paletts: 15 Accessories

Condition: good (used), Year of construction: 2000, center width: 2,000 mm, Control system: SIEMENS 840 D (manual turning) Spindle module replaced in 2008. Swinging diameter over the bed: 630 mm Swinging diameter over the carriage: 370 mm Spindle bore: 105 mm Distance between centers: 2,000 mm The machine is supplied with a 250 mm manual chuck. Spindle speed range 1: 4 - 430 rpm Spindle speed range 2: 430 - 2500 rpm Kdsdpfx Aajy A I I Isfsp Power of the main motor: 18.5 kW S6-40%

Condition: good (used), Year of construction: 2006, Description: Ksdpjzlhvzsfx Aafjdp The machine is in good technical condition, and can be tested upon prior arrangement. Control system: Haas CNC. Maximum turning diameter: 406 mm / 16". Maximum turning length: 1,219 mm / 48". Distance between centers: 1,219 mm / 48". Swing over carriage/cross slide: approx. 282 mm / 11.1". X-axis travel: 203 mm / 8". Z-axis travel: 1,219 mm / 48". Spindle: A2-6. Spindle bore: 76.2 mm / 3.00". Spindle speed: 0–2,000 rpm. Spindle power: 12 HP / approx. 8.9 kW. Torque: approx. 203 Nm at 150 rpm. Chuck: typically 10" / 254 mm. Tailstock: manual, depending on configuration. Weight: approx. 2,087 kg. Machine dimensions: approx. 2,515 × 1,727 × 1,981 mm (operating dimensions). Electrical connection: 195–260 V, 3-phase / approx. 25 A or 1-phase 240 V / 40 A, depending on configuration.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, turning length: 320 mm, spindle speed (max.): 8,000 rpm, spindle speed (min.): 200 rpm, turning diameter: 32 mm, spindle bore: 39 mm, overall weight: 2,850 kg, rotational speed (max.): 8,000 rpm, rotational speed (min.): 8,000 rpm, type of input current: three-phase, bar passage: 39 mm, Space requirement: approx. 2.5 x 1.4 x 1.75 + FMB m CNC long-turning lathe: Citizen L32-1M8, year 2018, equipped with FMB turbo 3-36 bar feeder and a swarf conveyor with "0" operating hours. LFV function: not available ON/OFF: 5,465 hours (as of 2026.04.22) Kjdey Emnfopfx Aafjdp Operating hours: 32,110 hours (as of 2026.04.22)

Condition: used, Year of construction: 2021, turning length: 320 mm, spindle speed (max.): 8,000 rpm, spindle speed (min.): 200 rpm, turning diameter: 32 mm, spindle bore: 39 mm, overall weight: 2,900 kg, rotational speed (max.): 8,000 rpm, type of input current: three-phase, bar passage: 39 mm, power: 13.2 kW (17.95 HP), We are offering this used CITIZEN L32-1M10 automatic lathe, manufactured in 2021. Model: L32-1M10 Serial number: V36540 Production number: L32A/2251 Date of manufacture: 2021-11 Total load current: 36 A Rated power: 13.2 kVA Kdedpfsy Em Dysx Aafop Short-circuit breaking capacity: 2.5 kA Weight: 2,900 kg ON/OFF: 6,851 hours (as of 22.04.2026) Operating hours: 19,327 hours (as of 22.04.2026) If you have any questions or need further information, please send us a message or call us.

Condition: used, Year of construction: 2022, machine/vehicle number: 710370, travel distance X-axis: 180 mm, Machine data • Year of manufacture: 2022 • Serial number: 710370 Travel distances • X-axis: 180 mm • Z1-axis: 260 mm • Z2-axis: 292 mm Tool system Kdedpezgrw Ejfx Aafjp • Tool changer: 12-position • Tool holder: VDI 25 Additional units • Compressed air filter unit GÖRING DSL 02D-SF-2-MBL, nominal flow rate approx. 900 m³/h • Cooling unit HYDAC RFCS-AH-030, year of manufacture 2021, serial number 2300040370 • Hydraulic unit KNOLL TG 30-04/07533-1, year of manufacture 2022, serial number 1570792 • Hydraulic cooling unit BKW ET22V-134-B-DI, year of manufacture 2022, serial number 834179 • Chip conveyor KNOLL 320 S-1/225, year of manufacture 2022, serial number 2204044

Condition: ready for operation (used), Year of construction: 2022, operating hours: 1,335 h, functionality: fully functional, Vezérlés: OKUMA OSP P300LA-e 1335 H WORKING HOURS ONLY Ágy fölötti körbefordulási átmérő: D450 mm Kereszt szán fölötti körbefordulási átmérő: D350 mm Max. esztergálási átmérő: 230 mm Max. esztergálási hossz: 500 mm X-tengely út: 165 mm Z-tengely út: 470 mm Djc Tl Idsziqp Sevtokp Max. fordulatszám: 5000 ford/perc Hajtási teljesítmény: 15 / 11 kW (20 perc / folyamatos) Orsófurat: D62 mm Revolver: 12 állású Max. szerszámméret: 25x25 mm Szegnyereg hüvely: MK5 Tömeg: kb. 3800 kg Méretek (HxSzxM): 2600 x 1830 x 1700 mm Kedpszkwc Uefx Aafedp Tartozékok, felszereltség - Hűtőfolyadék berendezés - Forgácskihordó - 3 pofás tokmány D250 mm - Beépített szerszámmérő kar - Lábpedálok - Géplábak - Kézikönyvek ## Technical Specifications * Control: OKUMA OSP P300LA-e * Swing over bed: Ø450 mm * Swing over cross slide: Ø350 mm * Maximum turning diameter: Ø230 mm * Maximum turning length: 500 mm * X-axis travel: 165 mm * Z-axis travel: 470 mm * Maximum spindle speed: 5,000 rpm * Spindle drive power: 15 kW (20 min) / 11 kW (continuous) * Spindle bore: Ø62 mm * Turret: 12-station * Maximum tool size: 25 × 25 mm * Tailstock quill: MT5 * Machine weight: approx. 3,800 kg * Dimensions (L × W × H): 2,600 × 1,830 × 1,700 mm ## Accessories and Equipment * Coolant system * Chip conveyor * 3-jaw chuck, Ø250 mm * Built-in tool setter arm * Foot pedals * Machine leveling feet * Operating manuals ## Technische Daten * Steuerung: OKUMA OSP P300LA-e * Umlaufdurchmesser über Bett: Ø450 mm * Umlaufdurchmesser über Planschlitten: Ø350 mm * Maximaler Drehdurchmesser: Ø230 mm * Maximale Drehlänge: 500 mm * X-Achsen-Verfahrweg: 165 mm * Z-Achsen-Verfahrweg: 470 mm * Maximale Spindeldrehzahl: 5.000 U/min * Antriebsleistung der Spindel: 15 kW (20 Min.) / 11 kW (Dauerleistung) * Spindelbohrung: Ø62 mm * Revolver: 12-fach * Maximale Werkzeuggröße: 25 × 25 mm * Reitstockpinole: MK5 * Maschinengewicht: ca. 3.800 kg * Abmessungen (L × B × H): 2.600 × 1.830 × 1.700 mm ## Zubehör und Ausstattung * Kühlmittelanlage * Späneförderer * 3-Backen-Futter, Ø250 mm * Integrierter Werkzeugmesstaster * Fußpedale * Maschinenfüße * Bedienungsanleitungen

Condition: used, Year of construction: 2022, machine/vehicle number: 71.0363, CNC turning machine with a 12-position turret Travel / Working area • X-axis: 370 mm • Z-axis (without Y-axis): 260 mm Feeds • Speeds: continuously adjustable • Rapid traverse X: max. 45 m/min (370 mm) • Feed forces X: 3450 N • Rapid traverse Z: max. 45 m/min • Feed forces Z: 4600 N Main spindle • Spindle speed: spindle-dependent, up to max. 8000 rpm • Drive power: 12 kW S1 • Bar diameter: 26 mm Clamping device • Chuck: 80 - 160 mm • Short taper DIN 55026: Form A, size 4 Turret • Type: disc turret • Manufacturer: SAUTER • Number of tools: 12 • Tool holder: tool holder with cylindrical shank according to DIN 69880 VDI 25 • Drive power: 2 kW S1 up to 6000 rpm, up to 6 kW S3 40% duty cycle up to 6000 rpm • Max. tool length: from turret face to tool front edge 140 mm Technical data • Machine dimensions (width x depth x height): approx. 2309 x 1689 x 2014 mm Ksdpfxszggdys Aafjdp • Weight approx.: 4500 kg

Condition: used, Year of construction: 2003, Technical data: Swing diameter: 680 mm Distance between centers: 1000 mm Speed: 2800 rpm Chuck: ø300 mm Dimensions, approx.: 5560 x 2400 x 2130 mm Weight, approx.: 10,000 kg Equipment: - Control: Heidenhain CNC Pilot 4290 Kdodpfx Aaoyfnqgjfop - 12-position turret VDM 40 - C-axis

Condition: used, Year of construction: 2004, Technical data: Main spindle: Max. turning diameter: 33 mm Max. speed: 8000 1/min Drive power: 5.5 kW Drive power at 60% duty cycle: 7.5 kW Slide 1: Slide travel Z1: 320 mm Slide travel X1: 50 mm Slide travel Y1: 255 mm Rapid traverse speed: 30 m/min Ball screw diameter: 25 mm Tool holder slide 1: Number of tools stationary with tool shank 16 x 16: 5 pieces Slide 2: Slide travel X2: 165 mm Slide path Z2: 200 mm Rapid traverse speed: 30 m/min Ball screw diameter: 30 mm Kdedpfx Aotzyx Tsafjp Tool holder slide 2: Number of stations for turret with integrated spindle: 8 pieces Number of axially driven tools (integrated): 8 pieces Coolant tank, approx.: 400 l Coolant pump, max. output: 80 l/min Dimensions (LxWxH), approx.: 2460 x 1510 x 1750 mm Equipment: - CNC control Fanuc iT - Workpiece unloading system - IEMCA bar loading magazine - 5-pos. tool carrier plate for slide 1 - Electrical interface and software for bar loading magazine - Collet chuck holder for main and pick-up spindle - 2 Double drill holder for rear machining support with cylinder - Pick-up spindle workpiece pusher

Condition: used, SMW Steady Rest Type SLU-X1-ms including mounting bracket for CNC lathe DMG Mori CTX 500 Condition: Used Features: Housing: fully sealed Safety: integrated safety valve Stroke control: prepared for end position monitoring Lubrication: connection for central lubrication (oil or grease) Technical Data Centering range (without chip guard): Ø 4 - 64 mm Centering range (with 3-piece chip guard): Ø 11 - 64 mm Operating pressure (min./max.): 8 / 35 bar Max. clamping force per roller: approx. 400 daN Centering accuracy: 0.02 mm (across the entire range) Repeatability: 0.005 mm Kdjdpfoyx U H Aex Aafop Weight approx. 12 kg

Condition: new, functionality: fully functional, Type: TFT (1) Part No.: 222549 (2) Part No.: 10892558 Condition: new Traub TFT monitor screen TX8D, TX8F, TX8H with frame, 1:1 replacement for the original connections, 12" Plug and Play solution Mitsubishi control, Traub TFT monitor screen, replacement display Kdsdpfjzmh Uyex Aafsp Traub ID: 222549 10892558 e.g. for Traub CNC lathe series TNA: TNA700, TNA500, TNA480, TNA400, TNA300 TNC: TNC65, TNC65/42, TNC65 DG, TNC65 DGY, TNC42 DG, TNC42 DGY TND: TND400, TND360, TND300, TND200 TNS: TNS65, TNS60, TNS30, TNS26 DG, TNS26 DGY

Condition: good (used), Year of construction: 2012,

Condition: excellent (used), Year of construction: 2007, Schutte SG18 with automatic bar loader IEMCA PRA. Includes numerous books, cams, etc. It is in excellent condition. We never use it in our facility. It was purchased for a project, but the volumes are too low for this excellent machine. Kdjdpfx Aajzal Swofsp
