Used Haas Tm-1 for sale (79,140)

Condition: used, Haas TM1, Year 02/2009, 4000RPM Spindle. BT40, Njdpozvrhijfx Am Ujwk

Condition: good (used), Year of construction: 2007, functionality: fully functional, Haas TM 1 HE vertical milling machine, year of manufacture 2007, Nwsdpfezh Unpex Am Ujk Haas CNC control, travel in X/Y/Z 762/305/534 mm, table size 1213 x 267 mm, spindle speed up to 4,000 rpm, spindle taper BT 40.

Year of construction: 2006, condition: ready for operation (used), Number of axes: 3, table dimensions: 1210x267mm, max. spindle speed: 4000rpm, weight: approx. 2t. An on-site inspection is possible. Nwodpfx Amey Uyf Ae Uok

Condition: refurbished (used), Year of construction: 2005, operating hours: 14,923 h, functionality: fully functional, travel distance X-axis: 762 mm, travel distance Y-axis: 305 mm, travel distance Z-axis: 534 mm, feed length X-axis: 762 mm, feed length Y-axis: 305 mm, feed length Z-axis: 534 mm, torque: 45 Nm, controller manufacturer: Haas, total height: 2,700 mm, total length: 2,200 mm, total width: 1,750 mm, table width: 267 mm, table length: 1,213 mm, rotational speed (max.): 6,000 rpm, overall weight: 1,315 kg, spindle speed (max.): 6,000 rpm, spindle motor power: 5,600 W, spindle nose: CT40/ISO/BT40, number of spindles: 1, input voltage: 400 V, type of input current: three-phase, Three-axis vertical CNC milling machine Haas TM-1HE, numerically controlled, with a 6000 rpm spindle. The machine is being sold by Haas service technicians with 10 years of experience. The machining center has undergone a complete, comprehensive inspection; it has been refurbished and is ready for operation. The mill is equipped with a range of additional options: - Higher-speed spindle up to 6000 rpm - Rigid tapping - Rotation & scaling - M19 spindle orientation - Macro programming - HSM (High Speed Machining) - IPS (Intuitive Programming System) - Possibility to activate 4th axis after adding servo amplifier and wiring; can be sold separately (fourth axis option) - Air coolant system Machine Information: - Machine type: Three-axis vertical milling machine Haas TM-1 - Serial number: 41246 - Manufacturing date: 04/05 - Spindle speed: 6000 rpm - X-axis travel: 762 mm - Y-axis travel: 305 mm - Z-axis travel: 534 mm - Minimum spindle-to-table distance: 102 mm - Maximum spindle-to-table distance: 636 mm - Table size: 1213 × 267 mm - T-slots: 3 slots, 16 mm wide Nwodsyanlaopfx Am Uek - Overall dimensions (W × D × H): 220 × 175 × 270 cm - Weight: 1315 kg - Spindle motor power: 5.6 kW - Maximum torque: 45 Nm - Spindle taper: CT40 / ISO / BT40 - Voltage: 366/425 V - Phase: 3 - Full load current: 13 A - Frequency: 50/60 Hz - Largest load current: 16 A The machine has undergone a full, comprehensive inspection. All of the following components have been checked and verified: - Ballscrews - Linear guides and ways - Lubrication system - Spindle assembly - Spindle motor - Encoder - Vector drive - Servo amplifiers - I/O board - Processor board - All electrical cabinet components - Axis drives - Tool change system - CNC controller - Additional subsystems and components The machine is fully refurbished and ready for immediate operation.

Condition: used, X Axis 30.0 in 762 mm Y Axis 16.0 in 406 mm Z Axis 16.0 in 406 mm Nwedpfxsiypzds Am Usk Read for inspect Ready for delivery

Condition: excellent (used), Year of construction: 2003, functionality: fully functional, Haas TM1 4 K SPINDLE TRAVELS Nwedpeyfn Ilefx Am Usk X 762 MM Y 305 MM Z 406MM This machine has the option to run on 240v single phase 2003 machine in good condition Rigid tapping Here at Omega Design we have using Haas machines for 15 years and built our business doing so, we currently run 15 Haas machines. We find the TM1 to be a very capable machine with market leading reliability. The machine uses Industry standard BT40 tooling. The Haas control is simple to use and incorporates onscreen toolpath verification, Rigid tapping is also a featured.Circular interpolation,a standard feature,makes lathes almost obsolete for cylindrical profiles. The control interfaces well with CAD-CAM,we will help with setup if required. This machine would make an ideal entry level machine but at the same time is great for quantity production of precision cnc machined parts The machine has been checked by qualified engineers and is ready for work. We use the machine for occasional toolmaking so we can demonstrate if required. The machine is 2.7m high with the head up and 2.2 with it down.

Condition: used, Year of construction: 2010, machine/vehicle number: IntNr231656, HAAS DT-1 CNC machining center – manufactured in 2010 For sale is a HAAS DT-1 CNC machining center, manufactured in 2010, equipped with a 3+2-axis system, a Renishaw measuring probe, and a KUKA KR 5 sixx R850 WP. Technical data Manufacturer: Haas Model: DT-1 Year of manufacture: 2010 Machining: 3+2-axis Cycle time: 4,962 h Feed time: 3,079 h CNC control: Haas Chip conveyor: Integrated screw conveyor system Measuring probe: Renishaw Internal cooling (IKZ): present, currently defective Nsdpfx Amezwk Iwo Ujwk Automation – KUKA KR 5 sixx R850 WP, control panel currently defective Dimensions of the robot cell Height: approx. 2,100 mm Width: approx. 1,150 mm Depth: approx. 800 mm Dimensions including infeed and outfeed Height: approx. 2,100 mm Width: approx. 1,150 mm Depth: approx. 2,400 mm The machine can be inspected on-site by appointment. Subject to changes and errors in the technical data and information, as well as prior sale!

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, controller manufacturer: Haas, overall weight: 3,250 kg, spindle speed (max.): 7,500 rpm, number of spindles: 1, number of slots in tool magazine: 20, Equipment: documentation/manual, 3-axis machining center Manufacturer: Haas Type: VF-1 / VCE-500 Year of manufacture: 09-1998 Control: Haas (retrofit) Operating hours: unknown S/N: 16XXX Technical data: ----- - Table size: 660 x 356 mm - Travel ranges X-Y-Z: 508 x 406 x 508 mm - Spindle: max. 7,500 rpm - Spindle power: 11 kW - Tool holder: SK40 - Tool magazine with 20 stations - Coolant system - Programmable coolant nozzle - Chip conveyor - Footprint L x W x H: 2.60 x 2.30 x 2.50 m - Weight: approx. 3.2 t Accessories: Nsdpfxszu Stvj Am Uewk ----- - Documentation - SK-40 holder set Special features: ----- - Retrofitted with newer Haas control! - In excellent condition.

Condition: ready for operation (used), Year of construction: 2021, travel distance X-axis: 1,016 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 406 mm, controller manufacturer: HAAS, table load: 159 kg, spindle speed (max.): 4,000 rpm, spindle motor power: 5,600 W, This HAAS TM 2 Vertical Machining center was manufactured in the year 2021. It is equipped with a HAAS control unit. The machine has a spindle speed of 4000 rpm. Nodjzvvu Tjpfx Am Uowk Technical Specification Taper Size BT 40

Condition: used, Year of construction: 2020, workpiece weight (max.): 5 kg, table width: 267 mm, table length: 1,466 mm, table load: 159 kg, tool diameter: 89 mm, Used Machining Center Brand: Haas Model: TM-2P Year: 08/2020 Serial Number: 1170479 Operating hours: Spindle on time: 12,000h Specifications: - Travels (X, Y, Z): 1016mm, 406mm, 406mm - Spindle to table distance (Min. - Max.): 102 - 508mm - Spindle speed: 6000 rpm Nodpfx Amsxqc H Sj Uowk - Spindle power: 5.6 kW - Taper: BT 40 - Tool changer carousel: 10 positions - Maximum tool diameter: 89mm (adjacent) - Maximum tool weight: 5.4kg - Coolant pump kit - HAAS CNC - Table dimensions: 1466x267mm - Maximum table load: 159kg - Maximum feed rates on all three axes: 10.2m/min.

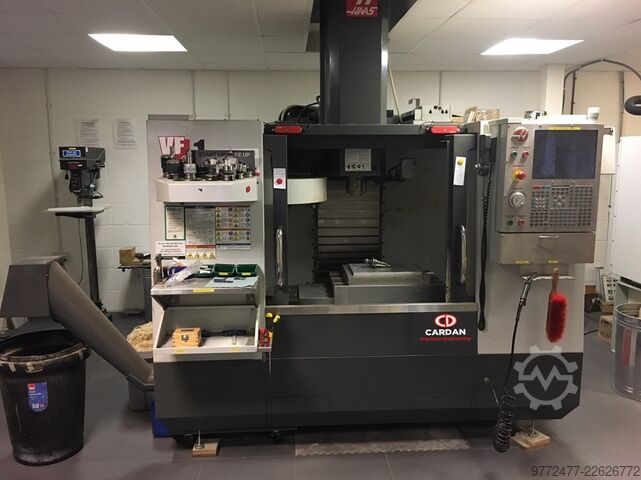

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, spindle speed (max.): 7,500 rpm, number of slots in tool magazine: 20, Equipment: chip conveyor, Haas VF1 Vertical Machining Centre,2011, table 660 x 356mm, trav 508 x 406 x 508mm, bt40, 20atc, 7,500rpm, rigid tapping , Liquid cooled, Chip conveyor Nodpfxjzwurye Am Uswk

Condition: like new (used), Year of construction: 2023, Haas TM2-P Year: 2023 X-1016, Y-406, Z-406 RPM: 6,000 BT 40 WIPS HSM 4th axis connection Very few operating hours Njdpozua Hwefx Am Uowk Like new!

Condition: good (used), Franz Haas Wafer Stick Baking Oven, Model EWB 1/1, completely refurbished. The machine is constructed from ASIS 304 stainless steel (with the main frame made of carbon steel). The oven is equipped with a rotating ring, which has adjustable speed control to achieve the desired baking characteristics for the wafer sticks. The ring has been cleaned and checked (re-aligned), and the supports/bearings are brand new. Fans have been replaced with new units. The exhaust outlet and flange have been replaced for quick installation. The machine comes with two extruders with bushings for ribbon forming and tube diameter shaping. Equipped with a cutting knife featuring a pneumatic actuator and photoelectric sensor for precise cutting (tube length adjustment is possible). The oven includes a stainless steel batter tank mounted on a frame with a trolley. Fitted with pumps that feed batter from the tank onto the ring surface. Comes with a new control panel and a new gas pressure regulator. Speeds of the ring and pumps are adjustable via frequency inverters. Dimensions: length 3200 mm, width 1400 mm, height 1700 mm. The machine is powered by natural gas, high-methane type, symbol E (previously GZ 50). Njdpfsywgaxjx Am Ujwk Electrical requirements: 3x400V / 16A, consumption approx. 2.5/3 kWh. The machine has undergone a complete overhaul. All thermal elements have been replaced with new, environmentally-friendly components—resulting in lower gas consumption and enhanced efficiency. Output: approx. 120-150 kg per 8 hours.

Condition: ready for operation (used), Year of construction: 2013, operating hours: 989 h, travel distance X-axis: 1,016 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 406 mm, controller manufacturer: HAAS, table width: 267 mm, table length: 1,467 mm, table load: 159 kg, overall weight: 2,295 kg, spindle speed (max.): 6,000 rpm, spindle motor power: 5,600 W, number of slots in tool magazine: 10, number of axes: 3, This 3-axis HAAS HAAS TM-2P was manufactured in 2013. It features an X-axis travel of 1016 mm, Y-axis travel of 406 mm, and Z-axis travel of 406 mm. The machine includes a table size of 1467 x 267 mm and a maximum table load of 159 kg. If you are looking to get high-quality machining capabilities, consider the HAAS HAAS TM-2P vertical machining centre we have for sale. Contact us for further details. • Max tool diameter: 89 mm • Positioning accuracy: 0.01 mm • Repeatability: 0.01 mm • Air pressure: 6.9 bar • Air consumption: 113 l/min • Power supply: 3 × 400 V, 50 Hz Technical Specification Taper Size ISO 40 Nedpszcnzmjfx Am Ujwk

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 3098034, travel distance X-axis: 203 mm, travel distance Z-axis: 762 mm, spindle speed (max.): 1,800 rpm, bed width: 445 mm, center width: 900 mm, TECHNICAL DETAILS Swing diameter over bed: 900 mm Centre height: 450 mm Centre distance: 900 mm Nwodpsy Rxxmsfx Am Usk Bed width: 445 mm X-axis travel: 203 mm Z-axis travel: 762 mm Spindle bore: 60 mm Max. spindle speed: 1,800 rpm MACHINE DETAILS Control: CNC Dimensions & Weight Dimensions (L x W x H): 2,400 x 1,600 x 1,950 mm Weight: 2,000 kg Transport packages: 2 pcs EQUIPMENT Documentation CE marking

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, travel distance X-axis: 3,048 mm, travel distance Y-axis: 813 mm, travel distance Z-axis: 762 mm, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Travel ranges Travel range X-axis: 3,048 mm Travel range Y-axis: 813 mm Travel range Z-axis: 762 mm Main spindle Spindle speed: 6,000 rpm Njdpfoztq Txox Am Uewk EQUIPMENT Coolant system

Condition: excellent (used), Year of construction: 2016, operating hours: 16,000 h, functionality: fully functional, nominal power (apparent): 11 kVA, controller manufacturer: haas, spindle speed (min.): 10 rpm, spindle speed (max.): 10,000 rpm, spindle motor power: 11 W, number of spindles: 1, number of slots in tool magazine: 21, Equipment: chip conveyor, Here is the complete reference sheet combining the Haas DT-1 machine specifications, probing package, and 5-axis setup in metric units. 2016. Located in Israel Transport cost to Erope 8000 Euro under power Machine Travels & Work Envelope X-Axis Travel: 508 mm Y-Axis Travel: 406 mm Nedszwxz Eopfx Am Uswk Z-Axis Travel: 394 mm Spindle Nose to Table Top: 152 mm – 546 mm Worktable Table Size (L x W): 660 mm x 381 mm Max Weight on Table: 113.4 kg T-Slot Width: 15.9 mm – 16.0 mm T-Slot Center Distance: 125 mm (3 standard slots) Spindle Specs Spindle Taper: BT30 Max Speed: 10,000 RPM ATC 20+1 5-Axis Setup (TRT100 Dual-Axis Rotary Table) Rotary Unit: TRT100 dual-axis tilting trunnion (mounted on the table). Platter Diameter: 100 mm Max Part Swing: 213 mm Weight Capacity on Platter: 6.8 kg (3+2 positioning) / 2.3 kg (simultaneous 5-axis) Travel: A-axis (Tilt) ±120°, C-axis (Rotation) 360° continuous Indexing Speeds: 1,000 deg/sec on both axes Control Requirements: 4th & 5th-axis drive options installed on the machine control. Key Software Features: Supports 3+2 indexing and continuous 5-axis simultaneous machining. DWO/TCPC (Dynamic Work Offsets / Tool Center Point Control): Manages work offsets automatically as part angles tilt/rotate, eliminating the need to re-post programs when mounting locations change. Working Clearance: The TRT100 unit consumes ~230 mm of vertical space, leaving a tight Z-axis machining clearance window (~160 mm) inside the machine's 394 mm total Z-travel. Probing & Tool Measurement (WIPS-R / Renishaw) Hardware Package: Workpiece Spindle Probe: Renishaw OMP40-2 (BT30 optical touch probe) Tool Setter Probe: Renishaw OTS (Table-mounted optical tool setter) Receiver: Renishaw OMI-2T (Modulated optical transmission) Tool Setter Functions: Automatic tool length offset setting, rotating tool diameter offset calibration, and in-cycle tool breakage detection. Workpiece Probe Functions: Work Coordinate System (G54–G59) setting, feature inspection (bores/bosses/surfaces), and part alignment skew angle calculation.

Condition: new, For sale: a new, unused submersible pump for coolants, brand Speck, model TM-401-110.0005. The pump is designed for cooling systems, machine tools, and other industrial applications. Technical data: Manufacturer: Speck Model: TM-401-110.0005 ID number: 34206 Serial number: 1002283768 Year of manufacture: 10/2021 Power: 0.5 kW Maximum flow rate: 40 l/min Maximum head: 38 m Power supply: three-phase Frequency: 50 Hz Voltage 380 V: 1.35 A, 2820 rpm, cos φ 0.73 Voltage 415 V: 1.55 A, 2850 rpm, cos φ 0.61 Nedpfx Ajzvh Aiom Uewk Protection rating: IP54 Insulation class: F (155)

Condition: ready for operation (used), Year of construction: 2022, spindle speed (max.): 4,000 rpm, travel distance X-axis: 200 mm, travel distance Y-axis: 102 mm, travel distance Z-axis: 406 mm, spindle motor power: 14,900 W, number of axes: 4, This 4-axis HAAS ST-15Y was manufactured in 2022. It features a maximum spindle speed of 4000 rpm and a spindle power of 14.9 kW. The machine has a workpiece diameter over the bed of 419 mm and a maximum cutting length of 406 mm. If you are looking to get high-quality turning capabilities, consider the HAAS ST-15Y horizontal turning machine we have for sale. Contact us for further details. • Capacities • Chuck size: 210 mm • Max part swing: 419 mm Nwjdpfxjzlr I Ie Am Ujk • Max cutting diameter (BOT or VDI turret): 305 mm • Max cutting length: 406 mm • Bar capacity: 64 mm • Feedrates (rapid) • X-axis: 12.0 m/min • Y-axis: 12.0 m/min • Z-axis: 30.5 m/min • Axis motors (max thrust) • X-axis: 10,676 N • Y-axis: 10,231 N • Z-axis: 16,458 N • Spindle • Spindle nose: A2-6 • Spindle bore: 88.9 mm • Max spindle torque: 203 Nm at 500 rpm • Main spindle C-axis • C-axis power: 3.7 kW • Max speed: 60 rpm • Positioning accuracy: ±0.02° • Brake clamp force: 4448 N • Brake diameter: 366 mm • Brake holding torque: 190 Nm • Control: Interpolated motion and positioning • Turret and tooling • Number of turrets: 1 • Number of tool slots: 12 • Tool taper: VDI40 • Rotating tools: Yes • Live tooling speed: 4000 rpm • Turret configuration: 12-position VDI turret • Tailstock • Type: Hydraulic tailstock • Quill travel: 95 mm • Manual body positioning: 508 mm • Thrust range: 623–5027 N • Coolant and air • Coolant capacity: 114 L • Air required: 113 L/min at 6.9 bar • Electrical • Input AC voltage (3-phase high): 440 VAC • Full load amps (3-phase high): 20 A • Full load amps (3-phase low): 40 A • Configuration notes • C-axis: Yes • Y-axis: Yes • Driven tools: Yes • Counter spindle: No • Power-on hours: 4,500 h Technical Specification Counter Spindle No Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2019, This 4-axis HAAS ST-15Y was manufactured in 2019 and features Y and C axes with driven tools, D210 hydraulic chuck, 65 mm spindle bore, hydraulic programmable tailstock, 12-station VDI-40 turret, and chip conveyor. If you are looking to get high quality turning capabilities consider the HAAS ST-15Y machine we have for sale. Reach out for more information. Additional equipment • Driven tools Machine Benefits Technical Machine Benefits • D210 hydraulic chuck. • D65mm main spindle bore. • Hydraulic programmable tailstock. Njdjzvbppjpfx Am Uewk • 12 pcs turret head. Vdi-40 • X, Z, Y, C-axis. • C-axis with hydraulic brake.

Condition: used, Year of construction: 2023, operating hours: 120 h, Almost like new, a Haas TRT210 two-axis rotary table with only approximately 120 operating hours. The table was used exclusively on a Haas VF-4 (see separate listing) and is in flawless optical and technical condition. The TRT210 is Haas’s compact 5-axis solution for medium-sized VMCs, and it takes up minimal space by being mounted at one end of the machine table – the rest of the mounting surface remains free for vises or other fixtures. Plug-and-play connection to any Haas milling machine with 4/5-axis drives and the corresponding NGC control software. In addition to the rotary table itself, the scope of supply includes the matching toe clamp kit for direct mounting on the machine table, as well as a Renishaw riser block for side mounting of the radio receiver (OMI/OMP) – this ensures reliable signal transmission to the measuring probe even over the full A-axis swivel range. Inspection possible by appointment. Shipping can be arranged. Technical data: - Table diameter: 230 mm (9.10") - Max. pitch circle: 368 mm (14.5") - Max. workpiece weight on table: up to approx. 90 kg - Hole pattern: 2× 6-hole pattern A-axis (swiveling): - Swivel range: ±120° - Max. speed: 80°/s - Max. torque: approx. 407 Nm (300 ft-lb) - Braking torque at 6.9 bar: approx. 540 Nm - Accuracy: ±25 arc-sec - Repeatability: 10 arc-sec - Resolution: 0.001° B-axis (rotating): - Rotation range: 360°/continuous - Max. speed: 100°/s - Max. torque: approx. 285 Nm (210 ft-lb) - Braking torque at 6.9 bar: approx. 270 Nm - Maximum runout: 0.013 mm (0.0005") - Accuracy: ±15 arc-sec - Repeatability: 10 arc-sec - Resolution: 0.001° General: - Connection voltage: 115 VAC, approx. 15 A - Compressed air max.: approx. 10 bar (150 psi) - Weight: approx. 220 kg Scope of supply: - Haas TRT210 rotary table complete - Original Haas servo connection cable for A and B axes - Toe clamp kit (for mounting on the machine table) - Renishaw riser block for side receiver mounting - Original documentation Nedpey Tp Hgjfx Am Ujwk

Condition: ready for operation (used), functionality: fully functional, HAAS UHS / Manual Hand Lever Surface Grinder - Grinding length approx. 350mm - Grinding width approx. 180mm - Grinding height approx. 250mm - Grinding movement controlled manually via lever - Swiveling range (horizontal) 360 degrees - Tilting range (vertical) +15 to -20 degrees - General angular adjustment - Spindle speeds 2500 / 5600 RPM Nwsdpfxjzu Nphs Am Ujk - Drive power 1.1 kW Dimensions: L x W x H 1.2 x 1 x 1.7 meters / Weight 750 kg Subject to errors and omissions.

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, operating hours: 4,000 h, Equipment: chip conveyor, HAAS ST-10 Nsdpjyrc Dzofx Am Ujwk We are selling some machines as we are acquiring new ones. The machine is in excellent condition and currently in use. Spindle speed range: 6000 rpm Number of tool slots: 12 Chip conveyor

Condition: excellent (used), functionality: fully functional, rotary table diameter: 310 mm, The TR310 is a dual-axis tilting rotary table that provides maximum rigidity and accurate performance for 3+2 and full 5-axis machining of medium to large parts. Scale feedback on the A (tilting) axis improves positioning accuracy and repeatability. Add 4- and 5-axis capabilities to your machine. Easy plug-and-play connection to Haas machines. Industry-leading performance and capabilities. Heavy-duty design. Njdjztakaepfx Am Ujwk

Condition: ready for operation (used), A small universal tool grinding machine Haas Trossingen is available. Grinding spindle diameter: 60mm-90mm, grinding wheel diameter: 175mm, taper: 15mm. The machine has been overhauled. An on-site inspection is possible. Nodpfeyyb Txsx Am Uowk
