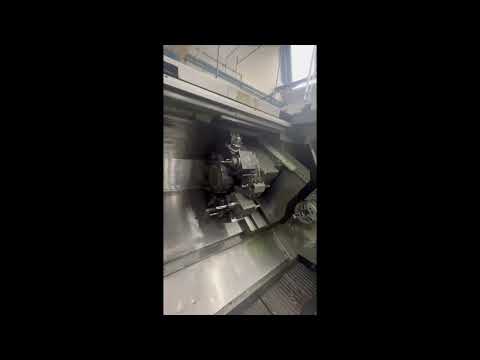

CNC Lathe

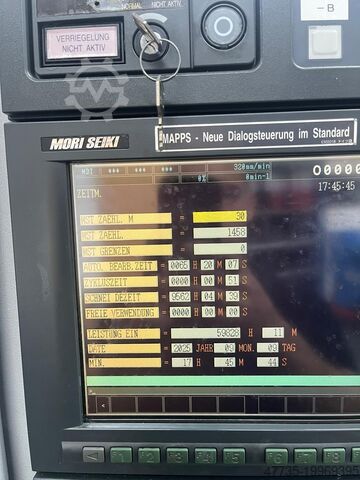

MORI SEIKI SL 253 BSMC / 1000

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,700 mm, travel distance Z-axis: 1,500 mm, Heidenhain 530 Diagonal milling head with 2.5° x 2.5° indexing Spindle speed up to 6,000 rpm Tool holder SK50 Nedpfxjx I A Hvj Ag Noku Internal cooling with 36 bar Longitudinal chip conveyor + cross conveyor

Condition: used, Year of construction: 2008, operating hours: 5,900 h, travel distance X-axis: 350 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 220 mm, Wire Diameter 0,1-0,3 mm Automatik Threading Working Hours 5900 Std Verfahrwege X 350 mm Y 220 mm Z 220 mm Nedswzyr Ajpfx Ag Nsku U 350 mm V 220 mm Year 2008

Condition: used, thread dia. M3 - M12 mm 400 U/min. 25 Nm air pressure 6 - 8 bar Njdpfefg U Smex Ag Nsku working area Radius 1000 mm weight of the machine ca. 12 kg Demonstration machine! Pneumatically driven tapping machine for M3 - M12 thread with: - stable and flexible working arm. - 6 pcs. Quick-change chuck with slip clutch. Documentation in English !! optional: - Clamping table with T-slots clamping surface 900 x 600mm

Condition: used, Year of construction: 2007, x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm Control Sinumerik 840 D Siemens distance between columns max. 3.000 mm passage max. 1.950 mm distance spindle center to table max. 1.800 mm distance spindle nose and table 1.350 / 1.500 mm type P 8005020/00-4 turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 20 kW max. Torque 48 Nm Nsdpfx Agsvy Ihds Nsku tool taper HSK-A63 DIN 69063 Spindle Extension 450 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° type P 8002320/00-4 turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 40 kW max. Torque 1.100 Nm tool taper HSK-A100 DIN 69063 Spindle Extension 300 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° table surface area 4.000 x 2.200 (2x) mm max. table load 12 / 20 t height over floor 700 mm number of T-slots 11 + 19 T-slot - width 28H7 mm T-slot - distance 200 mm number of toolpositions 327 pos. number of toolpositions HSK A63: 156 pos. number of toolpositions HSK A100: 171 pos. max. tool diameter HSK A63: 52 mm max. tool length HSK A63: 250 / 500 mm max. tool weight HSK A63: 5,0 kg max. tool diameter HSK A100: 315 mm max. tool length HSK A100: 500 / 800 mm max. tool weight HSK A100: 40,0 kg feed speeds X: max. 30.000 mm/min feed speeds Y/Z: max. 40.000 mm/min feed speeds B: 3.600 °/min feed speeds C: 2.160 °/min Accelaration X: max. 1,5 m/s² Accelaration Y/Z: max. 3,2 m/s² x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm b-axis +110° / -10 ° c-axis +/- 200 ° total power requirement 150 kVA dimensions of the machine ca. 25,0 x 12,0 x 7,0 m 5-Axis Gantry-Big-Machining-Center DROOP + REIN - TFS 22 40 DT D40 P - two Milling-Heads - ca. 4.000 Power On Hours - X-Achse 10.000mm (coupled) / 2x 5.000mm (single-table) - 3 axes simultaneously (X, Y, Z) - 2 positioning axes (B, C) - tools upon request

Condition: excellent (used), pressure 0,5 - 20 t max. workpiece diameter 5 - 75 mm threading length 2000 mm pitch in mm 8 mm diameter of roll spindle taper 69,85 tool diameter 200 mm roll spindle turning speed range 20 - 90 U/min stroke 0 - 20 mm total power requirement 7,5 kW weight of the machine ca. 3,1 t dimensions of the machine ca. 1,9 x 1,1 x 1,2 m Nedpjvpaa Refx Ag Neku

Condition: excellent (used), Year of construction: 2017, Measuring range X 24, Y 18, Z 10 mm Nsdou Erf Ispfx Ag Njku Magnification 12 - 25 - 38 - 50 x MARCELS MASCHINEN AG

Condition: good (used), Year of construction: 2000, functionality: fully functional, drilling capacity: 40 mm, quill stroke: 200 mm, quill diameter: 80 mm, Machine design - Work table 1800 x 600 mm with 4T-slots - Boom travel 1050 mm - SK 40 drilling spindle with tool clamping device - Infinitely variable speed programming - Infinitely variable quill feed via three-phase servo motor - 2 T-slots 18 mm on the machine base at the rear - 2 T-slots 18 mm on the left machine base frame - Thread cutting device - Central lubrication - Coolant device - Machine light - CE marking - Safety device - USB interface Dimensions and travels Tool holder SK 40 Column diameter mm 195 Table dimensions mm 1800 x 600 Number of T-slots 4 Distance between T-slots mm 125 Quill stroke (Z-axis) mm 200 Column stroke (W-axis) mm 410 Distance spindle bottom edge - min mm 70 Table top edge max. mm 680 Distance spindle bottom edge - min mm 970 Floor max. mm 1580 Drilling radius mm 540 - 1590 Nsdou Aa I Sepfx Ag Neku Worktable height mm 900 Cutting values Drilling capacity into solid St 60  40 GG 22  50 Thread cutting St 60 M 36 GG 22 M 42 Main spindle drive AC motor, frequency-controlled kW 5.5 at 100 % duty cycle. Speed range: min -1 15 - 2800 Torque Nm max. 250 constant from min -1 15 - 2000 Feed drives X-axis - AC - servo motor kW 0.25 Y-axis - AC - servo motor kW 0.25 Z-axis - AC - servo motor kW 4.50 W-axis - AC - servo motor kW 2.50 Rapid traverse speeds (X/Y/Z): m/min. 7.5 / 7.5 / 5 Rapid traverse speeds (W): m/min. 3 Feed rates stepless mm/min 5 - 2000 Accuracy Positioning accuracy X-, Y-axis to 1200 mm mm ± 0.075 Electrical data Operating voltage / frequency V / Hz 400 / 50 Control voltage V 24 Hydraulic unit for clamping kW 0.75 Total connected load kVA 13.0 Weight Danumeric 440 (without packaging) with table 1800 x 600 mm kg 2800 CNC control Axes: 4 (X, Y, Z, W), expandable Processor: 32-bit CPU Screen: TFT flat screen, backlit, easy to read from all sides legible from all sides, 215 x 160 mm Position information: Cartesian or polar, absolute or incremental measurements, Unit of measurement: mm or inch or in degrees Interpolation: 2 axes (X, Y) Technology database: tool management, tool suggestions according to machining type, material-dependent cutting data suggestions Tool management: max. 500 tools Subroutine technology: yes Machining cycles Standard software options: Programming in dialog, 38 zero offsets, rotation and mirroring, teach-in for X, Y, Z, restart in program with selection functions for targeted entry Zero point determination: Cycles for determining zero points by manually probing the workpiece for by manually probing the workpiece for: - any clamped rectangular parts - any clamped round parts - Mediation of cast and flame-cut parts - Angular position detection for round parts by touching reference edges or surfaces Test graphics Graphic display of drilling patterns Data interfaces USB

Condition: excellent (used), Year of construction: 2012, CNC lathe 2 axes DMC Korea DL22 Fanuc OiTD with Manual Guide and USB port Nedpfx Agoxyauls Neku year of manufacture 2012 8-inch chuck Spindle bore 65mm Turning length 400mm 12-position tool turret Tailstock Coolant tank with pump

Condition: good (used), functionality: fully functional, Year of construction: 2006, operating hours: 47,000 h, laser power: 2,000 W, punching force: 76 t, workpiece weight (max.): 120 kg, working range: 2,500 mm, Equipment: cooling unit, safety light barrier, Special features: + Thread forming function with thread breakage detection + MultiTool function + Marking/Fast beading function + Repositioning cylinder + Sensor for part chute Standard features: - Stable C-frame - Coordinate guide with integrated linear magazine - 21 pockets for tools and clamps - 2 clamps - Drives: maintenance-free three-phase servo motors - Brush tables - TCF1 laser (2000W) - HI-LAS high-pressure cutting - Fast machining with SprintLas - Programmable Cutting gas selection/pressure adjustment - Laser cutting head with 5" lens - Cutting head quick-change device - APC capacitive height control - Lens monitoring sensors - Laser logbook function - Compact dust extractor - Rotating tool holder - Automatic repositioning device with hold-down clamp - Automatic part chute for parts 300x500 mm - Automatic tool changer with 19 stations - 2 clamps - Good parts container - Spray lubrication for punches - 2nd lubricant container - Punch slug extraction system - Chip bucket - Hydraulic quick shut-off system - External control panel - 15" TFT touch color screen - USB stick interface - 3.5" floppy disk drive - Safety features - RJ45 network connection Nkedpewcq Hgefx Ag Nju - Network connection - Detailed operating instructions - Remote diagnostics system

Condition: good (used), Year of construction: 1997, x-travel 600 mm y-travel 450 mm z-travel 400 mm Control Heidenhain 430 ITNC tool taper SK 40 Nedpfx Ajwbi A Deg Njku voltage 400 V control voltage 24 V weight of the machine ca. 6 t - Operating hours: 48,690 - Max. table load: 1,000 kg - Machine weight: 6,000 kg - Includes tool holders – SK40 - Includes all descriptions - Includes programming manual – Heidenhain - Includes 1 machine vice - Includes clamping claws
