Used Cnc Gear Grinding Machine for sale (93,549)

Condition: used, Make: BUDERUS, Model: CNC235, Year of manufacture: 2007, Machine no.: 9030, Control manufacturer: Siemens, Model Sinumerik 840D sl Powerline, 2 work areas, 2 cross slides, X/Z travel, 2 spindles, rotational speed, C-axis workpiece spindle: 3,000 rpm, high-frequency internal grinding spindle: (51,000 rpm) (for grinding arbor), max. feed rates Z 30 m/min, X 90 m/min, max. workpiece diameter 100 mm, max. workpiece length 50 mm, 2x 8-position tool turrets, tool holder Capto C5, workpiece automation with drag conveyor system and gripper, coolant system, paper band filter, oil separator manufacturer: Mahle, type LGA601, oil mist extraction, recooling unit manufacturer: Hydac, chip conveyor manufacturer: Astos +++ Attention: This machine is part of an online auction! +++ Dedpfex Ahivox Addecr

Condition: used, Year of construction: 1997, Technical details: max. module: 7 weight of the machine ca.: 5 t worm grinding diameter: 280-350 mm width of grinding worm: 84-104 mm min. number of teeth: 6 max. number of teeth: 600 max. top circle diameter: 360 mm Dcodpfox Aq Egsx Addjr max. workpiece weight: 60 kg without filter *

Condition: used, Year of construction: 2012, max. wheel diameter 300 mm gear width 320 mm Dsdpfevxwtgjx Addjcr max. module 10 min. module 0,5 ical angle 45 ° frequency 50 Hz voltage 400 V main fuse 125 A x-axis 270 mm y-axis 250 mm z-axis 320 mm A - axis +/- 45 ° B - axis 360 ° C-axis 360 ° total power requirement 89 kW weight of the machine ca. 23,5 t dimensions of the machine ca. 11,2 x 5,5 x 2,9 m automated Oil slinger station EWAB workpiece storage Hoffmann coolant filter system HSF 100 SE/K Minimax fire extinguishing system W+W air filter system Promot Automation "Cellmaster" (3 cells) year 2019

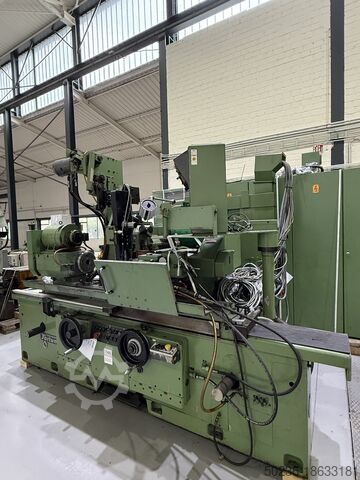

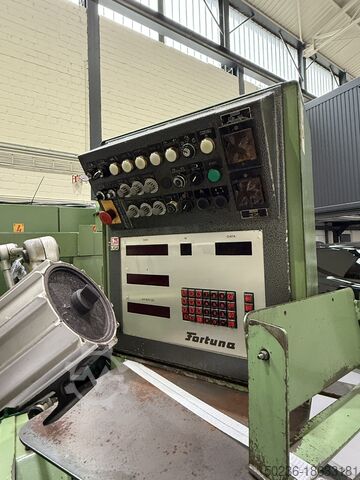

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, Used CNC cylindrical grinding machine Make: FORTUNA Type: T23 S1000 ASW 45 CNC Year of manufacture: 1980 Dsdpfx Adjv Eyr Sjdjcr

Condition: used, Year of construction: 2006, Technical data: Working ranges: X-axis: 1870 mm Y-axis: 400 mm Z-axis: 560 mm C-axis speed: 3000 rpm Max. grinding area: 1700 x 620 mm without table dresser: 1500 x 620 mm Table dressing device, diamond wheel: ø 110 mm Grinding wheel diameter: 400 mm Max. width: 100 mm Grinding wheel bore: 127 mm Distance table to spindle center: 800 mm Table height: 900 mm Max. table load: 2200 kg Weight, approx.: 12,000 kg Equipment: - Siemens SINUMERIK 840D control, OPO12 operator panel - Measuring system - Electro-magnetic clamping plate - Full enclosure - Central lubrication - Mist extraction - Clamping system for automatic wheel change Dcedpfxsxzq I Ss Addor - Coolant unit - Coolant recirculating chiller - Profiling device Water treatment system available at additional cost

Year of construction: 2023, condition: used, Size: 100x3,000 mm, RITTAL control terminal with SIEMENS Simatic HMI Touch touchscreen, workpiece size: 100-1,200 mm wide / 100-8,000 mm long, 2-50 mm thick, swiveling angle 0-75°, extraction system; Compact cartridge filter unit TECAU Dustec 6 XL Dcedjx Akl Tspfx Addjr Serial no.: 1009024-530, Year of manufacture: 2023; Chip collection container KAISER + KRAFT SL0650/BH511A Year of manufacture: 2023, max. load capacity: 2,000 kg, volume: approx. 0.5 m³

Condition: used, Make: DISKUS-WERKE, Model: ModuLine DS 300 SO, Year of manufacture: 2013, Serial No.: 2219, Control unit manufacturer: Siemens, Model: Sinumerik 840D sl, 2 spindles, spindle distance: 210 mm, max. speed approx. 4000 rpm, W-axis tool spindle / grinding spindle: 2000 rpm, max. workpiece diameter: 100 mm, max. workpiece height: 40 mm, 8-position tool turret by Sauter, Model: 0.5.480.516, tool holder: Capto C5, workpiece automation device by DVS, Type: Moduline, transfer robot by Epson, PLC system control by Siemens, Simatic Panel Touch display, coolant system by Knoll, Type: KF150/950, paper band filter, chip conveyor by Knoll, Type: 225S-2/170. +++ Note: Machine is part of an online auction! +++ Dcodpfx Aex Ahg Usddjr

Condition: used, Year of construction: 1993, Technical details: rotary table diameter: 2x700 mm grinding height: 200 mm grinding head - power requirement: 15 kW max. dia. of grinding wheel: 400 mm grinding spindle speed: 1400-2800 stufenlos /continous U/min automatic feeds: 0,001-0,02 weight of tools max.: 650 kg table speed: 5-10 m/min rotary table revolutions per minute : 5-10 stufenlos U/min rotary table: Querbewg. 0,2...10 m/min total power requirement: 49 kW weight of the machine ca.: ca. 12,0 t dimension machine xH: 6,0x3,0x2,8 m dimensions electric cabinet LxWxH: 2,0x0,55x2,2 m ROTARY TABLE SURFACE GRINDING MACHINE - 2 magnetic rotary tables each Ø=700mm - diamond roller dressing device - without coolant unit i.D. * Dcjdpfx Adju Ngp Noder

Condition: used, Year of construction: 2008, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm tooth width max. 58 mm spindle speeds (infinitely variable) 6000 U/min work piece spindle speed 1200 U/min diameter of tools max. 230 mm diameter of tools min 69,85 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm b-axis + 90,1 / - 1 ° work piece table - Ø 212,71 mm Control SIN 840 D SIEMENS total power requirement 75 kW Dcjdjvxwmtjpfx Addsr weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2;Y2) Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system

Condition: used, Year of construction: 2019, controller manufacturer: Sonstige, controller model: MAPPS IVB, _____ Description: Year of manuf. : 2019 Control : Sonstige MAPPS IVB Grinding length : 150 mm Technical Details: Grinding-ø (max.):350 mm Grindinglength (max.):150 mm Grindingwheel-ø:25-180 mm Swivelrange Grindingwheelhead (max.):230° Grindingspindle: Technology:Internalgrinding spindle Speedrange:3-20.000 rpm Power (max.):11 kW Grindingwheelholder:HSK-A63 Drillingspindle: Technologie:Drillingspindle Speedrange:1.500-3.500 rpm Power (max.):7,5 kW Taper:HSK-A63 Workpiecespindle: Technology:Directdrive Clmapingsurface:ø265 mm Tableloadiing (max.):200 kg Workpiececlamping:Pneumatic chuck In general: Movement in X/Z:965/532 mm Rapid travers in X/Z:24/20 m/min Equipment/Accessory: Positionsensor:Direct Scales in X/Z Chipmanagement:Magneticbeltconveyor Coolingmanagement:Coolant unit with Paperbeltfilter and Temperature control Workpiecemeasurement:Touch probe, Renishaw MP 250 with Master Gauge Station Toolmagazine:8 Stations (each 4 stations for Grinding- and Drillingtools) Dresser:Wheeldresser + Single point diamond (Marposs) Setup operations:Electronic handwheel Automation:Fanuc-Robot M-20iA with Stocker (30 Stations ø329 mm) Grindingmistseparation:Akamatsu HVS-100-CE 044 Djdpfexx Eraex Addecr Further Equipment:Spindle chiller, Trafo

Condition: new, Year of construction: 2025, GWDress-250 smartline – Semi-Automatic Grinding Wheel Dressing Machine Dcodpsw E E S Ajfx Addsr The GWDress-250 smartline is the intelligent solution for precise dressing of grinding wheels up to Ø 250 mm. With selectable manual or automatic control, dressing processes can be designed flexibly and efficiently. The machine comes standard with an enclosure for maximum occupational safety as well as effective protection against dust and noise. Wet dressing is also possible. Highlights: - For grinding wheels up to Ø 250 mm - Automatic traversing via control system - Can be operated manually or semi-automatically - Enclosure for safety, noise reduction, and dust control - Precision dressing of radii and wheel packs – accurate to within 2 µm - Wet dressing function - Excellent price-performance ratio The perfect solution for all those seeking top precision, ease of operation, and reliability at an unbeatable price.

Condition: used, Year of construction: 1980, machine/vehicle number: 19780, grinding length:600 mm grinding width:300 mm workpiece height:375 mm number of spindle speeds:1000 - 3000 UpM grinding wheel dimensions::300 x 50 x 76,2 mm grinding spindle drive:2,8 - 8,4 kW weight of the machine ca.:3,5 t CNC-controlled, 3D-controlled profile-dressing unit, Unicom ELB-CNC control with integrated 024 CNC Unicon electric hand wheel, display screen, analogue spindle load display, stepless adjustable cross feed, coolant device with magnetic-roller chip collector, full housing, separate electrical cabinet, additional grinding wheel with flange Dsdpocxxrzjfx Addscr

Condition: good (used), Year of construction: 2004, Ref. -No.: 10612 Manufacturer: LIEBHERR Type: LC 3002 Year of construction: 2004 Type of control: CNC Dsdoxxpdgopfx Addecr Control: LIEBHERR Storage location: Halberstadt Country of origin: Germany Serial no.: 30XX Max. Module: 30 mm Min. Module: 4 mm Max. Workpiece Diameter: 3000 mm ambient temperature: +15...+38 ° cutting speed: 25 - 250 m / min Milling head swivel angle: 0,001 ° Resolution accuracy: 0,1 Degree Workpiece table load: 300 kN Operating voltage: 400 V control voltage: 24 V frequency: 50 Hz Max. rated current: 230 A Fuse in the supply line: 250 A Max. milling diameter spur gears/helical gears: 3.000 mm Further information: Suitable for internal and external gear cutting. The machine can be viewed by appointment.

Condition: good (used), Year of construction: 2009, Control: Siemens 828-D SL Max. grinding diameter: 500 mm Dsdpfx Adjxyv Uzsdecr Max. grinding length: 2000 mm Max. workpiece weight: 500 kg between centres Swiveling of grinding head: +45 / -15° (manual) Grinding wheel: 500/80/203 mm With steady rests With enclosure

Year of construction: 2015, condition: ready for operation (used), A combined vertical CNC turning and cylindrical grinding center EMAG is available. Chuck diameter: 250mm, max. swing diameter: 260mm, travel X/Z: 680mm/200mm, rapid traverse X/Z: 45m/min/30m/min, grinding spindle speed: 45000rpm, tool stations: 12, basket dimensions X/Y: 400mm/600mm, basket stack: 3. Machine dimensions X/Y/Z: approx. 3200mm/1900mm/2650mm, weight: approx. 8000kg, control: Siemens 840DS, operating hours: approx. 35000h, program hours: approx. 22000h. Documentation available. An on-site inspection is possible. Dsdpfx Aox Dm Dzoddjcr

Condition: repair required (used), Year of construction: 2008, functionality: not functional, machine/vehicle number: 06-13633, Technical characteristics: Work Area - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse movement of the column: ±20 mm - Maximum workpiece external diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece Specifications - Maximum nominal module (for steel with an approximate tensile strength of 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm, where d0s is the external diameter of the cutter (in mm) - Maximum external diameter (internal gearing): 280 mm - Maximum band (toothed area) width: 42 mm - Maximum stroke length for toothing: 50 mm - Maximum spindle travel: 70 mm Load Capacity - Maximum load supported by the table (including fixtures): 150 kg - Maximum force exerted by the tailstock: 1,500 kg - Maximum attainable helix angle (with hydrostatic guide): ~45° Dodpfx Asxwl Tzsddjcr Cutter Spindle - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment - Operating voltage: 400 - 480 V - Control voltage: 24 V - Magnetic voltage: 24 V - Cable cross-section: 16 mm² - Connected power: 15 kW - Protection: 50 A Dimensions - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical Design: Optimized for chip evacuation and easy loading/unloading - Control: Siemens Sinumerik 810D/840D - High Precision: Positioning accuracy via Heidenhain linear scales - Measurement system: Marposs T25 (for angle alignment or zero-point rotation definition) - Oil filtration and cooling system - Magnetic chip conveyor Machine Status: NOT WORKING: NC does not start

Condition: used, Year of construction: 2002, functionality: fully functional, machine/vehicle number: 3021600302, center height: 230 mm, center width: 2,000 mm, grinding diameter: 355 mm, overall weight: 10,000 kg, - Year of manufacture: 2002 - First owner: from our own use and first hand - Fully functional, under power, ready for demonstration Dsdsx Aru Aspfx Addscr - Centre height: 230 mm - Centre distance: 2000 mm - Max. grinding diameter: 355 mm - External grinding wheel, standard: 500x80x203 mm - Surface grinding wheel, standard: 400x40x127 mm - Control: Siemens 840 D - Drive power external grinding spindle: 9 kW - Drive power internal grinding spindle: 2.2 kW - Total connected load: 25 kW - Total weight: 10,000 kg - Machine no.: 3021600302 Net price ex location Luckenwalde (Germany), unloaded, without transport

Condition: used, Year of construction: 1998, centre height 125 mm centre distance 400 mm Control FANUC 21i Capstan diameter max. 406 mm wheel dimensions 406 x 127 x 40 mm workpiece weight 30 kg longitudinal slide -travel 483 mm cross slide - travel 254 mm total power requirement max. 20 kVA weight of the machine ca. 4,0 t dimensions of the machine ca. 3,0 x 2,0 x 2,1 m including 2 Pcs. internal grinding spindle incl. B axis 1° Hirt, controlled incl. C-axis incl. Quick-Set Probe including Sensitron including Magnetic Jaw including hydraulically foldable dresser including other small accessories including documentation without a coolant system, as it was previously connected to a central unit Power On hours approx. 71,000 h Dcedpjxwdwfjfx Adder Spindle hours approx. 25,900 h

Condition: ready for operation (used), Year of construction: 1991, operating hours: 39,428 h, functionality: fully functional, machine/vehicle number: 1168, grinding length: 600 mm, table length: 600 mm, table width: 200 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 230 mm, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 04/12/2025! Bidding obligates the buyer to collect the machine within the scheduled period between 10/12/2025 and 12/12/2025! TECHNICAL DETAILS Longitudinal grinding travel X-axis: 600 mm Travel range Y-axis: 400 mm Travel range Z-axis: 230 mm Work table Clamping surface: 600 x 200 mm Table load: max. 100 kP Distance table surface to grinding spindle center: max. 500 mm Table longitudinal feed (X-axis): 1 – 24 m/min Table cross feed (Z-axis): 2,000 mm/min Grinding wheel dimensions: 250 x 25 x 51 mm Digital axis display: 0.001 mm Grinding head infeed (Y-axis): 2,000 mm/min Magnet dimensions: 450 x 220 mm MACHINE DETAILS Electrical data Operating voltage: 380 V Frequency: 50 Hz Rated current: 30 A Dimensions & Weight Dimensions (L x W x H): 3,000 x 2,000 x 2,100 mm Weight: 2,000 kg Operating hours: 39,428 h Dcsdpfx Adoxvp Eloder

Condition: ready for operation (used), Year of construction: 2001, operating hours: 87,310 h, functionality: fully functional, grinding wheel width: 400 mm, grinding wheel diameter: 600 mm, grinding diameter: 220 mm, overall weight: 13,000 kg, TECHNICAL DETAILS Maximum grinding diameter: 220 mm Regulating wheel width: 400 mm Maximum grinding wheel width: 400 mm Grinding wheel drive: 55 kW Maximum circumferential speed: 45 m/s Regulating wheel dimensions: 350 x 400 x 203 mm CBN grinding wheel dimensions: 500 x 400 x 304 mm Aluminum oxide grinding wheel dimensions: 600 x 400 x 304 mm Dcedoxvxhcopfx Addjr Grinding spindle headstock Total stroke of grinding spindle headstock: 130 mm Speed of grinding spindle headstock: 150 m/min Rapid traverse adjustment max.: 150 m/min Minimum infeed of grinding spindle headstock: 0.0005 mm Preselectable infeed size of grinding spindle headstock: 0.0005–0.05 mm Grinding wheel dresser Dresser support speed: 15–900 m/min Maximum stroke of dresser supports: 430 mm MACHINE DETAILS Overall power requirement: 75 kVA Dimensions & Weight Space requirement approx.: 4.47 x 2.77 x 2.49 m Machine weight approx.: 13 t Operating hours: 87,310 h

Condition: used, Jig grinding machine cnc HAUSER S45-400 Dcjdpfsx Av Adox Addor

Condition: good (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 06-13796, Technical characteristics: Work Area - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse displacement of the column: ±20 mm - External diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece - Maximum nominal module (in steel with a tensile strength of approximately 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm - Maximum external diameter (internal gearing): 280 mm - Maximum width of the toothed band: 42 mm - Maximum stroke length for tooth cutting: 50 mm - Maximum spindle travel: 70 mm Load Capacity - Maximum load on the table (including fixtures): 150 kg - Maximum force applied by the tailstock: 1,500 kg - Maximum achievable helix angle (hydrostatic guide): approx. 45° Dcedpfoxwl N Aox Addsr Cutter Spindle - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment - Operating voltage: 400 - 480 V, Control voltage: 24 V, Magnetic voltage: 24 V, Cable cross-section: 16 mm² - Connected power: 15 kW, Protection: 50 A Dimensions - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical design: Ensures optimal chip evacuation and easy loading/unloading. - Control: Siemens Sinumerik 810D/840D - High Precision: Positioning accuracy by Heidenhain linear scales - Measuring system: Marposs T25 (for angular alignment or zero-point rotation definition) - Oil filtration and cooling system - Magnetic chip extraction conveyor

Condition: good (used), Year of construction: 2001, Z&B Starline 500 CNC surface and profile grinding machine year of manufacture 2001 Siemens 840D control x, y, z 600 x 380 x 250 mm magnet 500 x 250 mm ball screw for the x-axis grinding wheel max 350 x 50 mm Dcsdpfx Adowz N Elodsr variable grinding wheel speed TAW table dresser paper band filter 6x grinding wheel and flange documentation

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 73866, workpiece weight (max.): 60 kg, rotational speed (max.): 2,300 rpm, overall weight: 5,000 kg, TECHNICAL DETAILS Module, max.: 7 Grinding worm diameter: 280–350 mm Grinding worm width: 84–104 mm Djdsxvrzispfx Addocr Grinding worm speed (grinding): 1,100–2,300 rpm Grinding worm speed (profiling): 50–95 rpm Number of teeth, min.: 6 Number of teeth, max.: 600 Maximum permissible outside diameter: 360 mm Maximum workpiece weight: 60 kg Maximum grinding stroke: 175 mm Workpiece speed (grinding): max. 250 rpm MACHINE DETAILS Machine weight approx.: 5 t Electrical Data Mains connection: 3 × 400 V 50 Hz Machine voltage: 3 × 400 V 50 Hz Control voltage: 1 × 230 V 50 Hz / 1 × 24 V DC Contactor voltage: 1 × 24 V DC Solenoid valve voltage: 1 × 24 V DC

Condition: good (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 06-13795, Technical characteristics: Work Area: - Elevation: 160 mm - Minimum center distance between table axis and spindle: -30 mm - Maximum center distance between table axis and spindle: +150 mm - Minimum distance between table surface and cutter spindle: 275 mm - Maximum distance between table surface and cutter spindle: 345 mm - Manual transverse displacement of the column: ±20 mm - External diameter: 250 mm - Bore diameter: 100 H7 mm Workpiece: - Maximum nominal module (in steel with tensile strength approx. 600 N/mm²): 3 mm - Minimum pitch diameter (internal gearing): 60 + d0s mm - Maximum external diameter (internal gearing): 280 mm - Maximum width of the toothed band: 42 mm - Maximum stroke length for tooth cutting: 50 mm - Maximum spindle travel: 70 mm Load Capacity: - Maximum table load (including fixtures): 150 kg - Maximum force exerted by the tailstock: 1,500 kg - Maximum achievable helix angle (hydrostatic guide): ~45° Cutter Spindle: - External diameter: 85 mm - Cutter holder bore: 45 H3 mm Electrical Equipment: - Operating voltage: 400 - 480 V - Control voltage: 24 V - Magnetic voltage: 24 V - Cable cross-section: 16 mm² - Connected power: 15 kW - Protection: 50 A Dimensions: - Overall dimensions: Length = 2980 mm, Width = 1650 mm, Height = 2165 mm - Weight: 5700 kg Main Features and Capabilities: - Vertical design: Optimal chip evacuation and easy loading/unloading - CNC control: Siemens Sinumerik 810D/840D - High precision: Positioning accuracy via Heidenhain linear scales - Measuring system: Marposs T25 (for angular alignment or rotation zero-point definition) - Oil filtration and cooling system - Magnetic chip extraction conveyor Dodpfx Aexwlmueddjcr Machine status: Operational (WORKING)
