Used Johnford for sale (21)

Condition: used, Year of construction: 2007, x-travel 1.050 mm y-travel 610 mm z-travel 610 mm control HEIDENHAIN iTNC 530 Distance between table and spindle 100-710 mm table-size 1.200 x 600 mm table weight 1.200 Kg rapid travel x/y/z 30.000/20.000 mm/min feed 12.000 m/min spindle taper BT-40 spindle turning speed range 60 - 10.000 U/min spindle drive 7,5/11 kW Tools changer 20 pos. Internal cooling system 20 bar Chip coveyor 2 handwheel HEIDENHAIN HR-410 tool diameter 100 mm tool length - max. 320 mm weight of tools max. 10 kg weight of the machine ca. 7 t Ncodox Hp Dlspfx Adwjl dimensions of the machine ca. 2.900 x 3.420 x 2.888 m Complete installation 4th axis - Rotary table Golden Sun CNCT 321 (4th/5th axis)- Rotary table diameter 200 mm. - Rotary table tailstock - ZF box - Electrical cabinet air conditioning

Condition: used, Year of construction: 2001, x-travel 2050 mm y-travel 1100 mm z-travel 800 mm Control Fanuc 18iM Super Cap II turning speeds 60-6000 U/min tool magazin: 60 tool taper BT50 total power requirement 26 kW weight of the machine ca. 23,6 t required space 6,3 x 3,3 x 3,8 m Nodperw Dknefx Adwecl

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 800 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, total height: 3,600 mm, table load: 6,000 kg, overall weight: 20,000 kg, spindle speed (max.): 8,000 rpm, spindle motor power: 15,000 W, number of axes: 3, This 3-axis Johnford DMC-1600 was manufactured in 2008. It features a robust table surface of 1700x1100 mm, capable of handling loads up to 6000 kg. With travels of X1600 mm, Y1100 mm, and Z800 mm, it offers extensive machining capabilities. The spindle operates at 8000 rpm with a BT40 taper, supported by a 24-station tool magazine. Additional features include a chip conveyor, coolant system, and a comprehensive set of tools. Contact us for more information about this machine. Ncodpfxjyaiv Ts Adwol Additional equipment • Electronic Handwheel • USB-RS232 Ports • Air-Conditioned Cabinet • Coolant Through Spindle • 3-Color Status Light • Chip Conveyor + Bucket • Full Documentation • Angle Heads • Large Set of Approx. 60 Tool Holders and Cutting Tools Machine Benefits Technical Machine Benefits • Spindle/table surface distance: 150-950 mm • Rapid feed speed: 15000/12000 mm/min • Table surface: 1700x1100 mm • Tool magazine: random-arm tool magazine with 24 stations Extra Information Machine still under power Dimensions Machine Depth 6465 mm

Condition: ready for operation (used), Year of construction: 1998, travel distance X-axis: 800 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 610 mm, controller manufacturer: FANUC, total height: 2,700 mm, overall weight: 6,000 kg, product length (max.): 2,350 mm, This 3-axis Johnford VMC-850A was manufactured in 1998. It features a robust 800 mm X-axis, 500 mm Y-axis, and 610 mm Z-axis travel, with a table size of 1000 x 500 mm supporting up to 400 kg. Equipped with a BT-40 spindle, achieving speeds up to 8000 rpm, and an automatic tool changer for 24 tools. Ideal for precise and efficient machining. Contact us for more information about this machine. • Workpiece capacity: 400 kg (max on table) • Table size: 1000 × 500 mm • Tool changer: Automatic arm style (24 tools typical) • Max tool diameter: 100 mm (limited by adjacent tools) • Max tool length: 320 mm • Spindle taper: BT‑40 (standard) • Max spindle speed: up to 8000 rpm Ncsdpfx Ajyabk Nodwol • Spindle drive power: 5.5–7.5 kW • Rapid traverse: 30 m/min (X/Y), 20 m/min (Z) • Coolant system with nozzles • Spindle air blast • LED working lights Dimensions Machine Depth 2200 mm

Condition: ready for operation (used), controller manufacturer: Heidenhain TNC 530, empty load weight: 45,000 kg, total length: 11,055 mm, total width: 6,320 mm, total height: 4,140 mm, Type: DMC-4100LH 2800 mm tussen de kolommen!! MA-25 2-assige universele freeskop - 20 kW - 6000 tpm C-bereik: 0-360° Bereik A-as: +/- 110° Koeling door spindel 40 bar Totaal vermogen: 67 kW Geen fundering nodig! De Johnford DMC-serie dubbelkoloms brugfrees met bewegende tafel is gemaakt van een eendelige Meehanite gietijzeren brug/kolomconstructie die naar verluidt 30 procent minder vloeroppervlak in beslag neemt dan vergelijkbare verticale bewerkingscentra met een C-frame. De brugfrees is verkrijgbaar in versies met zowel een bewegende tafel als een schuifkolom (vaste tafel), variërend van 91 x 91 x 76 cm tot 18 x 6 meter. De brugfreesmachines hebben een lange basis met volledige ondersteuning van de tafel over de volledige 130 cm Y-asverplaatsing, waardoor zware lasten kunnen worden bewerkt. Ncodpfxsxp Sk Ds Adwsl De Y- en Z-as dragen te allen tijde een vaste belasting, terwijl de X-as de enige dynamische belasting draagt, wat zorgt voor een nauwkeurige bewerking met nauwe toleranties tijdens bewerkingen met hoge snelheid. Omdat er geen tafeloverhang is, worden de helling en gierhoek van de X-as geëlimineerd. De afstand tussen de hartlijn van de spindel en de kolom is geminimaliseerd, wat zorgt voor extra stijfheid. De zwaar geribbelde gietijzeren constructie van de machine zorgt voor een lange standtijd en een optimale oppervlakteafwerking. De combinatie van dubbele schroeftransporteurs en een rupsband zorgt voor volledige spaanafvoer met minimale handmatige reiniging. Daarnaast wordt eindige-elementenanalyse (FEA) gebruikt bij het ontwerpen van elke brugfrees, waarbij de effecten van realistische omstandigheden, zoals trillingen, hitte, vloeistofstroming en andere fysieke invloeden, worden gesimuleerd. Longitudinal travel X-axe: 4100 mm Cross travel Y-axe: 2800 mm Travel Z-axe: 800 mm Dimensions clamping space- table: 4200 x 2400 mm Power on spindle: 30 kW Admission in millinghead (ISO): BT 50 Max speedrange: 6000 rpm

Condition: good (used), Year of construction: 1990, Johnford 5 VH Milling machine by Johnford with Fagor digital readout, year of manufacture 1990, in good condition CE-compliant!! Njdoyalc Aepfx Adwjcl Technical data: Year of manufacture: 1990 Working area Table clamping surface: 1370 mm x 250 mm Maximum table load: 350 kg Travel distances X-axis travel: 800 mm Y-axis travel: 390 mm Z-axis travel: 380 mm Vertical milling head Spindle speed (vertical): 70 rpm - 3600 rpm Spindle taper: SK40 DIN 2080 Quill stroke: 127 mm Feed Quill feeds (3): 0.04; 0.08; 0.15 mm/rev Drive power Main drive motor output: 3.75 kW Dimensions and weights Dimensions (L x W x H): 2.54 m x 2.16 m x 2.24 m Weight: 1590 kg About the machine: This versatile universal milling machine combines all the advantages of the world’s best-selling milling machine with additional stability. Belonging to the category of conventional milling machines, it stands out as the top model of the 5 VH series with an SK 40 tool taper and a 30% higher net weight. Both the X and Y axes are equipped with infinitely variable feed units. The swiveling vertical milling head offers a wide speed range for machining steel and non-ferrous metals. Further features include a four-stage automatic quill feed, pneumatic tool clamping, and a large table for workpieces and clamping devices. Further milling machines from well-known manufacturers can be found on our website.

Condition: ready for operation (used), Year of construction: 2001, JOHNFORD VTC 880 TWIN PALLET CNC VERTICAL LATHE MAKE JOHNFORD, MADE IN TAIWAN MODEL VTC 880 + APC + ATC YEAR 2001 CONTROL FANUC 18 T MAX SWING DIA 1,000 mm MAX CUTTING DIA 900.0 mm STANDARD CUTTING DIA 800.0 mm MAX CUTTING HEIGHT 800.0 mm TRAVERSES X AXIS 50.0 mm to 810.0 mm Z AXIS 880.0 mm SPINDLE SPEEDS 10 to 800 RPM SPINDLE BEARING DIA 330.0 mm SPINDLE NOSE A2 - 11 SPINDLE MOTOR 18.5 / 22 kW TURRET TYPE AUTOMATIC TOOL CHANGER NO OF TYPES 2 X 12 ATC TOOLS SHANK SIZE BT 50 AND CAPTO PLUS FULL C AXIS MILLING TAPPING X, Z, C, A AND B AXES HIGH PRESSURE COOLANT PAPER COOLANT FILTRATION Ncjdpeukuprjfx Adwsl SWARF CONVEYOR FULLY OPERATIONAL FULL SET OF MANUALS GOOD RANGE OF TOOLING

Condition: ready for operation (used), Year of construction: 2005, General Data Machine weight 27000 kg Measurements height 3400 mm Movement X-Axis Movement 2050 mm Z-Axis Movement 800 mm Y-Axis Movement 1100 mm Main Drive Number of axis 3 Spindle Speed 6000 RPM Tool taper BT 50 Tools Slots in storage 40 Dimensions Machine Length 7200 mm Ncedpox D Idvefx Adwol This 3-axis Johnford VMC-2000SHD was manufactured in 2005. It features a large table size of 2200 × 1000 mm and extensive travels: X-axis at 2050 mm, Y-axis at 1100 mm, and Z-axis at 800 mm. With a spindle speed ranging from 10 to 6000 rpm and a tool magazine capacity of 40 tools, this vertical machining centre is ideal for complex machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2008, Fanuc 21ITB Ncjdpewzyndofx Adwjl 16-tool changer BT50 1600 mm table, maximum rotation speed 250 rpm, maximum admissible weight 8000 kg maximum diameter 2000 mm, maximum machining height 1250 mm travel 250 x 250 mm, Z-axis travel 900 mm chip conveyor

Condition: ready for operation (used), Year of construction: 2009, turning diameter over cross slide: 925 mm, turning length: 2,800 mm, turning diameter: 1,200 mm, spindle bore: 132 mm, spindle speed (max.): 2,000 rpm, CNC Siemens 840D 48-tool changer, Capto C8 tools chip conveyor Forkardt 400MM chuck, 2 hydraulic steady rests SMW Autoblok Ncodpjwzyn Refx Adwjl capacity 2800x1250MM, spindle bore 132MM weight 23,500 kg

Condition: excellent (used), SPECIFICATIONS Swing over bed 528 Swing 370 Distance between centres 810 X Axis 290 Z Axis 650 Control Fanuc O-T Tool changer 1 2 Tail stock Yes Dodswbf Dkomblxx Isur Chip conveyor yes DIMENSIONS Ncodpjwbnqtofx Adwsl Length 3600 mm Width 1950 mm Height 1820 mm

Condition: new, Year of construction: 2021, !Machine like new, only 600 hours! HEIDENHAIN 640 Table 1300X700 X, Y, Z: X=1220 Y=710 Z=630 Spindle revolutions 60-10000 Nedowx Nkcepfx Adwscl 24 positions tool changer. Machine dimesnions 3200 X 3900 X 2490 Machine weight 9500 KG

Condition: excellent (used), Year of construction: 1999, operating hours: 1,100 h, functionality: fully functional, Johnford vertical machining center Model VMC 1300 Year : 1999 Table size : 1500 x 710 mm Longitudinal travel : 1300 mm Cross travel : 850 mm Vertical travel : 800 mm Spindle speeds 80 - 8.000 rpm Tool change 24 pcs Spindle taper : ISO 40 Control : FANUC O-M Nedpfjxvxtrox Adwocl Cycle hours : 1100 hours Short arbors Interface RS-232 C Coolant

Condition: good (used), Year of construction: 2001, functionality: fully functional, travel distance X-axis: 1,100 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 600 mm, controller manufacturer: Fanuc, controller model: Series 0-M, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, 📐 Travel Ranges: X-axis: 1,100 mm Y-axis: 530 mm Z-axis: 600 mm 🔧 Worktable: Tables: 2 pcs (Automatic Pallet Changer – APC) Table size (each): 1,220 × 500 mm Nodpfjw Ng Tbex Adwjcl 🔩 Spindle: Spindle taper: SK50 Spindle speed: max 6,000 rpm Tools are Included. Contact us!

Condition: good (used), Year of construction: 2009, JOHNFORD CNC lathe Type GT-80D-2S Year 2009 CNC Control Fanuc Series 18i-TB Ncsdet E Nauepfx Adwel Country of origin Taiwan Turret amount of positions 12 Bar passage 165 mm Serial no. TDF9007 Turning Length 2000 mm Turning Diameter Over Bed 1550 mm Spindle Speeds 1000 RPM Swing Diameter Over Bed Slide 1270 mm Longitudinal Travel (Z-Axis) 2000 mm Spindle Diameter In Front Bearing 240 mm Spindle Bore 185 mm Spindle power 37/30 kW Cross Travel 685 mm Rapid Travel Speed X-Axis 10 m / min Rapid Travel Speed Z-Axis 12 m / min Turret head 12 positions Machine length 9800 mm Machine width 3695 mm Machine Height 5292 mm Weight of the Machine Ca. 40 t

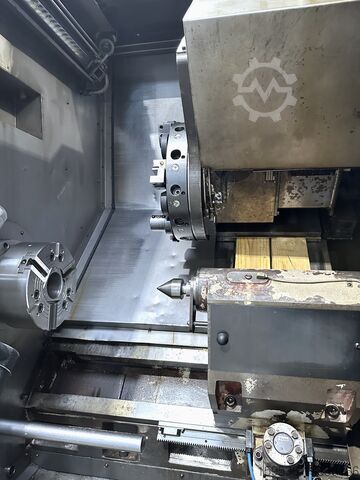

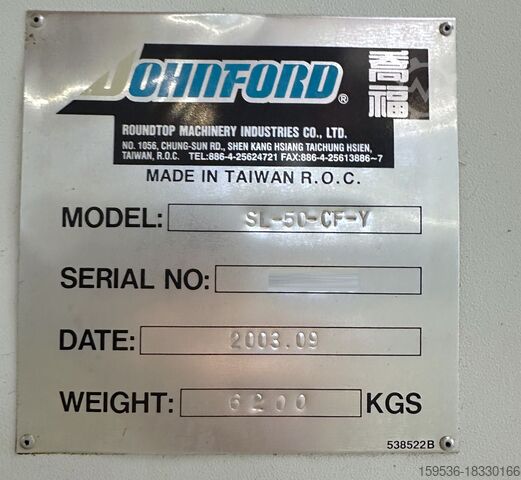

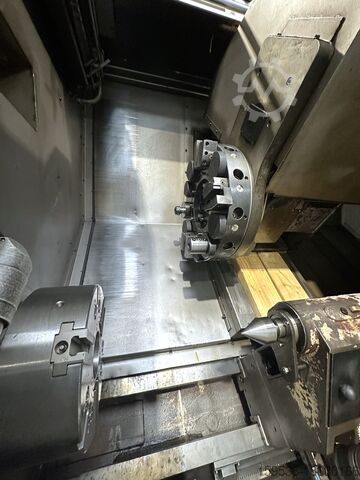

Condition: used, Year of construction: 2003, bar material dia. 75 mm max. max. swing dia. 540 mm turning length 650 mm Nedpfevzcqvjx Adwecl control FANUC Oi-TB machine weight ab. 6.200 kg CNC Turning- and Milling Center | JOHNFORD - SL-50-CF-Y equipped with chip conveyor. Additional equipment: + C axis + Y axis + driven tools The machine is in good condition. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: SL 50 | SL50 | SL-50 CF Y | SL50 CF Y

Condition: used, Year of construction: 1995, functionality: fully functional, spindle bore: 80 mm, turning diameter: 600 mm, distance between centers: 3,000 mm, Solid and powerful conventional lathe from Johnford (Taiwan), model 30120, year of manufacture 1995. The machine offers a turning length of 3 meters and is supplied complete with the original Multifix quick-change tool post, steady rest, follow rest, and backplate. A faceplate is currently installed on the machine. A 3-jaw chuck can be supplied at additional cost. This lathe features a 2-axis digital readout (DRO) and a clear, user-friendly control panel. Offer reference: 3643436 The machine will be cleaned, inspected, and serviced prior to delivery. Safety covers over the chuck and compound slide will be installed before shipping. Sold as a used machine in good technical condition. Technical data (approx.): • Model: Johnford 30120 • Year of manufacture: 1995 • Turning length: approx. 3000 mm • Swing over bed: approx. 600 mm • Swing over cross slide: approx. 350 mm • Spindle bore: approx. 80 mm • Speed range: 20–1500 rpm • Threading and feed combinations: see chart on the machine • 2-axis digital readout (DRO) • Quick-change tool post: Multifix (original Swiss type) • Accessories: Steady rest, follow rest, faceplate, tailstock • Optional: 3-jaw chuck available at extra cost The machine will undergo a complete service prior to delivery. Please allow approximately 3–4 weeks from order until the machine is ready for shipment. All specifications and details are provided in good faith but are subject to possible errors or omissions. Nedpfx Adsxn I S Uowocl

Condition: used, Year of construction: 2001, Machining center Johnford VMC 1000 A Control Fanuc Series 18-M Year of manufacture 2001 Ncedpfexmf Ukex Adwel

Condition: good (used), Year of construction: 2007, MACHINE SPECIFICATIONS Brand JOHNFORD MODEL SV-48 CONTROL HEIDENHAIN 530 i TNC TABLE DIMENSIONS 1300X700 TRAVELS X, Y, Z X=1220 Y=710 Z=630 BT TAPER 40 SPINDLE RPM 60-10000 TOOL CHANGER UP TO 24 pcs. CHIP EXTRACTOR YES Nedpfx Aoxqra Ujdwecl YEAR 2007 EXTERNAL MEASUREMENTS 3200 X 3900 X 2490 WEIGHT 9500 KG

Condition: ready for operation (used), Year of construction: 2008, Specifications : Travel X/Y/Z : 4200 x 1300 x 800 mm Table size : 4000 x 1100 mm Distance between columns : 1300 mm Spindle to table min / max : 150 – 950 mm Max table load : 6 000 kg Rapid traverse X/Y/Z : 12 / 15/ 12 m/min Spindle speed : 6 000 RPM Spindle taper : BT 50 Spindle power : 18.5 kw Max tool Ø : 125 mm Opposite pockets empty : 200 mm Max tool length : 400 mm Max tool weight : 15 kg ATC : 24 Options: CNC: FANUC OiMC + manual guide 24 ATC BT50 Swarf conveyor Handwheel Nedpfx Asnacqgjdwocl Through spindle coolant 20 bar

Condition: used, Year of construction: 2008, functionality: fully functional, travel distance X-axis: 2,050 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 800 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 12 m/min, feed rate X-axis: 8 m/min, feed rate Y-axis: 8 m/min, feed rate Z-axis: 8 m/min, table width: 850 mm, table length: 2,200 mm, table load: 4,800 kg, spindle speed (min.): 20,000 rpm, distance table to spindle center: 950 mm, Vertical machining center Johnford VMC 2000, CNC Heidenhain iTNC 530. Equipped with: - Internal cooling 20 bar Nodsxdiigopfx Adwjcl - Workpiece measuring probe - Tool measuring probe - Rigid tapping - Electronic handwheel - 2 longitudinal chip conveyors - Separate tank with filtration unit - Full enclosure
