Used Mini Flat Grinding Machine for sale (98,335)

Condition: good (used), Year of construction: 1991, CNC surface grinding machine, make ELB, type: BRILLANT B8 UNICON with CNC dresser for profile grinding. Grinding mass: lengthwise 800 mm, width 500 mm, height 400 mm Ljdpfx Aajvk Elzj Isru Magnet: 800 mm x 450 mm with paper belt filter and extraction. Complete machine documentation.

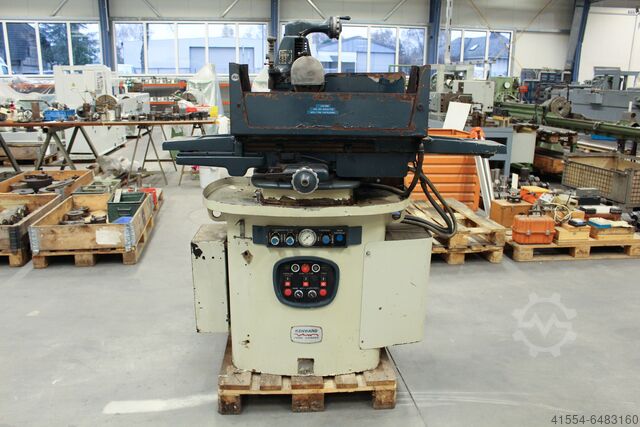

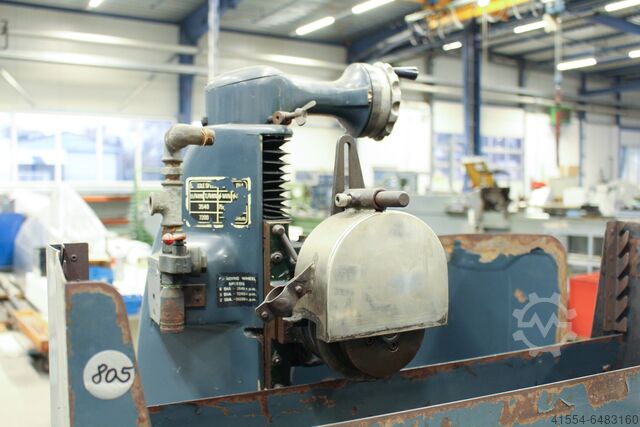

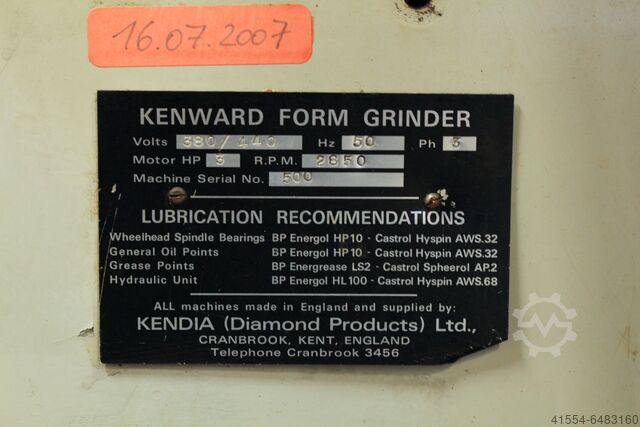

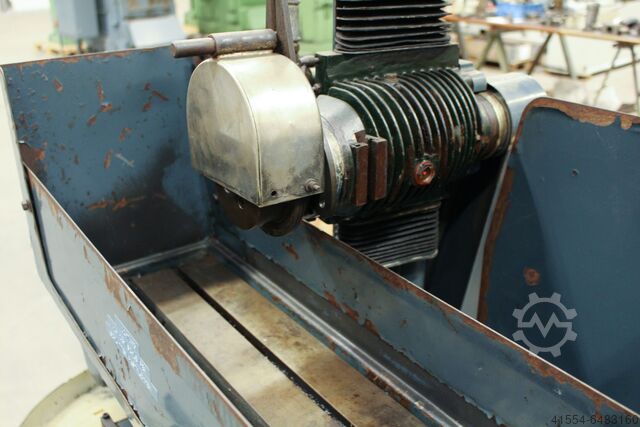

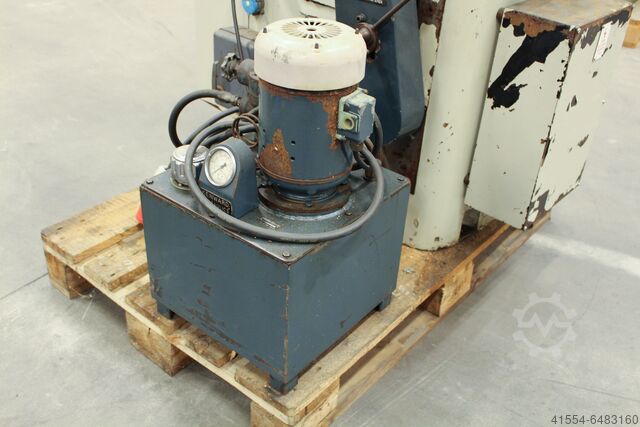

Condition: not inspected (used), Kenward surface grinding machine Offered here is a surface grinding machine from the company Kenward. Technical data: grinding type: horizontal peripheral grinding max. grinding length: 300mm max. grinding width: 100mm grinding wheels: Ø 120mm Ljdpfxshg Nh Es Aa Ijru adjustment Z = 100mm 380 / 440 Volt 50 Hz 2850 rpm

Condition: excellent (used), Year of construction: 2000, grinding length: 1,570 mm, grinding width: 400 mm, total height: 2,300 mm, total length: 4,500 mm, total width: 2,100 mm, workpiece weight (max.): 1,000 kg, grinding height: 460 mm, grinding wheel diameter: 400 mm, table load: 1,000 kg, grinding wheel width: 127 mm, spindle speed (max.): 2,800 rpm, overall weight: 7,900 kg, Filtration system Coolant system Cycle controlled and G-Code Big Stone & Flanches package X - Travel: 1570mm Y - Travel: 400mm Z - Travel: 460mm Table Length: 1200mm Table Width: 500mm Table load: 1000 Lsdpfx Aaevmgaxj Ieru Feed rate X-Axis: 30000mm/min. Feed rate Z-Axis: 10000mm/min. Grinding stone dimensions:400x 127 x 80mm Power: 7.5kW Speeds: 2800rpm Feed rate Y-Axis: 30000mm/min. Length: 4500mm Width: 2100mm Height: 2300mm Weight: 7900kg

Condition: excellent (used), Very good surface grinding machine Table surface / working area 200 x 600 mm Ljdpfx Aajrbzahe Ieru Technical description as attachment in PDF.

Condition: ready for operation (used), Year of construction: 1989, grinding length: 1,500 mm, grinding width: 900 mm, grinding wheel diameter: 500 mm, table length: 1,500 mm, table width: 740 mm, grinding wheel width: 100 mm, CNC Surface Grinding Machine Machine type: Elb Schliff SWDE 012 NPC-K Year of manufacture: 1989 TECHNICAL DATA: Max. grinding length: 1,500 mm Lredpfewzlkqjx Aa Ieu Max. grinding width: 900 mm Max. working height with new grinding wheel: 800 mm Max. working height with worn grinding wheel: 880 mm Max. workpiece weight: 1,000 kg static Max. table load: 1,500 kg/m dynamic Grinding wheel diameter: 500 mm Grinding wheel width: 100 mm Table size: 1,500 x 740 mm Features: Paper band filter Wet grinding unit Electronic dressing device Cross clamping Grinding spindle mounting: Taper 75 Magnetic chuck: 1,500 x 900 No rotary table

Condition: used, Year of construction: 1980, Surface grinding machine Jung automatic feed Lredpsv Icqiofx Aa Ieu Speed continuously adjustable Feed continuously adjustable Electrics defective

Year of construction: 1977, condition: used, Surface grinding machine Fabr.Okamoto Type:PSG - 63 UA Bj.1977 Magnet 600 mm X 300 mm. Grinding dimensions : longitudinal 630 mm transverse: 310 mm height : 350 mm Lodpfxeiz Tmks Aa Isru Ready for use .

Condition: used, Year of construction: 1987, functionality: fully functional, grinding length: 2,000 mm, grinding width: 550 mm, Used surface grinding machine Rosa Ermando Lrjdpfxewxchzo Aa Isu

Condition: good (used), Year of construction: 2011, Manufacturer: RÖSLER Type: MINI 120 Year of manufacture: 2011 Bowl volume 120 liter Out side diameter 910 mm Width processing channel 210 mm Overal channel length 1950 mm Power 0.75 kW Specifications Lodpfxsvt Tl Uo Aa Ijru Metric US Standard There are no specifications (yet) for this machine. Dimensions (estimate) There are no dimensions (yet) for this machine. Please note: The information on this page has been obtained to the best of our knowledge and belief from the manufacturer. The information is given in good faith but accuracy cannot be guaranteed. Accordingly, it will not constitute a representation and contractual terms. We recommend that you check all important details.

Year of construction: 2015, condition: used, - Weight approx. 1600 kg - Dimensions (LxWxH) 1,820x1,820x2550 mm - Tool diameter 914 mm - Working disk diameter 36 inches - 4 stations with 304 mm inner diameter each - PLC control Siemens S7 - Separate control cabinet Lrodpfxjvu Agdj Aa Iju - Tool cooling - Protective cover over linear guides - Station forced drives for conditioning rings - KSS circulation system - 7.5 KW spindle operation - Machine table diameter 1,800 mm - Control cabinet 800x550x2,200 - CE conformity available - Bosch safety concept - Use until decommissioning for honing flat surfaces for injection systems - Machine is ready for operation - Machine is in good condition, constant preventive maintenance - 2 CBN tools (new price of a tool approx. 30,000.00 €)

Condition: new, Year of construction: 2025, functionality: fully functional, grinding length: 1,000 mm, grinding width: 600 mm, total height: 420 mm, total length: 1,000 mm, total width: 500 mm, feed length X-axis: 1,400 mm, feed length Y-axis: 600 mm, feed length Z-axis: 550 mm, workpiece weight (max.): 880 kg, grinding height: 420 mm, feed rate X-axis: 30 m/min, feed rate Y-axis: 2 m/min, feed rate Z-axis: 2 m/min, grinding wheel diameter: 400 mm, distance table to spindle center: 600 mm, table speed: 30,000 mm/min, table length: 1,000 mm, table load: 1,000 kg, type of input current: three-phase, table width: 500 mm, grinding wheel width: 100 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 5 rpm, overall weight: 7,280 kg, grinding spindle motor power: 11,000 W, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 2 m/min, rapid traverse Z-axis: 2 m/min, travel distance X-axis: 1,400 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 550 mm, rotational speed (max.): 3,000 rpm, rotational speed (min.): 5 rpm, warranty duration: 12 months, space requirement height: 2,740 mm, space requirement length: 4,730 mm, space requirement width: 3,020 mm, Equipment: documentation/manual, rotational speed infinitely variable,  Easy-to-use Z-Control control system with high levels of comfort  Automatic vertical infeed with dressing amount compensation  Fully automatic grinding cycle with dressing cycles  Grinding cycles: • Surface grinding • Plunge grinding • Roughing / finishing / sparking  Extremely simple operation via touchscreen  Large, clearly arranged 10.4" color screen  Electronic handwheel, effective on the vertical and transverse axes, switchable in two steps to 0.001 and 0.01 mm  Sturdy cast construction of all machine components  High machine weight for maximum rigidity  Preloaded linear guide system in the vertical and transverse axes (Bosch Rexroth) for outstanding precision  Scraped double-V sliding guides in the X-axis ensure excellent damping properties and high Micrograph Quality  Hydraulic table drive with separate cooling unit to achieve good surface finishes  Electromechanical transverse and vertical movement  Direct measuring system in the vertical axis (Heidenhain) for precise positioning  Rotary pulse generator in the transverse axis  Maintenance-free belt filter system with 500-liter tank capacity and 3.5 bar pressure pump for effective cooling and rinsing  Integrated channel rinsing  Upstream magnetic separator for pre-filtration  Power supply: 400 volts, 3 phases, 50 Hz  Grinding spindle separated from the motor by a coupling, thus no heat buildup  Continuously adjustable grinding spindle motor with constant cutting speed across the entire operating range of the grinding wheel (vconstant)  Roller-bearing mounted grinding spindle guarantees a long service life  2 machine lights in the work area (LED) Lodowax I Hepfx Aa Ijru  Table-mounted dressing device for high accuracy and surface quality with the option of accommodating three diamond dressing tools.  Electro-permanent magnetic chuck with integrated polarity reversal device and holding force adjustment, pole pitch p = 25 mm  Holding force adjustment in 16 steps  Magnetic chuck does not heat up, therefore highly precise  Automatic central lubrication in the x-axis (slideway oil)  Automatic central lubrication in the y + z-axes (grease)  Partially encapsulated machine with sliding door and front-mounted service door;  Effective splash protection with good accessibility  Machine prepared for connection to an emulsion mist extraction system; Connection nozzle  = 200 mm

Condition: excellent (used), A very well-maintained surface grinder, manufactured by G+H, type: FS 40 Primus SA, machine number: 20701189 Magnetic table: 400x200 Magnetic separator and pump for cooling Lrodpfjwc Skmex Aa Iju

Condition: used, Year of construction: 1991, functionality: fully functional, machine/vehicle number: 4653, grinding length: 4,500 mm, grinding width: 400 mm, total height: 2,700 mm, total length: 10,000 mm, total width: 1,800 mm, grinding height: 255 mm, grinding spindle motor power: 55,000 W, input voltage: 380 V, fabrication no.: 4653/91 - operating voltage: 380 V - frequency: 50 Hz - nominal current: 165 A - Max. grinding length: 4500 mm - Max. grinding width: 400 mm - Max. working height: 255 mm - with fixed magnets - clamping surface length: 4500 mm - clamping width: 400 mm Lsdpfx Aaer Izqce Ioru - height over floor: min./max. 787 mm - grinding spindle segments: 90 x 35 x 200 mm - segment head: 560 mm diameter - spindle diameter at front bearing: 170 mm - feed rate of grinding spindle: 30000 mm/min - the machine consists of 3 clamping magnets - magnet dimensions: 1500 x 400 mm Technical attributes dimensions (l x w x h) approx. 10000 x 1800 x 2700 mm weight approx. 17500 kg year of construction 1991

Year of construction: 1994, condition: good (used), Ziersch & Baltrusch surface grinding machine - with Formmaster 6 / 30 - with belt filter unit - with coolant unit - width: 250 cm - depth: 200 cm - height: 220 cm Good condition fully functional can be viewed and tried on site. Shipping also abroad. Viewing : Basically, I would like to point out that to avoid misunderstandings, the item is welcome to be inspected and tested under power before purchase. Please ask questions before buying to avoid ambiguity. For general questions or to make an appointment for a viewing, I am, at the phone number below or above, always available. Errors in the description and subject to prior sale. VAT is shown separately on my invoices. Lodpfx Aok Ixl Asa Ioru Shipping with forwarding agent.

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, grinding length: 800 mm, grinding width: 600 mm, grinding height: 400 mm, grinding wheel diameter: 400 mm, table load: 1,050 kg, grinding wheel width: 100 mm, overall weight: 6,100 kg, ELB Perfekt BD 8 SPS, built in 1998, grinding area 800 x 600 mm, grinding wheel 400 x 100 mm, 10 KW spindle power, speed control on the grinding spindle, automatic grinding cycle, roughing, finishing, sparking, lifting, dresser mounted on headstock with compensation, we are currently overhauling the machine, after which the machine will have the geometry of a new machine and will be ready for use immediately. Accessories: Electro-permanent magnetic clamping plate 800 x 600 mm, water tank with automatic paper filter, all functions have been tested and the machine can be demonstrated with power in our company shortly. We are also happy to take care of installation and training on site, as well as service in the future. Financing/leasing, no problem, we would be happy to make you an offer! Lrsdpfx Aajrpz Evo Iou

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 66586, grinding length: 650 mm, grinding width: 323 mm, grinding height: 450 mm, table length: 600 mm, table load: 420 kg, table width: 400 mm, TECHNICAL DETAILS X-axis: 600 mm Z-axis: 450 mm Y-axis: 323 mm Magnetic clamping plate Type: Electro-permanent magnetic clamping plate Size: 600 x 400 mm Table load: 420 kg Area of application: High-precision machining Features: Electronic demagnetization and holding force coding Pole pitch: 18 mm (transverse parallel pole) Air hole set: 2 x 3 holes, central locking device Dressing system Type: Hydraulic straight dresser Automatic: Automatic dressing with compensation of the dressing amount, grinding wheel wear, intermediate dressing and grinding head reset MACHINE DETAILS Installation dimensions: 4,350 x 3,700 x 2,300 mm Machine dimensions: 3,425 x 2,263 mm Weight: 3,200 kg Connection power: 9.5 kVA EQUIPMENT - Microcomputer control group for magnetic clamping plate - Electro-permanent magnetic clamping plate (600 x 400 mm) with demagnetization and holding force coding - Belt filter machine SBF 30 Ljdovw Su Ajpfx Aa Ieru Complete with 150 l tank, pump, supply lines, fittings and 1 roll of filter fleece - Replacement disk flange (Ø 127 mm). - Automatic dressing with hydraulic dresser

Condition: new, Bernardo surface grinding machine BSG 2040 PLC Technical specifications Table clamping surface 200 x 500 mm T-slots number / width 1 / 14 mm Electro-magnetic clamping plate 200 x 460 mm Lrjdpogd Ia Ssfx Aa Isu Max. Travel, longitudinal 560 mm Max. travel travel, crosswise 240 mm Distance spindle center / table max. 450 mm Max. workpiece weight workpiece weight* 180 kg Grinding wheel 200 x 20 x 31,75 mm Table speed, hydraulic 7 - 25 m/min Cross adjustment Automatic feed, transverse 0.1 - 8 mm / stroke Rapid feed, cross 990 mm/min Cross feed per handwheel rotation 4 mm/rev. Graduation on handwheel 0.02 mm Vertical infeed Automatic feed, vertical 0.005 / 0.01 / 0.02 / 0.03 / 0.04 / 0.05 mm Rapid feed, vertical 480 mm/min Vertical infeed per handwheel revolution 2 mm/rev. Scale division on handwheel 0.005 mm Grinding spindle motor 2.2 kW Spindle speed 2850 rpm Hydraulic pump motor 0,75 kW Vertical feed motor 0,5 kW Length 2160 mm depth 1650 mm height 1840 mm Weight approx. 1640 kg * with magnetic clamping plate Scope of delivery - 2-axis digital display ES-12 H with LCD display - Siemens SMART panel IE V3 with touch operation - Electronic handwheel - grinding wheel - Wheel flange - LED work light - Magnetic clamping plate - Balancing stand - Balancing shaft Protective covers - Parallel puller - Demagnetizing device - Coolant device - Extraction diamond - Machine shoes - Central lubrication - operating tool

Condition: good (used), Year of construction: 2019, operating hours: 270 h, functionality: fully functional, grinding length: 600 mm, grinding width: 400 mm, total height: 88 mm, total length: 600 mm, input voltage: 360 V, well-preserved electro-permanent magnet clamping plate from Wagner incl. cable without control unit pole pitch 13mm Lrjdpfx Ajwp D I Dsa Isu

Condition: good (used), Year of construction: 1991, functionality: fully functional, machine/vehicle number: C4655, grinding length: 5,000 mm, grinding width: 500 mm, Sanding length: 5000 mm Ledpjq U Ihvofx Aa Ioru Sanding width: 500 mm Workpiece height: 250 mm spindle diameter in front bearing: 190.5 mm pivotable 0.7° Max. Torque: 1771 Nm Max. speed: 593 min/-1 Feed: infinitely variable 20-35,000 mm/min Trapezoidal segment head diameter 800 mm with Trapezsegmenten: 94/103x38x200mm Marposs measuring device Hydraulic upper part clamping and swiveling Sanding mist extraction system: Hydrocyclone cleaning system Machine weight approx. 27.6 tons Space requirement approx.: 11.2 x 4.3 x 3 m

Condition: used, Year of construction: 1974, Elb SW9 VAI Surface Grinding Machine – Built in 1974 – Used Ledpov Ti Hujfx Aa Ioru For sale is a used surface grinding machine from the renowned manufacturer Elb, model SW9 VAI, built in 1974. The machine impresses with its robust construction and is ideal for precise grinding of metal and workpiece surfaces. Technical Specifications: Manufacturer: Elb Model: SW9 VAI Year of Manufacture: 1974 Area of Application: Precision grinding for metalworking Equipment: Wagner Magnet Type SD35/90 Special Features: Solid construction – Durable and reliable Precise grinding results – Suitable for industrial applications With Wagner Magnet SD35/90 – Optimal workpiece fixation

Condition: good (used), FCR Athena flatgrinding machine offered. Type: PB Magnetbed: 150 x 250 mm Lsdpfx Aaehvmrij Isru Speed: 2860 RPM Engine power: 2,5 HP Included coolant pump Dimensions: 80x72x174 cm LxWxH For more information call us or send an e-mail.

Condition: used, Year of construction: 1990, functionality: fully functional, machine/vehicle number: C4652, grinding length: 5,100 mm, grinding width: 250 mm, overall weight: 9,100 kg, space requirement height: 2,300 mm, space requirement length: 9,000 mm, space requirement width: 4,000 mm, Reform AR 51 Type 7 Surface grinding machine Year of manufacture: 1990 Grinding length: 5100mm Grinding width: 250mm Workpiece height: 220mm Total power requirement: 36kW Used water system Lifting station, magnetic roller, pump Ljdpfx Aaetqtk As Ieru

Condition: good (used), Jung surface grinding machine X-path: 740 mm Bed: 725 x 170 mm Magnetic bed: 460 x 155 mm Lrodpeq H Ap Tefx Aa Ieu Dimensions: 162x130x190 cm LxWxH

Condition: used, Year of construction: 1991, functionality: fully functional, machine/vehicle number: C4656, grinding length: 4,100 mm, grinding width: 200 mm, Reform AR41 Type 7 C4656/91 Year of manufacture: 1991 Grinding length: 4100mm Grinding width: 200mm Workpiece height: 190mm Table clamping area: 4169x202mm Segment head diameter: 250mm Spindle diameter in the front. Bearing: 45mm Swivelling: 2° Max. torque: 2x45.8Nm 2x grinding motor 7.5kW Feed: 2000-35000 mm/min Max. speed: 1460 min/-1 Ljdpfxjtqtppe Aa Ioru Total power requirement: 30 kW Heidenhain digital display Additional grinding device ZS 7.5kW Swivelling clamping table via swivel gear Paper belt filter cleaning including pumps Central lubrication system Machine weight approx. 8.2t Space requirement approx. 9.5x2.6x2m

Condition: good (used), Flat grinding machine Jung Lredpfx Aaek N D Urj Iou X-travel: 740 mm Bed: 725 x 170 mm Magnet bed: 460 x 155 mm Dimensions: 162x130x190 cm LxWxH
