Used Welding Boom for sale (7,793)

Condition: new, Year of construction: 2023, OKIO 2000W Automatic 4-Axis Fiber Laser Welding Machine Power: 2 kW Country of Origin: China Number of Axes: 4 Travel in X-axis: 500 mm Travel in Y-axis: 300 mm Travel in Z-axis: 300 mm Worktable Dimensions: 350 mm × 450 mm Travel Speeds: Y-axis: 10 m/min X-axis: 10 m/min Z-axis: 5 m/min Positioning Accuracy: ±0.02 mm Ledpfxjpq Nzae Afaohc 4th Axis: Positioner Rotational Positioning Accuracy: ≤0.05 mm Power Supply: 220 V/380 V Power Requirement: 7.5 kW Machine Dimensions: 500×1400×1900 mm Weight: 280 kg Chiller Welding Source: MAX Mounting Plate, Welding Head Visual CCD Monitoring System – uses a high-resolution camera and monitor to improve welding efficiency and quality The automatic OKIO laser welding machine enables welding of metal components in straight lines, circles, and any arbitrary paths, such as those found in mobile phone housings, mobile phone batteries, sensors, medical devices, and other industries. Laser welding machines use high-energy pulsed lasers to weld objects. High energy and high laser pulse density ensure smooth welds, a narrow weld seam, and a small heat-affected zone.

Condition: new, Year of construction: 2023, arm reach: 1,400 mm, load capacity: 6 kg, New welding robot TIG OKIO AB6-C1400 -Country of origin: China -Type: AB6-C1400 -Number of axes: 6 -Reach: 1400 mm -Maximum payload: 6 kg -Control cabinet -Remote control -Wire feeder Lhjdpfx Afsqnt N Djajc -Welding source: TIG WSM400R -Cooler

Condition: excellent (used), Year of construction: 2001, 2-station cell with ABB IRB 1400 welding robot (Under Storm) Year of production: 2001 Maximum reach: 1440 mm Maximum load capacity: 5 kg Welding source: KEMPPI 520 R Power of the welding machine: 520 A Lodpfsgb Dx Aox Afajhc Price: ̶1̶6̶ ̶0̶0̶0̶0̶ € - 25% - 12 000 €

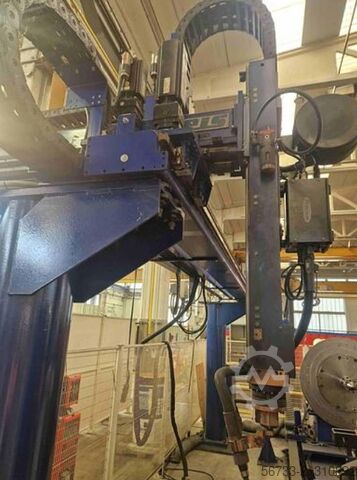

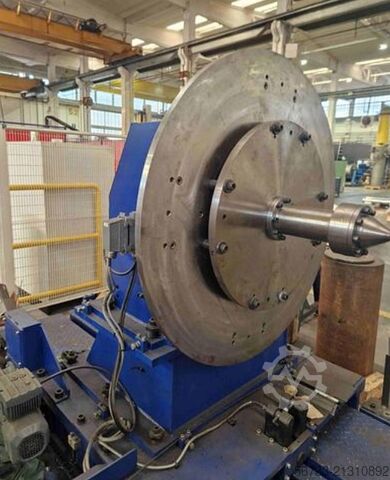

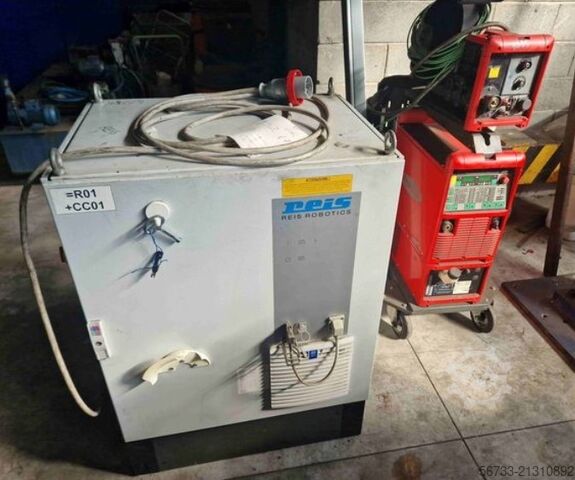

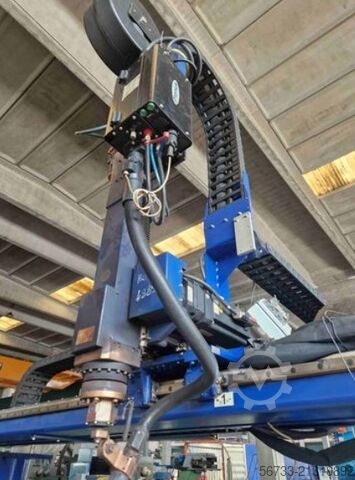

Condition: excellent (used), Year of construction: 2015, Technical specifications: Welding robot with 3 axes Number of axes: 3 Travel range: Longitudinal travel: 4,200 mm Lhodsymnqpepfx Afaoc Transverse travel: 1,200 mm Vertical travel: 1,000 mm Rotary head with motorised tailstock Centre height: 980 mm Centre distance: 4,500 mm Carrying capacity of 1 rotary device: 3,000 kg Power source: FRONIUS Transpuls Synergic 5000 MIG/MAG Welding torch cleaning station: ABICOR BINZEL The seller assumes no liability for typing or data transmission errors. The machine's appearance, technical condition, and wear correspond to its age; used machines are sold without any guarantee or warranty.

Condition: used, Technical details: number of controlled axis: 6 workpiece weight: 20 t Ljdou Nwfbepfx Afashc operating time: 4290 h control: YASKAWA total power requirement: 35 kVA Total weight, approx.: 2000 kg dimensions L x W x H: Roboterschweißanlage: 2,7 x 1,1 x 2,0 m dimensions electric cabinet: L:700 x B:800 x H:2000 mm Robot specifications: -6 different directions of movement -payload max. 20kg -working curves: turning curve=1717mm, turning height=1417mm; turning width=2072mm -rotation axis arm: S-axis rotate=+/-180°, L-axis lower arm=+1550° / -110°; U-axis upper arm=+255° / -165° -rotational axes wrist: R-axis roll=+/-200°, B-axis pitch-swivel=+230° / -50°, T-axis rotate=+/-360° -rotational axis speed: S-axis and L-axis = 170°/s; U-axis 175°/s; R-axis and B-axis 355°/s; T-axis 525°/s -permissible torques: R-axis and B-axis=39.2 Nm; T-axis 19.6 Nm Welding equipment specifications: -Fronius, TIG welding, (DC and AC), 3 A/10.1 V - 300 A/22.0 V, water cooling, IP23 protection class. Table top unit specifications: -Table support Ø 600mm, rotate 360°, swivel 90° each right/left. Details of the wire feeder: -Fronius, type KD 7000, feed 0,2 - 22m/min., protection IP23, voltage U1 230V Manual control unit Control cabinet i.D. *

Condition: used, Year of construction: 2006, Technical details: table load: 2,2 t table diameter: 2500 mm Total power requirement: 9,6 kW max. table load: 22.000 daN / 2200kg table rotating: links/rechts Grad table - inclinable: 0 - 120 Grad table height: 1700 mm machine weight approx.: 12000 kg connected load: ca. 5,0 kVA dimensions LxWxH: ca. 4,5 x 2,5 x 2,3 m Welding positioning turn-tilt table developed and manufactured by Müller Opladen ARC KON EWeding GmbH. Machine frame solid, welded steel construction with ball-bearing tilting device Table with centering grooves and T-slots for M24 according to DIN 650. Lsdpfx Aeu Nkx Iofaehc Infinitely variable rotary drive from 0.05 - 1.0 rpm. Height to center of swivel axis 1700 mm hydr. tilt adjustment, infinitely variable from 0 - 120° Drive is designed for a torque of approx. 40,000 Nm at the turntable Accessories: 1x 2-row foot switch 1x remote control 1x working platform *

Condition: used, Year of construction: 2013, Technical details: weight of the machine approx.: 300 kg electrics - voltage/frequency: 400 / 50 bei 3~ V/Hz power consumption: 750 Watt dimensions L x W x H: 1,5 x 0,8 x 2,6 m Mobile compact filter unit with extraction arm. (Welding fume extraction and fume filtration). Range of application: Ljdou Nv Afspfx Afaehc MIG/MAG solid wire; various fume and dust applications. incl. extraction nozzle manufacturer Lincoln, type LFA 4.1 CPL BJ 2013; tube Ø 200mm; suction Ø 280mm; total length=3900mm; the head is equipped with illumination via light switch, manual rotary head for locking flap, on/off switch gas temperature 40°C / 100°F Suction capacity approx. 2000m³ mobile over 4 wheels, front braked *

Condition: used, Year of construction: 2002, Technical details: x-travel: 1500 mm z-travel: 1300 mm control: YASNAC XRC Steuerung total power requirement: 3,3 kVA Total weight, approx.: 3.200 kg Welding robot plant consists of: -welding rectifier MESSER, type Phoenix 500TG; MIG-MAG / TIG and E-welding up to 500A; air cooling; protection class IP 23 -Wire feed EWM, type Phoenix Drive 4 ROB WE, wire Ø 1,0 - 1,2mm, feed 0,5 - 24 m/min., protection IP 23 -MIG/MAG gas shielded welding torch BINZEL for wire Ø 0,8 - 1,6mm -Robot ERCS UP6-RE00 with control YASNAC XRC control, travels Y-way=1.500mm and Z-way=1.300mm, circular movement swivel=approx. 90° right/left, swivel radius=1.000mm, turn 360°, welding gun rotate 360° with projection max/min: 1.500 / 500mm -1x control cabinet L:900 x W:900 x H:2500mm -1x control cabinet ERCS-UP6-RE00, control 4.0 XRC, L:610 x W:800 x H:900mm -1x welding table L:4.400 x W:550 x H:1.100mm, with compressed air connection 10 bar, working area LxW 1.200 x 340mm, X-way 3.250mm. furthermore: 1x straightening station DETEC manufacturing (with working table and straightening unit) 1x butt welding station with feeding table i.D. Lhedsu R Dfkepfx Afajc *

Condition: used, Technical details: current capacity: 100 kVA throat: 600 mm arm distance: 600 mm control: Bosch Programmier-Feldbusse pincer opening adjustable: 240 - 540 interface: RS 485 voltage: 500 V connection voltage: 380 V Lhodpou Nv Eaofx Afaoc air pressure: 6 bar cooling water consumption: 14 l/min weight of the machine approx.: 770 kg space requirements of the machine approx.: 1,5 x 0,95 x 2,1 m SPOT WELDING MACHINE - WELDING TRANSFORMER Application: Spot, projection and series spot welding 1 - 1000 Hz Lifting cylinder electrode force 11 daN PSI 6000 medium frequency inverter with integrated control function (50/60 Hz AC mains voltage) Electrode arm Ø 35mm Electrode holder adjustment 200mm (manual) Arm distance min. 240mm max.: 540mm Manual adjustment Operation via Rexroth IntraControl VCP05 control panel and foot switch incl. replacement electrodes (water-cooled) external Rittal water recooling unit SK3320.609 *

Condition: used, Year of construction: 2004, Technical details: Ledpfx Aeu Nkxuefaehc table length: 4000 mm table width: 2000 mm Max. sheet thickness: 100 mm table height over floor: ca. 860 mm total wight: 5,6 + 0,5 t dimensions LxWxH: 4,0 x 2,2 x 0,1 m Welding table / Pricing 0.50 EUR/kg with substructure and 6 base stands *

Condition: excellent (used), Year of construction: 2019, 2-axis positioner - BEAR RT series Robot - Kawasaki BA006L from the year 2019 Power source - Fronius TPS 400i from the year 2019 Robot and positioner in very good technical and visual condition - as shown in the photos. In continuous operation. Lhjdpemu Agpofx Afaoc

Year of construction: 2023, condition: new, Welding positioner Positioner powered by three-phase current Rotation of table and arm by means of hydraulic swivels Controlling functions on the positioner housing Useful in positioning parts for: -welding -cleaning -assembly Increase productivity up to 40% Ledpehtq R Asfx Afaehc Advantages and benefits: For the employer: -increase labor productivity by up to 40% through optimal positioning of workpieces - resulting in a short depreciation time for the machine -increased production efficiency does not require additional space on the shop floor -improved quality of welded joints - always possible to weld in a comfortable position -solid construction of the device ensures long-term, trouble-free operation For the operator: -providing ergonomic posture for the working person -minimizing the risk of accidents -no changes in the fixing of objects -no interruptions in work caused by waiting for the crane easy installation and operation It is possible to fully automate welding by using Kawasaki welding robots. We also offer positioners with robot and integrated control system. ADDITIONAL OPTIONS: REMOTE CONTROL WITH CABLE TO OPERATE THE POSITIONER PEDAL WITH CABLE FOR OPERATING THE TABLE ROTATION STEPLESS ADJUSTMENT OF THE SPEED OF TABLE ROTATION AND ARM ROTATION FUNCTION OF CONSTANT TABLE ROTATION SIZE AND SHAPE OF THE TABLE ROTATIONAL MASS We can make the positioner according to the customer's individual guidelines.

Year of construction: 2023, condition: new, Positioner powered by three-phase current Rotation of table and arm by means of hydraulic swivels Height adjustment of the arm by means of a hydraulic cylinder Controlling functions on the positioner housing Useful in positioning parts in: welding cleaning assembly Increasing work efficiency up to 40% The use of unlimited rotation in 2 axes and, in addition, vertical and horizontal movement, allows any positioning of the attached workpiece (also "overhead"). The 3-axis positioner provides a significant improvement in work culture compared to traditional pan/tilt positioners (optimal positioning of the workpiece, easy operation). Advantages and benefits: For the employer: increased labor productivity by up to 40% through optimum positioning of workpieces - resulting in short amortization time of the device increased production efficiency does not require additional space on the shop floor better quality of welded joints - always possible to weld in the sub-lower position robust design of the device ensures long-term, trouble-free operation For the operator: ensuring ergonomic posture for the working person minimizing the risk of accidents - no changes in the fixing of objects no interruptions in work caused by waiting for the crane easy installation and operation It is possible to fully automate welding by using Kawasaki welding robots. We also offer positioners with a robot and integrated control system. ADDITIONAL OPTIONS: REMOTE CONTROL WITH CABLE TO OPERATE THE POSITIONER Lhodpfx Afjhzuv Hjaec PEDAL WITH CABLE FOR OPERATING THE TABLE ROTATION STEPLESS ADJUSTMENT OF THE SPEED OF TABLE ROTATION AND ARM ROTATION FUNCTION OF CONSTANT TABLE ROTATION LENGTH AND SHAPE OF THE ARM SIZE AND SHAPE OF THE TABLE ROTATIONAL MASS We can make the positioner according to the customer's individual guidelines.

Condition: good (used), Year of construction: 2014, mast type: telescopic, fuel type: hybrid, Drivetrain Drive: Track Weights Empty weight: 4.300 kg Functional Lifting capacity: 200 kg Working height: 3.000 cm CE mark: yes Maintenance, history and condition Ledpfx Aeyl Hudefajhc Number of owners: 1 Technical condition: good Visual appearance: good Other information TÜV Marked: yes Remanufactured: Yes Max. horizontal reach: 1570 m Transport dimensions (LxWxH): 7,2/1,58/1,98 Additional information Please contact Tobias Mayr for more information

Condition: good (used), Messer Griesheim welding machine Unitig GW 300 with torch earth cable direct alternating current Ljdpfxougv S Ss Afaehc

Condition: good (used), Year of construction: 1991, Welding fume filter, Tebaron, TE 1200 – used - : Price ex location: €650 (net) Ljdjyhxl Repfx Afaohc Manufacturer: ISI Industrie-Produkte GmbH Model: TE 1200 Year of manufacture: 1991 380V, 1.1kW, 2.6A, IP54 Condition: good Availability: immediately Location: Waltrop

Condition: like new (used), Year of construction: 2026, operating hours: 12 h, functionality: fully functional, machine/vehicle number: EQWCR/SR, arm reach: 1,434 mm, type of input current: AC, overall weight: 12 kg, input voltage: 48 V, Robotic Welding Solutions, Automatic welding solutions. Product Overview: EQ Series High-Performance Collaborative Robots This series features four primary models rebranded for precision and industrial excellence: the EQCR-7, EQCR-12, EQSR-3, and EQSR-4. These 6-axis collaborative robots are engineered to handle various industrial tasks with high repeatability and advanced safety features. Key Specifications & Performance The robots are categorized by their payload capacity and working radius: Payload & Reach: * EQCR-12: The heavy-duty model with a 12kg payload and 1434mm reach.EQCR-7: A balanced model with a 7kg payload and 988mm reach.EQSR-4: A versatile option with a 5kg payload and 919mm reach.EQSR-3: A compact solution with a 3kg payload and 705mm reach. Precision: These models offer exceptional repeatability, with the EQCR-7 achieving $\pm$0.02 mm and the other models at $\pm$0.03 mm. Sensing: Equipped with integrated force/torque sensing (x-y-z) at the tool flange for delicate and precise operations. Movement and Speed Lodpfxovl Ewme Afaehc Degrees of Freedom: 6 axes. Joint Range: Most axes offer a full $\pm$360° rotation, providing maximum flexibility in tight spaces. TCP Speed: Maximum tool-end speeds range from 1.5m/s (EQSR-3) up to 3.2m/s (EQCR-7).Physical & Environmental Ratings Protection Level: The EQCR series boasts an IP67 rating (dust-tight and water-resistant), while the EQSR series is rated at IP54.Cleanroom Standard: All models are compliant with ISO Class 5 cleanroom environments. Operating Conditions: Designed to work in temperatures from 0°C to 50°C with up to 93% relative humidity. Control Cabinet The series is supported by the MCC control cabinet, featuring: Safety Standards: Certified to EN ISO 13849-1 (PL d, Cat. 3) with 21 integrated safety functions. Connectivity: Supports RS232, RS485, Gigabit Ethernet, USB 3.0, HDMI, and EtherCAT. User Interface: Supports "Drag-to-Teach" programming and a graphical user interface for easy deployment.

Condition: good (used), Year of construction: 2015, functionality: fully functional, overall weight: 770 kg, total width: 1,870 mm, total length: 1,420 mm, total height: 2,110 mm, volume flow: 8,000 m³/h, filter area: 80 m², suction capacity: 8,000 m³/h, power: 7.5 kW (10.20 HP), Equipment: type plate available, Extraction capacity: 8.000 m3/h. Filtering and collecting: - Welding smoke - Cutting smoke - Dust Filter surface: 8 Filter each 10 m2 = 80 m2 Filtermaterial: KemTex ePTFE membrane Lhodpsyh Hnmefx Afaec Filterdegree: > 99,99% Featured with: - Spare new filters - Machine manuals Country of origin: Germany Motor power: 7,5 kW Machine size LxBxH: 142 x 187 x 211 cm Machine weight: 770 kg

Condition: new, Year of construction: 2026, Top quality made from high-strength structural steel Q355, including plasma nitriding and calibration. 3D perforated table 4000 x 2000 x 200mm, 100mm grid, plate thickness 20mm, hole diameter 28mm. Surface finish machined, very robust, weight approx. 2400 kg. With table base, adjustable in 8 positions. Price excludes accessory set, surcharge €500. Packed in a wooden crate, shipping on request. The stated price refers to the table in standard version without plasma nitriding (last 4 pictures). Price for high-strength steel Q355, stainless and impact-resistant including plasma nitriding: surcharge €1800 (as shown). Ledjyg Ex Dspfx Afaohc

Condition: used, Year of construction: 2014, total width: 2,500 mm, total length: 5,000 mm, total height: 2,500 mm, Empty weight: 2.500 kg Price: On request Filter-area: 228m2 Capacity: 15.000 m3/h - Year: 2014 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 22653 - Control type: Herding MP 12 - Control: CNC - Motor power: 55.0kW - Transport dimensions: 5000mm x 2500mm x 2500mm (l x w x h) - Transport weight [kg]: 2500kg - Transport packages [pcs.]: 6 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Lhsdswrr Htjpfx Afaoc Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Year of construction: 2002, functionality: unexamined, SAW Welding System (Submerged Arc Welding/SAW) with Process Controller A2–A6 and ESAB LAF 635 DC Year of manufacture: 2000 Condition: good, operational (from educational institution) For sale is a powerful submerged arc welding system (SAW) consisting of an ESAB DC power source LAF 635 and A2–A6 Process Controller (depending on version, PEH/PEK system). The system originates from an educational institution and was primarily used for training purposes – typically well maintained and regularly inspected. Ideal for automated/mechanized submerged arc welding, e.g., in steel construction, tank manufacturing, pipe/profile fabrication, cladding (depending on welding head/tractor/gantry – if available). Technical Data – ESAB LAF 635 DC (Power Source) Type: remotely controllable 3-phase DC welding power source for SAW and mechanized MIG/MAG Mains connection: 400/415 V, 3~ 50 Hz (alternatively 440 V, 3~ 60 Hz) Duty cycle: 630 A / 44 V at 100% Adjustment range: 75 A / 18 V up to 800 A / 44 V (46 V) Open-circuit voltage: 54 V Idle power consumption: 150 W Efficiency: 0.84 Power factor (cos φ): 0.90 Protection class: IP23 Weight: approx. 260 kg Dimensions (L × W × H): 652 × 483 × 800 mm (or 652 × 483 × 916 mm incl. base) Fusing/Mains data (reference value as per manual): e.g., 63 A slow-blow, supply line 4 × 16 mm², mains current at 100% load 52 A (at 400/415/440 V) Technical Data – A2–A6 Process Controller (PEH / A2–A6) The A2–A6 Process Controller is used for process control/regulation of the mechanized welding system and is designed for SAW welding. Rated voltage (supplied via power source): 42 V AC, 50/60 Hz Rated power: max. 900 VA Motor connections: for ESAB A2 or A6 motors Motor current: 5 A continuous, max. 10 A Wire feed control: internal EMF control or with AC tachometer (6 pulses/rev) Condition & Origin Good, well-maintained condition (training/educational environment) System is fundamentally designed for industrial use (mechanized SAW / MIG/MAG) ESAB LAF 635 DC Power Source A2–A6 Process Controller (operation/control unit) Ledpfx Aex Ru Tgsfajhc

Condition: good (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: T02172, Manufacturer: THERMATOOL Model: HF WELDER CFI 350 kW VF Year: 2014 Lodpfeyid T Njx Afaohc Condition: Used Stock Number: T02172 Output power: 350 kW Welding frequency: 150 - 250 KHz Input Voltage: 400 VAC / 50 Hz Total installed power: 525 kVA

Condition: good (used), fuel type: diesel, color: yellow, Year of construction: 2007, operating hours: 10,105 h, Equipment: air conditioning, Technical information Track width: 75 cm Empty weight: 47.870 kg Make of engine: C9 Functional CE mark: yes Condition Technical condition: good Visual appearance: good Identification Serial number: CAT0330DATHJ00297 Other information Emission level: Stage IIIA / Tier III Delivery terms: EXW Transport dimensions (LxWxH): 33000,297 Production country: BE Lsdsx Scg Dopfx Afaehc Additional information Please contact Jeroen Heindryckx, Bart Apers or Matthias Eyckmans for more information Comes with GP short boom Dimensions GP Boom with Chassis: 9000mm x 2400mm x 2800mm total weight: 8tons 21M Demolition Boom on excavator

Condition: used, Year of construction: 2019, operating hours: 1,350 h, functionality: fully functional, empty load weight: 16,650 kg, fuel type: diesel, lifting height: 27,730 mm, drive type: Diesel, construction width: 2,480 mm, Articulating boom lift Technical condition: very good Front tyres type: solid rubber Front tyres condition: 80–100% Rear tyres type: solid rubber Rear tyres condition: 80–100% Battery condition: 80–100% Lhedsvgh S Nopfx Afasc CE certificate, Gradeability: 40% Travel speed – transport mode: 4.50 km/h Travel speed – work mode: 0.80 km/h Permissible tilt in work mode: 4° Hydraulic pressure: 400 bar

Condition: used, Year of construction: 2021, operating hours: 895 h, functionality: fully functional, empty load weight: 6,118 kg, fuel type: diesel, lifting height: 14,020 mm, drive type: Diesel, construction width: 2,320 mm, Articulated boom lift Lhjdpjvgh Tgjfx Afaoc Technical condition: good Front tyre size: 937 x 298 Front tyre condition: 60 - 80% Rear tyre size: 937 x 298 Rear tyre condition: 60 - 80% CE certificate,
