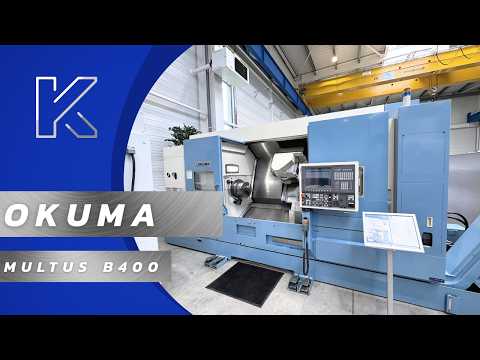

Turn mill center OKUMA Multus B400

OKUMA Multus B400

Condition: good (used), Year of construction: 2007, functionality: fully functional, turning length: 1,500 mm, turning diameter: 710 mm, Used Okuma Multus B400W Max. turning diameter Ø 710 mm Turning length 1500 mm Kuka robot 140 kg without handling attachment 2 spindles, 7 axes, loading conveyor - loading station - unloading station - 950 mm swing 12+15" chuck Godpfxeyrf T Ss Anzobn 70 bar high-pressure pump

Year of construction: 2013, operating hours: 84,545 h, condition: ready for operation (used), General Data Machine weight 17500 kg Main Drive Punching force 220 kN Gbjdsx D Nwwjpfx Anzon This TRUMPF TRUPUNCH 5000 S10 was manufactured in 2013. It features a Siemens Sinumerik 840D control system, a working area of 3050x1550 mm, and a punching press of 220 kN. Capable of handling sheet weights up to 280 kg and thicknesses up to 8 mm, it includes a Linear ATC for 21 tools and additional options like MULTITOOL and ENGRAVING. Regularly maintained and in good condition. Contact us for more information about this machine. Application Types Punching

Condition: good (used), Year of construction: 2008, - Max. turning diameter over bed: 700 mm - Turning length: 1,500 mm Main spindle: - Speed range: 2,800 rpm - Enlarged main spindle: Ø 150 mm, bore: 110 mm - Drive power: 30 kW, 900 Nm - Spindle nose: Size 11 Total power requirement: 59.5 kVA Approx. machine weight: 14.5 t Space requirement approx.: 6.4 x 3.0 x 2.6 m EQUIPMENT: - 3-jaw chuck, SMW KNCS-N 400 K11 - Tailstock - Programmable CNC steady rest slide (cross slide NOT retractable) - SMW-AUTOBLOK SLU-3, self-centering steady rest, clamping range Ø 12 - 152 mm - Full clamping cylinder for partial hollow clamping, draw tube bore max. Ø 100 mm - In-process measuring system Renishaw for X-/Z-/C-axis - Programmable CNC tailstock on W-axis - Drilling/milling spindle and C-axis 0.001° - Tool changer: 80 positions Tool system: HSK-A63 - Y-axis travel +115/-115 = 230 mm - B-axis 225°, positioning in 0.001° increments - ICS / internal coolant supply for driven tools - Synchronized thread cutting with driven tools - Software for use of multifunctional tools, e.g. special tool with radially arranged indexable inserts, which can be positioned in the drilling/milling spindle at 60°, 90°, 120° and 180° positions Gbodpfx Asxmirgenzjn - Software for gear hobbing for straight and helical gearing with speed synchronization of main and milling spindles - Electrostatic extraction unit - Chip conveyor - Documentation - CE marking

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Dear Sir or Madam the details of the Okuma Multus B400 with main and counter spindle tool magazine HSK 63 with 80 places 1500mm turning length main spindle passage 100mm CNC turning/milling center with CNC control OKUMA OSP P200L Enlarged main spindle Ø110mm Ø150/110mm, spindle nose size 11 Speed range 38-2800 1/min. Counter spindle as W-axis incl. hollow clamping device with Ø70mm bore in the draw tube helical interpolation also for thread milling Tool height correction in Y-axis for turning tools Extension kit "M "OSP P200L (Kit One-Touch IGF-M-D) Software multifunction tool for the use of special tools 80-station tool changer instead of 20 stations C-axis synchronization software for simultaneous control of both C-axes Increased speed 10,000 rpm for driven tools 20/14 kW, max. 85 Nm Gbedetdg Evspfx Anzsn Interlit ISF 540/6670 slat-band chip conveyor with integrated coolant tank Interlit SPB4 gravity belt filter with 900 L clean tank Supply pump TH 90/690 FSI frequency-controlled pump for gravity belt filter SPB 4 Manual rinsing gun for attachment to additional coolant tank SPB4 SMW VNK 250/110 Power clamping cylinder for hollow sp. m. Bore Ø 110.5 mm Chuck Rota THW Plus 315-104 A11 Cylinder SMW VNK 250/110 2-stage clamping pressure for power clamping device Call by program Door automation Multus B 400 Open/close via M command two doors, both open simultaneously Chuck Rota THW Plu 315-104 A8 Cylinder SMW VNK 225/95 mounted. Year of construction: 2011 Commissioning: June 2011 Warranty: A warranty for the used machine is excluded altogether. However, HAF Präzisionstechnik assures that defects, including hidden defects, are not known. Unknown defects can therefore not be excluded. Machine is under power and in very good condition. Viewing is possible by arrangement. We are also happy to process your acceptance parts in advance.

Condition: good (used), Year of construction: 2002, max. wheel diameter 275 mm gear width 55 mm max. module 6 Gedpotumrpsfx Anzobn min. module 1 Control 840 C Siemens total power requirement 100 kW weight of the machine ca. 16,7 t dimensions of the machine ca. 5,2 x 2,3 x 2,4 m m

Condition: refurbished (used), FULL LINE of Drilling, max working width mm 3200, with fast automatic handling equipment. Composed of the following machines: A) LOADER (Portal) "RBO" Winner C 3200 with double pick-up and central motorized rollers table. With 2 on-ground motorized rollers ways to in-feed the piles (stacks) of panels to loader. B) TRANSFER (Connecting Rollers Table with 90° conveyoring belts) “RBO” Mod. Transfer TA 90° C) 1st Auotmatic BORER "BIESSE" Mod. Techno FDT with No. 2 Horizontal Units + No. 7 Vertical Bottom Units Gbjdpodfgg Iefx Anzjn D) 2nd Automatic BORER "BIESSE" Mod. Techno FDT with No. 2 Horizontal Units + No. 7 Vertical Bottom Units E) TRANSFER (Connecting Rollers Table with 90° conveyoring belts) “RBO” Mod. Transfer TA 90° G) UNLOADER-STACKER (Portal) "RBO" Winner SC 3200 with double pick-up, with double storage station, with central motorized rollers table. With 2 on-ground motorized rollers ways to out-feed the piles (stacks) of panels from the Unloader

Condition: new, Year of construction: 2026, functionality: fully functional, machine/vehicle number: 9101, travel distance Y-axis: 4,600 mm, travel distance Z-axis: 1,600 mm, rotational speed (max.): 6,000 rpm, Equipment: rotational speed infinitely variable, Machine configuration: • PowerPortal4000 • 45° diagonal milling head (C 0.01° / A 0.01°) • Camera system integrated in SHW diagonal milling head • 4-point Hirth-type milling head interface • Heidenhain TNC 7 • HR 550 FS handwheel • Heidenhain optimization for 5-axis machining • X = freely selectable, Y = 4,600 mm, Z = 1,600 mm • ToolCenter with 90 tools • Coolant system 2,500 l • Coolant pump 70 bar / 30 l/min • Coolant/air switching • Wash gun in the working area • Main drive 75 kW up to 6,000 rpm • Tool holder SK 50 BIG-PLUS • Panelling and grating • Double chip conveyor • SHW-UniScan Gbjdpfoygtnasx Anzon • Sealing air • Operating mode 3 • Hexagon wireless probe • LED workspace lighting • Second camera in the working area

Condition: new, Year of construction: 2021, functionality: fully functional, Stock machine "NEW" – available at short notice! (Subject to prior sale) Gedpfeifn N Nex Anzjbn Control: Fanuc 0i-MF Plus, 10.4" with Manual Guide i & 2 MB NC memory LOOK-AHEAD function, 400 blocks Machine Table: Table size: 950 x 550 mm Load capacity: 800 kg T-slot width: 18 mm Number of T-slots: 3 Distance between T-slots: 150 mm Travel axes: Travel X/Y/Z: 860/550/550 mm Spindle nose to table surface: 150 – 700 mm Linear guides & speeds: Ball linear guides in X/Y axes Roller linear guide in Z axis Rapid traverse X/Y/Z: 40/40/30 m/min Feedrate during milling: 0 – 10,000 mm/min Smallest increment: 0.001 mm Tool magazine (CAM-Type) / changer: Number of magazine pockets: 30 System: random access Max. tool diameter: Ø 75 mm Max. tool diameter with adjacent pockets free: Ø150 mm (40 tools: Ø130 mm) Max. tool length: 300 mm Max. tool weight: 7 kg Spindle: Spindle taper: SK-40 Drive power (30min/cont.): 18.5/11 kW 15,000 rpm direct-drive spindle Spindle oil cooler Coolant, chip, and compressed air management: Coolant system incl. 300 liter tank and pumps External coolant around spindle Chip augers right and left in machine bed Compressed air nozzle at spindle (M32/M33) Compressed air through spindle (M38/M39) Compressed air and coolant gun Other features: Swiveling operator panel Electronic handwheel (wired) Central lubrication oil/air Full enclosure Work light Heat exchanger at control cabinet Auto power-off function Hand tool set Signal lamp Transformer 400 VAC, 50 Hz CE declaration of conformity according to European directives Electrical and pneumatic requirements: Electrical connection: 36 kVA Required pneumatic input pressure: 6 bar Dimensions: Machine size: W2,260 x D2,900 x H2,775 mm Required installation area: W3,160 x D3,000 x H3,000 mm (incl. chip conveyor ejection to the left) Machine weight: approx. 5,400 kg (net) Available special equipment: Spindle: - Direct-driven spindle SK-40, 15,000 rpm - Drive power (30min/cont.): 18.5 / 15 kW, (FANUC motor) Tool magazine / changer: - Drum-type tool magazine with 30 pockets, DIN69871, SK-40 Rotary or additional axes: - Preparation for 4th axis (FANUC controls), incl. wiring and Harting connector, without axis drive Coolant, chip, and compressed air management: - Bed flushing - Through-spindle coolant pump, 20 bar pressure, for direct-driven spindles - Includes cartridge filter - Belt-type chip conveyor including chip cart (chip discharge at front, to the left side of the machine) Measuring and monitoring systems: - RENISHAW OMP-60 probe with infrared transmission system for workpiece measurement, incl. probe holder, repeatability: 1μm - RENISHAW NC4+ tool laser measurement system and tool breakage monitoring in the machine, incl. bracket - Auto-door (side door) - Pneumatic interface for workpiece clamping - Clamping devices as shown With RoboJob Mill Assist 25kg (Year of construction 2025 – NEW) - Full enclosure - Double gripper Available immediately

Condition: excellent (used), Herringbone Gear Generator MDV 2000 Godpfxsfx Ibno Anzjbn MDV 2000 Characteristics: Max wheel diameter: 2000 mm Min wheel diameter: 50 mm Max module: 12 Min module: 3

Condition: used, TECHNICAL DETAILS - Number of spindles : 2 - Number of turrets : 1 - Number of axes : 6 MAIN SPINDLE - Spindle nose : A2-8 - Max. bar diameter : 80 [mm] - Spindle power : 18,5 [kW] - Spindle speeds : 4.000 [rpm] - Max. turning diameter : 460 [mm] - C axis indexing precision : 0,001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 260 x 795 [mm] - Y stroke : +/- 50 [mm] - Live tools speed : 6.000 [rpm] - Live tools power : 5,5 [kW] COUNTER-SPINDLE - Spindle nose : A2-5 - Max. bar diameter : 51 [mm] - Max. turning diameter : 190 [mm] - Spindle power : 11 [kW] - Spindle speeds : 6.000 [rpm] - C axis indexing precision : 0,001 [°] - Travel : 760 [mm] POWER SUPPLY - Supply voltage : 200 [V] - Total installed power : 42 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 4.414 x 2.370 [mm] - Machine height : 2.115 [mm] - Machine weight : 6.200 [kg] MACHINE HOURS - Number of hours under power : 15525 [h] - Number of working hours : 12865 [h] EQUIPMENT Gbedpfx Anox Tvkrjzen - CNC : Mitsubishi MSX-850II - Interactive programming : MAPPS III - Interface : USB / PCMCIA / RJ45 - Tool probe : Renishaw - 3 colors status lamp - Tailstock function - Coolant tank - Chips conveyor : Droite - Spindle cooling unit - Parts catcher - Bar loader : LNS Quick LoadSERVO 80 - Parts conveying strip - Number of turning tool holders : 2 - Number of fixed tool holders : 10 - Chuck 3 jaws
