Grinding Wheel

REISHAUER Schleifscheibe Modul 2,5 EW20°

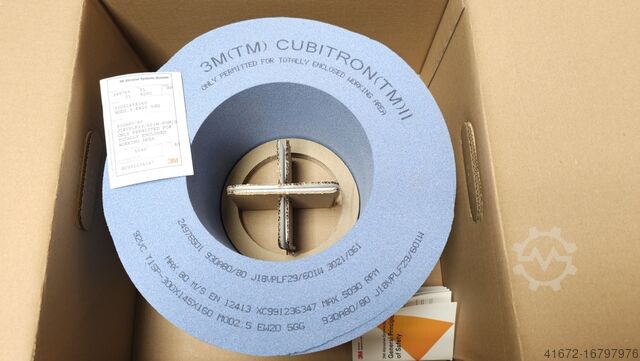

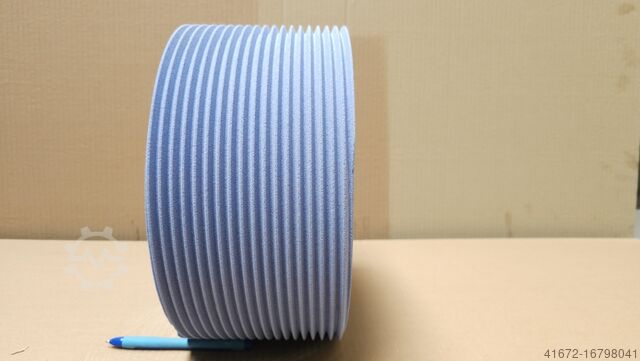

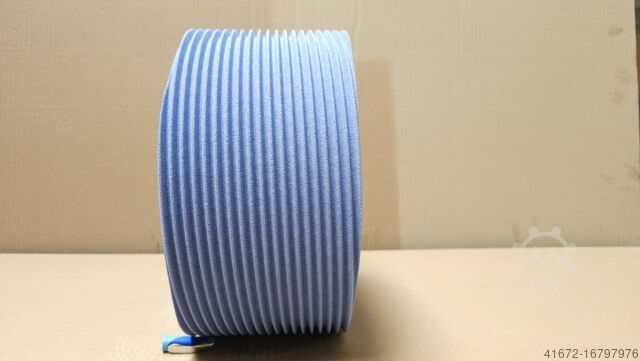

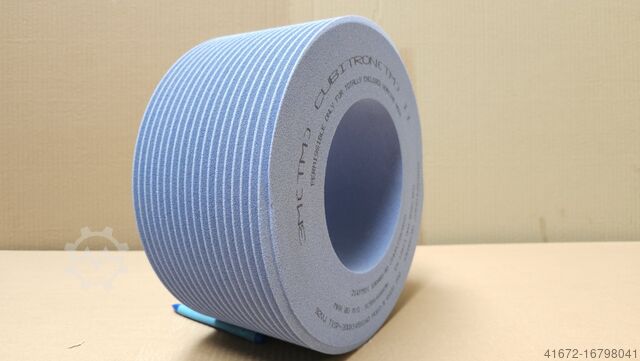

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 5GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs - Continuous, consistent sanding performance Iedpfjuayk Eox Abcjhw - Significantly higher sanding parameters than with standard tools

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm Ihjdpfevzhf Sex Abcsw cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors - Clamping devices - Documentation

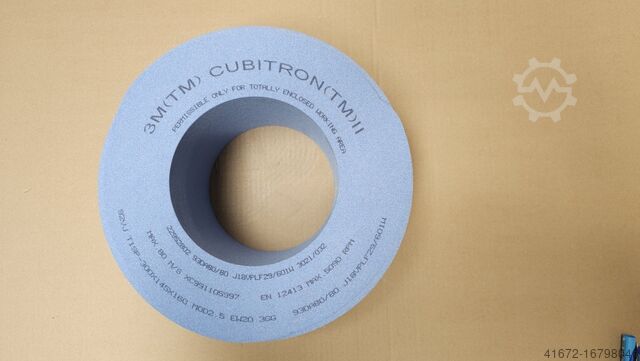

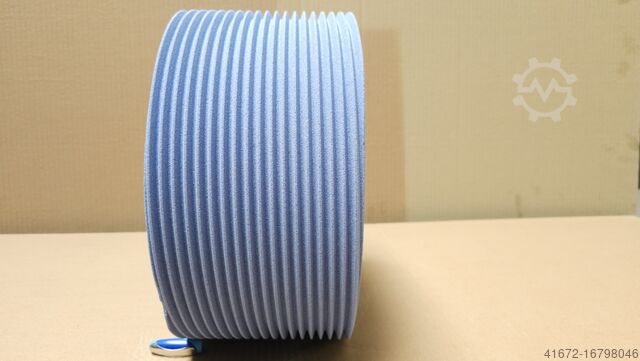

Condition: new, Year of construction: 2023, grinding wheel size 300x145x160 mm Ceramic grinding discs for tooth flank grinding - 145 mm wide Dimensions according to machine type Reishauer T1SP 300x145x160 M2,5 EW20° 2GG from the company 3M Profiling according to specification module m, running speed gg, pressure angle EW Advantages: - Grinding burn risk is close to zero - Up to 50% shorter sanding times - 2-fold reduction in dressing effort - Twice the service life of grinding discs Ihedpfx Abeuaym Hscew - Continuous, consistent sanding performance - Significantly higher sanding parameters than with standard tools

Condition: excellent (used), Year of construction: 1999, max. width of grinding wheel 15 mm max. dia. of grinding wheel 110 mm max. module 0,5 - 10 pressure angle 15 - 25 ° turning speeds 2800 U/min Ihedpfx Aevibc Hjbcew total power requirement 0,4 kW weight of the machine ca. 0,02 t dimensions of the machine ca. 0,4 x 0,2 x 0,2 m For profiling grinding snails for tooth flank grinding machines. Finished and after-profile on the following models: NZA, AZA, RZ 300 E, RZ 301 S, Rz 362 A, AM, ... Adjustment plate on the right with micrometer screw adjustment axial Radial adjustment plate with micrometer screw adjustment 2 precision motor spindles to absorb the diamond discs.

Condition: excellent (used), Year of construction: 1970, Model: AR 1000 - Year of manufacture: 1970 – 1991, geometrically overhauled - Condition: good to very good - Grinding diameter: max. 350 mm - Grinding length: 1000 mm - Plunge grinding length: 100 mm - Centre height: 180 mm - Centre taper: 60 MK4 - Grinding wheel dimensions: max. 500 Ø x 300 Ø x 80 mm - Swivelling grinding head: +/- 45° - Dimensions: 3.2 x 1.7 x 1.6 m (LxWxH) - Space requirement: 4.13 x 2.02 x 1.6 m (LxWxH) - Weight: approx. 4,300 kg - Operating voltage: 380 V Iedpfx Ajxfvyzsbcohw - Power: 7.5 kW (total 11.6 kW)

Condition: used, Year of construction: 1997, Technical details: max. module: 7 Ihjdpfx Abjx Aq Egocew weight of the machine ca.: 5 t worm grinding diameter: 280-350 mm width of grinding worm: 84-104 mm min. number of teeth: 6 max. number of teeth: 600 max. top circle diameter: 360 mm max. workpiece weight: 60 kg without filter *

Condition: used, Year of construction: 1960, grinding diameter ca. 360 mm grinding length 1500 mm Ihedpfx Abjw Sya Tocsw serial number 12013

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg Ihjdpfxevc An Do Abcjw weight of the machine ca.: 4,0 t machine dimensions LxWxH: 1,8 x 1,9 x 2,5 m dimensions electric cabinet LxWxH: Nr. 1: 1,95 x 0,4 x 1,95 m dimensions electric cabinet LxWxH: Nr. 2: 0,8 x 0,23 x 1,95 m dimensions:: Abluftanlage: 1,4 x 0,7 x 0,55 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 69x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: excellent (used), Year of construction: 2018, max. wheel diameter 360 mm gear width 210 mm max. module 7 min. module 0,5 Control Burri weight of the machine ca. 9,5 t Machine in top condition! (Original Reishauer RZ 362A) Extensive accessory package including BC2 loading/unloading unit and Ihedpfox E Dupjx Abcsw filtersystem. Direct drive in grinding and workpiece spindles, linear guides, ball screws and Heidenhain linear scales in all axes. Reports and inspection under power available upon request!

Condition: used, Year of construction: 2001, REISHAUER - RZ 362A - 2001 - used condition as shown on photos Ihsdpfxoyl Simo Abcjw - under power, can be tested - more photos available
