Cambio 66

Söderhamn / Kockums

Condition: excellent (used), functionality: fully functional, ARI high capacity line for big logs Log deck 2 sections Step feeder Log conveyor Debarker infeed (Remill) Debarker Cambio 90-75/6 (or a Cambio 500) 2d scanner for reject boxes Log conveyor with 2 reject boxes Log conveyor, kickers to the left Buffering deck and step feeder Log conveyor Rema 3d scanner AriVislanda LT2 auto log turner 2006 AriVislanda LI-600 log centering infeed 2006 AriVislanda RL-600 Reducer AriVislanda QSS-700 Saw 2011 AriVislanda VFW 600 L 2011 AriVislanda board separator 2006 Block tilt AriVislanda block infeed type Nils AriVislanda RC-600 Reducer Ingvar Persson turn table AriVislanda 500A Infeed AriVislanda 509-7F Multirip Nsdpfx Akowp E Tnemedc AriVislanda boardseparator Beltconveyor Dual Edging lines Söderhamn (1 left 1 right) 2 x 300 m/min Cross conveyors Söderhamn Elevator Söderhamn 483 Scanners Söderhamn 528 Infeed Söderhamn 5100 Edger Söderhamn 5400 Edger outfeed with reject displacement EdgeIT system

Condition: used, Year of construction: 2010, functionality: fully functional, type of input current: three-phase, cutting length (max.): 12,000 mm, cutting width (max.): 640 mm, saw drive: 15,000 W, input voltage: 400 V, wheel diameter: 600 mm, – Year of manufacture: 2010 TECHNICAL SPECIFICATIONS: – Motor: 15 kW Ndjdpfxey Na Hvo Akmec Cutting dimensions: – max. log diameter: 95 cm – clearance between rollers: 73 cm – max. cutting width (square timber): 64 cm – max. cutting height above saw blade: 39 cm – max. cutting length: 12 m Saw head equipment: – automatic cutting thickness adjustment device – electric head height adjustment: up/down – electric forward/reverse head feed: infinitely variable feed speed – electric saw blade guide arm – hydraulic sawblade tension system with air cushion – debarking unit Sawblade: – length: 4670 mm – width: 38 mm - 50 mm – sawblade guide wheels diameter: 600 mm – belt type: Z – material: cast iron The sawmill is equipped with full hydraulics: – hydraulic leveling system – side stops – material clamp – comb-type log turner – 3 loading arms Machine dimensions: – length: 1520 cm – width: 235 cm – height: 240 cm

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Log handling line, LINCK sawmill line, lumber sorting line with stacking system Log handling line: - Infeed - Cut-to-length - Turner - Emergency outfeed channel, possibility of log discharge - Root flare reducer (butt reducer) - Valon Kone debarker - Metal detector - Hellak DLV 720 - Log sorting line - 32 boxes LINCK sawmill line: LINCK Canter V40, year 1997 • Max. roundwood diameter: 650 mm • Min. roundwood diameter: 100 mm • Max. log length: 6 m • Min. log length: 3 m • Feed speed (30-80Hz): 25-70 m/min • Cutter head drive power: 90/132 kW • Number of knives: 3 • Cutting depth: 160/200 mm LINCK Multi-rip saw CSMK 375-A3/B3, year 1997 • Min. timber length: 3.00 m • Min. cutting thickness: 50 mm • Max. cutting thickness: 375 mm Nsdpfx Aoyyd Tnekmjdc • Feed speed (frequency controlled): 25-70 m/min • Saw diameter: 648 mm • 648x5.7/3.5/6.8x160 Left • 648x5.7/3.5/6.8x160 Right • 648x5.7/3.5/x165 Plate • Shaft speed: 2500 rpm • Drive power per saw shaft: 110 kW • Weight (with motors): 18800 kg LINCK Turner DV 55, year 1996 • Feed speed: 36.2 m/min • Max. log diameter: 550 mm LINCK Canter V30, year 1996 • Max. roundwood diameter: 500 mm • Min. roundwood diameter: 100 mm • Max. log length: 6 m • Min. log length: 3 m • Feed speed (30-80Hz): 25-70 m/min • Cutter head drive power: 90/132 kW • Number of knives: 2 • Cutting depth: 160 mm LINCK Milling unit VP34 • Min. timber length: 3 m • Max. timber length: 4900 mm • Max. milling depth: 50 mm • Max. cutting height: 120 mm • Min. board width: 60 mm • Feed speed (50Hz): 41.7 m/min LINCK Saws S2 VS 66 S • Min. timber length: 3 m • Cutting height with inner saw: 280 mm • Cutting height with outer saw: 280 mm • Feed speed: 36 m/min • Saw diameter: • 505x5.2/3.6/6.8x120 mm Left • 505x5.2/3.6/6.8x120 mm Right LINCK Multi-rip saw S3 VSV 80-A, year 1988 • Min. timber length: 2.50 m • Cutting height: 280 mm • Feed speed: 40 m/min • Saw diameter: • 510x5.2/3.6/6.8x120 mm Right • 510x5.2/3.6/x120 Plates LINCK Horizontal saw KH1, year 1985 • Min. timber length: 3 m • Min. cutting height: 60 mm • Max. cutting height: 140 mm • Max. cutting depth, right saw: 140 mm • Max. cutting depth, left saw: 140 mm • Min. cutting depth: 130 mm • Feed speed: 40 m/min • Saw diameter: 520x5.8/4.0x150 mm Lumber sorting: Lumber sorting by length, width and thickness 32 boxes for lumber Stacking and bundling system for lumber packs The offered line has a real capacity of approximately 70 000 m3 - 110 000 m3 per year in one-shift operation. Huge spare parts inventory. Sharpening room. We offer complete service from sale to installation and commissioning in the new location. For an additional fee, professional dismantling, loading and commissioning in the new location are possible.

Year of construction: 1985, condition: good (used), Linck recutting group consisting of: EV 40 infeed V40 chipper with pull-out rollers with 2x75/100 kW MKV circular resaw with side board separator with 2x200 kW incl. hydraulic units without switch cabinets Ndsdpfeufqicex Akmjc can be inspected by arrangement. System can also be offered overhauled!

Condition: ready for operation (used), Cambio 75 feed conveyor, infeed conveyor wheels Ndodov Irvuepfx Akmjc

Year of construction: 2004, condition: good (used), LBL Brenta Spaner CT 700 Max. cutting depth = 150 mm Max. cutting height = 650 mm Free central blade, overheating protection Clearance = 800 mm Fast, precise positioning via servomotor with electrical system. Nsdpfxjyuc Nij Akmjdc

Condition: excellent (used), Cross-country trac/multi-saw receiver Rollers width 1160mm Number of drawing rollers 14 Distance between rollers 550mm Drop chains with takers 4pcs Ndodjtrq S Hjpfx Akmec Longest element 820cm Use behind a sawmill or a multi-saw

Condition: used, Year of construction: 2001, functionality: fully functional, year of last overhaul: 2017, total width: 1,300 mm, total length: 7,000 mm, operating pressure: 90 bar, total height: 3,000 mm, empty load weight: 7,000 kg, number of previous owners: 2, Bruks root reducer / stem reducer – stem lengths up to 6m, 100 m/min feed rate, fully overhauled in 2017. I am offering a powerful and reliable Bruks root reducer, which is ideal for use in log yards and sawmills. The machine underwent a complete overhaul in 2017. The machine was operated in a system with a feed rate of 100 m/min. Nedpfxszufkze Akmedc Price on request.

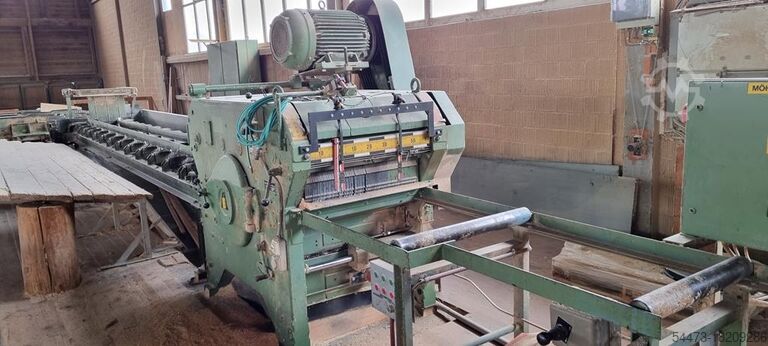

Condition: good (used), Wielopila Esterer Dkv 2 wysokosc ciecia 160mm szer 750mm silnik 30kw 2 pily ruchome lasery stol podajacy stol odbierajacy Ndodpfx Asvn Auhjkmsc

Condition: ready for operation (used), Log intake with debarker. Below parts included: - Log deck with steep-feeder - In-feed conveyor - Debarker type cambio 73-650 Ndjdpfxszrdn Hs Akmsc - Out-feed log conveyor with logkicker - Conveyor for bark
