Ram-Type Floor Boring and Milling M/C

TITAN (PAMA) AFP 200 CNC

Condition: excellent (used), functionality: fully functional, Year of construction: 2015, laser type: fiber laser, Used laser cutting system with 8 kW fiber laser and LiftMaster Compact (Stopa version) Manufacturer: TRUMPF Model: TruLaser 5040 fiber (L69) Year of manufacture: 2015 Operating hours approx.: 67,000 h, Laser on: 40,100 h TECHNICAL DATA: Maximum material thickness: Mild steel O2: 25 mm, Stainless steel N2: 40 mm, Aluminum N2: 25 mm, Copper O2: 10 mm, Copper N2: 5 mm, Brass N2: 10 mm Position deviation: 0.05 mm Max. position scatter Ps max: 0.03 mm Working area: 4,000 x 2,000 mm Laser power: 8,000 watts STANDARD EQUIPMENT Machine: Closed machine frame Torque drive combined with linear direct drives Enclosed beam guidance via fiber optic cable (LLK) Cooling unit Machine cooling unit (water-air) Integrated control cabinets with interior lighting Integrated storage cabinet Automatic longitudinal pallet changer 19" touch color screen Longitudinal conveyor belt TruDisk power supply via the machine Work area illumination Positioning laser diode Spray unit PierceLine FocusLine NitroLine PlasmaLine Automatic nozzle cleaning Copper cutting package (includes cutting data) Brass cutting package (includes cutting data) Transport and assembly device Bjdpfx Asy A I Tqemnsdd SPECIAL EQUIPMENT: Solid-state laser TruDisk 8001 with 1 fiber output Smart Nozzle Automation (includes nozzle changer, automatic nozzle condition monitoring, and smart skip) BrightLine fiber CoolLine (only with BrightLine fiber) DetectLine: precise sheet position detection (incl. automatic focus measurement) Wide transverse conveyor with tipping container (container to the right of the machine) Cleaning brush Integrated camera (Full HD) for process monitoring and single frame transmission to the network (view of the first 2.5 m) Additional 10 m extension of fiber optic cable between laser and machine Smart Collision Prevention (requires smart-collision-prevention plug-in for TruTops) Machine podium version (without steel structure) Storage interface for STOPA large-scale storage systems (SKL or UL) Safety devices for storage integration incl. 2nd light barrier circuit Storage interface (without storage cart) LiftMaster Compact (STOPA version) TRUMPF Laser: Solid-state laser TruDisk 8001 with one fiber output Fiber optic cable as per standard layout Laser cooling unit (water-air) Excitation via pump diodes Laser power control (The TruDisk laser is subject to international export controls. According to EC Dual-Use Regulation 428/2009 (laser covered under 6A005)) Cutting head: Universal cutting unit with fully adaptive lens system Piercing head strategy Protective glass to prevent lens contamination Protective glass condition check ControlLine: height control and sheet outer edge detection Control system: SINUMERIK 840D SL control Simple workshop programming TruTops Laser via network access Quick re-production Integrated TRUMPF technology data Automatic shut-off Programmable cutting gas/pressure selection ContourLine FastLine FlyLine Microweld AdjustLine Teleservice via Internet Data transfer: USB interface RJ-45 network connection Safety: CE marking Light barriers Multi-chamber exhaust system Compact extraction unit Machine enclosure, certified viewing window, door on right Electric roll-up roof This used machine can be inspected under production conditions. All details without guarantee – sale is without any form of warranty or guarantee. Subject to prior sale.

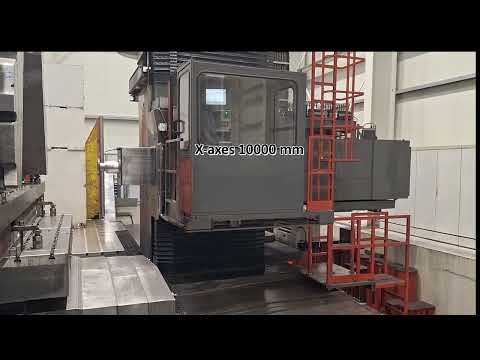

Condition: like new (used), Year of construction: 2000, operating hours: 25,000 h, travel distance X-axis: 10,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,800 mm, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, position of the milling head: 2.5 x 2.5 °, spindle speed (max.): 3,000 rpm, spindle speed (min.): 60 rpm, table width: 3,300 mm, table length: 12,000 mm, mount diameter: 50 mm, total height: 48,750 mm, total width: 1,00,000 mm, total length: 2,12,000 mm, overall weight: 1,00,000 kg, Duplex milling are two machines located one opposite the other which can work seperately or as single machine, workpiece can be machined with 2 simultaneous spindles. Production increase of up to 50% in relation to conventional solutions, i.e. individual milling machines Improvements in part precision, by managing to do the machining of the part in one single setup, in most of the cases One sole operator can control the DUPLEX milling machines Reduced space and investment requirement comparing with two single machines Fast investment amortization due to the high productivity Duplex solution admits different configurations: single working area, pendulum working areas For machining excavator arms / boom like, CAT, Caterpillar, Komatsu, Hitachi, Hyundai, Doosan, Case, Bobcat, JCB, Kobelco, Liebherr, Kubota, Takeuchi, Volvo X-Axis: 10300mm Y-Axis: 2000mm Z-Axis: 1800mm Table Length: 12000mm Table Width: 3300mm Table load: 100000 Power on spindle: 22/30kW Boderx Rxtspfx Amnsdd Spindle speeds: 60 - 3000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Millinghead auto-index:2.5 x 2.5° Working hours: 25000H Length: 21200mm Width: 10000mm Height: 4875mm Weight: 100000kg

Condition: used, machine/vehicle number: 008438, Max. panel width: 4500 mm Bdedpfx Asyngy Somned Max. panel length: 4500 mm Main saw blade projection: 50 mm No of Grippers: 8

Condition: good (used), Year of construction: 1998, Max. Pitch circle diameter External gearing 300 mm Max. Pitch circle diameter internal gearing 300 mm Max. Outer diameter of workpiece (equipment) 450 mm max. module 6 gear hobbing width -max. 100 mm Max. Helix angle (with tool Ø 125 mm) +/- 45 ° strokes - infinitely variable 130 - 1300 Hub/min workpiece weight 1000 kg Minimum distance table top - tool spindle -55 / +300 mm Maximum distance table top - tool spindle 200 mm Maximum distance table top - tool spindle 350 mm Manual Upright side shift +/- 25 mm Manual swivelling angle of the tool spindle +/- 0,5 ° Max. Tool speed 15 UpM Max. Workpiece speed 27 UpM Max. Tool diameter 7 Zoll voltage 400 V frequency 50 Hz Max. Line power 70 A total power requirement 48 kW weight of the machine ca. 11 t dimensions of the machine ca. 4,27 x 3,11 x 2,87 m taper in main spindle SK 45 table hole 40 mm control Siemens Sinumerik 840 C Bsdpjvu E Nuofx Amnedd Gleason PFAUTER gear shaping machine Mod. PSA 300 The CNC modular gear shaping machine with skiving cutter for the machining of external and internal cylindrical gears, with straight or helical involute with straight or helical involute toothing, as well as any other profile splitting process. The work cycle is controlled by a CNC unit, with specific software for machining the gears, machining. Field of application --> The PSA 300 has been designed for the production of: - Gears with straight external teeth - Gears with straight internal teeth - Gears with external helical teeth - Gears with internal helical teeth

Condition: used, Year of construction: 2006, Solid drill diameter / mm bore depth / mm number of spindles / 2-machine package: Froriep deep hole drilling machine & Irle finishing machine Perfectly matched duo for deep hole drilling and precise finishing of large workpieces A specialised machine package is available for sale – two perfectly matched systems for the complete machining of long, heavy workpieces with the highest demands on precision and efficiency. MACHINE 1 Froriep CNC deep hole drilling machine – the prefabrication specialist Year of manufacture: 2006 Control system: Siemens Sinumerik 840D Max. drilling depth: 8,850 mm Workpiece diameter: 150 – 900 mm Speed range: 1 – 300 rpm Feed rate: 0.5 – 4,500 mm/min Drive power: 129 kW Swing diameter over bed: 1,000 mm Clamping diameter faceplate: 900 mm Weight: approx. 47,000 kg Ideal for precise pre-drilling of deep holes – including faceplate, Bdjdpfxeuddims Amnsd steering ring MACHINE 2 Irle machine – high-precision finishing Power: 129 kW Control: Siemens NC control Speed range: 2 – 300 rpm (stepless) Feed: 3 – 4,500 mm/min (in steps) Centre distance: 11,000 mm Swing diameter over bed: 1,250 mm Clamping range of steady rests: 150 – 1,100 mm Workpiece length: up to 11,000 mm Workpiece weight: up to 10 tonnes Max. outer diameter: 850 mm With up to 50,000 Nm torque, perfect for smooth drilling, honing and demanding finishing processes. Your advantages at a glance - Complete solution from a single source – from pre-drilling to finishing - Large workpieces up to 11 metres and 10 tonnes in weight - High process reliability thanks to perfect machine synchronisation - Ready for immediate use, well maintained and from ongoing operation - Ideal for mechanical engineering, energy, oil & gas, hydraulics and large parts manufacturing

Condition: good (used), Year of construction: 2007, travel distance X-axis: 750 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 725 mm, CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 320 tools pallet changing device, 2 pallets 500 mm x 500mm coolant through spindle device IKZ (80 bar) chip conveyor coolant device Technische Daten / technical details: X-Weg längs / X-travel longitudinal 750 mm Y-Weg senkrecht / Y-travel vertical 750 mm Z-Weg quer / Z-travel cross 725 mm B-Achse / B-axis 360 ° Spindelaufnahme / spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 50-10000 Upm /rpm Bedpfxjq Ui Hqj Amnodd Werkzeugplätze / tool places in changer 320 Vorschub / infeed 60000 mm/min Eilgang / rapid feed 60 m/min Antriebsleistung Spindel 40/100% ED / drive capacity spindle 40/100%ED 37/24 kW Gewicht der Maschine ca. / weight ca. 15000 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: used, Year of construction: 2017, Working hours laser on: 28.313 h Working hours beam on: 8.421 h Laser power: 6000 Watt Working range laser: 3048 x 1524 x 70 mm Max. steel: 25 mm Max. stainless steel: 30 mm Max. aluminium: 30 mm Max. copper: 12 mm Max. brass: 12 mm Length: 11000 mm Width: 6050 mm Height: 2565 mm Machine weight: 12000 kg Bdjdpfxjyrfxzo Amnod Electrical connected load: 31 kW Standard configuration - Maximum positioning speed parallel axis x, y: 120 m/min- Maximum simultaneous positioning speed: 170 m/min- Positioning accuracy Pa: +/- 0,05 mm- Repeatability Ps: +/- 0,025 mm- Maximum workpiece weight: 1100 kg- Operation via panel: ByVision Touchscreen and manual control unit Extended machine accessories - nozzle changer 40 positions- Detection Eye - Cut Control- Power Cut Fiber Automation - ByTrans Extended

Condition: used, cone distance min./max. 0-108 mm Pitch angle min/max 5°/84° Control GE Fanuc Series 0-GC Pitch diameter (1:1 ratio) 152 mm pitch diameter (10:1 ratio) 216 mm Diametral pitch (finest/coarsest) 1.3/8.5 Mod. Face width gear wheel max. 35 mm Knife spindle - Speed range 41-121 U/min Bsdpeyh Rmmsfx Amnedd working spindle speed range 0-33.33 U/min weight 9025 kg dimensions of the machine ca. 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: - 18-piece cutter set - Chip conveyor - Technical documentation

Condition: used, Year of construction: 2020, CNC gantry plasma cutting machine with skew rotator beveling unit Manufacturer: Messer Type: Multitherm 4000 Year of manufacture: 2020 CNC control: Global Control Plus Working area: 3 x 10.8 m Track width: 4,000 mm 1 oxy-fuel torch ALFA Bdjdox Dlwmspfx Amnod 1 plasma torch with skew rotator beveling unit Power source: Hypertherm XPR300 Cutting thickness: 50 mm piercing 80 mm cutting Beuting extraction table without filter system Software: Omniwin with Bevel ä2726

Condition: good (used), Year of construction: 1999, functionality: fully functional, Machine new white-color in 2014 (order by SIEMENS Energy) Technical Data Working area Max. swing over bed: 570 mm Max. swing over cross slide: 365 mm Max. turning length: 1500 mm Centre height over flat bed: 280 mm Max. workpiece weight: 400 / 1000 kg Max. workpiece clamping length: 1300 mm Work spindle Spindle head DIN 55027, size 8, internal taper 70 Spindle bore: Ø 62 mm Spindle diameter in front bearing: 100 mm Spindle through-hole (depth): 200 mm Max. chuck size: Ø 315 mm Speed range: 3–2500 rpm Max. faceplate diameter: Ø 560 mm Max. faceplate speed: 700 rpm Max. torque: 1800 Nm Carriage – travel Longitudinal travel (Z-axis): 1160 mm Cross travel (X-axis): 345 mm Tooling system: Parat-3 Tool cross-section DIN 770 (h × b): 32 × 25 mm Tailstock Bdedpfxsx Ahx Dj Amnjd Tailstock movement by hand Quill taper: MK5 (MT5) Quill diameter: 80 mm Quill stroke: 190 mm Accessories / special equipment CNC control: SINUMERIK 810 D 32-bit processor, digital control ManualTurn with cycle support 10.4" colour LCD display Operating manual 094.0003.1330-00 3-jaw chuck Ø 315 mm Faceplate Ø 350 mm (up to Ø 560 for thin workpieces) Radius turning function Turret on support: size 3, Parat 4-station, manually indexable 4 × 90° Chip conveyor Bürener Maschinenfabrik Particularly suitable for: see production spectrum
