Lynette

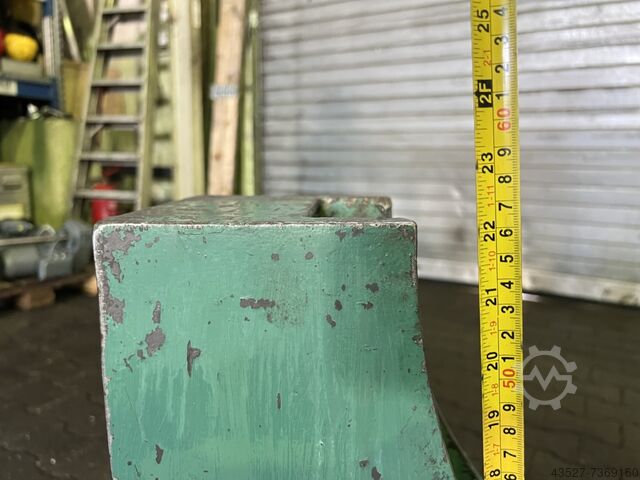

UNBEKANNT Lünette ca. 500mm

Condition: used, Year of construction: 1986, functionality: fully functional, machine/vehicle number: C3300, grinding length: 4,500 mm, grinding width: 300 mm, table length: 4,500 mm, table width: 300 mm, space requirement height: 2,500 mm, space requirement length: 13,700 mm, space requirement width: 2,500 mm, Reform AR45 T9 ZU C3300/86 Year of manufacture: 1986 Sanding length: 4500mm Sanding width: 300mm Workpiece height: 250mm Swivel range table or sanding arm: +-90 degrees Kwedpfotqtn Djx Abcjw Segment head diameter: 560mm Spindle diameter in front bearing: 120mm Swivel range: 2° Max. Torque: 719,5Nm Motor: B280, 55kW Grinding spindle speed range: 0-730 rpm Control system: BBC Baumüller drives Marposs measuring system Hydraul. Clamping Sanding mist extraction system: Hydrocyclone cleaning system Additional sanding unit ZU Feed rate: 2000-35000mm/min Space requirement approx. 13.7x2.5x2.5m

Condition: ready for operation (used), Year of construction: 2005, operating hours: 15,069 h, travel distance X-axis: 500 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 380 mm, controller manufacturer: HEIDENHAIN, controller model: iTNC 530, table load: 200 kg, overall weight: 4,500 kg, spindle speed (max.): 10,000 rpm, spindle motor power: 13,000 W, tool weight: 6,000 g, This 5s DMG DECKEL MAHO DMU 50 was manufactured in 2005. It features a HEIDENHAIN iTNC 530 CNC control, with a spindle speed range of 20 – 10,000 rpm and a tool magazine capacity of 16 pockets. The machine offers a maximum table load of approximately 200 kg and a rapid traverse of 24–30 m/min. If you are looking to get high-quality machining capabilities, consider the DMG DECKEL MAHO DMU 50 vertical machining centre. Contact us for further details. Kodpfxsyifhbo Abcoww • Table clamping area: approx. 500 × 380 mm • Swivel axis (B): about −10°/−5° to +110° • Rotary axis (C): 360° continuous • Tool magazine capacity: 16 pockets • Max. tool diameter: about 80 mm (130 mm with free adjacent pocket) • Max. tool length: approx. 300 mm • Rapid traverse (X/Y/Z): 24–30 m/min (depending on version)

Condition: used, Year of construction: 2002, turning diameter 820 mm Kodpfx Absw Dvipjcjww turning length 2.000 mm control SIN 810 D center height over square guideway 400 mm turning diameter over slide rest 500 mm x-travel 540 mm z-travel 2.100 mm feed x/z-axis 0,01 - 50 mm/min rapid traverse X-axis 5,00 m/min rapid traverse Z-axis 10,00 m/min feeding force facing 12.500 N power feed longitudinal 20.000 N spindle turning speed range 6,4 - 1.600 U/min spindle turning speed - gearbox stage 1 6,40 - 376 1/min. spindle turning speed - gearbox stage 2 27,40 - 1.600 1/min. power capacity at 60% / 100 % load 46,00 / 37,00 KW max. torque at 60% / 100% load 5.073 / 4.069 Nm constant cutting rate 1 - 9.999 m/min. spindle head DIN 55027 - Size 11 spindle diameter in front bearing 170 mm spindle bore 128 mm tailstock quill taper MT 6 diameter of quill 125 mm quill stroke 280 mm thread pitch 0,1 - 400 mm total power requirement 35,00 kW weight of the machine ca. 11,00 t dimensions of the machine ca. 6,00 x 3,00 x H2,60 m SIEMENS Sinumerik 810D mcontrol, chip-conveyor, tail stock, dust exhauster, 2 pc. steady rest. Machine can be inspected under power.

Condition: new, Year of construction: 2025, Entry-level sheet fiber laser metal cutting machine Lower laser cutting cost and easy operation The modular cutting machine table with stiffeners saves time for disassambly and improves convenience and rigidity. The special fiber laser nozzle and cutting process ensure faster carbon steel oxygen cutting, more gas-saving low-pressure stainless steel nitrogen cutting, and better-quality carbon steel air cutting. Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. Applicable Material: metal Condition: New Laser Type: Fiber Laser Laser Power: 1000W, 1500W, 2000W, 3000W Cutting Area: 3000*1524mm Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Kodpehwrgtefx Abcoww Cutting Speed: 0-100m/min Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Year of construction: 2000, condition: used, x-travel 1000 mm y-travel 1600 mm z-travel 800 mm Control WENZEL WPC 2040/FW31.351 Kedpfx Abjt Hw Nyjcoww total power requirement kW weight of the machine ca. 5500 kg dimensions of the machine ca. m Coordinate measuring m/c, software QUARTIS R12/16, Renishaw PH10Mplus

Year of construction: 1979, condition: used, throat: 22/29 mm drive motor: bei 380 V ca. 0,55 kW space needed: 450 x 500 x 560 mm weight: ca. 6,5 kg Ksdpfszif Ssx Abceww pressure power: 30 kN

Condition: used, Year of construction: 2006, Technical details: turning diameter: 490 mm turning length: 2000 mm total power requirement: 15/20 kW weight of the machine ca.: 3,6 t dimensions of the machine ca.: 2,8 x1,85 x 1,9 m In like new condition Heidenhain cycle control Torsion-resistant bed, made of high-quality cast iron with hardened, precision-ground guideways and a glass scale on the X-axis Safety clutch on the Z and X axes Sealing air with carbon filter in direct position measuring system High accuracy and rigidity of the lathe spindle thanks to precision spindle bearings, spindle bore Ø 93 mm standard, optional Ø up to 130 mm Kodpfxswmcx Ae Abcsww Solid tailstock, quill Ø 90 mm with internal taper MK5 Large overhang above the facing slide for easy accessibility during shaft machining. The machine has Teach-in CNC Programms. Control: MC420. Tool holder: SAUTER. *

Condition: used, Year of construction: 2013, turning diameter . mm turning length 2000 mm control Siemens 840 D sl mainspindle: turning speed max. 3800 1/min mainspindle: torque max. 1200 Nm diameter of quill 140 mm center point MK6 quill power 5 - 30 kN feed rate Z-axis mm/min rapid traverse Z-axis 40 m/min Kjdpfxsvu E R So Abcoww feed rate X-axis - mm/min rapid traverse X-axis 25 m/min total power requirement 125 kW weight of the machine ca. 20 t The machine can still be inspected under power at the production plant. The condition of the machine is good, the accuracy during turning operation is very good. The milling drive is not functional. A quotation from Niles for the repair of the milling drive is available on request. Including hydraulic steady rest.

Condition: used, Year of construction: 1979, cutting diameter 440 mm weight of the machine ca. 780 kg +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++ Kwjdpfx Abef Dwa Ujcew

Condition: excellent (used), 16 end mills with indexable inserts Make Walter Weight 9.5 kg Kwedpfxjdx D Tvj Abcsw
