Chiller

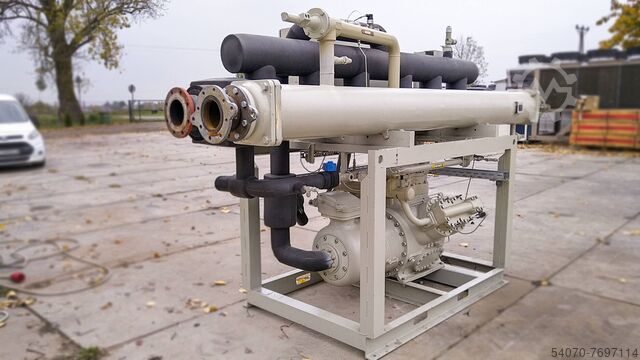

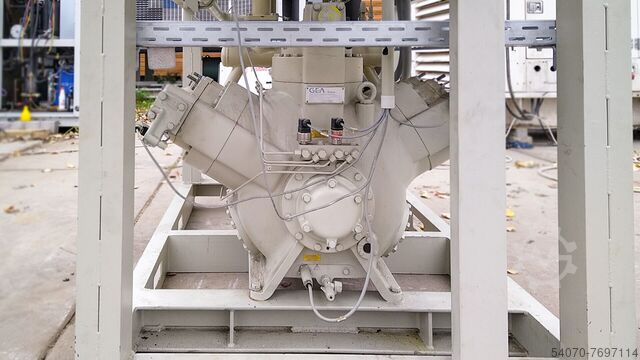

Used Ammonia Chiller GEA GRASSO 350 KW 2005 yom

Year of construction: 2014, condition: ready for operation (used), A defective CNC precision surface and profile grinding machine ABA is available. Grinding length: 2500mm, grinding width: 1020mm, cross travel: 920mm, cross feed intermittent: 750mm/pulse, cross feed continuous: 5000mm/min, table spindle center distance: 1100mm, magnetic plate dimensions X/Y: 2500mm/1000mm, max. table load: 5000kg, table speed: 60m/min, spindle power: 26kW, grinding wheel dimensions X/Y/Z: 500mm/100mm/203mm, grinding wheel rotation speed: 35m/s. Machine dimensions X/Y/Z: approx. 8000mm/4000mm/3150mm, weight: approx. 20000kg, control: Siemens Sinumerik 840 D-Solutionline, operating hours: approx. 1000h, cycle time: approx. 400h. Including cooling unit Hyfra sigma 13-S, year of manufacture: 2014. The linear drive of the X-axis is defective and has been dismantled. Documentation available. On-site inspection is possible. Duedpowi Tpkjfx Ag Rel

Condition: as good as new (ex-display), Year of construction: 2011, power: 630 kW (856.56 HP), overall weight: 3,340 kg, ABB HIGH VOLTAGE INDUCTION MOTORS Motor Rotor Type 3-Phase Duodpsqctpgofx Ag Rjl Motor Power (KW:) 630 KW

Condition: excellent (used), Year of construction: 2007, Zeppelin Diesel Genset Type: PPO2000 - C32 Djdpfxjizbdas Ag Roul Serial No.: ZPSU1023; Arr.No: 273-9683; Year: 2014; Voltage [V]: 400; Rating [kW]: 1600; Rating [kVA]: 2000; speed [RPM]: 1500; Frequency [Hz]: 50; SMU [hrs]: 0; Application: prime; Layout: Canopy; condition: pre-owned; Notes: Diesel Engine 2 * CAT C32 PPO, new Stamford HC6J alternator, with ComAp automatic Panel Inteli Compact, 2 x circuit breaker, 4000 L in two fuel tank, Jacketwater heater. L/W/H: 11 m,/ 2,3 m/ 3,2 m, weight. 26t, Import duty unpaid.

Condition: used, Year of construction: 2002, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm dimensions of the machine ca. 3,6/3,5 m Photos of identical machine with centre height 225mm Djdpfx Ajuxfuceg Rjul Base: Kellenberger Kel-Varia UR175-1000 Kelco 120 Grinding head UR with T1-T2-T3 Basic equipment: -T1 500mm grinding disc diameter -T2 400mm grinding wheel diameter -Infinitely variable, high-resolution axis -Marposs measuring device for tool measurement -Active longitudinal positioning -GAP on T1 and T2 from ELASO contactless integrated in the control interface Semi-automatic balancing from ELASO integrated into the control interface -Tailstock with manual retraction -MK5 workpiece headstock with short taper DIN 55026 Belt-driven internal grinding device Options at an extra charge: - New high-precision workhead with torque drive - Internal grinding device for high-frequency spindles diameter 120mm -HF internal grinding spindle Fischer MFM-1224/42/31 D-21 -HF spindle with HSK holder 24,000 rpm with integrated GAP sensor. (delivery time) -CNC-controlled C-axis non-circular grinding -hydrostatic threaded spindle in x -new hydrostatic unit with only 1 pump and pressure accumulator thus better energy efficiency. -monitoring of the water content in the hydrostatic system -Suction system Further options available on request Mechanical overhaul: -Complete machine overhauled according to Kellenberger measurement protocol -New service-friendly cab -repainting Electrical overhaul: -New modern CNC CIRCULAR GRINDING MACHINE control with BEMA rough grinding surface -New control cabinet -New drive technology -Replacement of all electrical cables Berus pressure switches etc. -New absolute glass scales in x and z -New absolute rotary encoder (for B-axis) Control system: The grinding software consists of a basic licence and various options that are possible depending depending on the equipment of the machine. Basic software - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal pendulum grinding - External and internal plunge-cut grinding - External and internal taper pendulum grinding - External and internal radius grinding, radius dressed on disc - Semi-automatic pendulum grinding - Workpiece zeroing - Grinding wheel zeroing - Measuring the dressing diamonds - 2 moulding diamonds - 1 shaped diamond or dressing roll (dressing roll required) - Moulding roller (dressing roller required) - 3 Flat dresser - Corrections - Z-position measurement (probe required) - GAP probing (grinding device required) OPTIONS at an extra charge: Software profile plunge-cut grinding: - External and internal profile plunge-cut grinding with profile disc Profile grinding software: - External and internal profile grinding with straight disc Software thread grinding: - Single and multi-start external and internal thread grinding with thread on the disc disc Dressing. Dressing of single and multi-groove discs. Flank angle freely selectable. Trapezoidal thread grinding software: - Additional dressing of trapezoidal threads possible External and internal non-circular plunge-cut grinding: - External and internal non-circular plunge-cut grinding Non-circular grinding software: A prerequisite for non-circular grinding is that the workpiece axis is equipped with a high-resolution rotary encoder so th...

Year of construction: 2003, condition: ready for operation (used), Used drum dryer manufactured by SAFEM, extracted from a line of gluten-free products. Fluid: Steam Design pressure: 12 bar Maximum operating pressure: 9,5 bar Test pressure: 24 bar Maximum operating temperature: 192ºC Volume: 4.55 m3 Dodjq Nmuwjpfx Ag Reul Pressure x Volume: 54.6 bar x m3

Condition: used, Year of construction: 1992, Overview This blowmoulder was built in 1992 from French manufacturer Sidel. It can produce up to 4.000 bottles per hour. Techn. Details Capacity: 4.000 bph 4 cavities Scope of delivery Blowmoulding machine | SIDEL | SBO 4/6 | 1992 Preform feeder Two types of molds for 1.5 L and 2.0 L bottles Cooling unit: RIEDEL Dedpfjnpbhvex Ag Rjul

Condition: excellent (used), Year of construction: 1980, Westfalia Separator SA 40, used in beverage industry, in excellent condition. Dujdpfx Agsq U Dbpj Rel

Condition: excellent (used), Year of construction: 2017, Portable compressor ATLAS COPCO XAVS186 ST4, machine with aftercooler (air dryer) after full service!!! Technical data: Capacity: 11.50 m³/min; Working pressure: 14 Bar; Year of manufacture: 2017; Engine: JOHN DEERE Operating hours: 1,643 h !!!!!; Compressor fully functional, ready for work, with warranty Duodpenzh Rbsfx Ag Rsl Machine in perfect condition!!! Below is a link to a video showing the machine in operation.

Condition: excellent (used), Kaeser Omega 83 P blower stage, fully refurbished, 12-month warranty, HB 1300 Dusdpsncd Apefx Ag Rol

Year of construction: 1997, condition: refurbished (used), 2 pieces volute casing pump in process design 1 piece completely overhauled, new ball bearings for pump and motor. Mechanical seal overhauled by specialist company. All seals new. Flow rate: 6 m³/h Delivery head: 25 m Pump speed: 1440 1/min Shaft seal: double-acting mechanical seal Manufacturer: Burgmann HRZ 13754-00 SIC/SIC/-CAR/SIC-VITON Impeller type: closed two-channel impeller Impeller diameter: 277mm Bearing type: roller bearing Impeller side: 1x NU411 Drive side: 2x 7311 Lubrication type drive end oil Lubricant monitoring Oil level controller Materials: Pump housing: Duplex steel Noridur 1.4593 (9.4460) Wear plate: Duplex steel Noridur 1.4593 (9.4460) Pressure cover: Duplex steel Noridur 1.4593 (9.4460) Shaft: Heat-treated steel C45+N Impeller: Duplex steel Noridur 1.4593 (9.4460) Bearing bracket lantern: Cast iron EN-GJL-250 Shaft sleeve: Duplex steel 1.4462 Nominal size of suction nozzle: DN 80 Discharge connection Nominal diameter: DN 40 Nominal pressure suction PN 10 Nominal pressure pressure PN 10 Coupling manufacturer: Flender Coupling type: Eupex NH with intermediate sleeve Base plate: gray cast iron Motor manufacturer: AEG AM 132 Efficiency class: IE 0 Motor speed: 1476 1/min Frequency: 50 Hz Rated voltage: 400 V Rated motor power: P2 7.50 kW Thermal class: F Motor protection class: IP55 Cosphi: 0.82 Dimensions: Length: 1270 mm Width: 550 mm Height: 570 mm Weight: 300 kg The material 1.4593 Noridur is very well suited for - Chemical and process engineering industry - Sulphuric and phosphoric acid - Salt extraction and processing - Petrochemical industry - Coking plants - Textile and pulp industry - Food and sugar industry Duodjiuznuspfx Ag Rol - Mining/coal mining and extraction - Flue gas desulphurization plants - Acidic, chloride-containing washing suspensions - Acidic process water - Waste water treatment/sewage treatment plants - Offshore and marine technology
