Lead/traction spindle lathe

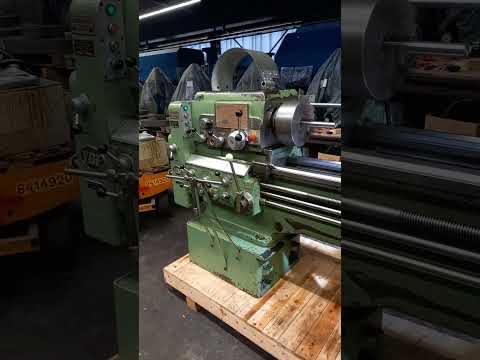

VDF HEIDENREICH & HARBECK 24 RO

Condition: excellent (used), Year of construction: 1972, Precision lathe, turning machine, lathe, center and feed lathe, center and feed lathe -Manufacturer: VDF Heidenreich & Harbeck, lead screw and feed screw lathe type 24R0 -Machine bed: hardened -Turning length: 1230 mm -Turning Ø over bed: 500 -Turning Ø over recess: 355 mm -Turning Ø over support: 290 mm -Spindle bore: Ø 56 mm -Spindle speeds: 19 - 2000 rpm -Wedge bar chuck: Forkardt Ø 250 mm -Tailstock mount: MK4 Fpodjw Sxgxepfx Ag Rsb -Drive: 5.5 kW -Accessories: 1x steady rest, 7x Multifix tool holder, see photos -Dimensions: 1180/3050/H1345 mm -Weight: 1907 kg

Condition: new, turning diameter 420 mm turning length 1500 mm swing diameter over bed slide 250 mm Swingdiameter in the bed bridge 590 mm centre height 210 mm Turning length in the bed bridge 260 mm reus 16 (45-1800) U/min tail stock MK 4 quill stroke 120 mm diameter of quill 50 mm spindle taper DIN ISO 702-2 Nr. 6 spindle bore 52 mm spindle cone MK 6 feed längs 17 / 0,05 - 1,7 m/min feed plan 17 / 0,025 - 0,85 m/min total power requirement 4,6 kW weight of the machine ca. 1340 kg dimensions of the machine ca. 2440 x 915 x 1375 mm Fully equipped master and feed spindle lathes. TH 4215 with digital position indicator DPA 21 / 3462070 Fpsdpok Egrpefx Ag Rjb - Hardened and ground Z-axis guideway - Spindle mount Camlock DIN ISO 702-2 No. 6 - Precisely crafted slide - Hand wheels with adjustable fine scaling 0.04 / 0.02 mm - Quadruple steel holder - All guides can be adjusted using V-ledges - Adjustment range top slide ± 90° - Guaranteed concentricity of the spindle nose better than 0.015 mm - Main spindle running in oil bath - Smooth-running gear wheels, hardened and ground with 2 adjustable Precision tapered roller bearings - Hand wheels decoupled and tested according to EN 23125 - Two-channel right-left switch tested according to EN 23125 - Switch with life cycle calculation, tested according to EN ISO 13849 - All metric pitches in the range 0.2 to 14mm/rev and all Inch threads in the range of 72 - 2 threads per inch without changing the Change gears adjustable by shift lever in the control panel - Clockwise/counterclockwise rotation can be switched on the bed slide via the switching spindle - Central lubrication in bed slide - Meehanite cast base and machine bed in one piece - Lead screw cover - Emergency stop device with foot control - Safety handwheels with snap-out function in the X and Z axes - Tailstock for taper turning adjustable ± 10 mm - Tailstock quill and hand wheel with adjustable fine scaling 0.025 mm - Quick, easy and tool-free adjustment using a clamping lever - Heavily ribbed prism bed, induction hardened and precision ground cast iron - Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN - LED machine lamp in the chip guard Models TH 4210D and TH 4215D with digital readout DPA21 - User-friendly membrane keyboard, splash-proof, closed andglare-free - Glass scales scope of delivery - Fixed bezel passage Ø 15 - 145 mm - Revolving bezel passage Ø 10 - 75 mm - LED machine light - Reducing sleeve MT 6 / MT 4 - Fixed center MK 4 - Change gear set - Position stop with fine adjustment - Initial filling of the machine with quality oil - Operating tool Incl. special accessory OPTIMUM three-jaw lathe chuck centrically clamping Ø 250 mm Quick change holder SWH5-B set

Condition: used, L + Z Lathe WEILER Type LZ PRIMUS GS Machine no. No. 2461 Year of construction approx. 1990 Center width 400 mm Turning diameter over bed 250 mm Center height above bed 125 mm Turning diameter over support 140 mm Center height above support 70 mm Spindle bore 24 mm Spindle speed 60 - 3000 rpm 18 steps Feed lengthwise and flat Chuck flange short taper DIN 55022 size 4 Inner tailstock taper MK 2 Drive power 1.1 kW and 1.5 kW pole-changing Mains connection 380 Volt, 50 Hz - 3-axis digital readout FAGOR, type 30i-T-B - Spindle speed via 2 motor speeds and 9 gear stages - 3-jaw lathe chuck RÖHM Ø 125 mm with stepped jaws - MULTIFIX quick-change tool holder with 1 interchangeable cassette - Set of collets Ø 1 / 3 / 4 / 5 / 7 / 8 / 10 / 14 / 15 / 16 / 17 / 19 / 20 / mm - 1 centering tip for collet chuck holder - Emergency stop - Hinged chuck guard - Splash guard - Machine light - electrical diagram - Machine mounted on a steel plate (steel plate L x W x H 1200 x 500 x 30 mm, 140 kg) Space requirement L x W x H 1200 x 900 x 1560 mm Weight 520 kg good condition Fpjdpfx Agertd Uwe Reb

Condition: excellent (used), Year of construction: 1988, wire working range: 0,1 - 1,3 mm cutting length: 5 - 70 mm output: 400/min. complete with ciller and motorized decoiler Fpodpfe Syv Tjx Ag Reb

Condition: new, Year of construction: 2025, Top height 250 mm Spindle bore 103 mm Fpsdpfx Asd I A Dhjg Reb Tip width 1000 mm Circumference diameter over bed 500 mm Circumference diameter in the crank 710 mm Circumference diameter over support 300 mm Speed range 9 - 1600 rpm (24 steps) Spindle nose DIN 55029 Camlock D1-8 Range of longitudinal feeds 0,028 - 6,43 mm / rev; 93 steps Range of feed rates 0,012 - 2,73 mm / rev. 93 steps Metric threads 0.5 - 224 mm; 48 steps Inch thread 72 - 1/8 gear / inch; 49 steps Module thread 0.5 - 112 mm; 42 steps Diametrical thread 56 - 1/4 DP; 42 steps Quill ø 75 mm Quilltravel 150 mm Quill holder Morse cone 5 Motor power 7.5 kW Weight 2,750.00 kg Dimensions 2500 x 1100 x 1380 mm

Condition: used, Year of construction: 1987, turning diameter over bed 0560 mm turning diameter over slide rest 325 mm turning length 1500 mm spindle bore 62 mm spindle turning speed range 11,2 - 2240 U/min Fpsdjw Ny S Dspfx Ag Rsb total power requirement 9 kW weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,6 x 1,6 m With Multifix incl. 2 holders, chuck, rotating center and DRO.

Condition: good (used), Year of construction: 1988, turning diameter over cross slide: 900 mm, spindle bore: 105 mm, turning diameter: 1,200 mm, turning length: 5,000 mm, total length: 8,000 mm, total width: 1,800 mm, total height: 1,550 mm, bed width: 650 mm, workpiece weight (max.): 10,500 kg, Motorized tailstock CE-Chuck cover protection Telescopic guide cover over guideways Steady rest  4 chuck 1000 mm diameter 3 chuck 500   mm diameter   2 Axis digital read out system DBC Turning Length: 5000mm Swing over bed Ø: 1150mm Swing over cross slide Ø:850mm Spindle bore: 105mm Bed width: 650mm Tailstock spindle Ø: 140Ø Stroke pinole: 300mm Spindle taper: 6Mk Speeds / ranges: 4,5 - 900Rpm Fodowrxpbspfx Ag Rjpb Workpiece load: 8000 Length: 8000mm Width: 1800mm Height: 1550mm Weight: 13800kg

Condition: reconditioned (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 3595, Ladies and Gentlemen, We are selling a Weiler Commodor B lathe built in 2001 with Heidenhain 3-axis digital readout. The machine has been extensively overhauled in our workshop. Among other things, the main spindle bearing and the lead/traction spindle bearing were completely renewed! Technically, geometrically and visually, the machine is in excellent condition, which you are welcome to see for yourself on site. Fpjdpfx Agethd Shj Rjb Availability: on request Machine no. 3595 Year of construction: 2001 Center height: 180mm Center width: 1000mm spindle passage: Ø 56mm max. spindle speed: 2000 rpm Tailstock taper mount: MK4 Feed range: 0.026 - 0.888 mm/rev Possible thread types: Metric, inch, module, diametral pitch Metric thread pitches: 0.35 - 12 mm Spindle brake: switchable Connected load: 4kW Dimensions: approx. 2.2x1.5x1m (LxHxW) Weight: approx. 1.8t Further equipment and accessories: 3-axis digital display, coolant device, chuck guard, pull-out chip tray, 3-jaw chuck Röhm, 4-jaw chuck Röhm, various clamping jaws... Our service promise to you: - We are a certified master company in the field of mechanical engineering - All machines are thoroughly checked - All lubricants and any worn parts are replaced in advance - On request, we can completely or partially overhaul your chosen machine - On request, we can repaint the selected machine in the color of your choice E00f3g2rl - On request, you can also order additional accessories such as tools etc. directly - On request, we can install additional accessories such as safety devices etc. - We are happy to take care of shipping and/or installation

Condition: used, Year of construction: 1987, Technical details: turning diameter over bed: 500 mm turning diameter over support: 280 mm turning length: 1500 mm centre distance: 1500 mm turning dia. in gap: 730 mm spindle bore of work spindle: 65 mm range of revolution per miute: 25-1250 / 32-1600 / 36-1800 - 18 step U/min feed:: 0,05 - 8,5 mm rapid motion - x-axis: 4 m/min rapid motion - y-axis: 1,26 m/min tailstock quill taper MT: 5 tailstock quill adjustment:: 200 mm total power requirement: ca. 8,2 kW weight of the machine ca.: 2,5 t dimension machine xH: 3,2 x 1,3 x 1,5 m Thread cutting possible Cross slide travel 300 mm, feed 0.015 - 2.8 mm (clutch end position switching not functional, manual switch-off necessary) Top slide with 4-fold tool holder Steel plate Ø 705mm with offset threaded holes * Fpodpfxju Ixzns Ag Reb

Condition: good (used), Year of construction: 1986, functionality: fully functional, machine/vehicle number: 01093.01-808, A used L&Z lathe, manufacturer: VDF BÖHRINGER, type: DUE 630, year of manufacture: 1986, machine number: 01093.01.-808. Turning length: 3000 mm Turning diameter: 630 mm. Equipped with 2 steadies, chuck, faceplate, and Multifix toolholder. Fpsdpfx Agexd Df No Rsb
