Gear measuring machine and rack measuring machine

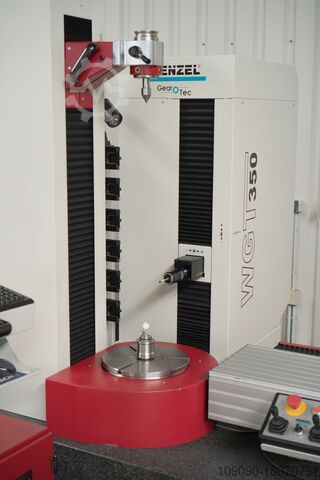

Wenzel WGT 350 XL

Condition: used, TECHNICAL DETAILS - Distance between centers : 650 [mm] - center height : 175 [mm] - Max. part weight between centers : 80 [kg] - X/Z stroke : 285 / 800 [mm] - Axis X programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] - Axis Z programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] - Table orientation : 0 - 8.5 [°] GRINDING WHEEL HOLDER HEADSTOCK - T1 grinding wheel dimensions : 500 x 63 x 203,2 [mm] - Speed : 50 [m/s] - Power : 9 [kW] - Manual orientation : -15 / +195 [°] - Indexing precision : 2.5 [°] - Internal grinding : 40.000 [rpm] - Power : 3 [kW] PART-HOLDER HEADSTOCK - Type of cone : CM5 - Speed : 1 - 1500 [rpm] - Power : 1.8 [kW] - Boring : 30 [mm] - C axis indexing precision : +/- 0,5 [°] - TAILSTOCK - Type of cone : CM4 - Quill diameter : 50 [mm] - Quill stroke : 35 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 20 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.670 x 2.050 [mm] - Machine height : 1.900 [mm] - Machine weight : 4000 [kg] MACHINE HOURS - Number of hours under power : 190 [h] EQUIPMENT - CNC : FANUC Oi-TD - Electronic handwheel - 3 colors status lamp - Oil mist extractor - Linear scales on axes X/Z - Dynamic wheel balancing : MPM - Automatic contact detection : SENSITRON 6 - Fixed dressing device - Workpiece probe Bwodsylc R Ujpfx Ad Djl - Coolant tank : 375 [l] * with paper filtering unit

Condition: refurbished (used), Measuring Range X/Y/Z = 900 x 1200 x 850mm Accuracy 4,0 + 4,5L/1000 (origin setup, now better after Retrofit) Completely refurbished 2018 with new Pantec Eagle Pro Controller Probesystem is Renishaw PH10MQ and SP25M Software Inspect3D Inca Premium actual version Computer is a HP z240 Option : Bwedpfxsdpak Re Ad Del Laserscanner (e.g. Kreon) Probe changer

Condition: excellent (used), 16 end mills with indexable inserts Make Walter Bwedpfx Ajdx D Tved Del Weight 9.5 kg

Condition: used, Year of construction: 2003, turning diameter 190 mm turning length 620 mm control Fanuc Series 18i-TB total power requirement 15 kW weight of the machine ca. 13,5 t dimensions of the machine ca. 5350X3350x2395 m Bjdpfx Adjxiy Aus Dswl

Condition: like new (used), Year of construction: 1999, functionality: fully functional, MORI SEIKI SL-600B/2000 CNC LATHE Category: CNC Turning Centers Reference No.: 400212 Capacity: Ø900 X 2000 MM Year of Construction: 1999 Technical Specification: CNC Control : Fanuc 18iT WORKING CAPACITY Max Turning Diameter : 900 mm Max Turning Length : 2000 mm Swing over bed : 994 mm Distance Between Centers : 2300 mm Swing over cross slide : 733 mm Travels (X) : 485 mm (440 + 45) mm Travels (Z) : 2150 mm Bjdox Nv Shjpfx Ad Dewl TURRET Turret : 12 Station Square tool shank size : 32 mm Boring bar shank diameter : 65 mm TAILSTOCK Tailstock : MT5 Tailstock Quill Travel : 150 mm Tailstock Quill Dia : 150 mm SPINDLE Max Rotation Speed : 1500 RPM Main Spindle Nose : JIS A2-15 Main Spindle Bore : 185 mm Spindle Type : 3 Step Gearbox Spindle bearing inner diameter : 260 mm MACHINE DIMENSIONS Weight : 16T Additional Details: All Specifications are found online, and subject to verification by buyer.

Year of construction: 1992, condition: used, grinding height 50 mm grinding width 120 mm grinding wheel diameter 600 mm total power requirement 85 kW weight of the machine ca. 9500 kg D I S K U S (Germany) CNC Controlled Double Sided Vertical Spindle Surface Grinder with Rotary Workpiece Feed System and IONIC Size Control Model DDS 600 III PLM - CNC Year 1992 erial No. 7924 _____ Grinding wheel Ø x bore x height, each 600 x 150 x 75 mm Approximate Workpiece dimensions: Grinding height, approx. 1.5 – 50 mm Grinding width, appox. 20 - 120 mm Vertical quill adjustment, each, approx. 150 mm Infeed of grinding wheels via CNC 0.0001 mm Feed of workpiece transportation device, infinitely variable 40 – 235 mm/sec Grinding wheel speed, each (30 m/s) 191 - 955 rpm Grinding spindle drive, each infinitely variable 37 kW Total electrical load, approx. 85 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features * SIEMENS CNC Control, Model SINUMERIK 810 G, with monitor, for 4 axes i.e. * Movement of 2 spindle quills, dressing device, WP Rotation. Direct programming of Grinding Process data on keyboard. In connection with a IONIC Size Control No. 17 A / 68.000 with two tracers for measuring the thickness of the workpieces after grinding process, and corresponding infeed of the grinding wheels. Continuous display of measuring results on the monitor, with statistics, workpiece counter, etc. Digital Display Ampere for both grinding wheel drives and for grinding spindle speeds, etc. . * Positioning control device for supervising the height of the lower grinding wheel.. * Double column design as a portal for extra stability and higher accuracy * Rotary workpiece transportation device with infinitely variable feeds. The workpieces are Manually stacked in a device and forwarded by a transportation carrier disk thru the grinding wheels, there are two WP- down holders, one equipped with a overheight stop-control. * Angled grinding wheel dressing device, with automatic dressing process, integrated in the control as CNC axis, with safety switch-off. * Separate large switch cabinet. * Automatic central lubrication. Large pneumatic control system * Large Coolant device 6 (F) with filtering unit and magnetic separator. * Various Grinding wheels, WP transport carrier disks, 2 flanges, large Olimist separator, etc. This machine is very suitable for simultaneous double-sided grinding of large series of workpieces, e.g. punched parts, piston rings, hydraulic parts, rotors, distance rings, etc. Condition : Very good. Machine can be soon inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Bwodpfx Adjt Hw Nae Dsl

Condition: used, Year of construction: 1974, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7 t L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 _____ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Bodpfxot Hww Ds Ad Dewl Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12-150 Feed range, tooth depth 0.01 - 0.063 mm/stroke Feed range, rotary feed by Tool-Ø 125 0.125 - 3.15 mm/stroke Spindle drive, approx. 19 kW Total electrical load, approx. 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special Features * Hydrostatic straight guides with separate hydraulic aggregate. * Built-in raiser plate approx. 100 mm to increase height of shaper head. * Hydraulic universal workpiece clamping device built by RINGSPANN to clamp ring shaped workpieces on the inner diameter with various inserts to accommodate different workpiece diameters. * Stepless Regulation of number of strokes for improving roughing and finishing process * Automatic changeover of number of strokes, and automatic feed changeover for roughing and finishing work in up to 3 cuts. * Automatic and motor-driven fixing of shaping stroke in the upper position after work is finished. * Separate switch and control cabinet. Two-hand start. * Coolant equipment with magnetic chip conveyor and chip collection container. * Various change gears, shaping tool holders, etc. Condition : Satisfactory to Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We always have a good selection of gear machines on stock. Please let us know what you need.

Condition: good (used), Year of construction: 2014, center height: 180 mm, center width: 600 mm, grinding diameter: 260 mm, Sinumerik 840D sl cnc control tail stock measuring device diamant roll portal loading device Technische Daten / technical details: Spitzenweite / center to center 600 mm Spitzenhöhe / center height 180 mm max. Schleifdurchmesser / max. grinding diameter 260 mm Schleifscheibenmaß / grinding wheel dimension 600x80x304,8 mm Bodpfevygwwex Ad Dowl Reitstock / tail stock MK4 Antriebsleistung Schleifspindel / drive capacity grinding wheel 12 kW Gewicht der Maschine / weight 7500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, Chip conveyor High-pressure pump Parts catcher Bar feeder interface Bjdpfx Adeyf Dtqe Dewl Tooling

Condition: ready for operation (used), Year of construction: 2008, Make: MAZAK Type of machine: INTEGREX 300-4ST Year of manufacture: 2008 Control system: Mazatrol Matrix Machine's weight: 13.900 kg Tool holder: Capto C6 Bodpfjyh I Tdox Ad Dswl x-travel: 530 mm y-travel: 200 mm z-travel: 1.065 mm Speed range: 4.000 U/min Cutting diameter: 300 mm Turning length: 1.000 mm Overall dimensions: 6.500 × 3.000 × 3.200 mm Tool turret - slots: 80 Pl.
