AC spot welding machine, projection welding machine, AC resistance welding machine

ARO MA 50 SC

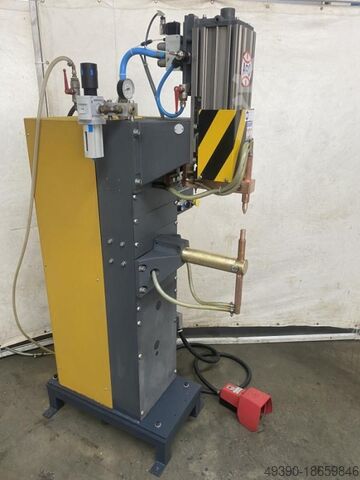

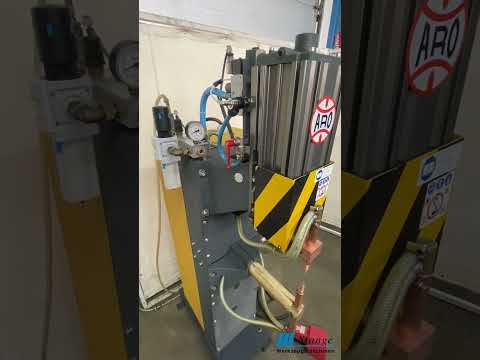

AC Spot Welding Machine, Projection Welding Machine ARO Type MA 50 SC
AC Resistance Welding Machine
Machine No. 0723122BA0001 Year of Manufacture 2007
Power at 50% duty cycle: 50 kVA
Power at 100% duty cycle: 35 kVA
Maximum welding power: 156 kVA
Thrust 350 mm
Electrode arm diameter: 60 mm
Electrode holder diameter: 25 mm
Max. cylinder stroke: 80 mm
Max. electrode force: 730 daN (at 6 bar), continuously adjustable
Operating air pressure: 3.5 to 6 bar
Mains connection: 400 volts, 50 Hz
Connected load: 117 kVA / 100 amps / Cable cross-section: 3 x 35 mm²
- Welding control: ARO Micro 2X16 III Version 10T16P (6 times - 16 programs)
- Continuously adjustable welding current via thyristor module
- Parallel electrode guide
- Single-stroke welding cylinder
- Single-stroke and continuous spot welding modes
- Electrode force continuously adjustable via air pressure
- Water-cooled by external water cooling (water cooling unit not included)
- Electric foot switch
- Control cabinet with control system permanently attached to the machine
Csdpfxjv Hruhj Ab Sjhc
- PC interface RS 485
- Spot weld counter
- Operating instructions and electrical diagram included
Space requirement L x W x H 650 x 950 x 1770 mm
Weight 330 kg
Good condition
