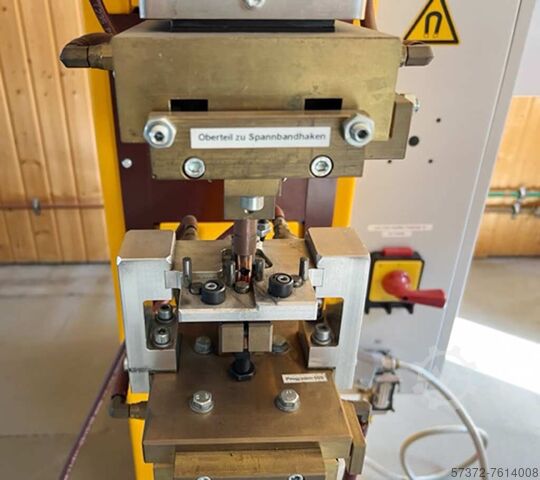

Projetion Welding Machine

Dalex PMS 11-4

Condition: used, Year of construction: 1960, Technical details: Kdodpfx Aju Nv Emsarsw current capacity: 60 kVA throat: 680 mm arm distance: 115 / 415 mm pincer opening adjustable: 180 mm rated capacity: 60 kVA welding power: 71 kVA electrode capacity: 100 bis 600 daN voltage: 380 V / 50 Hz V air pressure: min./max.: 6 / 10 bar cooling water consumption: 12 l/min weight of the machine approx.: 685 + 200 kg connection voltage: 380 V / 91 A V rated capacity: 60 kVA connected load: 54 kVA dimension L-W-H: ca. Maschine: 1.700 x 850 x 1.750 mm dimension L-W-H: ca. Aggregat: 900 x 650 x 1000 mm POINT WELDING MACHINE - WELDING TRANSFORMER Direct current three-phase welding machine Application: Spot, projection and series spot welding Maximum short-circuit power 89 kVA Primary short-circuit current 135 A Secondary current = short-circuit current: 25 kA and welding current max. 20 kA Electrode stroke max. 90 mm; electrode force min./max.: 100 daN / 600 daN Stroke sequence max. with 10 mm stroke 400 strokes/min. Spot fitting: electrode holder Ø 30 mm, adjustable 180 mm, arm distance = min./max.: 115 / 415 mm 2-fold foot switch Cooling unit, mobile = movable on wheels, connection power 1.45 kW, pipe connection R 3/4 inch, coolant R22 *

Condition: good (used), Year of construction: 2006, 1 CNC tube end forming machine Manufacturer: BLM Type: Tube Form M32x1.5 Year of manufacture: 2006 Kdjdpfx Aasn Sm Ddorew Technical specifications Thrust force: 3.5 tons Locking force: 5 tons Working stroke: 130 mm Tool diameter: 80 mm Dimensions: 2400 x 1400 x 2000 mm Connected load: 12 kVA Weight: 2200 kg

Condition: good (used), Medium frequency 1000 Hz spot welding machine, 400 V 50 Hz Make: DALEX Model: PMS 11-4 MF Arm reach: 950 mm with double-acting cylinder Rated power at 20% duty cycle: 180 kVA Secondary short-circuit current: 37 kA Secondary open-circuit voltage: 9 V Kdjdpfxjvyk Sfj Aarew Electrode force: 60-600 daN Weight: 550 kg

Year of construction: 2002, condition: ready for operation (used), A medium-frequency spot welding machine Dalex-Werke is available. Throat depth: 350mm, electrode stroke: 90mm, electrode holder diameter: 30mm, electrode taper: MK2, rated power at 20% duty cycle: 180kVA, max. welding power: 200kVA, primary voltage: 400V, rated frequency: 1000Hz, electrode force: 20daN–600daN. Weight: approx. 575kg, control: HWS 2102. Documentation available. An on-site inspection is possible. Kdsdpfx Aajw H Sc Aorow

Year of construction: 2021, condition: as good as new (ex-display), Highlights: - Powerfull motorizied spindle 16.000 U/min | 206 Nm - Hydraulic clapming for fixtures - Latest Machine Generation Basic machine G640 Work area travel range: X = 1.050 mm, Y = 800 mm, Z = 1.050 mm Power supply 400 V, 50 Hz, TN-S Decentralized work area mist collector Ksdpfolaugaox Aarsdw Machine cooling system with an air-cooled cooling unit Machine control series FANUC 31i-MODEL B Plus Cycle package for measuring probes (RENISHAW) Control panel to enter tool data at tool loading and unloading position Rotary table with GROB pallet clamping system (B-axis) Motorized spindle HSK-A 63, 16,000 rpm, 159/206 Nm, 25/32 kW, oil-air lubrication GROB spindle diagnostics GSD Single disc-type magazine HSK-A 63 with 50 pockets Tool cleaning device Electromechanical tool breakage detection device Twin palette changer Setup station driven by a three-phase servomotor Setup station door, manually-operated, for manual loading/unloading Additional control panel Pallet 630 x 630 mm, T-slots Equipping the pallet with 12 fluid connections Scraper-type conveyor, discharge height 1,100 mm High-pressure cutting fluid system (23 bar, ICS) Compressed air feed through spindle center External compressed air supply via a flexibly adjustable hose Cutting fluid recirculation on the weekend Flush gun at the work area Air gun at the work area Part clamping system in work area, customer-specific Hydraulic power unit for the part clamping system KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP3: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP5: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP6: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) Cooling unit for hydraulic proportional valves Part clamping system in setup station of pallet changer, customer-specific KP1: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP2: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP3: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP4: Pressure oil, proportional valve technology, 30-190 bar (H2.1) KP5: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP6: Pressure oil, manual pressure reduction, 30-200 bar (H1.1) KP7: Compressed air, seating check system (P2.1) KP8: Compressed air, seating check system (P2.1) KP8: Compressed air, seating check system (P2.1) KP10: Compressed air, seating check system (P2.1) KP11: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) KP12: Compressed air, manual pressure regulation, 0.5-5 bar (P1.1) Touch probe Renishaw RMP60 12-month warranty

Condition: excellent (used), throat depth: 1,100 mm, nominal power at 50% duty cycle: 96 kVA, short-circuit current: 31,500 A, input voltage: 400 V, type of cooling: water, overall weight: 830 kg, Equipment: type plate available, Spot welding machine type PMS 11-4 G3 in 3-phase DC version - Specifically designed for welding aluminum sheets - Low usage, completely checked and cleaned - Fully functional, ready for demonstration Ksdpfx Aaoh N Sc Ejrsdw - Rated voltage 400V/50Hz - Rated power 96 kVA - Welding current 23 kA - Connection cable cross-section 10 mm²/phase - Fuse protection 63A - Throat depth 1050 mm (!!) - Electrode arm diameter 60 mm - Electrode holder diameter 30 mm - Electrode force 600 daN - Stroke 65+25 mm - Electrode taper MK2 - MPS 8043/1 control unit from Harms & Wende with current rise and pulse function – operating manual included - 2-stage foot switch according to regulations (UVV) - Main machine switch - Pneumatic service unit - Weight approx. 830 kg - Complete documentation available: wiring diagram, compressed air diagram, and cooling-water circuit - VAT deductible - Delivery ex stock Dresden approx. 4 days within Germany – export may take longer! On-site commissioning available for a fee, billing based on actual effort. The unit is located in Dresden, near the A17 motorway, and can be inspected and demonstrated by appointment.

Condition: refurbished (used), Year of construction: 2025, Power at 50%: 80kVA Short circuit-current: 45,4kA Kdsdpowqmrnjfx Aarsw Electrode force: 100-600daN / single stroke Throat depth: 350mm --- Weld control: MPS 100mono (8-times, 1-program) --- Warranty: 6 months --- Spotwelding electrodes + spare parts at stock

Condition: excellent (used), Operating hours: 15290 Kedpfx Aof I Epujarjdw

Condition: excellent (used), Air-operated, water-cooled 3-phase direct current spot welding machine make DALEX type PMS 11-4 G3 Asload: 650 mm with special cylinder with low pressure range of 20-120 daN Rated power at 50 % duty cycle 60 kVA Sec. short-circuit current: 25 kA Kdsdou A Dg Eopfx Aarjw sec. open-circuit voltage: 3.68 V with add-on switch cabinet in accordance with VDE 0100 Main switch Synchronous welding control 8036 Weight: 685 kg

Condition: excellent (used), 3-phase direct current spot welding machine DALEX type PMS 11-4 G 3 Rated power at 50 % ED: 96 kVA Sec. short-circuit current: 44.5 kA Sec. open-circuit voltage: 4.72 V Electrode force: 100-600 daN arm reach: 550 mm Kjdpfshmvawsx Aarodw with add-on control cabinet according to VDE 0100 Main switch Synchronous welding control 8033 weight: 740 kg

Condition: like new (used), Year of construction: 2019, pressure:400 t stroke:900 mm Table dimensions:1200 x 1200 mm Deep-Drawing Pillow:150 t travel away deep-drawing pillow:280 mm Daylight Opening:1100 mm Kdodsfh Izmspfx Aarow

Condition: excellent (used), Combined spot and projection welding machine Brand: DALEX Model: PMS 11-4, Version "B" Throat depth: 350 mm Rated power at 50% duty cycle: 100 kVA Secondary short-circuit current: 59.2 kA Secondary open-circuit voltage: 2.15–4.33 V Electrode force: 190–1140 daN with 4-position switch Mounted control cabinet according to VDE 0100 with main switch Kdjdpjwz Rz Isfx Aarew Synchronous welding control with monitoring function MPS 8043-1 IQ1 Selector switch for operation with two-hand safety console and foot pedal Sample photo Machine currently under refurbishment.

Condition: excellent (used), Roller seam welding machine in longitudinal seam design Make DALEX Type PMS 11-4 Nl throat depth: 350 mm Rated power at 50 % duty cycle: 80 kVA Kdsdjtxl Ivjpfx Aarjw Sec. short-circuit current: 23 kA sec. open-circuit voltage: 3.5 - 4.26 V with 2-step switch (high/low range) Electrode force: 80-600 daN with add-on switch cabinet according to VDE 0100 Main switch Synchronous welding control unit 8036 Weight: 635 kg Example photo Machine is still being refurbished

Year of construction: 1989, condition: excellent (used), Article number: MA1060 Manufacturer: Fasti Type: 509/40/6 Year of construction: 1989 Machine number: 5888 Control: Omron was renewed in 2012 Kedpfxed Ac D Ro Aarjdw Length [mm]: 4850 Width [mm]: 2450 Height [mm]: 2100 Weight [kg]: 10900 Power supply: 380V / 16.5 KW Working range [mm]: 4000 Maximum sheet thickness [mm]: 6 Blade length: 4000 Length stop: front 5000 mm / rear gauge 1000 mm Accessories: manuals / schematics
