Circular saw for stone bridge saw

Dianormet DS-650S

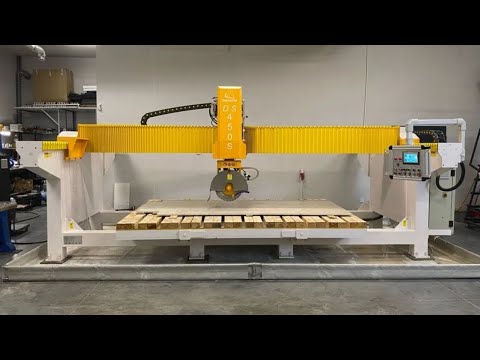

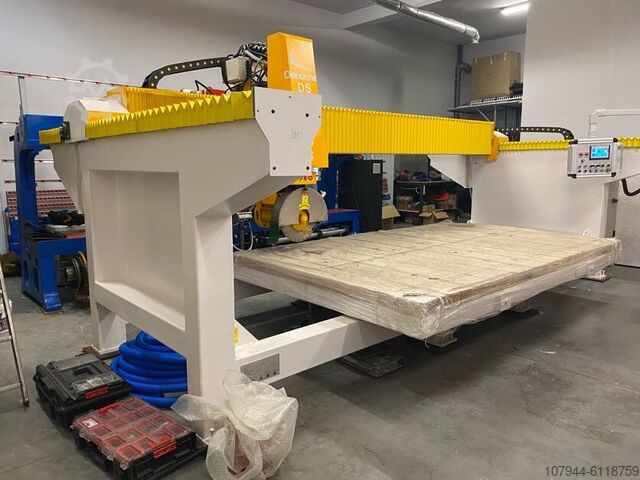

Stone circular saw with the ability for straight and 45° angle cuts. Basic version supplied with a tilting work table up to 85°, without table rotation, which significantly reduces the final price of the machine. Monoblock construction eliminates additional costs such as foundation pouring under the table, and allows for the machine to be relocated at any time. Tilting head 0°–45° with rotation 0°–90°. Due to its weight, the machine is exceptionally sturdy and stable.

The machine is equipped with automatic central lubrication and helical gears, resulting in much quieter operation and increased longevity. Maximum saw blade diameter is 650 mm. The machine uses only highest quality components from Siemens and Schneider. Control is provided via touchscreen, joysticks and panel buttons, as well as wireless remote control. The main motor is equipped with a frequency inverter for smooth speed regulation.

Cutting modes:
✅ Manual – in manual mode, the machine is operated mainly via joysticks on the control panel. There is also an option to move the head by a specified distance along a given axis ('manual move distance'). This makes it possible to precisely shift the saw edge, e.g. by 200 mm to the right.
✅ Automatic – in automatic mode, up to 12 cutting programs can be stored on the X axis (left-right) and Y axis (forward-backward). Additionally, it is possible to choose whether the saw will return to its home-safe position after completing the cutting program.

Machine description:
Cedjg I Dnijpfx Ab Sjhc
✅ Monolithic base with two horizontal beams – replaces foundations; no additional costs (pouring foundations under the table or load-bearing walls), with relatively easy relocation at any time
✅ Robust main gantry – cast iron construction

✅ Tool head tiltable up to 45° with integrated laser
✅ Monolithic steel base with two horizontal beams (replaces foundation)
✅ Worktable tiltable up to 85°
✅ Tool head tiltable up to 45° with laser
✅ Table tiltable up to 85°
✅ Simple and quick machine programming
✅ Manual and automatic operation modes available
✅ Electrical cabinet components based on Schneider and Siemens components

Axis movements:
✅ X axis – cutting movement right-left
Tool carriage movement on the gantry, driven by helical rack and pinion; linear guide bearings
✅ Y axis – bridge movement forward-backward
Bridge movement along horizontal guides, driven by helical rack and pinion; linear guide bearings
✅ C axis – head rotation
Head rotation with blade from 0° to 90°
✅ A axis – blade tilt
Blade tilt 0°–45°
✅ Z axis – vertical blade movement
Hydraulic drive ensures accuracy and precision of cuts, manually set limit switches
