Welding set

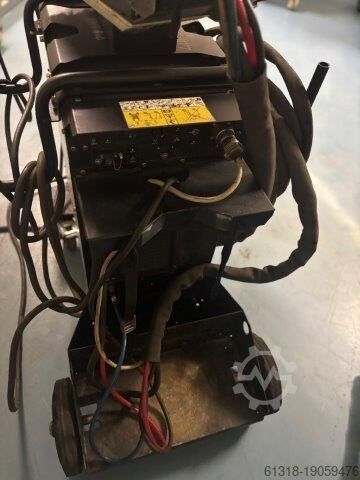

EWM Phoenix XQ 500 puls DW EX R1 5 m

Condition: excellent (used), Year of construction: 2024, functionality: fully functional, Used multiprocess MIG/MAG welding machine EWM Phoenix XQ 500 puls DW EX R1 5 m, MFG 2023 Multiprocess MIG/MAG pulse welding machine including all characteristics and welding processes, decompact, demodular Drive XQ wire feeder, Drive XQ HP WRS/WHS, MFG: 2023 Fpedpfx Aswgy Eyoh Djr Pivot support for wire feeder, “blueCool” coolant to -10 °C (-14 °F), 5 l, 5 l Intermediate hose package, water cooled, 14-pole, 1.8 m Welding torche PM 551 W LED X M9 3 m Wire spool adapter B300, MIG/MAG function torch with OLED graphic display, water-cooled, X technology, 4 m Workpiece lead with clamp, 550 A / 60 %, 95 mm² Pressure regulator with manometer, 30 l Mains plug, assembled, Workpiece lead with clamp: WK95mm² Ø 13 mm 550A/60% 4m/Z Crane frame – moves the crane lifting point from the bottom to the top Intermediate hose package, water cooled, 14-pole Cross-section: 95 mm²: Z MIG XQ 95 mm²/1.8 m 500A/80% AK300 Wire spool adapter for use with a wire basket spool (B 300) Setting range for welding current 5 A - 500 A Duty cycle 40 °C 500 A / 80 % 470 A / 100 % Open circuit voltage 82 V Mains voltage (ex works) 3 x 380 V - 400 V Mains voltage (possible) 3 x 440 V - 460 V Mains voltage (possible) 3 x 480 V - 500 V Mains tolerances (ex works) -25 % up to +20 % Mains frequency 50 Hz / 60 Hz Recommended generator power 33.2 kVA Efficiency 90 % Power consumption Pi 26 W Cooling capacity at 1 l/min.1500 W Pump pressure 3.5 bar Tank capacity 8 l Protection classification IP23 EMC classA Dimensions (L x B x H) 1152 mm x 686 mm x 976 mm Weight 125.5 kg / 276.7 lbs Standards IEC 60974-1, -2 and -10 CL.A Price Euro 7.500 Euro + VAT, negotiable, FCA: Oradea/Romania Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare prealabila. We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana

Condition: excellent (used), Year of construction: 2020, operating hours: 1,139 h, functionality: fully functional, turning length: 599 mm, turning diameter: 530 mm, spindle motor power: 11,000 W, spindle speed (min.): 50 rpm, spindle speed (max.): 6,000 rpm, spindle bore: 56 mm, travel distance X-axis: 530 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 599 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 30 m/min, Beautiful machine with the possibility of integration with a brand new IEMCA bar loader mod. Master 52, 1,100 h of work life. Multitasking, allows milling and turning operations together. Robust and precise machine with rigid cast iron structure. Double magazine: Revolver turret + Internal magazine with additional 12 CAPTO tools protected in internal magazine + 12 mounted in turret + 6 25 mm square hybrid attachments (see attached technical sheet). Double spindle for resuming processing. Fanuc 0i-TF numerical control + Manual Guide. Tool Overload Detection System (automatic tool overload control system). Complete manuals. Transformer, Chip conveyor, 15 Bar coolant pump. Presetting, Hand piece collector and finished piece exit carpet, Work lamp, Fpedpjvv Tvfofx Ah Djr ----- Beautiful machine with the possibility of integration with a brand new IEMCA bar loader mod. Master 52, 1,100 h of work life. Multitasking, allows milling and turning operations together. Robust and precise machine with rigid cast iron structure. Double magazine: Revolver turret + Internal magazine with an additional 12 CAPTO tools protected in the internal magazine + 12 mounted in the turret + 6 25 mm square hybrid attachments (see attached technical data sheet). Double spindle for resuming processing. Fanuc 0i-TF numerical control + Manual Guide. Tool Overload Detection System (automatic tool overload control system). Complete manuals. Transformer, Chip conveyor, 15 Bar coolant pump. Presetting, Piece collecting hand and finished piece exit carpet, Work lamp,

Condition: excellent (used), Vertical band saw JAESPA type MSU 4roller diameter 420 mmoutreach 400 mmtable size 615 x 615 mmcutting height 350 mmsaw blade length min. 3450 - max. 3640 mmsaw blade speed 20-2500 m/min. stepless mains connection 400 volt, 50 Hz - stepless saw band speed over 2 motor speeds, 2 gear stages and stepless belt drive - saw table swivelling - 2 gear stages - saw blade butt welding machine IDEAL BS 0-16- saw blade shear - grinding stone for grinding the weld seam space requirement L x W x H 1100 x 950 x 2000 mmWeight approx. 700 kgsehr good, immediately operational condition2 identical machines in stock Fpsded Tx D Uopfx Ah Djr

Condition: new, capacity 90 degrees: round 305 mm Fsdpfx Ajfd Abaoh Dspr capacity 90 degrees: square 260 mm 350 x 200 saw band length 3375 x 27 x 0,9 mm band speed 37 + 74 m/min table height 940 mm total power requirement 1,5/1,8 kW weight of the machine ca. 0,61 t dimensions of the machine ca. 1,5 x 1,75 x 1,9 m Double miter metal band saw with AutoCut function - Miter cuts up to 60° left and 45° right - Ball bearing turntable - Vice can be moved sideways - Massive, large material support - Automatic cooling Figure is semi-automatic.

Condition: new, Year of construction: 2023, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 650 mm, controller manufacturer: Heidenhain, controller model: TNC640, Control : Heindenhain TNC 640 Technology : Direct drive Speed : 12,000 rpm Power : 30 kW Fpsdpfx Ahjtpm Sts Dsr Torque : 176 Nm Taper : SK 40 Toolchanger : 40 stations Working area Movement X : 1,000 mm Movement Y : 600 mm Movement Z : 650 mm Fixed Table (X/Y) : 1,100 x 600 mm Load capacity : 1,200 kg Others Rapid traverse (X/Y/Z) : 36/36/32 m/min

Condition: as good as new (ex-display), Year of construction: 2023, air pressure: 5.9 bar, Next-generation air plasma system that significantly simplifies system operation for cutting and gouging up to 32 mm. Features automated process setup using advanced RFID-enabled SmartSYNC torch and a revolutionary one-piece consumable cartridge that provides traceable usage data. Technical data: Cutting performance: Recommended cutting capacity: 32 mm - 500 mm/min Maximum cutting capacity: 38 mm - 250 mm/min Severance capacity: 50 mm - 125 mm/min Fpjdpfsw U Stqjx Ah Dsr Piercing: 22 mm Typical gouging: Metal removal rate: 8.6 kg per hour Gouge profile: 6.6 mm (D) x 6.0 mm (W) Scope of delivery: Power cable, H105 handheld torch 23 m, 75° Workpiece lead with clamp, Operating manual Option: Hypertherm cartridge reader, software

Condition: like new (used), Year of construction: 2020, operating hours: 1,500 h, functionality: fully functional, USED Akira Seiki 1600XP Fanuc 0iMF Open Fronted Vertical Machining Centre with Fanuc Ex Stock - Subject to Prior Sale. YOM 2020, Machine with Very Low Hours Usage. Approx 1500 Hours  12,000 RPM Spindle with Refrigeration System  36 Station Arm Type ATC  Full Splash Guard  Fully Integrated Detron GXA-255h 4th Axis Nc Rotary Table with SR255H Tailstock Support Unit  Chip Conveyor & Chip Bin (Scraper Type)  Chip Flushing System Including Coolant Wash Gun  Through Spindle Coolant System - 35 Bars with Filter  Fanuc Memory Extension - 2 Mb  Fanuc 10.4 “ Screen with Manual Guide-I  Coolant Tank Capacity - 640 Litres  THK Heavy Duty Linear Guideways  Manual Pulse Generator  3 Colour Signal Lamp  Automatic Lubrication System Fpsdpfou A U Nksx Ah Dor  Rigid Tapping & Helical Interpolation Function TABLE Working Surface 1,750 X 800 MM Tee Slots 18 x 125 x 6.0 MM Spindle Nose to Table 100 ~ 915 MM Spindle Centre to Column 865 MM Table Load Capacity 2,300 KGS TRAVEL X-Axis Travel 1,630 MM Y-Axis Travel 850 MM Z-Axis Travel 815 MM SPINDLE Spindle Nose Taper BT-40 Spindle Speed - Max 12,000 RPM FEED Rapid Traverse (X & Y-Axis) 33 M / MIN Rapid Traverse (Z-Axis) 25 M / MIN Cutting Feedrates - Max 12 M / MIN ACCURACIES Positioning 0.01 MM Repeatability + - 0.003 MM ATC Tool Storage Capacity ARM TYPE - 36 STATIONS Maximum Tool Weight 7.0 KGS Tool Diameter - Max 75 MM Tool Length - Max 250 MM Tool Shank BT-40 Tool Exchange Time 2.2 SEC MOTOR Spindle Drive Motor (FANUC) 18.5 KW POWER SUPPLY Voltage 415V / 3PH / 50HZ Power Requirement 30.0 KVA MACHINE DIMENSIONS Machine Floor Space Requirement 4,820 x 3,576 MM Machine Weight 12,600 KG

Year of construction: 1988, condition: used, machine/vehicle number: 103.071.3156.78192, disk of circular saw-Ø: 400 u. 425 mm cutting area at 90° round: 130 mm cutting area at 90° square: 120 x 120 mm cutting area in mitre at 45° round: 130 mm cutting area in mitre at 45° square: 110 x 110 mm cutting speeds: 11 u. 22 m/min forward feed speeds: 670 mm/min cutting length: m. automat. Vorschub bis 1200 mm electrical connection: 380 V, ca. 4 kVA V Fpjdez N Amopfx Ah Dsr sawing drive: 1,6/2,5 kW space needed: 1800 x 3800 x 2000 mm weight: ca. 1800 kg

Condition: used, Technical details: welding current: 500 A Length: 1200 mm height: 1260 mm Fpsdpfx Ajwrq Txoh Djr connected load: 26,6 kVA connected load: 100 kW open-circuit voltage: 65 V machine weight approx.: 147 kg dimensions of machine: 1,2 x 0,45 x 1,2 m

Condition: new, capacity 90 degrees: round 305 mm capacity 90 degrees: square 260 mm 350x200 saw band length 3375x27x0,9 mm band speed 37 + 74 m/min table height 940 mm total power requirement 1,5/1,8 kW weight of the machine ca. 0,65 t dimensions of the machine ca. 1,5 x 1,75 x 1,9 m SPECIAL PRICE!!! Double miter metal band saw, hydraulic semi-automatic GBS 305 HA-I Easy Fpedpjd Iipxjfx Ah Djr - Miter cuts up to 60° left and 45° right - Material height button - Ball bearing turntable - hydraulic Vice, laterally displaceable - Massive, large material support - Automatic cooling
