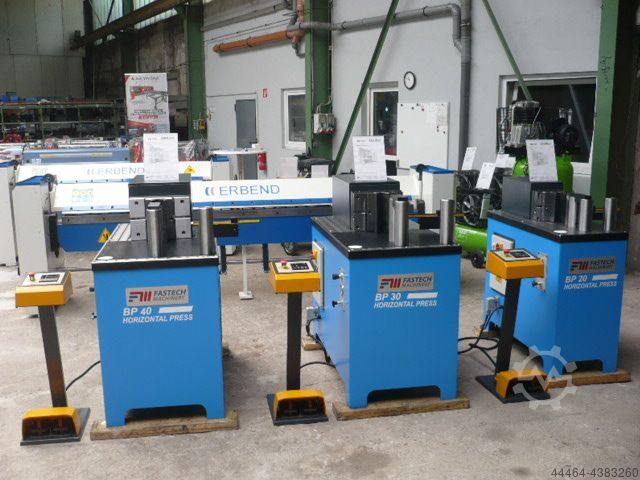

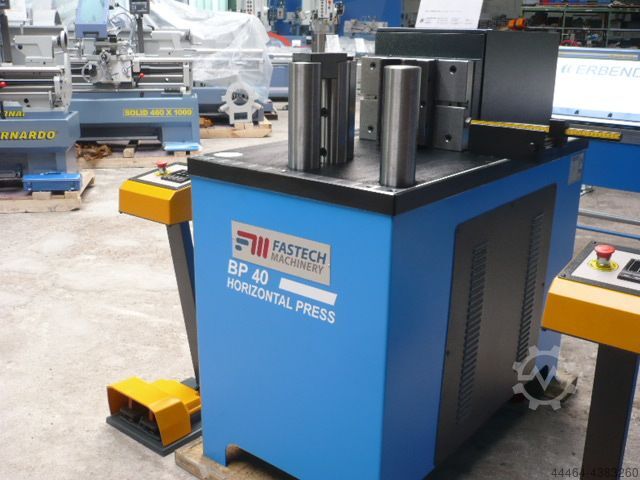

Horizontal bending machine

Fastech FP 40

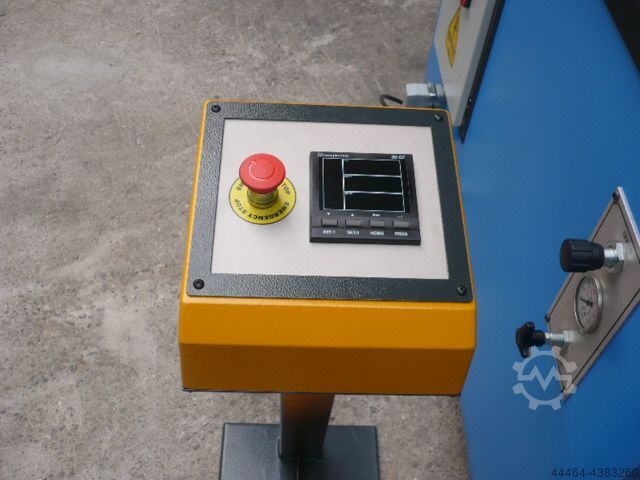

Condition: new, pressure 40.0 t stroke 285 mm flat steel 250 x 24 mm working feed 10.0 mm/sec Kjdsxabhmopfx Abcjlp return speed 10.0 mm/min work height max. 930 mm table: 660 x 1250 mm total power requirement 4.0 kW motor 400 Volt 50 Hz oil volume 40.0 l weight 800 kg range L-W-H 1450 x 800 x 1300 mm Furnishing : - electro-hydraulic horizontal bending machine - large, robust machine table made of hardened steel - Machine made of hardened and ground forged steel - Digital display for stroke setting * * Programming of 1x bend end point & 1x retract point possible - 1x tool set (1x bending punch / 1x 1V die) - infinitely variable adjustment of the bending speed and pressing force - 1x manual material stop - Free-moving dual footswitch - Machine can be moved with a pallet truck/stacker - Operation manual
