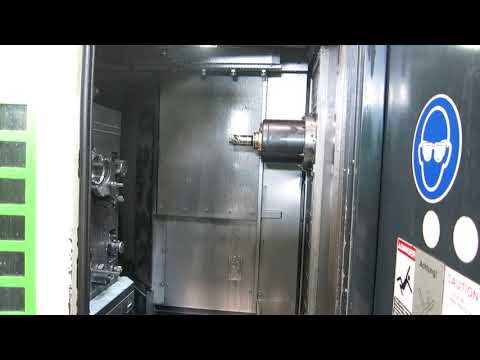

Machining Center - Horizontal

MAKINO A77 e

Condition: used, Year of construction: 1998, x-travel 800 mm y-travel 750 mm z-travel 770 mm Control Fanuc type PRO-3 tool taper HSK 100 power capacity 30 kW turning speeds 10000 U/min rapid traverse 35 m/min Tool changer 90 Pos. Iaodpsyqu I Aofx An Djr Cooling through the spindle 70 bar size of pallet 630x630 mm Table load 1200 kg rotary table tiltable 1 Grad type of pallet-changer 2 weight of the machine ca. 15 t Special features: Tool magazine for 90 HSK-A100 short-taper tools 70 bar high-pressure coolant system Indexable rotary table swivels in 1° increments Pallet size 630 x 630 mm Maximum table load 1,200 kg Hydraulic power unit for fixture clamping system Fanuc Pro-3 control system Automation: Dual pallet changer Tool breakage detection Automatic workpiece measurement with Marposs touch probe The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Year of construction: 2008, Table size 1600 x 750 mm, table load 1500 kgs, Traverses XYZ 1525 x 762 x 625 mm, rapid feedrates 24m/min, Iasdpfxsxwytcs An Dor Spindle power 18.5 Kw, spindle speed 6,000rpm, 40 station ATC, spindle taper BT50, through spindle coolant, swarf conveyor, Fanuc 21i control.

Condition: used, Year of construction: 2007, turning diameter 140 mm turning length 615 mm control C200-4D spindle passage 65 mm turning speeds 5.000 U/min max. torque at 40% / 100% load 145 / 105 kW Ijdpfx Aswzynqon Doar turret-slide 1,2 und 3 x-travel 110 mm z-travel 360 mm y-travel 70 mm rapid traverse X/Y/Z 25/12/45 m/min slide travel X-axis 150 mm Z- Travel 600 mm turning speeds 5.000 U/min B - axis B-Korrekturachse +/- 1 ° tool turret - number of stations 3 x 12 tool taper DIN 69880 VDI 25 x 48 C-axis 0,001 ° total power requirement 61 kW weight of the machine ca. 6,5 t dimensions of the machine ca. 9,75 x 3,10 x 2,85 m Loading: Breuning Profimat 65.8x270/8 multi-channel loading magazine, built in 2005 for bars with lengths of 500–3,000 mm, 8 guide channels with spindle insert tubes (Ø 16, 25, 30, 40, 45, 55, 60, 65 mm) Unloading: BREUNING ILS-REX-7208 automatic workpiece unloader, built in 2007

Condition: excellent (used), Year of construction: 2002, Deckel Maho DMU 80 P-Hi Dyn 5-Axis CNC Machining Center Year of manufacture: 2002 Control: Heidenhain 430 X-axis travel: 800 mm Y-axis travel: 700 mm Z-axis travel: 600 mm B-Axis: Automatic swivel milling head C-Axis: NC rotary table: 900x630 mm Workpiece weight: 800 kg Tool holder: SK40 Iaodpfxjx Dlf Re An Der Tool changer: 60 positions Accessories: Chip conveyor High-pressure coolant 40 bar (IKZ) Handwheel Heidenhain TS 642 probe

Condition: used, Year of construction: 2020, Technical details: x-travel: 1530 mm y-travel: 530 mm z-travel: 465 mm side by side, right side fixed table X =: 925 mm side by side left side 2 axis table X =: 780 mm control: Heidenhain TNC 640 tool magazin:: 122 SK 40 spindle turning speed - stepless: 12.000 1/min Spindle Torque: 120 Nm power capacity: 22 kW Fixed Table Dimensions: 920 x 540 mm Table load fixed table: 2000 kg Max. parts size on fixed table: 900 x 500 x 400 mm Diameter of integrated 2-axis rotary table: 650 mm Table load rotary table: 500 kg B-axis swivel angle: -90°/+110° ° / deg Max. parts size on rotary table: 600 x 500 x 400 mm Max. Parts size over both tables: 1500 x 500 x 400 mm internal coolant system feed: 70 bar bar weight of the machine ca.: 10,5 t dimensions of the machine ca.: 3,65 x 2,53 x 2,81 m Accerories pendant hand wheel HR 510 FS Rotoclear window Automatic machine switch off after prog. cycle end Measuring probe for work piece Blum TC 52 Coolant gun The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new, in excelllent condition. 122 tool holdersr SK 40 come with the machine. A special vice from Gressel for 5-axis machining for the rotary table also comes with the machine. Iajdpfx Aeyqyfgjn Dsr *

Year of construction: 2002, condition: ready for operation (used), With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible. Ijdpfx Aswbuyzsn Dear

Condition: good (used), Spindle diameter: 80 mm Spindle nose: SK50 Spindle speeds: 11 - 1000 RPM X-axis movement: 1700 mm Y-axis movement: 1800 mm Z-axis movement: 1800 mm Iasdephl Ecopfx An Djr Spindle out (W-axis): 710 mm Table size: 1100 x 900 mm Elbo Digital readout: On Y-axis and Z-axis Featured with: - Turning table - Toolholders Spindle engine: 7,5 KW Machine LxWxH: 5100 x 2650 x 3300 mm Machine weight: 10 Ton

Year of construction: 1960, condition: good (used), machine/vehicle number: 970015, Load capacity with horizontal faceplate position: 10 t Load capacity with vertical faceplate position and centre of gravity distance 300 mm: 10 t Load capacity with vertical faceplate position and centre of gravity distance 830 mm: 5.5 t Face plate dimensions: 1500 x 1500 mm face plate speed hydraulically infinitely variable: 0,025 - 0,75 rpm Pivoting range: 0 - 135 Swivel time for full swivel range to: 140 s Swivel time for full swivel range down: 120 s Hydraulic drive: 380 V Height of swivel axis above floor: 1450 mm space requirement: 3800 x 1950 x 1800 mm Weight approx.: 3,5 t Iodpocblc Sofx An Dear Weight of the counterweight: 2,3 t

Condition: good (used), Year of construction: 2012, functionality: fully functional, Control: SIEMENS Ijdpeyi Uk Iefx An Doar Spindle bore: 65 mm Turning length: 660 mm Max. speed: 6,000 rpm Counter spindle Z= 700 mm TOOL CARRIER 1 with milling spindle Milling spindle: 7,200 rpm B-axis: 360° 14 stations with driven tools Tool speed: 7,200 rpm Travel: X= 230 / Y= ±65 / Z= 845 TOOL CARRIER 2 14 stations with driven tools Tool speed: 7,200 rpm Travel: X= 140 / Y= ±45 / Z= 810 Chip conveyor Filter Bar feeder INDEX MBL

Year of construction: 2008, condition: ready for operation (used), Sanding range: 2000x900mm, transverse movement: 875mm, longitudinal movement: 2450mm, distance table to spindle center: 845mm, magnetic clamping plate dimensions: 2000x800mm, max. table load: 2.3t, feed rate longitudinal axis: 1000-30. 000mm/min, feed transverse axis: 0,01-2000mm/min, feed vertical axis: 0,001-1500mm/min, grinding wheel dimensions: 500x100x203,2mm, power grinding spindle motor: 22kW, length: 6800mm, width: 3450mm, weight: 13t. On-site inspection is possible. Iedpfx Ajuyk N Isn Doar
