Used Drill Press for sale (16,542)

Condition: good (used), Nagel Citoborma 180 Paper Drill This machine is 100% functional. This is the latest model. The drill table is adjustable in all directions (sides, front/back). It has stops for setting the drilling spacing. The installed table is an enlarged version. Additionally, the drill has an automatic table lock that releases after each cycle. Very good condition. Solid construction – weight 65 kg. 230V power supply One drilling head. Drill diameter 2-20 mm. Tsdpozt H N Ajfx Abteb Stack height 60 mm. The machine has been serviced. Includes drills and tools, a new cutting stick, and an instruction manual.

Condition: good (used), Nagel Citoborma 280B Paper Drill This machine is 100% functional. It is one of the newest models. Tjdszt H Nvjpfx Abteb The drill table is adjustable in all directions (sides, front/back). It has stops for setting the drilling spacing. The installed table is an enlarged version. Additionally, the paper drill has an automatic table lock that releases after each cycle. Excellent condition. Solid construction – weight 76 kg. 380V power supply Two drilling heads with adjustable spacing from 45-120 mm. Drill diameter 2-20 mm. Stack height 60 mm. The machine has been serviced. Includes drills and tools, a new cutting stick, and an instruction manual.

Condition: used, Paper drilling machine, Hang 106 DTK4, $ spindle drilling machine, with various drill bits, 2 different speeds. In good condition. Tjdpjzwdg Tjfx Abtsb If you are interested, we would also be happy to provide you with information about other machines we have in stock. You are welcome to inspect the machine at our premises after arranging an appointment in advance.

Condition: good (used), Durselen PB 16A four-head paper drill The device is in perfect condition, like new! Todpfsztn D Isx Abteb This is the newest one. currently produced model. Production Germany. Four drilling heads with adjustable spacing. The machine has a pneumatic drill cooling system. Sliding work table. Automatic column system – a belt that is moved to the next position when worn out Technical data: Drill diameter: 2-16 mm, Stack height: 50 mm, weight: 300 kg Power supply 380V Automatic drilling cycle, controlled by a foot pedal. Smooth regulation of spindle speed and lowering speed of heads on inverters. Solid construction on a pedestal. Waste is directed to the built-in bin Drill table adjustable in every plane, front and side margins. The set includes operating tools and drills.

Condition: good (used), Hang 117-01 paper drill The device is in perfect condition, 100% functional. The highest class of machines among drilling machines. Each head is independently adjustable, which allows the use of drills of different lengths. Drill table adjustable in every plane, with a lock. The spacing of the heads is adjustable with a crank. Waste directed to an external container. Two operating speeds: 950 and 1900 rpm Technical data: number of drilling heads: 2 diameter of lights: 3-10mm stack height: 60mm drill spacing min: 45mm / max 160mm table dimensions: 780x430mm Weight: 100kg Power supply 380V Tedpfjztn Dbex Abtjb The machine has documentation, maintenance tools, drills, and a new column

Condition: used, Drilling machine Optimum B32, good condition, incl. MK4 mounting, 225 mm stop, 125 mm quill stroke Todpewzzghjfx Abtjb Price changes, errors, and typographical mistakes reserved.

Condition: ready for operation (used), number of spindles: 4, - Benchtop model - 4 drilling spindles - Foot switch - 380/400V 50Hz 4 new drive belts have been installed. Tjdpfezv D D Nex Abtsb

Year of construction: 1991, condition: ready for operation (used), Available immediately, ex works: Todpfxszwuhbj Abteb Drill press, Metalac Type BR 32 Year of manufacture 1991 Spindle taper MK 3 Drilling capacity: 32 mm steel, 40 mm cast iron Automatic feed Table: 600 x 470 mm Drilling stroke: 180 mm Overhang: 280 mm 2 vices Coolant system Weight: 750 kg Price: EUR 1,250.00 plus VAT, ex works.

Condition: good (used), Nagel Citoborma 290AB Paper Drill The machine is 100% functional and ready to use. Robust construction – weighs 200 kg. This is the current Citoborma drill model in production. 400V power supply. Two drilling heads with adjustable spacing ranging from 45-170 mm. Drill diameter: 2-20 mm. Stack height: 60 mm. Controlled by an electric foot pedal. Waste is directed to an external sleeve. The drill table is adjustable in every direction (sides, front/back) and has stops for setting the drill spacing (non-standard drilling). Additionally, a special module for standard spacings is installed in the table. Furthermore, the table has two movable margins. The drill has an automatically released table lock after each cycle, allowing the table to be moved to the next position. The set includes drills, tools and instructions. Tjdpfx Abszmu E Ejtsb

Condition: good (used), Nagel Citoborma 480AB Paper Drill This machine is in very good condition. It has four drilling heads. Technical specifications: Drill bit distance: 45-285 mm Drill diameter: 2-20 mm Tsdpfozmu Erox Abtsb Stack height: 60 mm Weight: 275 kg Automatic drilling cycle, controlled by a foot pedal and manual buttons. Sturdy construction on a pedestal. The drill table is adjustable in all planes. This is one of the newest Citoborma models. Includes operating tools, instructions, and a new cutting stick and drill bits.

Condition: good (used), Nagel Citoborma 490 Paper Drill This is the largest Citoborma drill currently in production. Very good condition, ready for production. The machine has 4 drilling heads. Drilling waste is discharged into a basket located at the rear of the machine. Tsdpfxszmu Efo Abteb The machine is operated using a foot pedal or two-handed buttons. Each head has a separate up/down adjustment, allowing for the use of drill bits of different lengths. The set includes spare drill bits, tools, and an instruction manual. Technical specifications: Number of drilling heads: 4 (each head can be quickly removed) Maximum stack height: 60 mm Drill bit size: 2-10 mm Adjustable spacing: 45 – 425 mm Two drilling speeds 380V power supply Weight: 365 kg Made in Germany.

Condition: used, Year of construction: 1990, functionality: fully functional, type of input current: AC, input voltage: 220 V, overall weight: 65 kg, total height: 65 mm, total length: 87 mm, total width: 58 mm, number of spindles: 2, 2-spindle paper drilling machine. Tedpfx Ajzvc Umjbtob

Condition: used, CNC Universal Coordinate Drilling and Milling Machine FEHLMANN Type PICOMAX 100-CNC 3 CNC Control HEIDENHAIN TNC 155 Manufacturer's No. 16186651 Year of Manufacture 1986 Spindle Taper FEHLMANN SF32 Drilling Capacity Ø 30 mm in steel Thread Cutting up to M20 in steel Travel X: 850 mm, Y: 435 mm Quill Stroke Z: 210 mm Vertical Movement of Milling Head 580 mm Feed X and Y 1 to 8000 mm/min. Feed Z 1 to 4000 mm/min. Rapid Traverse X and Y 8 m/min. Rapid Traverse Z 4 m/min. Table Clamping Surface 1570 x 500 mm Distance Spindle Nose - Table 130 - 720 mm Overhang Spindle - Column 450 mm Spindle Speed 50 - 7100 RPM, stepless Spindle Drive 10 kW Total Connected Load 20 kW Mains Connection 400 Volt, 50 Hz - CNC Control HEIDENHAIN TNC 155 with TFT monitor - 3 axes controlled, X, Y and Z quill adjustment - hydro-mechanical tool clamping FEHLMANN SF32 - threading device Tsdpfx Ajhik Ezebtsb - cable remote control for machine operation and axis movements - motorized vertical movement of the milling head with shutdown via adjustable cams - 3D probe RENISHAW, Type MP 11F with FEHLMANN SF32 mount - 20 tool holders FEHLMANN SF32 - swiveling tool holder with 21 tool positions - coolant system in the machine frame - control cabinet fixed to the machine - documentation: operating manual, control manual and electrical diagrams Space Required L x W x H 2350 x 2000 x 2300 mm Weight 3.2 tons very good condition

Condition: used, Second-hand machine Todpfx Abszlbrcstsb Fittings drilling machine Pot-hole band drilling machine, fitting drill (Grass drilling pattern) 6 drilling spindles in a row (32 mm pitch) (one spindle on the 8-spindle drill head is defective) 4 additional drilling spindles positioned upstream for counterbore drilling Pneumatic hold-down devices, depth stop adjustment Connection: 16 A / 380 V Motor: 1.5 kW Weight approx. 100 kg Dimensions: 3,130 x 1,060 x 710 mm Availability: at short notice Storage location: Flörsheim

Condition: used, Demonstration unit Condition: as new Contents: Tedpjzk Ntrofx Abtob Carry case Device User manual Bit This item is an unused display model

Condition: used, Demonstration unit Condition: as new Contents: Carry case Device User manual Bit This item is an unused display model Tedpfx Ajzk Nkwobtjb

Condition: used, Year of construction: 1998, Second-hand machine Year of manufacture: 1998 This machine can be used to drill corner joints, transom windows and olive joints in loose or compressed timber frames The scanning is carried out at the rebate, the 8 stops for corner bearings and transom windows, as well as for the rebate timber and transom, are automatically engaged once the timber is positioned. The machine features an automatic programme sequence with electric control for the drilling motors, activated by a safety foot pedal Pneumatic connection R 1/4 5–6 bar Extraction velocity 25 m/sec. Extraction nozzle diameter: 120 mm Electrical connection: 0.75 kW Dimensions: 2950 x 650 x 1100 mm Todpfjzk Nzpox Abteb Availability: at short notice Storage location: Flörsheim

Condition: good (used), Drill, drill press, pillar drill, pillar drill -Manufacturer: Cordia, column drilling machine type S 26 -Motor: 1000W -Speeds: 95 - 1450 rpm, 6 levels -Table size: 320 x 270 mm, travel 500 mm Tjdpjlx Nvnsfx Abtsb -Spindle mount: MK3 -Spindle stroke: 100 mm -Projection: 280 mm -Columns Ø: 120 mm -Accessories: including lighting and additional. attached vice, see photos -Dimensions: 700/760/H1950 mm -Weight: 325 kg

Condition: new, SERRMAC NEXT 25 PGM DRILL PRESS - DOUBLE SPEED THREE PHASE - NEW "CE" - Tedpfouif Syex Abteb ROTARY TABLE + VICE Drilling on steel: Ø 25 mm Tapping: M16 Column attachment: CM3 Column diameter: 98 mm Spindle stroke: 100 mm Transmission: pulleys (PU) No. of speeds: 12 No. of revolutions: 164 - 2460 rpm Motor power: 0.75 kW Power supply: 380 V - 3 phases Weight: 185 kg

Condition: new, SERRMAC ETD 22 - PGM COLUMN DRILLING MACHINE Rotating table + Vice Precise, quiet, and reliable Direct drive transmission via INVERTER without pulley change Precision spindle with hardened Morse taper 380V 3 power supply Ground column Todpfx Abjgyggzoteb Standard configurations: • Digital display with spindle speed indication • Tapping with adjustable working depth • 24 V LED lighting system • Electronic membrane control panel • Spindle rotation reversing button Drilling in steel mm: Ø 22 Tapping: M16 Taper attachment: CM2 Column diameter mm: 98 Spindle stroke mm: 120 Transmission: Direct with Inverter Number of speeds: Variable Number of RPM: 265-4200 Motor: 1.8-2.5 kW / 380 V Three-phase Power supply V: 380V 3 Weight kg: 240 (column)

Condition: new, Precision, quiet, and reliable drill press. Built according to strict safety standards. Precision spindle with hardened Morse taper and machined base plate. Electronic speed control included. Rotating table + vise, 350 x 250 mm. Drilling capacity in steel: R50 mm, ø 22. Tapping capacity in steel: R50 mm, M14. Tedpoir Aihjfx Abteb Spindle taper: CM2. Spindle stroke: 90 mm. Spindle bore diameter: 52 mm. Column diameter: 98 mm. Distance from column to spindle center: 201 mm. PU transmission. Electronic speed control (E). Spindle speed: 270 ÷ 4,200 rpm. Motor power: 0.75 kW / 220 V, single-phase. Dimensions (h x w x d): 1950 x 600 x 680 mm. Weight: 220 kg.

Condition: excellent (used), Year of construction: 1995, STC-Ref: G-791-0199 IRAM-12 ,Year: 1995 - paper drilling machine 4 spindles - additional accessories (drillers) --> available: 07/2026 Todpfozc Un Tjx Abtjb

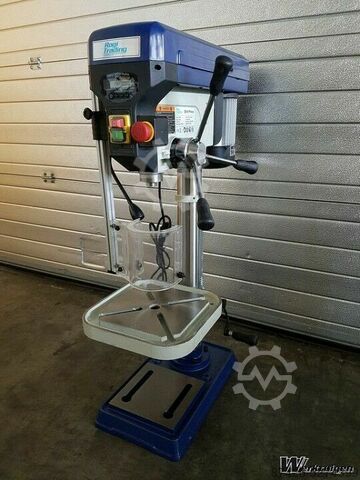

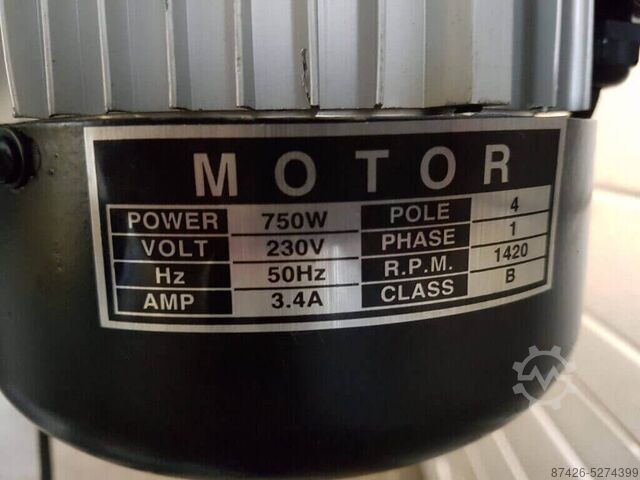

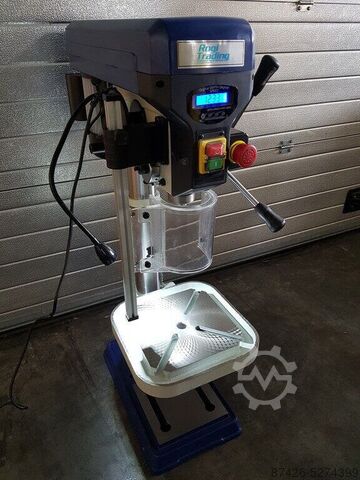

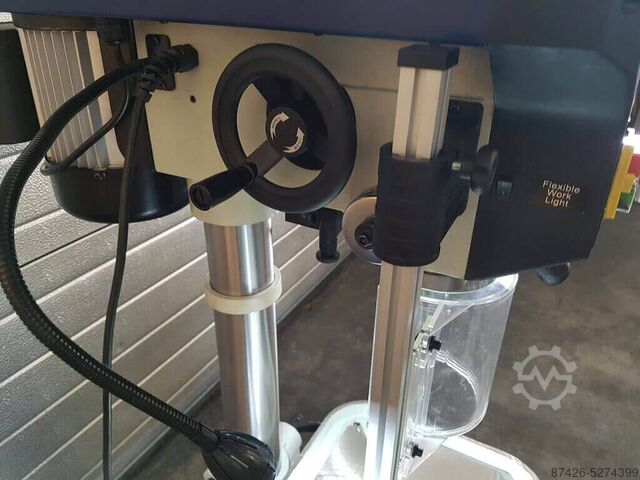

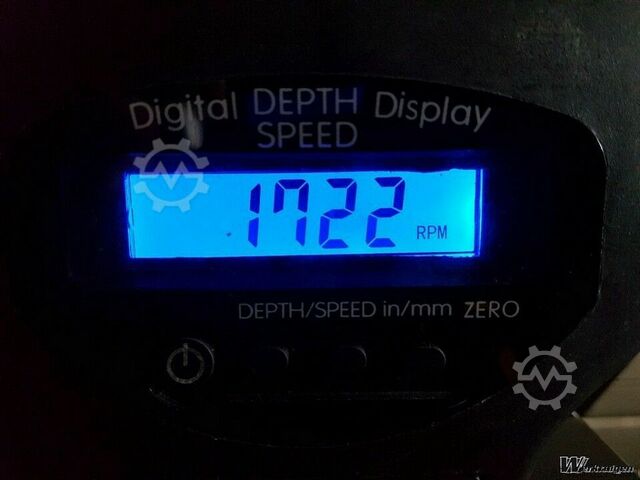

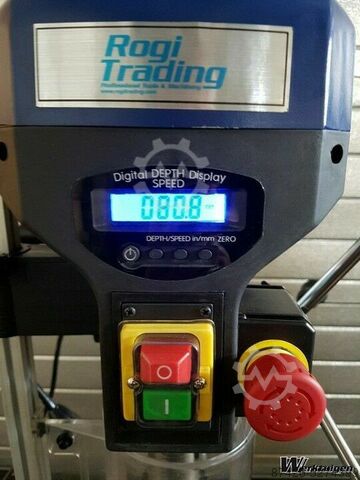

Condition: new, Motor: 750W - 230V - 1 Phase Drilling capacity: 20 mm Spindle stroke: 85 mm Spindle taper: MK2 Number of speeds: 16 Todsk Iuqyepfx Abtsb Spindle speed: 220-2840 rpm Work table: 305 x 305 mm Base: 460 x 280 mm Column diameter: 72 mm Overall height: 990 mm Weight: 60 kg Packaging: 820 x 500 x 290 mm INCLUDED * Digital depth stop * CE protective shield * Laser guide * LED lighting * CE emergency stop * Drill chuck with MK2 taper * Ejector pin

Condition: reconditioned (used), functionality: fully functional, Drilling and pressing machine for all types of furniture fittings, rows of holes and hole group drilling machine in system 32 Power connection 400V 0.75kW Spindle speed 2800 rpm Stop ruler 960 mm 2x swivel stop for drills with shaft diameter 10 mm Workpiece thickness max. 40 mm 1x 7-spindle drilling head for row of holes, pitch 32 mm with integrated pins Manual feed Base Tsdpeumw Sbefx Abtsb at an additional cost Olive drilling head €450.00 Mepla drilling head with pressing die €550.00 Hettich drilling head with pressing die €550.00

Condition: used, Year of construction: 1996, with 1 drilling head used in top condition cleaned functionally tested Manufacturer: Hettich Type: Blue Max Mini Year of manufacture: 1996 Machine No.: 06316 Tjdozkvyxepfx Abteb CE type approval Number of spindles: 4 Drilling feed: pneumatic Table model, length x width: 800x400mm Swinging stops: 4 Drill chuck: shank 10 mm Dust extraction connection: 50mm Space requirement approx. L x W x H mm: 800x600x650 Location: 97447 Gerolzhofen, free loading, unpacked Handover in the current condition as inspected, without warranty and guarantee
