Used Grinding Cylindrical for sale (4,833)

Condition: used, Year of construction: 1999, grinding diameter 120 mm Dcodew Sybdjpfx Addsr centre height 100 mm Stirnschleifeinrichtung Kein Typenschild auffindb

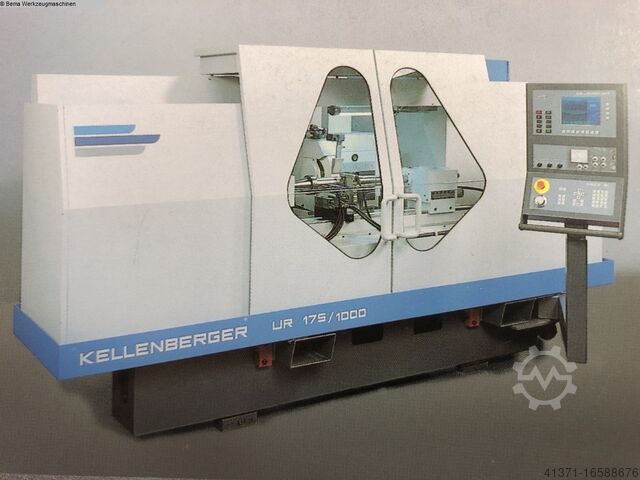

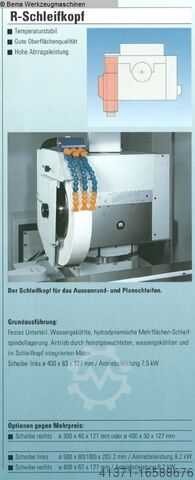

Condition: used, Year of construction: 2002, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm supply voltage 3 x 400 V control voltage 24 V Overhauled in 2025 Delivered in april 2025 Equipment at delivery in 2004: Sanding disc equipment: left: 400x63x127mm (standard) right: 300x40x127mm B-AXIS: ‘CNC-controlled B-axis’ (standard with UR) Drive power of grinding head motor: 7.5 kW CNC control KELCO 115; : v constant 35m/s or 45m/s_adjustment n Grinding spindle by control_(standard) CNC control KELCO 115 upgraded to C-axis operation. (No polygon grinding) Pneumatic quill retraction for the tailstock Tailstock with micro-adjustment Maintenance unit for pneumatic relief Fine adjustment of the top table Standard workpiece headstock MK 5 DIN 55026 size 5’ GROSS ADJUSTMENT: ‘Swivelling lower part for the standard workhead’ KELPOS: Active longitudinal positioning MOVOMATIC, mounted on the grinding head GAP : Gating sensor MOVOMATIC Combined MOVOMATIC measuring controller, CR 100 measuring head and TMP 91, ES 124 Additional housing for control panel KELSET : Tool measuring system KELSET, MARPOSS Preparation for connection to a central coolant system incl. solenoid valve solenoid valve Half panelling (standard) B-AXIS: ‘CNC-controlled B-axis’ (standard for UR) Dodjxwzawepfx Addjcr Data of the delivery condition. No guarantee of completeness

Condition: not inspected (used), functionality: unexamined, machine/vehicle number: 70292, grinding length: 500 mm, grinding wheel diameter: 400 mm, grinding diameter: 200 mm, workpiece weight between centers: 15,000 g, bar passage: 270 mm, No reserve price – guaranteed sale to the highest bidder! Dcjdpexqgb Tefx Addjr The machine is being auctioned due to a business closure. Placing a bid obligates you to collect the machine within the specified period from 26.01.2026 to 29.01.2026! TECHNICAL DETAILS Grinding wheel diameter: 400 mm Maximum workpiece passage: 270 mm Maximum grinding diameter: 200 mm Grinding length between centers: 300 – 500 mm Maximum workpiece weight between centers: 15 kg MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 4,000 x 2,000 x 2,000 mm Weight: 2,000 kg EQUIPMENT HEIDENHAIN digital readout Matching workbench with contents Suitable grinding wheels Arbors Suitable spare parts

Condition: used, Year of construction: 2011, functionality: fully functional, machine/vehicle number: 北二 半自动高速外圆磨床 MBS1320E, Xiamen WuYiYiYi YuanLi Precision Manufacturing Co. Beiji Semi-automatic High Speed Cylindrical Grinding Machine MBS1320E Online production equipment Test machine available Roundness within 0.001 Maximum grinding diameter 200MM Dodpfx Aotr Udksddjcr Maximum grinding length 500MM

Condition: excellent (used), Year of construction: 1997, grinding diameter 80 - 250 mm grinding length 600 mm centre height 175 mm longitudinal feed 750 mm workpiece turning speeds 6 - 600 U/min grinding spindle speed 1500 - 3600 U/min cross movement - autom. and by hand 320 mm Control Kelco 80 total power requirement kW weight of the machine ca. 4,4 t Djdpfx Aju D I Tleddscr dimensions of the machine ca. 3,1 x 2,1 x 2,0 m

Condition: excellent (used), machine/vehicle number: 31.207.011, Manufacturing origin Swiss Voltage 380/50/3 Netweight 3150 kg Dcjdpfx Aoiwtm Sjdder Dimensions 400x185x175cm Custom position 8460 TECHNICAL DATA Distance between centres 1000 mm Centres height 175 mm Wheelhead Wheel : diameter/width/bore 500 / 80 (100) / 203.0 mm Max width of wheel 80(100) mm Spindle speeds 1220,1360,1530 min-1 Table maximal travel 1100 mm Table, speed (variator, progressively adjustable) 0.02 to 6.0 m/min Workpiece headstock Swivel 360° speed (variator,progressive adjust) 20 min-1 to 400 min-1 Wheelhead motor 6 HP Total power 7 HP Max diameter of workpiece 249 mm Tailstock internal taper Morse 3 errors and omissions excepted-data given without obligation

Condition: used, Year of construction: 1960, grinding diameter ca. 360 mm Dodow Sya Tjpfx Addocr grinding length 1500 mm serial number 12013

Year of construction: 1996, condition: ready for operation (used), Center height: 150mm, max. grinding diameter: 300mm, distance between centers: 620mm, max. workpiece weight: 120kg, grinding head spindle swivel range: +45°/-15°, table adjustment: +/-8.5°, travel X/Z: 160mm/756mm, grinding wheel dimensions X/Y/Z: 400mm/63mm/127mm, grinding wheel speed: 45m/s, workpiece spindle speed: 700rpm. Machine dimensions X/Y/Z: approx. 3000mm/1850mm/1850mm, weight: approx. 3000kg. Including LTA extraction system and SBS wheel balancing device. The workpiece drive is disassembled and its completeness is unknown. Documentation available. An on-site inspection is possible. Dcjdpexvdd Asfx Addsr

Condition: ready for operation (used), Year of construction: 1971, functionality: fully functional, machine/vehicle number: 34675, center height: 150 mm, distance between centers: 1,000 mm, overall weight: 5,000 kg, bed width: 75 mm, No reserve price – guaranteed sale to the highest bidder! Dcjdpoxm Rp Hjfx Adder The payment deadline for the machine is 20/11/2025! Placing a bid obligates timely collection between 01/12/2025 and 05/12/2025! The machine has been overhauled! TECHNICAL DETAILS Centre height: 150 mm Centre distance: 1,000 mm Bed width: 75 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 3,500 x 2,000 x 1,700 mm Total weight: 5,000 kg Electrical Data Operating voltage: 380 V Frequency: 50 Hz Rated current: 30 A

Condition: reconditioned (used), functionality: fully functional, center height: 180 mm, workpiece weight (max.): 100 kg, grinding length: 500 mm, grinding wheel diameter: 400 mm, total width: 14,150 mm, total length: 18,000 mm, total height: 14,750 mm, grinding diameter: 320 mm, workpiece length between centers: 350 mm, grinding wheel width: 50 mm, spindle speed (min.): 3,000 rpm, feed length X-axis: 500 mm, feed length Z-axis: 150 mm, feed rate X-axis: 10 m/min, feed rate Z-axis: 1 m/min, overall weight: 2,100 kg, workpiece spindle speed (max.): 400 rpm, Retrofit Upgraded Cylindrical Grinding Machines , NORTHERN NORTHERN MACHINE TOOLS Online production equipment Test run available Roundness within 0.001 Modified and upgraded cylindrical grinder, Bei Er Machine Tool Online production equipment Test girding available Roundness within 0.001 Dcsdpfx Adsttfq Hedsr beier machine tool works co ltd

Condition: reconditioned (used), functionality: fully functional, Herminghausen SR2 High-precision and conventional centerless cylindrical grinding machine. High machine stability due to a robust cast-iron bed and hydrodynamic plain bearing support. Very good accessibility to all key functions thanks to its low design height. Fast and easy retooling for various workpieces and materials. The machine is in very good mechanical and electrical condition and ready for immediate use. Overhaul: September 2025 Workpiece diameter: 0.5 – 40 mm Grinding wheel dimensions (DxWxB): 300 x 100 x 150 mm Control wheel dimensions (DxWxB): 200 x 100 x 120 mm Hydrodynamic plain bearing support for grinding and control wheel spindles Stepless control of the control wheel speed with digital speed display Through-feed grinding machine Dedpfx Adsxvinyjdscr

Condition: good (used), Year of construction: 1990, Ref. -No.: 10301 Manufacturer: TITAN Type: RU 350 x 1-1500 Year of construction: 1990 Type of control: Konventionell Dedoxmd Rwjpfx Addocr Storage location: Halberstadt Country of origin: USA Max. Grinding length: 1.500 mm Max. Workpiece Weight: 300 kg Grinding Diameter: 350 mm Max. Dia. Of Grinding Wheel: 280-500 mm Grinding Wheel Width: 80-100 mm

Condition: used, Year of construction: 2007, oil mist extraction ja serial number 2342-11 Dcjdpswgi Rfjfx Adder

Condition: good (used), Studer S30-12 cylindrical grinding machine TECHNICAL DATA Main dimensions Center height: 125 mm Center width: 400 / 700 / 1025 mm Largest longitudinal slide path: 400 / 700 / 1000 mm Longitudinal slide Table speed: 50 - 5000 mm/min Reversing delay: 0-6 s Smallest automatic travel: 1.5 mm Max. stroke: 400 / 700 / 1020 mm Max. Table inclination: 12 / 30 / 78° Cross slide Swivel range: +- 45° Quick adjustment: 40 mm Feed path with handwheel: 20 mm Largest plunge depth: 1.7 mm Sanding headstock Grinding wheel diameter x width x bore: 450 x 80 x 203 mm Speed: 1340 / 1500 1625 / 1800 / 2000 / 2200 rpm Coarse adjustment: 210 mm Workpiece headstock Swivel range: 0 - 90 Dcedpsvca Izjfx Addor Speed range: 30 - 675 rpm Mounting cone: Morse 5 Collets: W25 Tailstock Mounting cone: Morse 3 Adjustment travel of the center: 30 mm Total power requirement: 5 / 8.25 kW No liability is assumed for the correctness, completeness and up-to-dateness of the information.

Condition: excellent (used), Year of construction: 1970, Model: AR 1000 - Year of manufacture: 1970 – 1991, geometrically overhauled - Condition: good to very good - Grinding diameter: max. 350 mm Dcodpfx Asxfvyzoddsr - Grinding length: 1000 mm - Plunge grinding length: 100 mm - Centre height: 180 mm - Centre taper: 60 MK4 - Grinding wheel dimensions: max. 500 Ø x 300 Ø x 80 mm - Swivelling grinding head: +/- 45° - Dimensions: 3.2 x 1.7 x 1.6 m (LxWxH) - Space requirement: 4.13 x 2.02 x 1.6 m (LxWxH) - Weight: approx. 4,300 kg - Operating voltage: 380 V - Power: 7.5 kW (total 11.6 kW)

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: MGB1320E, center height: 180 mm, workpiece weight (max.): 100 kg, grinding length: 500 mm, grinding wheel diameter: 400 mm, total width: 14,150 mm, total length: 18,000 mm, total height: 14,750 mm, grinding diameter: 320 mm, workpiece length between centers: 350 mm, grinding wheel width: 50 mm, spindle speed (max.): 3,000 rpm, feed length X-axis: 500 mm, feed length Z-axis: 150 mm, feed rate X-axis: 10 m/min, feed rate Z-axis: 1 m/min, overall weight: 2,100 kg, workpiece spindle speed (max.): 400 rpm, Equipment: rotational speed infinitely variable, Beijing Second Machine Tool Beijing Second Semi-automatic High Speed Cylindrical Grinding Machine MBS1320E Dcsdpfx Adetr Azkoder On-line production equipment; test machine available; roundness within 0.001 beier machine tool works co ltd Online production equipment machine testing available The roundness within 0.001

Condition: as good as new (ex-display), Year of construction: 2025, Karstens K11 650 Premium Retrofit Cylindrical Grinding Machine Manufacturer: Karstens Technical Specifications: - Distance between centers: 750 mm Dcsdsiv Audspfx Addor - Center height: 180 mm (250 mm optional) - Workpiece weight: 100 kg between centers, 250 kg between tips - Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) - Workpiece spindle: MT 4, stepless speed adjustment 30-450 rpm, swivel range 0 - 90° - Tailstock: MT4, quill stroke 45 mm, cylindrical correction - Quill force: 200-600 N manual, (up to 2500 N adjustable option) - Table swivel: 12.5 degrees - Infeed spindle stroke: 80 mm - Rapid traverse: 50 mm - Coarse adjustment air cushion: 280 mm - External grinding spindle motor: 4 kW (5.5 kW optional) - Stepless speed adjustment of the grinding wheel via potentiometer - Internal grinding spindle motor: 2.2 kW - Workpiece spindle motor: 1.1 kW - Hydraulic motor: 1.5 kW - Lubrication motor: 0.1 kW - Hydraulic tank capacity: 80 liters - Machine weight: net 3,500 kg - Infeed drive through DC motor - Air-cushion-assisted rapid adjustment of the grinding spindle head for fast and safe positioning to the grinding point - Separate drives for spindles for external and internal grinding - Fully automatic work cycle, feed movement via rotary switch: rapid advance, rapid return, grinding operation, feed stop, fine feed - Automatic longitudinal grinding cycle - Central coolant supply for all grinding points - Workpiece spindle head with continuously adjustable drive for live and lockable spindle - Digital infeed control with Siemens panel and Siemens PLC for longitudinal grinding and plunge grinding, input for return stroke, infeed amounts, feeds, spark-out times, idle strokes; compatible with older Karstens infeed controls, with a color Siemens touchscreen panel - Scale in X and Z axes by HEIDENHAIN Comparable to Weiss/EMAG/GP cylindrical grinding machines/Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

Condition: used, Year of construction: 1981, functionality: fully functional, machine/vehicle number: 1913228102, center height: 110 mm, workpiece weight (max.): 30 kg, grinding wheel diameter: 450 mm, total width: 2,000 mm, total length: 3,000 mm, total height: 1,900 mm, grinding diameter: 200 mm, quill stroke: 25 mm, quill diameter: 70 mm, workpiece length between centers: 220 mm, grinding wheel width: 50 mm, feed length X-axis: 220 mm, feed length Z-axis: 480 mm, feed rate X-axis: 5 m/min, feed rate Z-axis: 10 m/min, overall weight: 8,000 kg, input frequency: 50 Hz, input voltage: 380 V, External cylindrical grinding machine between centers with hydraulic guides and separate cooling and hydraulic peripherals. Designed for precision grinding of cylindrical external surfaces, shoulders, and tapers, featuring a classic workpiece spindle/tailstock configuration, dressing device, and industrial-standard control and safety equipment. Dcjdpfxoxuhxno Adder

Condition: excellent (used), AGATHON 150 SL2 Centerless cylindrical grinding machine TECHNICAL DATA Working wheel: Diameter: 150 mm width: 50 mm Bore: 50 mm Regulating disk: Diameter: 100 mm Width: 50 mm Bore: 40 mm Workpiece diameter: Minimum: 0.1 mm Maximum: 12 mm Max. Length for plunge-cut grinding: 49 mm Weight: 750 kg Connected loads: 3 X 380 V / 50 Hz Compressed air: 5-6 bar Dimensions: Machine: 1000 x 500 x 880 mm Electrical cabinet: 1550 x 540 x 420 mm Coolant tank: 750 x 550 x 700 SCOPE OF OFFER U.A: (list not exhaustive): Grinding wheels regulating wheels Spare flange mandrel Grinding pads Complete operating documentation Exact scope of offer according to photo gallery Dcjdpfx Ajr Hdi Ajddor We assume no liability for the accuracy, completeness and up-to-dateness of the information provided.

Condition: new, We offer you spare parts of all kinds for your conventional or CNC Karstens / EMAG WEISS / GP cylindrical grinding machine—covering your tailstock, workpiece headstock, grinding spindle headstock, ball screw spindles, glass scales, grinding wheel flanges, drive motors, axis drives (BOSCH SIEMENS), ECKELMANN controls, bellows, bearings, K11/K21 infeed controls (new and used), as well as Z-axis reversing blocks for exchange. We service machines from year of manufacture 1955 onwards: ASA-ASE-K10-K11-K12-K13-K16-K19-K21-K22-K23-K24-K25-K26-K27-K28- K29-K33-K35-K37-K50-K51-K52-K53-K57-W11-W21-GP cylindrical grinding machines—all assemblies based on Karstens design. Comparable/ EMAG-WEISS/ GP cylindrical grinding machines/ Studer/ Kellenberger/ Schaudt/ Tschudin/ Tacchella/ Dannobat. Dcedpfxoup Aiko Adder

Condition: as good as new (ex-display), Year of construction: 2025, Karstens K11 1000 Premium Retrofit Cylindrical Grinding Machine Manufacturer: Karstens Technical Data: Centre distance: 1100 mm Centre height: 180 mm (250 mm optional) Workpiece weight: 100 kg between centres (unsupported), 300 kg between centres (supported) Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) Workpiece spindle: MT4, infinitely variable speed control 30–450 rpm, swivel range 0–90° Tailstock: MT4, quill stroke 45 mm Quill force: 200–600 N manual (up to 2500 N adjustable, optional) Table swivel angle: 10° Cross feed travel: 80 mm Rapid traverse: 50 mm Coarse adjustment (air cushion): 280 mm External grinding spindle motor: 4 kW (5.5 kW optional) Stepless grinding wheel speed adjustment via potentiometer Internal grinding spindle motor: 2.2 kW Workpiece spindle motor: 1.1 kW Hydraulic motor: 1.5 kW Lubrication motor: 0.1 kW Dedpfxeiv Au Eo Addecr Hydraulic tank: 80 litres Net weight: 3,800 kg Feed drive via DC motor Air cushion-assisted rapid positioning of the grinding spindle headstock for quick and safe positioning to the grinding location. Separate drive for external and internal grinding spindles. Fully automatic operation sequence, infeed movement via cam switch: Rapid approach, rapid retraction, grinding mode, infeed stop, micron infeed. Automatic longitudinal grinding cycle Centralised coolant supply for all grinding zones Workpiece headstock with infinitely variable drive for both live and lockable spindle modes. New digital infeed control with Siemens panel and Siemens PLC for both longitudinal and plunge grinding, parameter input for retraction, infeed amounts, feeds, spark-out times, idle strokes; compatible with the previous Karstens infeed control; featuring a colour Siemens touch panel; HEIDENHAIN scale on X and Z axes. Comparable to Weiss, EMAG, GP cylindrical grinding machines, Studer, Kellenberger, Schaudt, Tschudin, Tacchella, Dannobat.

Condition: as good as new (ex-display), Year of construction: 2025, Centre height: 181 mm Centre distance: 650 mm Maximum grindable workpiece diameter: 360 mm Dcedpfotqf Sqox Addor Max. load between centres (cantilevered): 1000 N (100 kg) Max. load between centres: 3000 N (300 kg) Z-axis: Table swivel angle: 10° Table drive, hydraulic: 0-4 m/min X-axis: Infeed spindle travel: 80 mm Rapid traverse (hydraulic): 50 mm Coarse adjustment (air cushion): 280 mm Feed drive by DC motor Rapid feed rate: 48 mm/min/Ø Feed process: plunge grinding / longitudinal grinding 4 preselectable feed rates: mm/min/Ø 0.01–48 4 preselectable infeed amounts: mm 0.001–0.1 Spark-out time, oscillation grinding: 0–99 s / 0–99 strokes Tapping infeed: mm/Ø 0.001 Grinding spindle headstock: universal, swiveling: 0–180° Grinding wheel (external): D x b x d (mm) 500x100x127 or 203.2 Grinding wheel (face - option): D (mm) 250x32x76.2 Grinding wheel (internal - option): D (mm) (2–250) Drive power, external/face: kW 5.5 (7.5) Drive power, internal: kW 2.2 Peripheral speed, external: m/s 35 (50) Grinding wheel wear (external): mm/Ø 160 Guard width: 100 mm Grinding spindle diameter: 60 mm Internal spindle mounting: 80 (100) mm Workpiece headstock: Stepless variable drive: Mk 4, 1/mm 30–270 / 50–450 Workpiece spindle fixable Spindle bore: MK 4/24 mm Spindle nose for flange mounting: MK 4 mm cylindrical Ø63H6 x 6 Workpiece headstock swivel on rotary part: 0–90° Tailstock: Quill mounting / quill diameter: MK 4 / 75 mm Quill stroke: 45 mm Quill force: 100–800 N / 250–1400 N adjustable Quill actuation: manual (foot switch) Quill fine adjustment: ±40 µm Connections: Total connected load (machine): 6.5–10 kW Grinding spindle headstock: 5.5 (7.5) kW Workpiece headstock: 0.55 (1.1) kW Coolant filtration: 0.75–2.2 kW Guideway lubrication pump: 0.1 kW Hydraulic pump: 1.5 kW Hydraulic tank: 80 L Pneumatics: 6 bar Comparable machines: Weiss / EMAG / GP cylindrical grinders / Studer / Kellenberger / Schaudt / Tschudin / Tacchella / Dannobat

Condition: refurbished (used), Year of construction: 1990, Karstens K11 1000 Full Equipment The cylindrical grinding machine has been completely overhauled by PS-Karstens. The machine has been inspected and is in very good condition. Since we specialize in Karstens cylindrical grinders, we can offer you complete service (both electrical and mechanical) for the machine after purchase. Technical specifications: Distance between centers: 1000 mm Center height: 180 mm Workpiece weight: 100 kg (overhung), 250 kg (between centers) Grinding wheel diameter: 400 mm Workpiece spindle: MT 4, infinitely variable speed control 30–450 rpm, swiveling range 0–90° Tailstock: MT 4, quill stroke 45 mm, micrometric adjustment Quill force: 200–600 N, hydraulically operated via foot pedal Table swivel: 10 degrees Cross slide travel: 80 mm Rapid traverse travel: 50 mm Coarse adjustment (air cushion): 280 mm External grinding spindle motor: 4 kW Internal grinding spindle motor: 2.2 kW Workpiece spindle motor: 0.55 kW Machine weight: net 3800 kg Feed drive via DC motor Air-cushioned rapid traverse of grinding headstock for quick and safe positioning at grinding position Separate drive for external and internal grinding spindles Fully automatic operation, infeed movement controlled by handwheel switch: rapid advance, rapid return, grinding mode, infeed stop, mym infeed Automatic longitudinal grinding cycle Central coolant supply for all grinding points Workpiece headstock with steplessly adjustable drive for live and lockable spindle Infeed control for longitudinal and plunge grinding, with programmable retraction, feed increments, feeds, spark-out times, and idle strokes Digital readouts for grinding spindle B-axis, workpiece spindle, X-, and Z-axis by HEIDENHAIN Paper belt filter unit approx. 250 L Dcsdpfoh Riwdox Addjr Comparable to Weiss/EMAG/GP cylindrical grinders/Studer/Kellenberger/Schaudt/Tschudin/Tacchella/Dannobat

Condition: as good as new (ex-display), Year of construction: 2025, Karstens K11 1000 Premium Retrofit Cylindrical Grinding Machine Manufacturer: Karstens Technical specifications: Centre distance: 1100 mm Centre height: 180 mm (250 mm optional) Workpiece weight: 100 kg between centres, 300 kg between centres Grinding wheel diameter: 400 mm or 500 mm (external grinding wheel) Workpiece spindle: MT 4, stepless speed control 30–450 rpm, swivelling range 0–90° Tailstock: MT 4, quill stroke 45 mm Quill force: 200–600 N manual, (up to 2500 N adjustable—optional) Table swivel: 10 degrees Adjustment travel of feed spindle: 80 mm Rapid traverse stroke: 50 mm Coarse air cushion adjustment: 280 mm External grinding spindle motor: 4 kW (5.5 kW optional) Stepless grinding wheel speed setting via potentiometer Internal grinding spindle motor: 2.2 kW Dsdpfxjh Rimme Addjcr Workpiece spindle motor: 1.1 kW Hydraulic motor: 1.5 kW Lubrication motor: 0.1 kW Hydraulic tank: 80 litres Machine weight, net: 3,800 kg Feed drive via DC motor Air-cushioned rapid adjustment of the grinding headstock for quick and precise approach to the grinding position. Separate drives for external and internal grinding spindles. Fully automatic operation cycle, infeed movement controlled by cam switch: rapid approach, rapid return, grinding mode, feed stop, micron feed. Automatic longitudinal grinding cycle Central coolant supply to all grinding positions Workpiece headstock with infinitely variable drive for rotating or fixed spindle configuration. New digital feed control with Siemens touchscreen panel and Siemens PLC for longitudinal and plunge grinding, with input for retraction, feed values, feed rates, spark-out times, idle strokes; compatible with previous Karstens feed control. Features a colour Siemens touchscreen panel. Comparable to Weiss, EMAG, GP cylindrical grinding machines, Studer, Kellenberger, Schaudt, Tschudin, Tacchella, Dannobat.

Condition: refurbished (used), Year of construction: 1988, Karstens K11 650 The cylindrical grinding machine has been completely overhauled by PS-Karstens. The machine has been tested and is in excellent condition. As we specialize in Karstens cylindrical grinding machines, we can offer you complete service (both electrical and mechanical) for the machine after purchase. Technical data: - Distance between centers: 650 mm - Center height: 180 mm - Workpiece weight: 100 kg (between centers), 250 kg (supported between centers) - Grinding wheel diameter: 400 mm - Workpiece spindle: MK 4, infinitely variable speed 30-450 rpm, swivel range 0 - 90° - Tailstock: MK 4, quill stroke 45 mm, fine adjustment with micrometer - Quill force: 200-600 N, hydraulically operated via foot pedal - Table swivel: 10° - Infeed spindle travel: 80 mm - Rapid traverse distance: 50 mm Dcjdoh Rixxepfx Adder - Coarse adjustment with air cushion: 280 mm - External grinding spindle motor: 4 kW - Internal grinding spindle motor: 2.2 kW - Workpiece spindle motor: 0.55 kW - Machine weight: net 3800 kg - Infeed drive via DC motor - Air-cushioned rapid adjustment of the grinding spindle head for quick and safe positioning to the grinding position. - Separate drive for the spindles for external and internal grinding. - Fully automatic operation: infeed movement via cam switch: rapid advance, rapid return, grinding operation, infeed stop, μm infeed. - Automatic longitudinal grinding cycle - Central coolant supply for all grinding points - Workpiece spindle head with steplessly adjustable drive for both rotating and clamped spindle operations. - Infeed control for plunge and traverse grinding, settings for retraction, infeed amounts, feed rates, spark-out times, empty strokes - Paper band filter unit approx. 250 L - Comparable to Weiss / EMAG / GP-cylindrical grinding machines / Studer / Kellenberger / Schaudt / Tschudin / Tacchella / Dannobat
