Used Guideway Grinding Machine for sale (84,181)

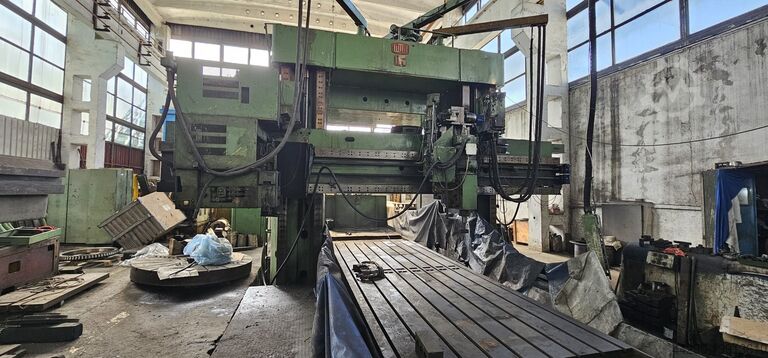

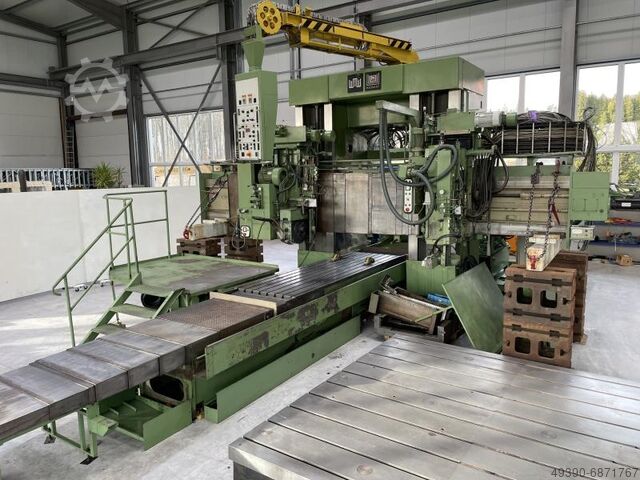

Condition: good (used), Year of construction: 1972, Slideway grinding machine WMW SFBZ 2200/6000 Manufactured by WMW Germany in 1972 Main technical data: Table size: 2240x6000 mm Iisdpsw U A Rmjfx Aanok Max. grinding width: 2200 mm Max. grinding length: 6000 mm Max. grinding height: 2000 mm Max. workpiece weight: 15000 kg For more information, please contact us.

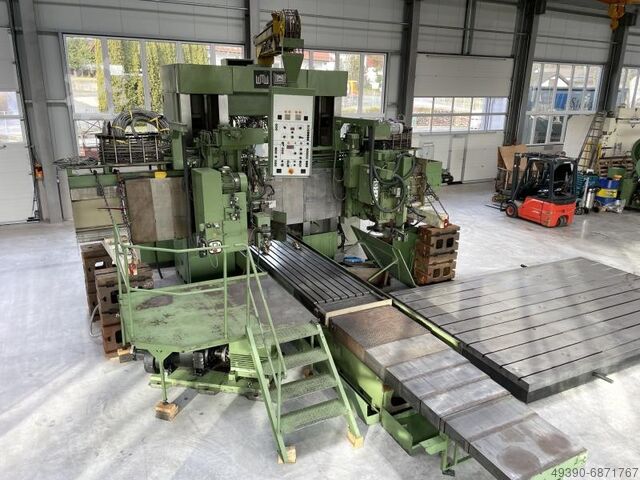

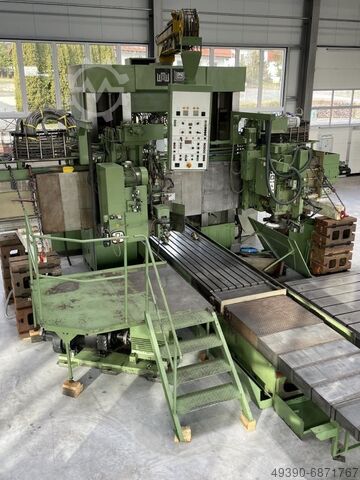

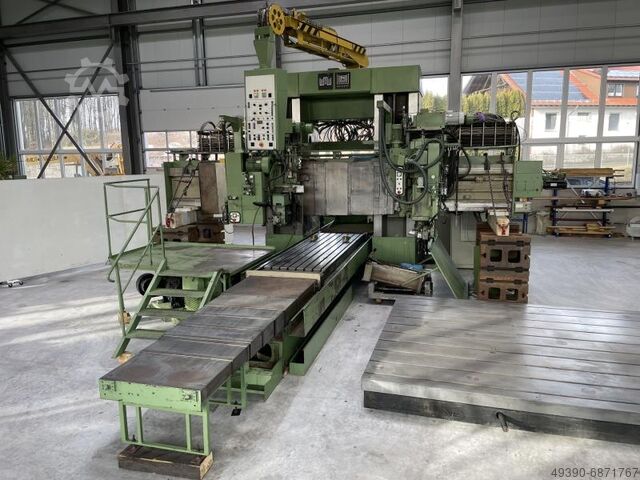

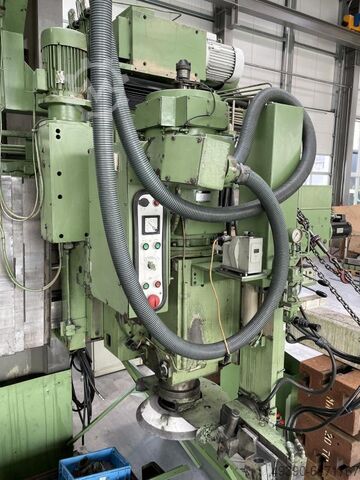

Condition: used, Guideway and surface grinding machine WMW FRITZ HECKERT Aschersleben type SZ 1000 x 1250 x 3000 / 344 make no. 13.2236.2 year of construction 1989 nominal grinding area 3000 x 1250 mm table clamping area 3240 x 1000 mm grinding length max. 3300 mm Machining width 1250 mm Machining height 1250 mm grinding wheel diameter (surface grinding support) max. 600 mm grinding wheel width (flat grinding support) max. 100 mm grinding wheel diameter (swivel support) max. 450 mm Mains connection 400 Volt, 50 Hz - grinding support swiveling, drive power 16,5 kW, infinitely variable speed - grinding support for surface grinding, drive power 15 kW, infinitely variable speed - new electrical control, based on SIEMENS S7 from year 2001 - new electric control cabinet beside, year of construction 2001 - infinitely variable grinding wheel speed at both grinding supports Iiodpfx Aaehv A A Djnek - swiveling wheelhead for guideway and profile grinding - swivel-mounted and height-adjustable control panel - coolant system adjacent - Hydraulic system adjacent - oil circulation lubrication adjacent - Various grinding wheels and holders space requirement complete L x W x H 11900 x 7700 x 4600 mm weight 45 ton. very good condition

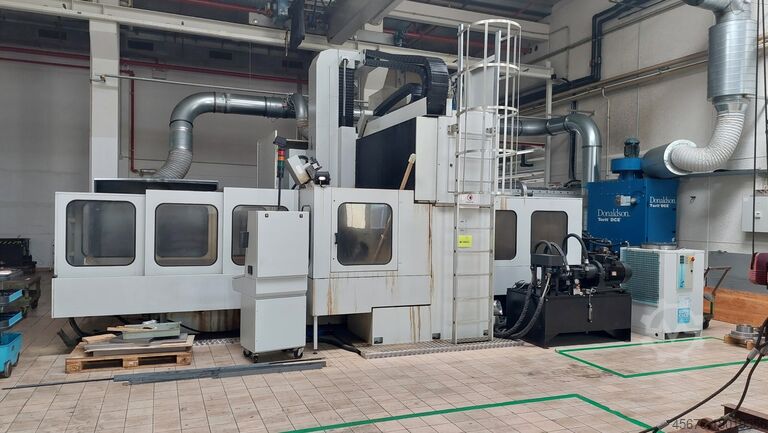

Condition: ready for operation (used), Year of construction: 1980, operating hours: 15,339 h, functionality: fully functional, grinding width: 2,650 mm, grinding length: 11,500 mm, table load: 10,000 kg, grinding height: 2,000 mm, grinding wheel diameter: 600 mm, The machine was retrofitted by the seller in 2020! The machine remained powered until 01.08.2025! TECHNICAL DETAILS Grinding Area: Maximum grinding width: 2,650 mm Maximum grinding length: 11,500 mm Maximum grinding height: 2,000 mm Maximum workpiece height: 2,120 mm Maximum distance between columns: 2,670 mm (by removing the guideways, a width of 2,750 mm can be achieved) Table size: 2,240 x 12,000 mm Maximum table load with even weight distribution: 10,000 kg/m Travel and Adjustment Ranges: Cross slide travel: 1,800 mm Vertical adjustment of universal grinding support: 450 mm Vertical adjustment of grinding support with horizontal spindle: 250 mm Head inclination: ±90° Grinding Spindle: Wheel diameter: 600 mm Wheel width: 120 mm Wheel bore: 200 mm Wheel speed: 1,000 rpm Spindle power: 30 kW MACHINE DETAILS Control: Fanuc CNC 31i Model A Operating hours: 15,339 hours EQUIPMENT Iedpfxow I Ebuj Aanjik Enclosure without roof

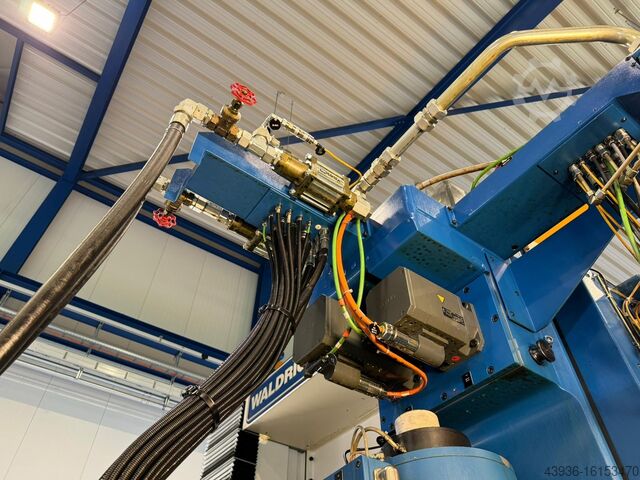

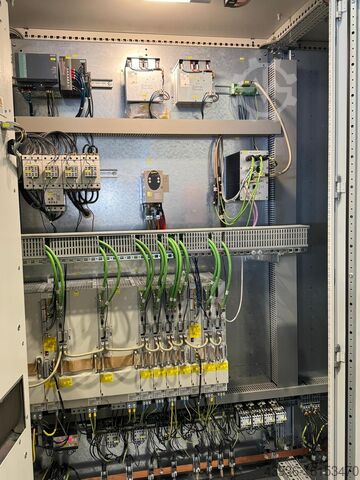

Condition: good (used), Year of construction: 2012, grinding width: 2,000 mm, workpiece weight (max.): 18,000 kg, grinding length: 8,000 mm, Manufacturer: Waldrich Coburg Type: 30-10 S 3640 Control system: SIEMENS 840D Year of construction: 2012 Guideway / Slide way / Surface Grinding Machine Universal grinding head S10 with 110 Degree tilting / 2500 Rpm / 7.5 kW Vertical grinding head S30 with Ø 600 x 150 / 930 Rpm / 22 kW Double SIEMENS 840D Control panel Left & Right side machine KNOLL HL650/4000 Filtration system new 2023 Automatic doors (4x) for easy machine / load / clamping acces Hydraulic table drive with 18000 kg work load Rebuild in 2012 for 1.5 Mil EUR Large package flanches and stones Large package spare parts / ballscrews / measuring / protection covers Specifications Metric US Standard X - axis 8825 mm Y - axis 3010 mm Z - axis 2500 mm Table length 8000 mm Table width 1800 mm Table load 18000 Feed X - axis 1 - 45.000 mm/min. Feed Z-axis 100 - 3000 mm/min. Grinding stone dimensions 600 x 150 mm Power output 22 kW Rotational speed 930 rpm Coolant system Ijdpstp T N Tjfx Aanoik Knoll 4000 L Feed Y - axis 1 - 700 mm/min. Dimensions (estimate) length 24360 mm width 9550 mm height 7000 mm weight 80200 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: good (used), Year of construction: 2015, operating hours: 250 h, functionality: fully functional, For Sale: Guideway Grinding Machine (Retrofitted from Metal Planing Machine) We offer a robust guideway grinding machine, which has been professionally converted from an original metal planing machine. The main advantage lies in its relatively compact footprint in relation to the workpiece capacity. Technical Specifications: • External dimensions (LxWxH): 4,800 x 2,500 x 2,000 mm • Required floor space: 4,800 x 3,500 x 2,700 mm (+ control cabinet, coolant tank, access) • Table size: 2,000 x 800 mm • Distance between columns: 1,000 mm • Travel paths (X/Y/Z): 2,000 / 1,000 / 600 mm Upgrades & Features: • New ball screw spindles and bearings • 2 new motors + 2 overhauled motors • 3 new frequency inverters • New Siemens SINUMERIK 802C baseline CNC system Iodpfjxx Uudsx Aaneik • Large grinding spindle: 2,840 rpm – refurbished + new motor • Small grinding spindle: 18,000 rpm – refurbished • Including control cabinet, coolant tank with pump, and separate, wall-mounted inverter for small spindle Inspection and trial run possible by appointment. Please contact us for more information.

Year of construction: 1998, condition: good (used), CHEVALIER FSG 1640 AD SURFACE GRINDING MACHINE MAKE CHEVALIER, MADE IN TAIWAN MODEL FSG-1640 AD YEAR 1998 Iedjirfpgjpfx Aansik TABLE SIZE 1000 x 400 mm GRINDING WHEEL SIZE 445 mm TRAVERSES 400 x 1000 mm MAX HEIGHT FROM TABLE TO SPINDLE CENTRE 445.0 mm TOTAL POWER REQUIRMENT 7.4 kW PLUS AUTOMATIC DOWN FEED WHEEL-MOUNTED WHEEL DRESSER SYSTEM HYDRAULIC MOVEMENT COOLANT SYSTEM 400.0 x 1000.0 mm ELECTRO MAGNETIC CHUCK MACHINE MANUALS

Condition: as good as new (ex-display), functionality: fully functional, Table size 540 x 250 mm Max table travel 560 x 260 mm Max distance from table to spindle center 450 mm Table slide-way Double-V rail Iodpfxsu Hzg Re Aanjik Feed of cross handwheel, per revolution 5 mm Feed of cross handwheel, pe graduation 0,02 mm Feed of vertical handwheel per revolution 1,25 mm Feed of vertical handwheel per graduation 0,01 mm Wheel speed (50 Hz) 2850 rpm Wheel speed (60 Hz) 3440 rpm Wheel size 200x31,75x20 mm Power of spindle motor 1500 W Hydraulic station motor 1500 W Working pressure 3 Mpa Max runoff 18 L/min Fuel tank capacity 80 L Coolant pump 40 W Machine's net weight 900 kg Size 1,80x1,40x1,80 m Robust and reliable construction. Zero working hours Price should remain the same till end of December.

Condition: new, Year of construction: 2025, A superfine ball mill is a type of milling machine that is used to grind materials into very fine particles. This type of ball mill has some distinctive features that make it especially suitable for processing even the hardest materials with low contamination and minimal wear. It is commonly used in various industries, including pharmaceuticals, minerals, pigments, and chemicals, for producing micro powder or nanoparticles. Here are some key features and considerations for a superfine ball mill for micro powder: 1. High Grinding Efficiency: Superfine ball mills are designed to achieve high grinding efficiency by utilizing grinding media with a relatively small size, leading to a large surface area for grinding. 2. Precision Control: These mills often come with advanced control systems to regulate parameters like rotation speed, temperature, and grinding time, allowing precise control over the particle size distribution. 3. Specialized Design: The mill is typically designed with features to minimize contamination, such as using materials resistant to wear and corrosion. Some mills also have cooling systems to prevent overheating during the milling process. 4. Variety of Materials: Superfine ball mills can handle a wide range of materials, including both brittle and fibrous substances. They are often used for milling hard materials that require fine grinding, such as ceramics, minerals, or pigments. Iiodoq Nf Uwjpfx Aanek 5. Size Reduction to Micro or Nano Level: The primary goal of a superfine ball mill is to reduce particle size to the micro or even nano level. This is achieved by the intense grinding action that occurs within the mill. 6. Classifier System: Some superfine ball mills incorporate a classifier system to control the particle size distribution more precisely. This allows for the separation of fine particles from coarser ones during the milling process. 7. Batch or Continuous Operation: Depending on the specific design, these mills can operate in either batch or continuous mode, offering flexibility based on the production requirements. 8. Safety Measures: Safety features may be included, such as monitoring and control systems to prevent overloading, overheating, or other potential issues during operation. When selecting a superfine ball mill for micro powder production, it's important to consider the specific requirements of your application, the characteristics of the materials you're working with, and the desired final particle size distribution. Always follow the manufacturer's guidelines for operation, maintenance, and safety to ensure optimal performance and longevity of the equipment.

Condition: excellent (used), Year of construction: 1988, operating hours: 1,000 h, functionality: limited functionality, machine/vehicle number: 99223, overall weight: 2,800 kg, Grinding Dia: min=0.8 to max 250 mm; Vertical stoke : 90 mm; Max. travel of the grinding head :300 mm Table size :320x600 mm; Max stroke of the table Tranversal 250 mm, Longitudinal 400 mm; Electric motor speed 80000 rpm, Pneumatic 180000 rpm. Dimensions 1585x1260x2665 mm, Weight: 2800 kg Iedpfxsxvccds Aaneik

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: MGB1320E, center height: 180 mm, workpiece weight (max.): 100 kg, grinding length: 500 mm, grinding wheel diameter: 400 mm, total width: 14,150 mm, total length: 18,000 mm, total height: 14,750 mm, grinding diameter: 320 mm, workpiece length between centers: 350 mm, grinding wheel width: 50 mm, spindle speed (max.): 3,000 rpm, feed length X-axis: 500 mm, feed length Z-axis: 150 mm, feed rate X-axis: 10 m/min, feed rate Z-axis: 1 m/min, overall weight: 2,100 kg, workpiece spindle speed (max.): 400 rpm, Equipment: rotational speed infinitely variable, Beijing Second Machine Tool Beijing Second Semi-automatic High Speed Cylindrical Grinding Machine MBS1320E On-line production equipment; test machine available; roundness within 0.001 beier machine tool works co ltd Online production equipment machine testing available Isdotr Azkepfx Aanoik The roundness within 0.001

Condition: new, Year of construction: 2024, functionality: fully functional, This powerful machine to meet the requirements of larger woodworking companies, ensuring exceptional sharpening results. Equipped with an electronic tooth counter and an autonomous cooling system. The ZM150 offers precise sharpening while maintainingoptimal operating conditions. With two electric motors, including a 150mm CBNdisk for sharpening and a motor reduction group for precise blade movement,this sharpener delivers outstanding performance. Power supply voltage - 380-400V Frequency - 50Hz Power - 0.20kVa Iedpfx Aasxiv Ugsneik Capacity - 65 teeth per min Blade width - 20 to 100 mm Tooth pitch - 6 -25mm Sharpening disc - Profiled 150mm CBN disc Weight - 115kg

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 199851086/1098, table width: 1,600 mm, overall weight: 6,700 kg, travel distance X-axis: 1,200 mm, travel distance Y-axis: 680 mm, travel distance Z-axis: 400 mm, TECHNICAL DETAILS X-axis travel: 1,200 mm Y-axis travel: 680 mm Z-axis travel: 400 mm Table width: 1,600 mm Table depth: 670 mm Magnet width: 1,200 mm Magnet depth: 600 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 5,900 x 3,000 x 2,500 mm Net weight: 6,700 kg Control: Conventional Power: 11.0 kW EQUIPMENT Documentation CE marking Iodpfx Aajx Hzuvjneik

Condition: good (used), Year of construction: 2004, DGT Plus control system (Siemens basis) Sanding length 2400 mm Sanding width 1290 mm Sanding height 700 mm Iodpfjvg Sifox Aanoik Magnetic table 2000 x 1100 mm Max. Table load capacity 5000 kg Grinding wheel width 150 mm Sanding spindle speed 960 rpm Machine weight approx. 30 tons

Year of construction: 1991, condition: ready for operation (used), General Data Measurements width 6610 mm Isdpfxsx D Hi Do Aansik Measurements depth 11500 mm Measurements height 5170 mm Machine weight 45800 kg Workpiece Workpiece weight 11000 kg This 3-axis WALDRICH COBURG 30-15 S 2525 grinding machine was manufactured in 1991. It features a robust structure with dimensions of 11,500 x 6,610 x 5,170 mm and a weight of approximately 45,800 kg. Capable of handling workpieces up to 11,000 kg, it offers a grinding length of 3,500 mm and a grinding width of 1,450 mm. If you are looking to get high quality grinding capabilities consider the WALDRICH COBURG 30-15 S 2525 machine we have for sale. Contact us for more information. Application Types Grinding

Condition: new, Year of construction: 2025, power: 7.5 kW (10.20 HP), Batch ball mills find applications in various industries where the processing of materials in discrete batches is required. The versatility of batch ball mills makes them suitable for a range of applications. Here are some common batch ball mill applications: 1. Ceramics Industry: - *Glaze Preparation:* Batch ball mills are extensively used in the ceramics industry for preparing glazes. Raw materials such as feldspar, quartz, and clay are ground with ceramic balls to achieve the desired particle size for glaze formulation. 2. Chemical Industry: Ijdpfx Aeq I N H Noanjik - *Material Grinding:* Batch ball mills are used for grinding and blending various chemical materials. This includes the production of pigments, dyes, and other specialty chemicals where precise particle size control is crucial. 3. Pharmaceuticals: - *Drug Formulation:* In pharmaceutical manufacturing, batch ball mills are used for grinding and blending powders to create drug formulations. The controlled environment provided by these mills is essential for maintaining the integrity of pharmaceutical compounds. 4. Food Industry: - *Ingredient Mixing:* Batch ball mills may find application in the food industry for mixing and grinding ingredients. This can include the production of food additives, flavorings, and other powdered or granular products. 5. Mining and Minerals Processing: - *Ore Grinding:* Batch ball mills are used in mining and minerals processing for grinding minerals and ores. The controlled grinding helps in obtaining the desired particle size for subsequent processes, such as mineral separation or extraction. 6. Paints and Coatings: - *Pigment Dispersion:* In the paints and coatings industry, batch ball mills are employed for dispersing pigments into paint formulations. Achieving a uniform particle size is crucial for the quality and appearance of the final coating. 7. Building Materials: - *Raw Material Grinding:* Batch ball mills are used in the preparation of raw materials for the production of building materials, such as cement and concrete. Grinding of materials like limestone and clay helps in obtaining the desired fineness for subsequent processes. 8. Electronic Materials: - *Ceramic Powder Processing:* In the electronics industry, batch ball mills can be employed for processing ceramic powders used in the production of electronic components and insulating materials. 9. Research and Development: - *Material Testing:* Batch ball mills are often used in research and development laboratories for testing and optimizing material formulations. They provide a controlled environment for small-scale processing and experimentation. 10. Customized Applications: - *Specialized Processes:* Batch ball mills can be adapted for various specialized processes in different industries where precise grinding and mixing are required. Custom modifications can be made based on specific application requirements. When using a batch ball mill, it's important to consider factors such as the type of material being processed, desired particle size, and the specific requirements of the end product. Additionally, following the manufacturer's guidelines and maintaining proper operating conditions are essential for efficient and effective milling processes.

Condition: used, Year of construction: 2010, Centre distance: 400 mm Wheel speed: 2085 rpm Grinding wheel size: Ø355×38×Ø127 mm Hydraulic tank: 65 l Machine net weight: 2000 kg Iedpfx Aox Hzz Nsansik

Condition: ready for operation (used), Year of construction: 1982, operating hours: 120 h, functionality: fully functional, machine/vehicle number: 572, wheel width: 32 mm, helix angle: 45 °, type of input current: three-phase, workpiece weight (max.): 200 kg, stroke length: 160 mm, rotational speed (min.): 50 rpm, rotational speed (max.): 280 rpm, grinding wheel speed: 1,920 rpm, grinding spindle motor power: 1,500 W, grinding wheel bore: 127 mm, grinding wheel diameter: 350 mm, overall weight: 8,000 kg, grinding wheel width: 32 mm, rotary table diameter: 280 mm, stroke adjustment: 160 mm, table diameter: 280 mm, table load: 200 kg, wheel diameter: 350 mm, Gear Grinding Machine Stanko 5M841 / 5A841 The Stanko 5M841 (5A841) is a heavy-duty gear grinding machine designed for precision finishing of cylindrical gears with straight and helical teeth. This machine is widely used in industrial gear production and is known for its robust construction, reliability, and long service life. The machine is capable of grinding gears with helix angles up to ±45° and supports workpieces weighing up to 200 kg. Grinding is performed using disc-type grinding wheels with a diameter of 260–350 mm and a width of 16–32 mm, ensuring high accuracy and consistent surface quality. The grinding wheel spindle operates at 1920 rpm and is driven by a 1.5 kW motor. The reciprocating stroke of the grinding slide is infinitely adjustable from 20 to 160 mm, with a variable stroke rate of 50 to 280 double strokes per minute, allowing precise adaptation to different gear sizes and grinding conditions. The machine is equipped with a rotary work table (Ø 280 mm) and is designed for continuous industrial operation. Power supply is 3-phase, 380 V, 50 Hz. With an overall machine weight of approximately 8000 kg, the 5M841 offers excellent stability during grinding operations. Key Advantages: -Suitable for straight and helical gears -Helix angle up to ±45° -Heavy, rigid cast-iron construction -Infinitely adjustable grinding stroke -Reliable mechanical design, easy maintenance -Ideal for medium and heavy industrial applications Iiedpox I Ncdefx Aanjk Typical Applications: -Precision gear finishing -Gear manufacturing and refurbishment -Mechanical engineering and heavy industry

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 430290898, table width: 2,000 mm, spindle speed (max.): 3,000 rpm, travel distance X-axis: 1,500 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 550 mm, TECHNICAL DETAILS X-axis travel: 1,500 mm Y-axis travel: 900 mm Z-axis travel: 550 mm Table width: 2,000 mm Table depth: 900 mm Magnet width: 1,500 mm Magnet depth: 800 mm Ijdpfx Aajx Hztleneik Power: 60.0 kW Max. spindle speed: 3,000 rpm MACHINE DETAILS Weight: 21,000 kg Control manufacturer: Unicon EQUIPMENT CE marking Documentation

Condition: ready for operation (used), Max. diameter: 320mm Max. working length: 1000mm Iiedpsx Iuursfx Aanok

Year of construction: 1984, condition: ready for operation (used), General Data Machine weight 2700 kg Workpiece Workpiece weight 130 kg This Kellenberger R125 x 600 cylindrical grinding machine was manufactured in 1984. It features a grinding diameter of 250 mm, a length of 600 mm, and a centre height of 125 mm. The machine can handle a maximum workpiece weight of 130 kg and includes a tailstock with a quill travel of 30 mm. For more information about this machine, please reach out to us. Application Types Iisdpox E Ebdsfx Aansk Grinding

Condition: good (used), For sale is an external cylindrical grinding machine of the brand VEB Werkzeugmaschinenbau and of the type SU 200/1x800 The machine is fully functional and ready for immediate use Technical data Grinding diameter: 200 mm Sanding length: 800 mm orbital diameter: approx. 160 mm Headstock speed: 200-1000 1/min Headstock: MK2 Grinding wheel diameter: approx 330 mm Table size: 900 x 200 mm Dimension: 3050x1300x1430 Weight: 4.6 tons On request, loading and transport (Europe-wide) can be organized for an extra charge. Prices plus VAT Iijdpfordf Hgjx Aansk Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: used, Year of construction: 1997, Catalogue number 7724 TECHNICAL DATA - number of working spindles: 6 pcs - spindles pressed pneumatically onto the material - milling units adjustable up/down, right/left, and at angles - 6 pneumatic clamps - stepless feed speed adjustment - max milling height: 130mm - max milling length: 2500mm - max milling width: 330mm - shaft diameter: 40mm Motor power: - milling units 1-2: 2 × 5.5kW - milling units 3-4: 2 × 4.5kW - milling units 5-6 universal (sanding or milling): 2 × 4.5kW - extraction nozzle diameter: 10x152mm - air supply requirement: 6-8 bar - dimensions (L/W/H): 8000x3000x2420mm - weight: approx. 6000kg ADVANTAGES – Italian manufacture – For through-feed processing of curved elements according to template – 6 milling units – Not repainted – Safety guards Iiedpow Rv Ahofx Aanek – Original DTR + CE documentation – Used machine in very good condition Net price: 46,900 PLN Net price: 11,160 EUR (based on 4.2 EUR exchange rate) (Prices may change depending on exchange rate fluctuations)

Condition: used, Year of construction: 2004, gebraucht 2004 050078 Jänner 2026, Zwischenverk Taiwan 19700 € 1 810 mm 630 mm 800 x 400 mm 800 x 400 mm 850 mm 900 mm 5 - 25 m/min 3 - 32 mm 405 mm 0,001 - 0,04 mm 1450 1/min 3,7 kW 3350 mm 1730 mm 1930 mm 2900 kg 355 x 50 x 127 mm Automatic vertical feed Electro-magnetic chuck 1 NEW grinding wheel flange 1 NEW grinding wheel Coolant system with paper filter Iisdsxvivdspfx Aanok Automatic dressing device above the grinding wheel with NEW diamond NEW balancing stand NEW covers for the cross guides Operating manual in English with EC declaration of conformity

Condition: ready for operation (used), Year of construction: 2008, General Data Measurements width 1560 mm Measurements depth 2000 mm Measurements height 2100 mm Machine weight 3000 kg Control Unit Brand FANUC Model 31i-Model A Movement X-Axis Movement 220 mm X-Axis Rapid Traverse 20000 mm/min Z-Axis Movement 300 mm Z-Axis Rapid Traverse 20000 mm/min Additional Equipment Workpiece spindle motor: 2 kW This VOUMARD VM 110 CNC T was manufactured in 2008. A robust internal grinding machine, it features a GE FANUC Series 31i-Model A control, a maximum grinding diameter of 150 mm, and a depth of 80 mm. It supports a longitudinal travel (Z-axis) of 300 mm and a cross travel (X-axis) of 220 mm. Consider the opportunity to buy this VOUMARD VM 110 CNC T internal grinding machine. Contact us for more information. Application Types Grinding Iiodpox D Ed Hefx Aansk

Year of construction: 2013, condition: ready for operation (used), General Data Measurements width 3200 mm Measurements depth 6400 mm Measurements height 2500 mm Machine weight 11000 kg Table Table load 1200 kg Tools Ijdpfjx D Na Esx Aanoik Number of index 30 This AMADA MEISTER G3 was manufactured in 2013. A robust surface grinding machine, it's ideal for precision metalworking. Consider the opportunity to buy this AMADA MEISTER G3 surface grinding machine. Contact us for more information. Application Types Grinding
